Jupiter B Static White

JUPI-BI

  • Compact and powerful surface-mount floodlight
  • Comprehensive selection of optical configurations
  • Control system: DALI, ON-OFF, 0-10V
  • 7.32" L x 5.28" W x ø6.77"

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: Warm White 2700K
  • Warm White 2700K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product
STATIC WHITE
print

General Features

JUPITER B is a versatile, medium-throw, exterior rated floodlight, boasting a clean design and a modern aesthetic. JUPITER B’s lightweight, compact body includes a printed glass lens with no visible hardware allowing for minimal visual impact on any project. JUPITER B features an impressive luminous efficacy and is available with ON-OFF, DALI, or 0-10V control configurations making it ideal for projects that do not require DMX/RDM functionality. JUPITER B offers three standard color temperatures, eight standard optical configurations, four standard finishes, and several accessories including a snoot and a visor. JUPITER B possesses a lumen output that is nearly 13% higher than the DMX/RDM controlled Jupiter fixture. Upgrade your exterior lighting game with Griven’s JUPITER B and enjoy stunning illumination and unmatched versatility.
Video
Color configuration
High brightness Warm White 2700K, 3000K and Natural White 4000K
Optical configuration
12° SP (Spot)
15° NB (Narrow)
25° MB (Medium)
47° WB (Wide)
61° EW (Extra wide)
39°h x 14°v ELH (Elliptical)
37°h x 22°v ELWH (Elliptical Wide)
37°h x 19°v WW (Wall Wash)
Max. Delivered lumen output
Up to 3793 lumens
Max. lumen/Watt
Up to 112 lumens per watt
Input voltage
120 - 277V
Amperage
0.28A @ 120V, 0.12A @ 277V
Power consumption
34 watts
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty

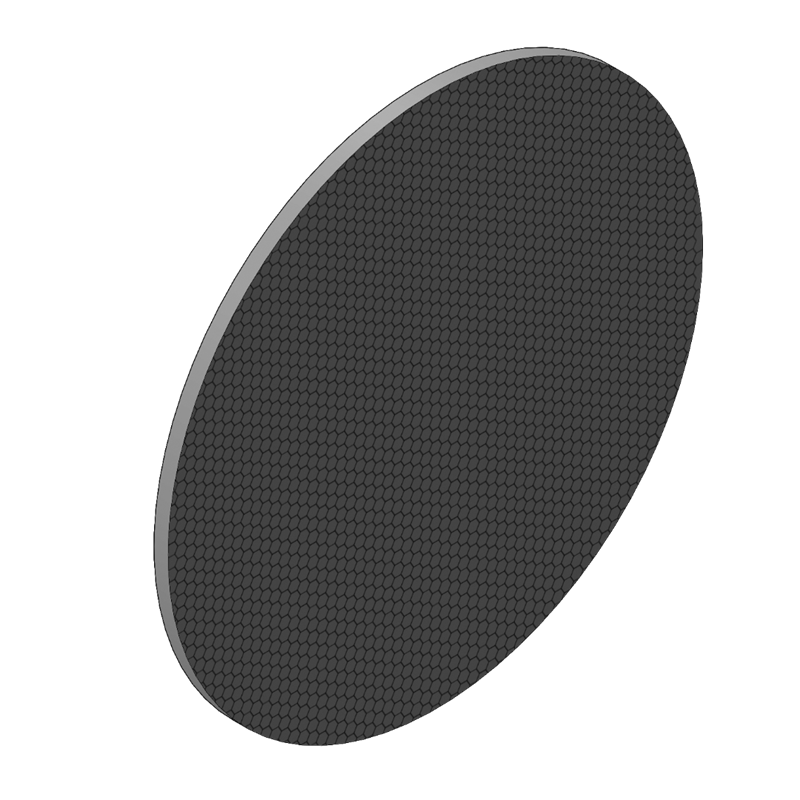

Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility and to be ordered separately.

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal
  • Wall Wash


Overview

  • IP67
  • IK09
  • DALI
  • 0-10V
  • ON-OFF
  • ETL Listed
