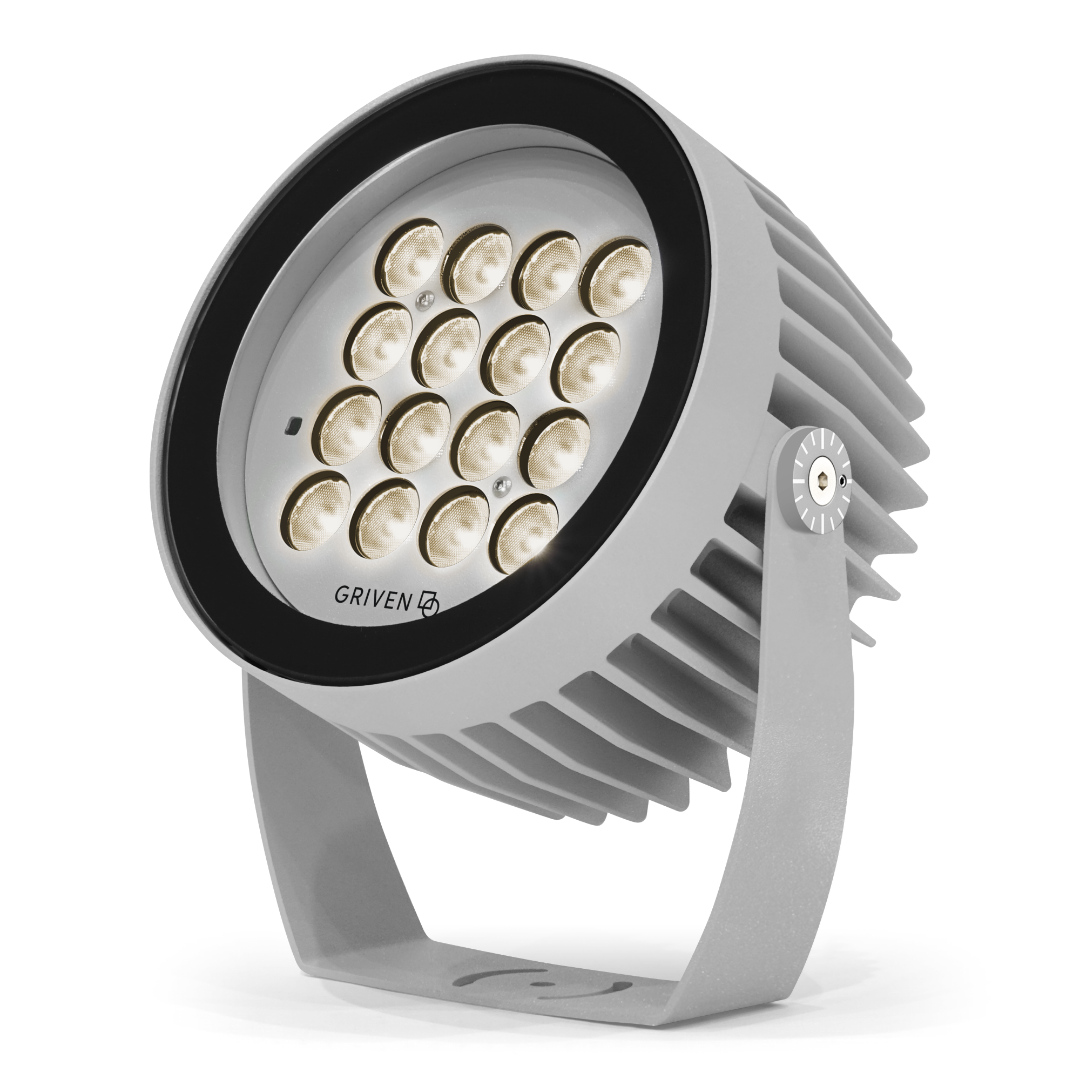

Jupiter Discrete Static White

JUPI

  • Compact and powerful surface-mount floodlight
  • Comprehensive selection of optical configurations
  • High brightness Natural White & Warm White
  • 7.3 x 5.3 x 8.8"

View finishes: Anthracite Grey

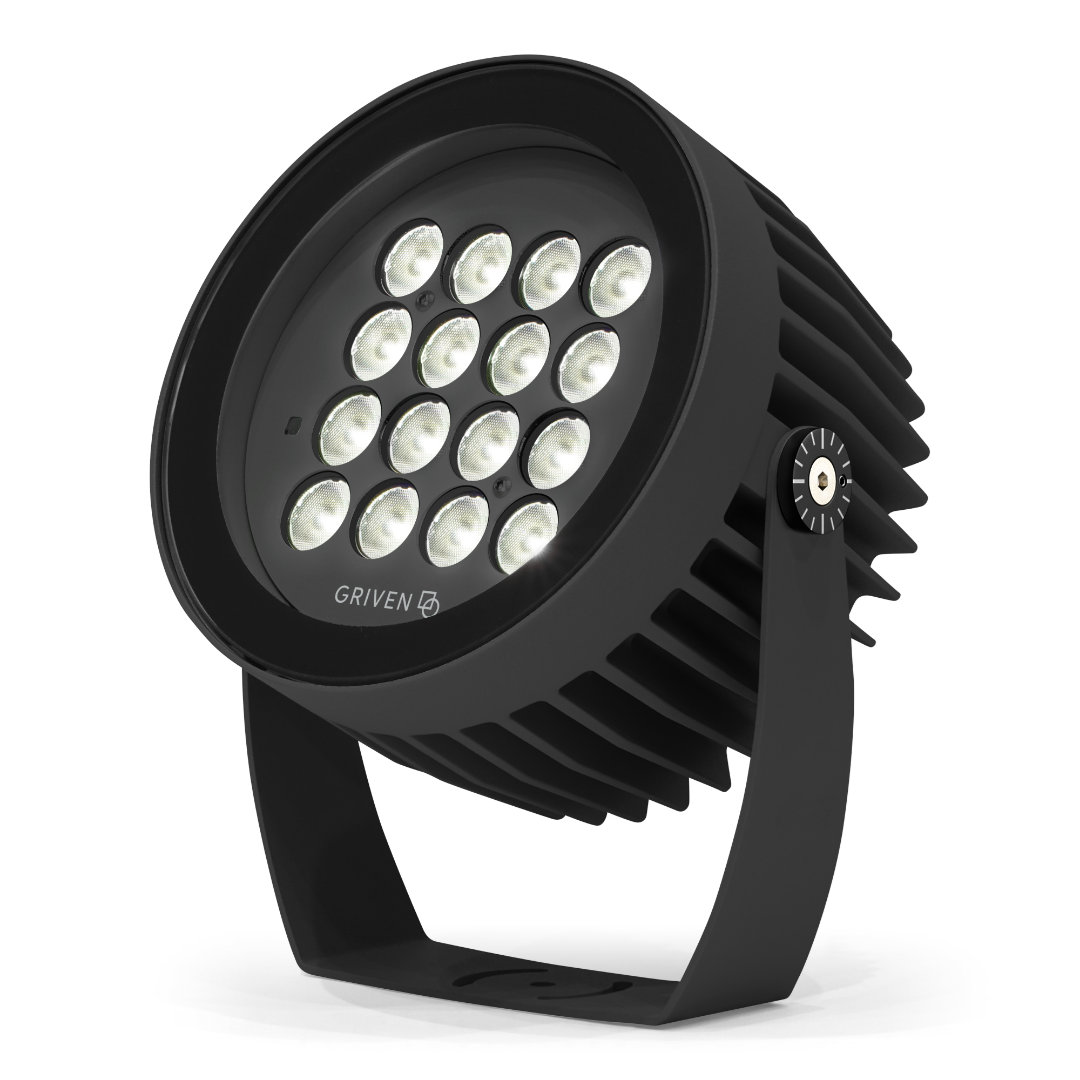

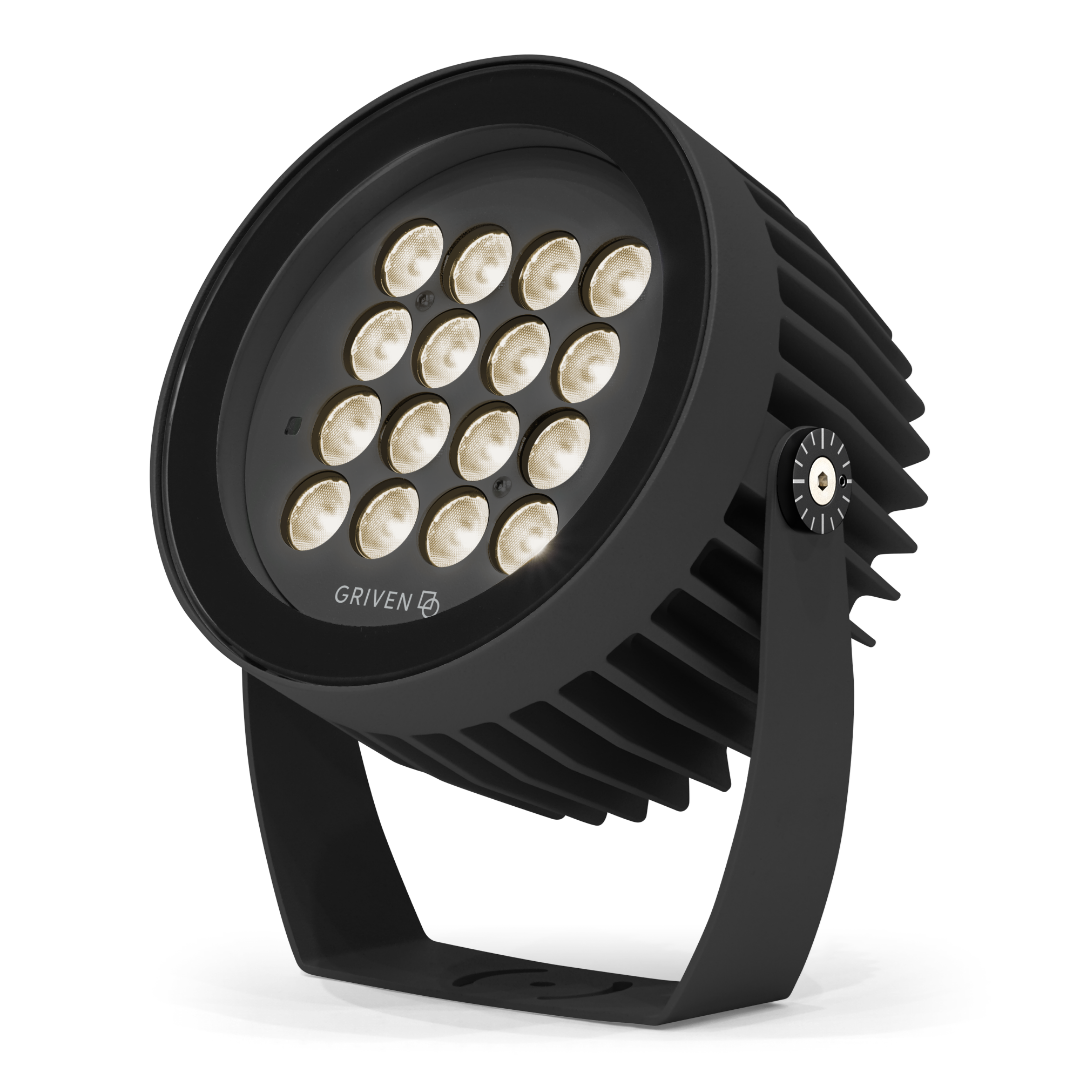

  • Anthracite Grey

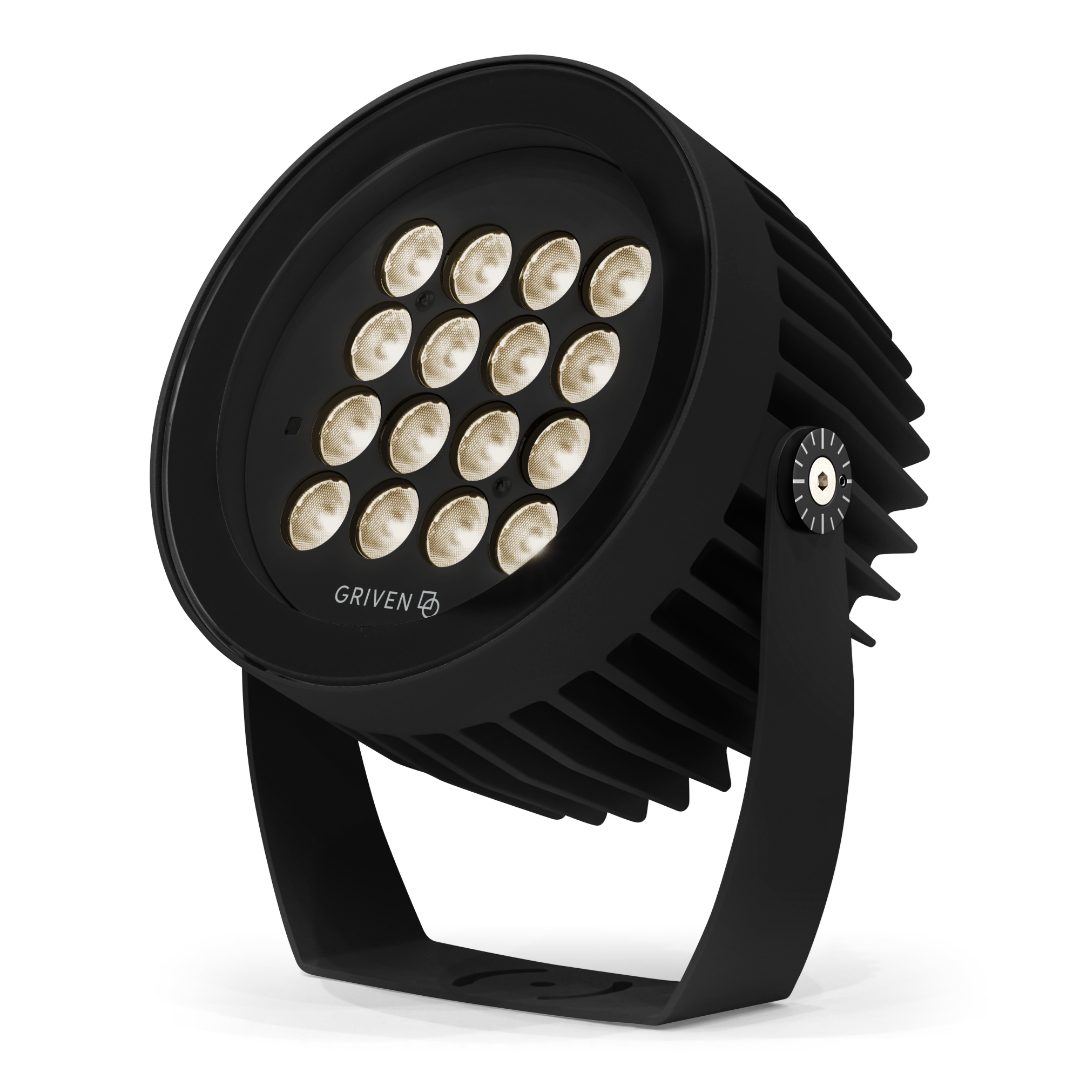

  • Black

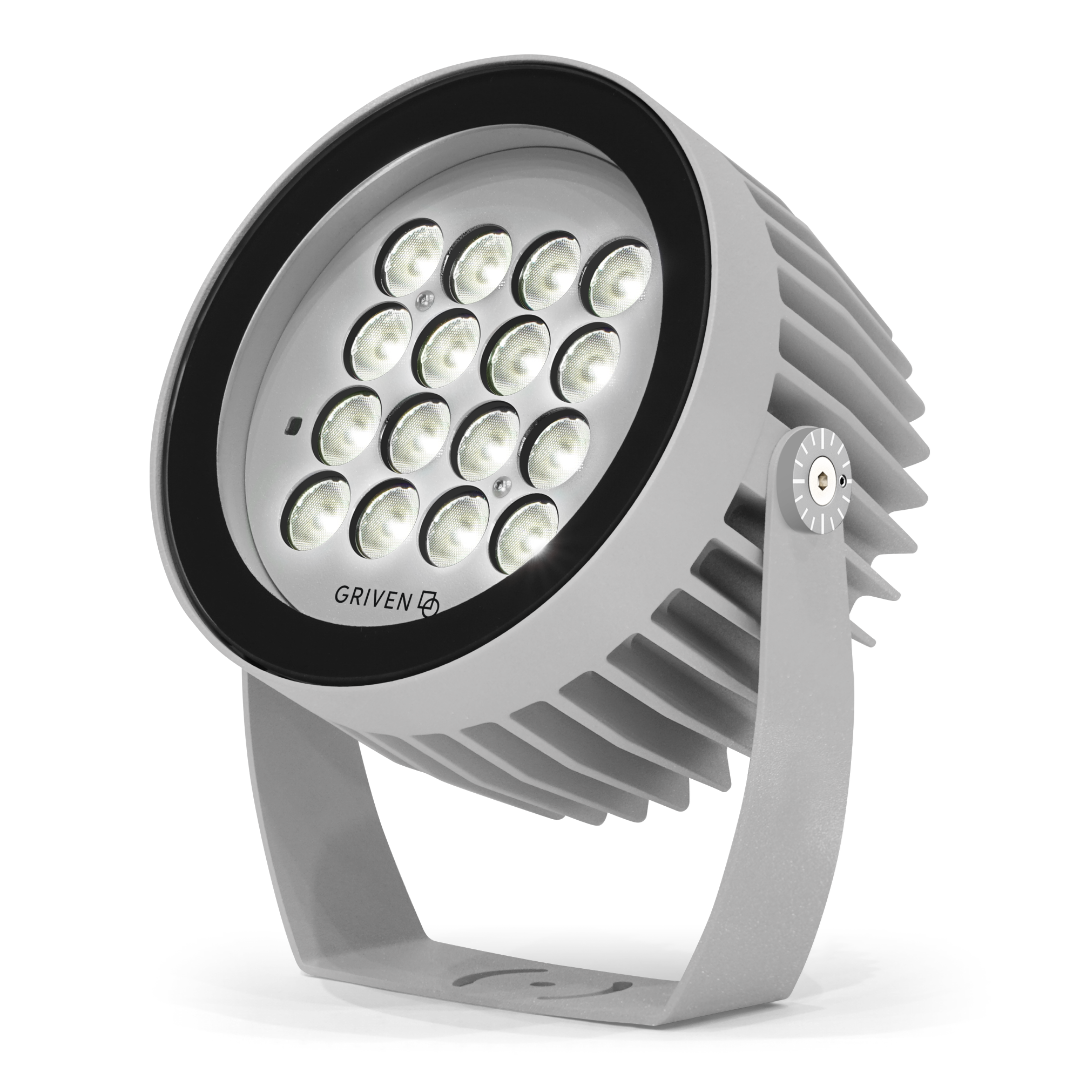

  • Griven Silver Grey

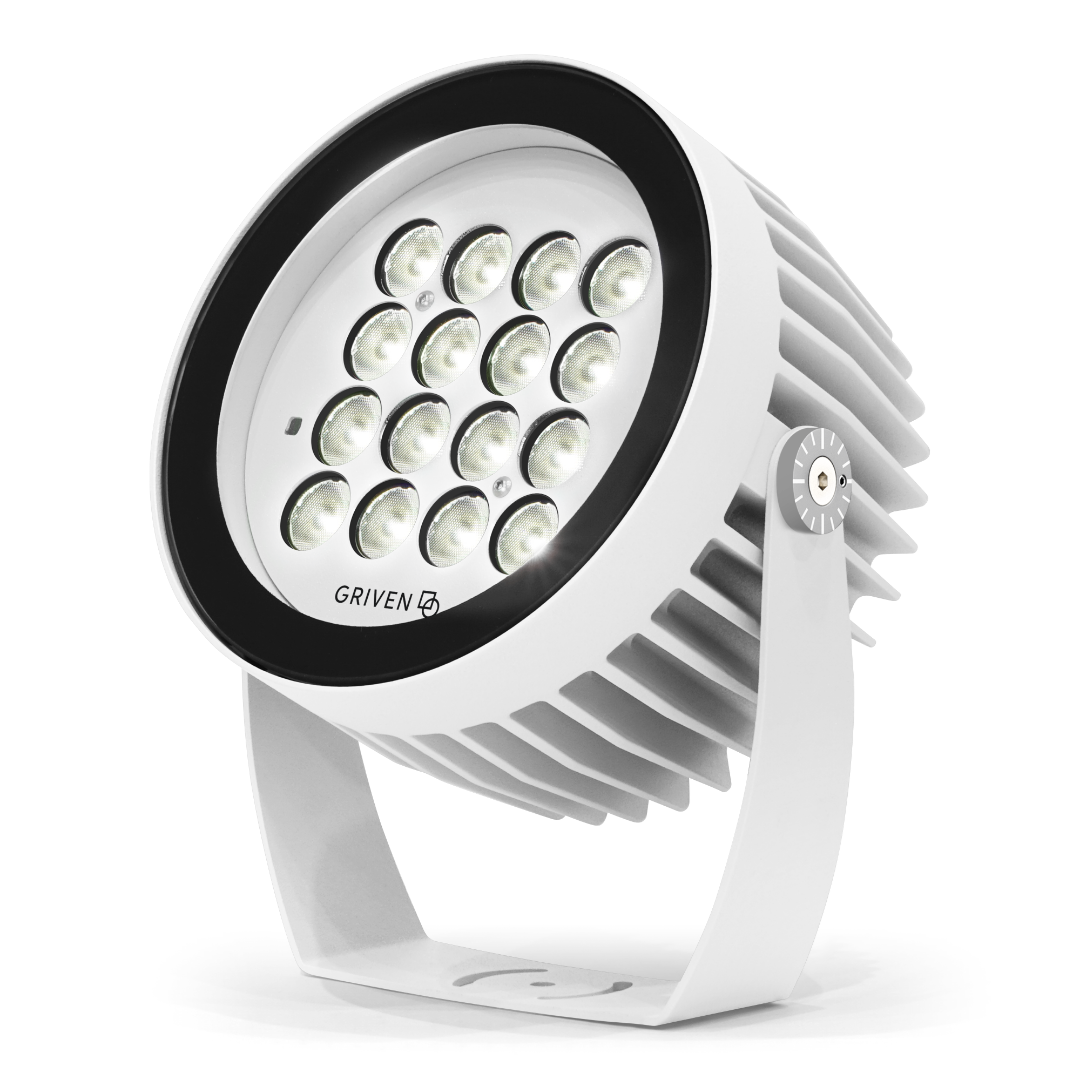

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: Warm White 2700K

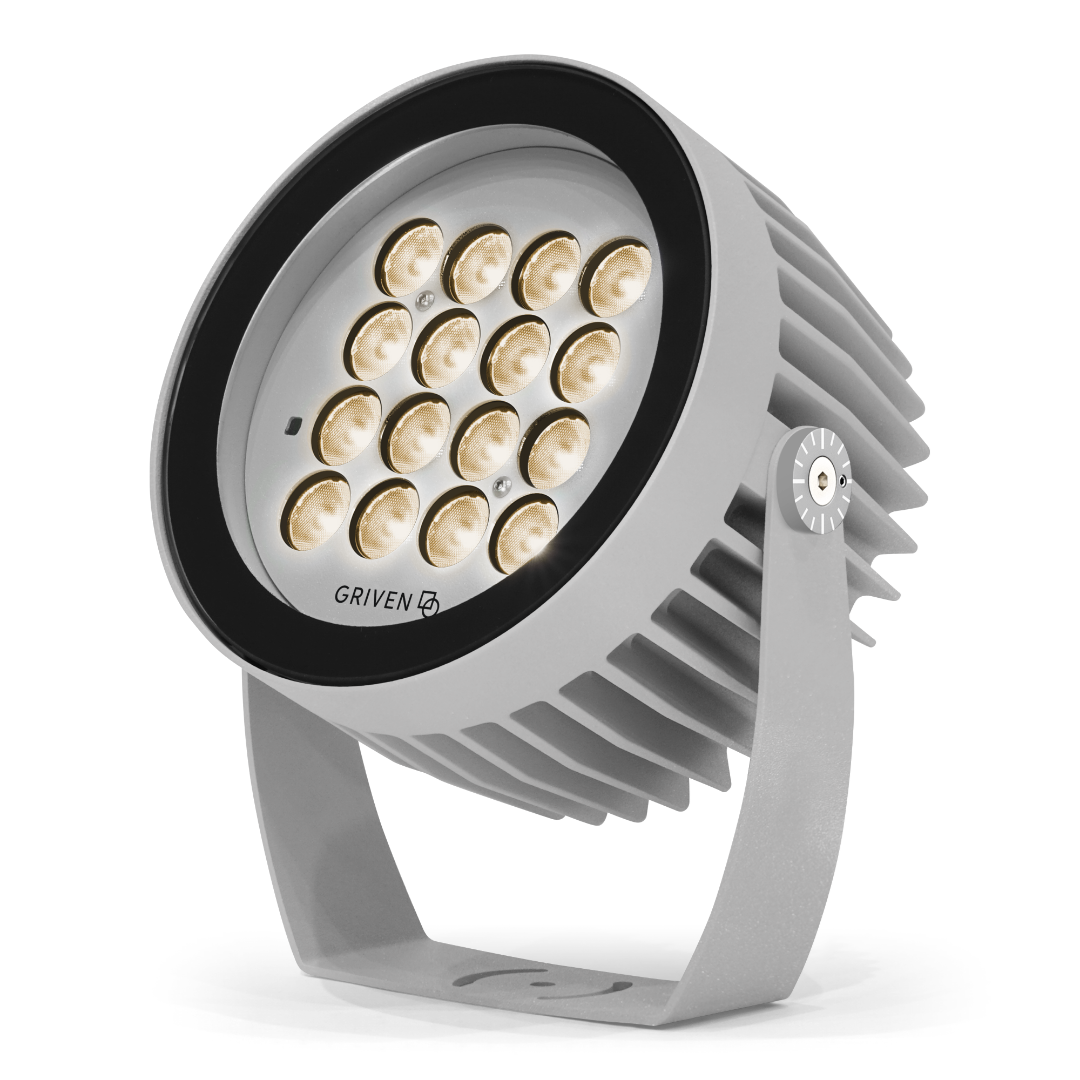

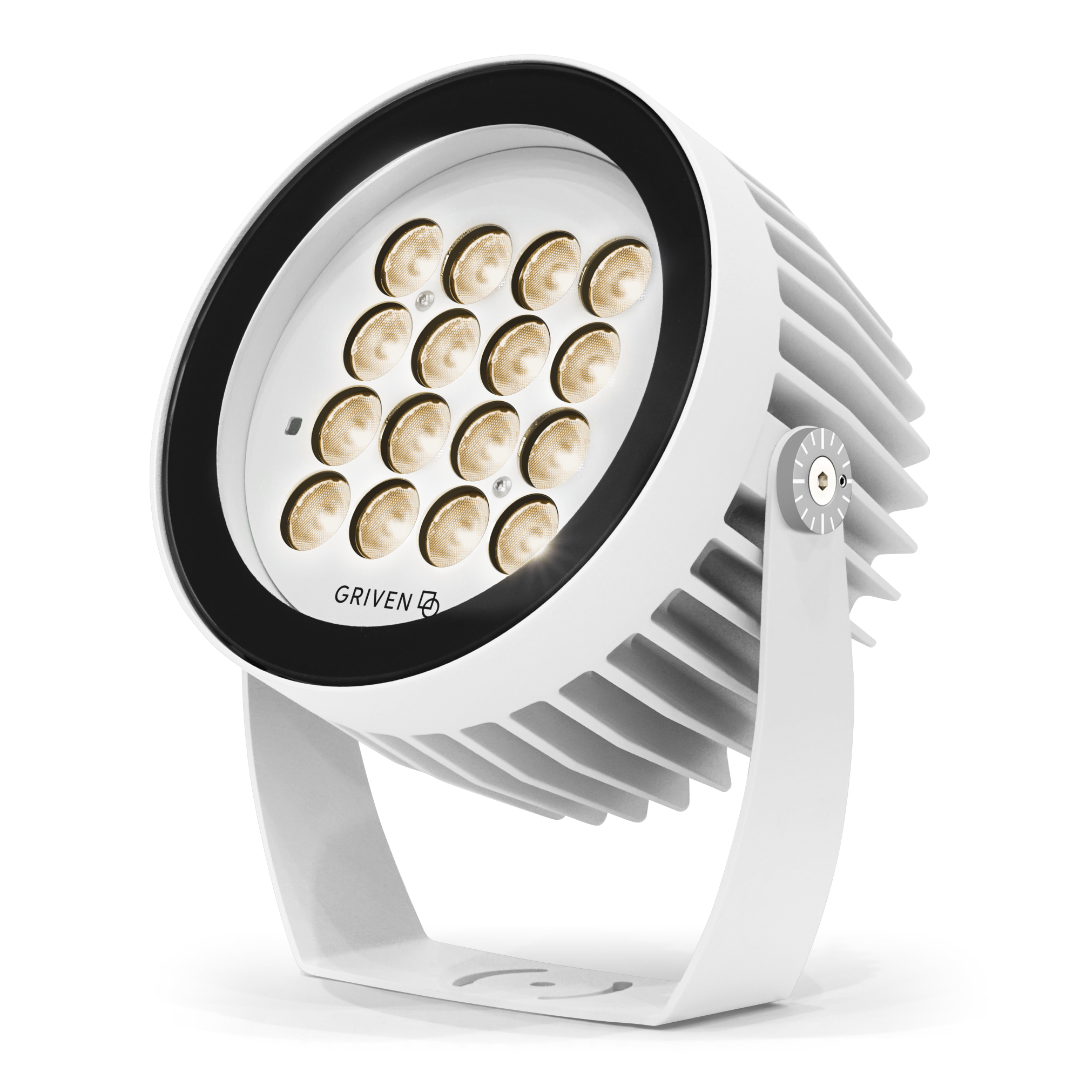

  • Warm White 2700K

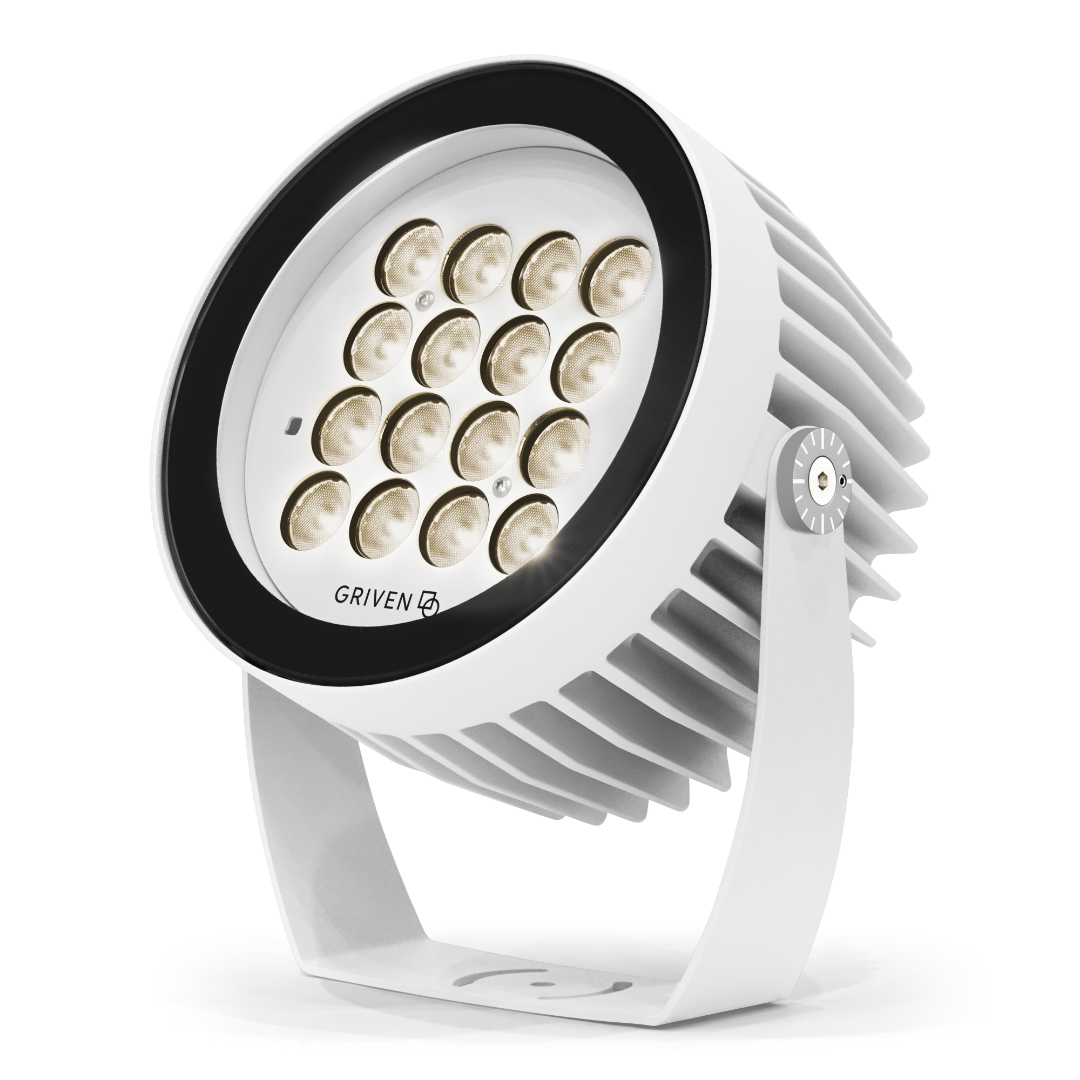

  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product
STATIC WHITE
print

General Features

JUPITER is a ground-breaking medium-throw, exterior surface mount spot, flood, and accent lighting solution with a modern, elegant, and clean design for unobtrusive installation within the landscape. Distinguished by high luminous efficacy, the IP67 rated luminaire features a choice of ten light distributions and four standard finishes.
Color configuration
High brightness Warm White 2700K, 3000K and Natural White 4000K
Optical configuration
12° SP (Spot)
15° NB (Narrow)
25° MB (Medium)
45° WB (Wide)
60° EW (Extra wide)
39°h x 14°v ELH (Elliptical Horizontal)
37°h x 23°v ELWH (Elliptical Wide Horizontal)
36°h x 19°v [5° incline] WW (Wall Wash)
Max. Delivered lumen output
2718 to 3308 lumens
Max. lumen/Watt
Up to 87 lumens per watt
Input voltage
120 - 277V
Amperage
0.32A @ 120VAC, 0.14A @ 277VAC
Power consumption
38 watts maximum
Ingress protection rating
IP67
Impact resistance rating
IK07
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility and to be ordered separately.

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal
  • Wall Wash


Overview

  • IP67
  • IK07
  • DMX
  • RDM
  • Rohs
  • ETL Listed
