Jupiter MC RGBW

JUPIMC

  • Compact LED fixture ideal for spot lighting and wall washing effects
  • Premium quality high brightness RGB+W 3000K/4000K multichip power LEDs
  • Seamless light distribution and smooth color transitioning
  • 7.32" L x 5.28" W x ø6.77"

View finishes: Anthracite Grey

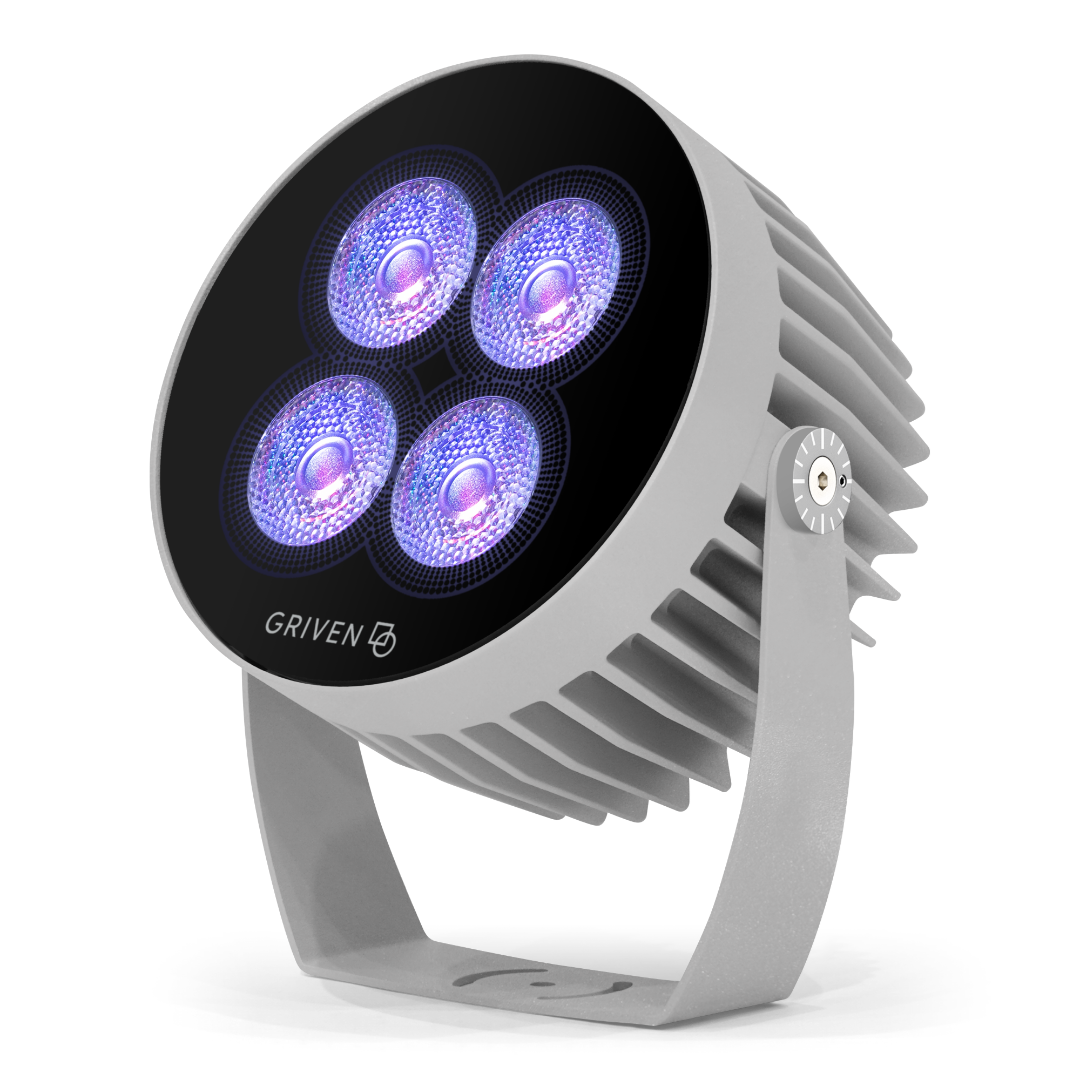

  • Anthracite Grey

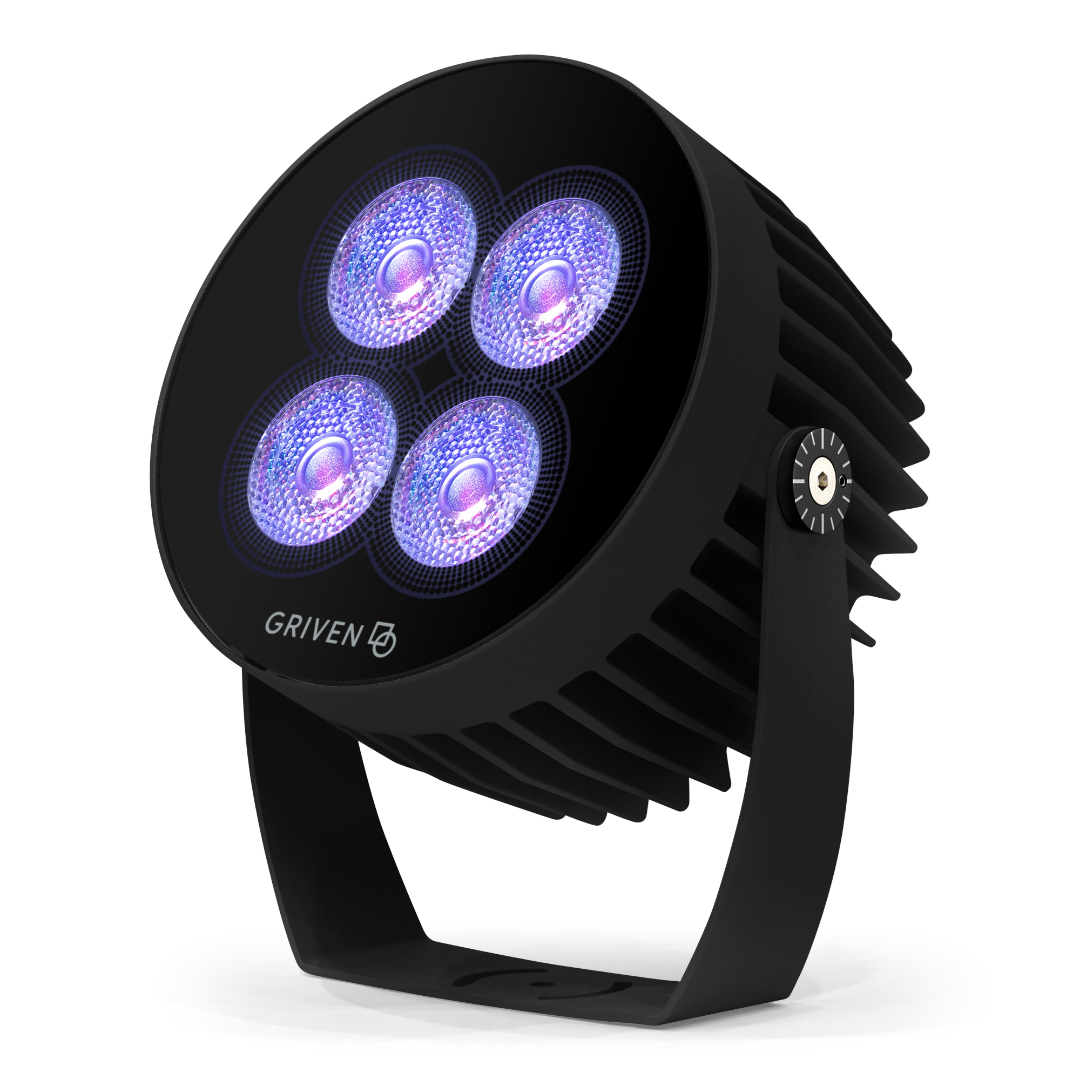

  • Black
  • Griven Silver Grey

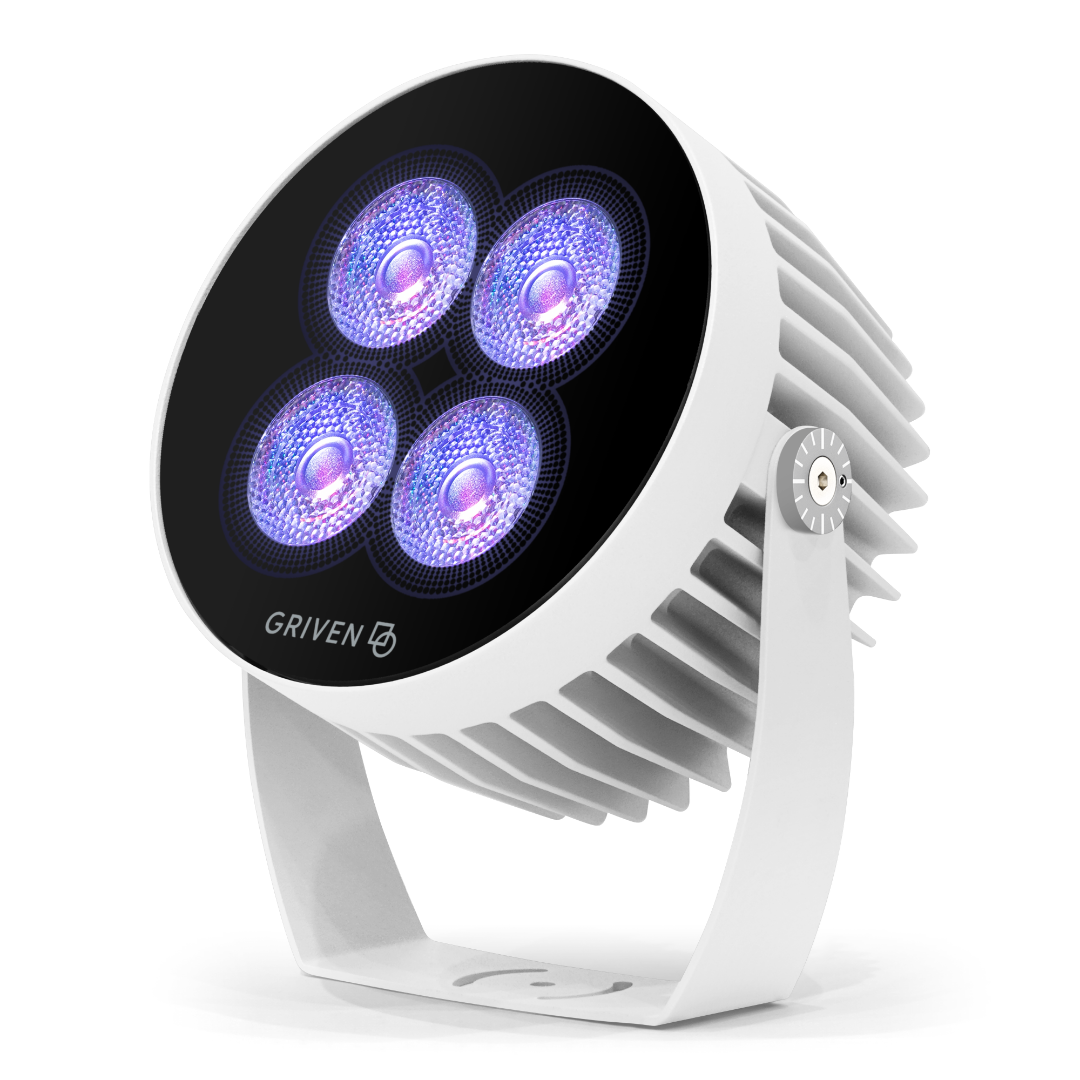

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product
COLOR CHANGING
print

General Features

JUPITER MC uses quad-color LEDs for superior color mixing directly at the lens. The multichip LED configuration is an efficient combination of powerful RGB with 4000K White multichip LEDs and unparalleled optical lenses, delivering seamless light distribution and smooth color transitioning without color separation. The luminaire is lightweight and compact with distinctive aesthetics for unobtrusive installation into a wide variety of settings. Options include a 3G mounting bracket, visors, and snoots.
Color configuration
High brightness RGB+W 3000K/4000K LEDs
Optical configuration
10° SP (Spot)
13° NB (Narrow)
24° MB (Medium)
45° WB (Wide)
Max. Delivered lumen output
up to 1646 lumens
Max. lumen/Watt
up to 43 lumens per watt
Input voltage
120 - 277V
Amperage
0.32A @ 120VAC, 0.14A @ 277VAC
Power consumption
38 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK07
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility and to be ordered separately.

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide


Overview

  • IP67
  • IK07
  • DMX
  • RDM
  • Rohs
  • ETL Listed
