Mars RGBW

MARS
MARSPE Polar Edition

  • Medium-throw floodlight for medium-sized architectural and landscape lighting installations
  • Max. delivered lm output: 6493 lm / 70 lm/W
  • Remarkably slim profile
  • 15.2" L x 3.7" W x 15.1" H

View finishes: Anthracite Grey

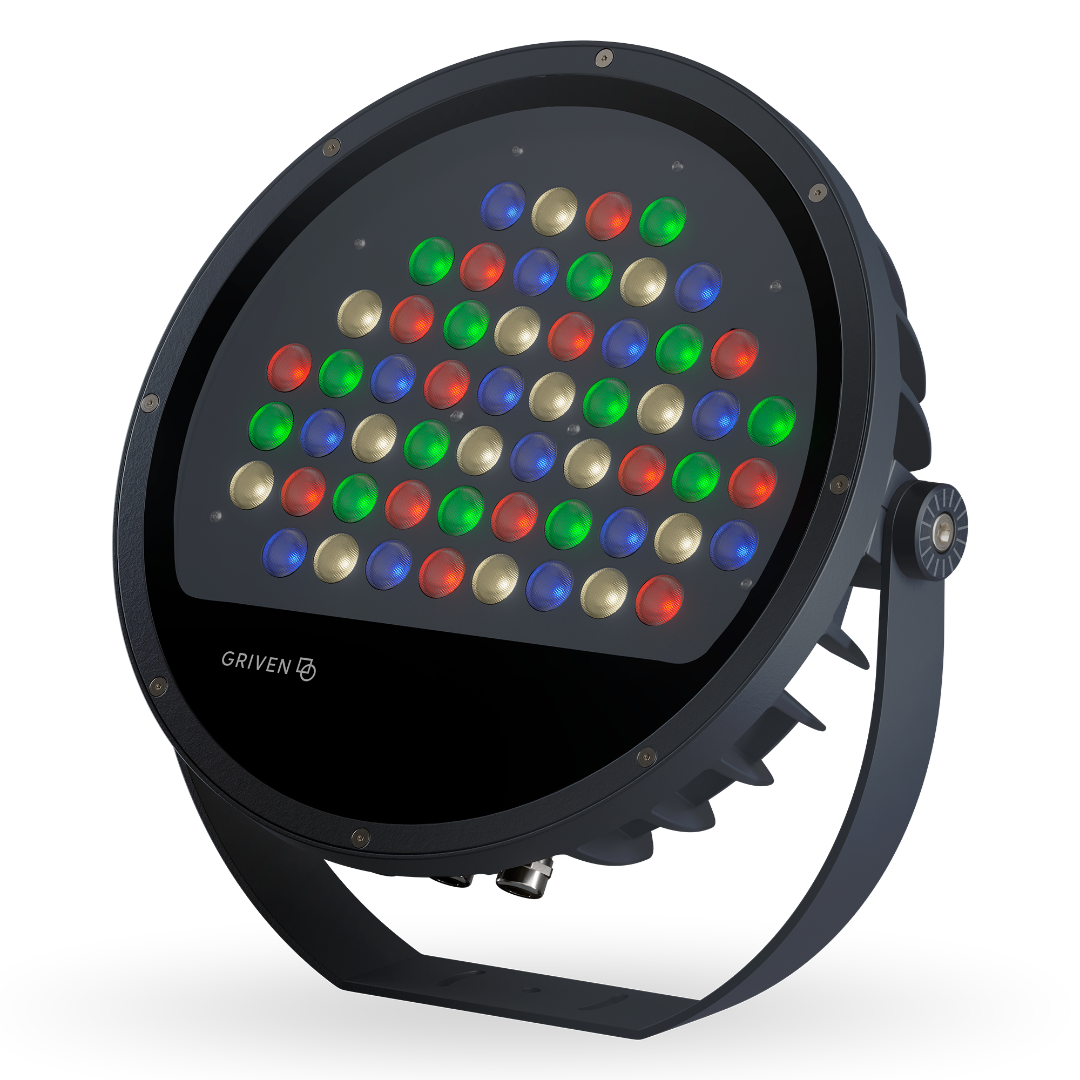

  • Anthracite Grey

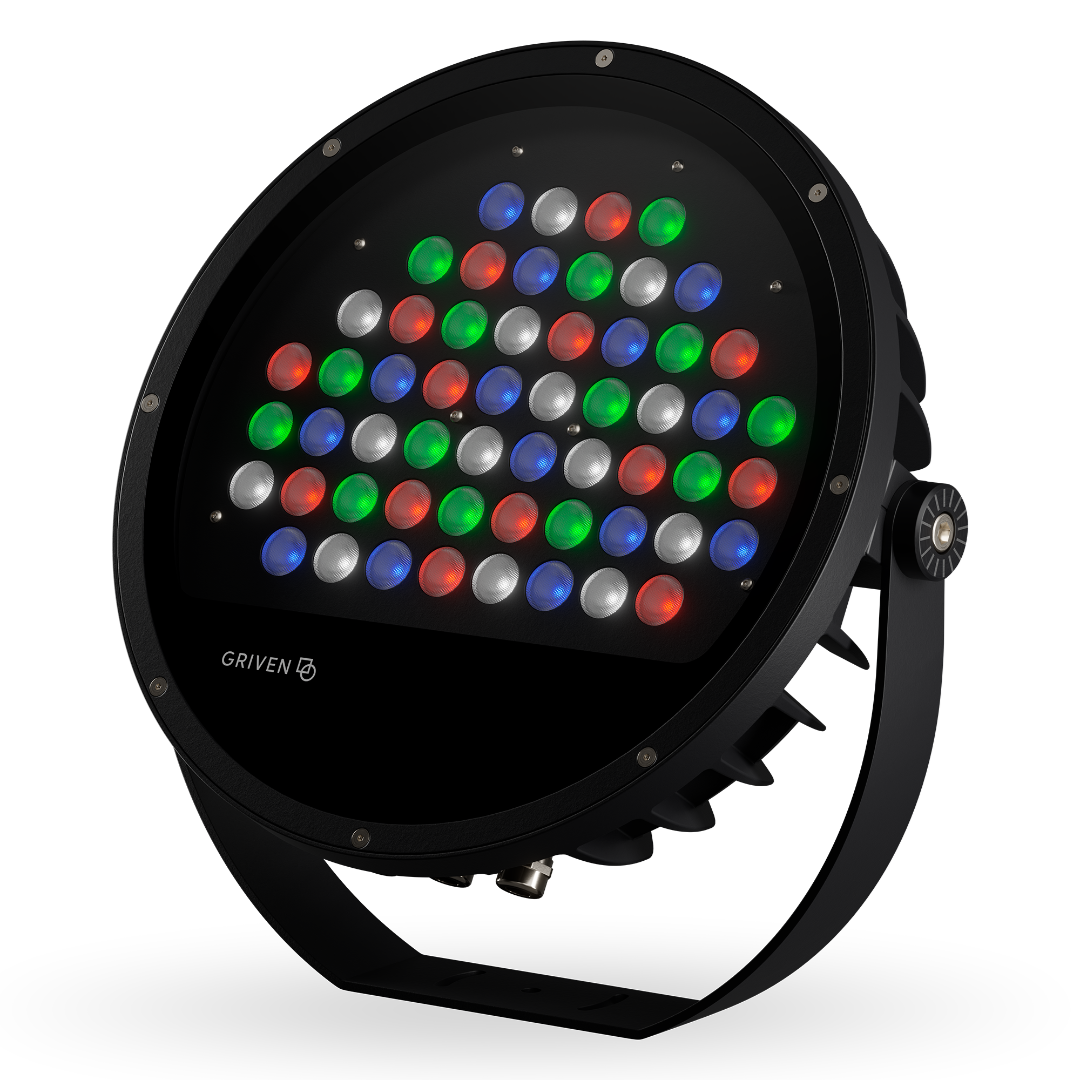

  • Black

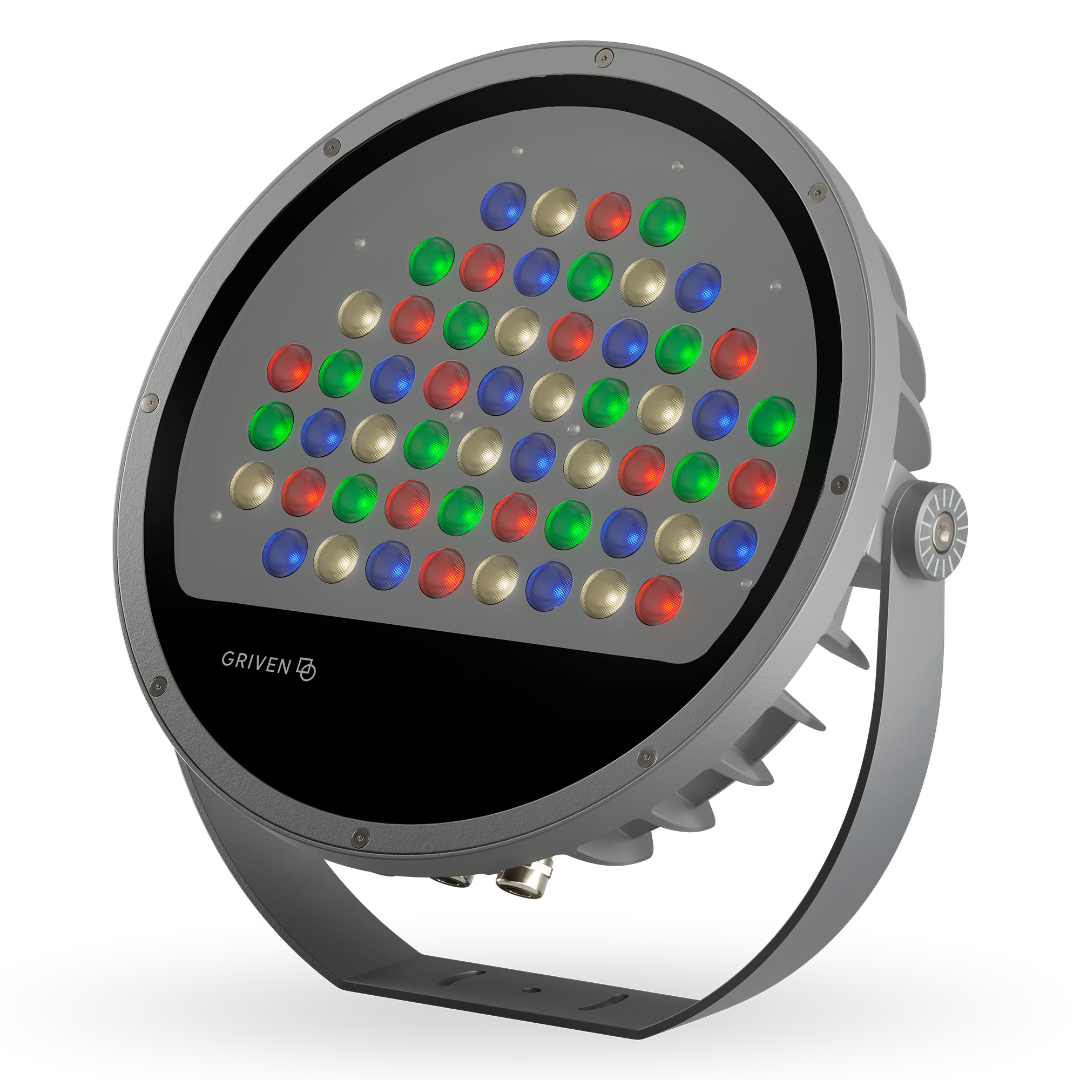

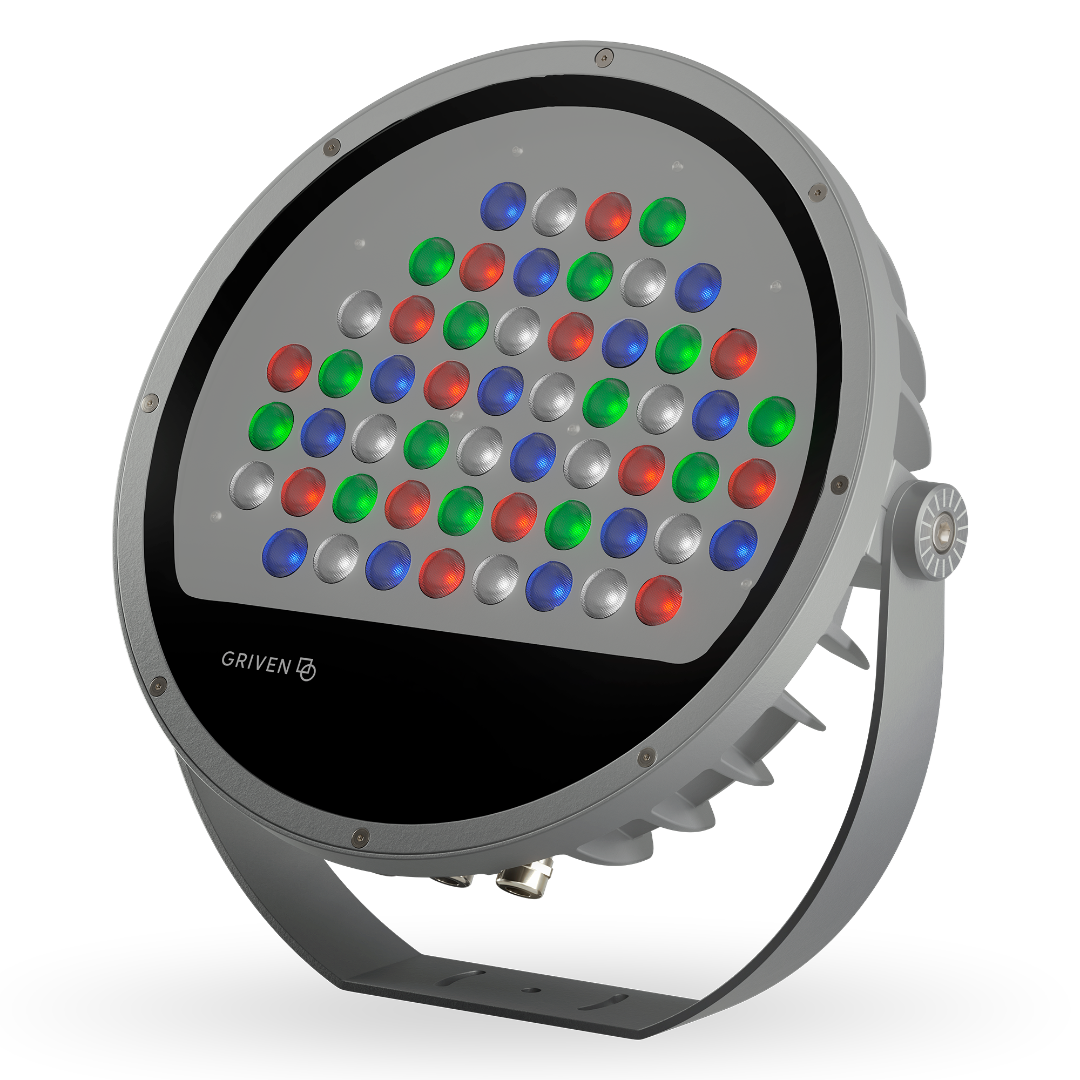

  • Griven Silver Grey

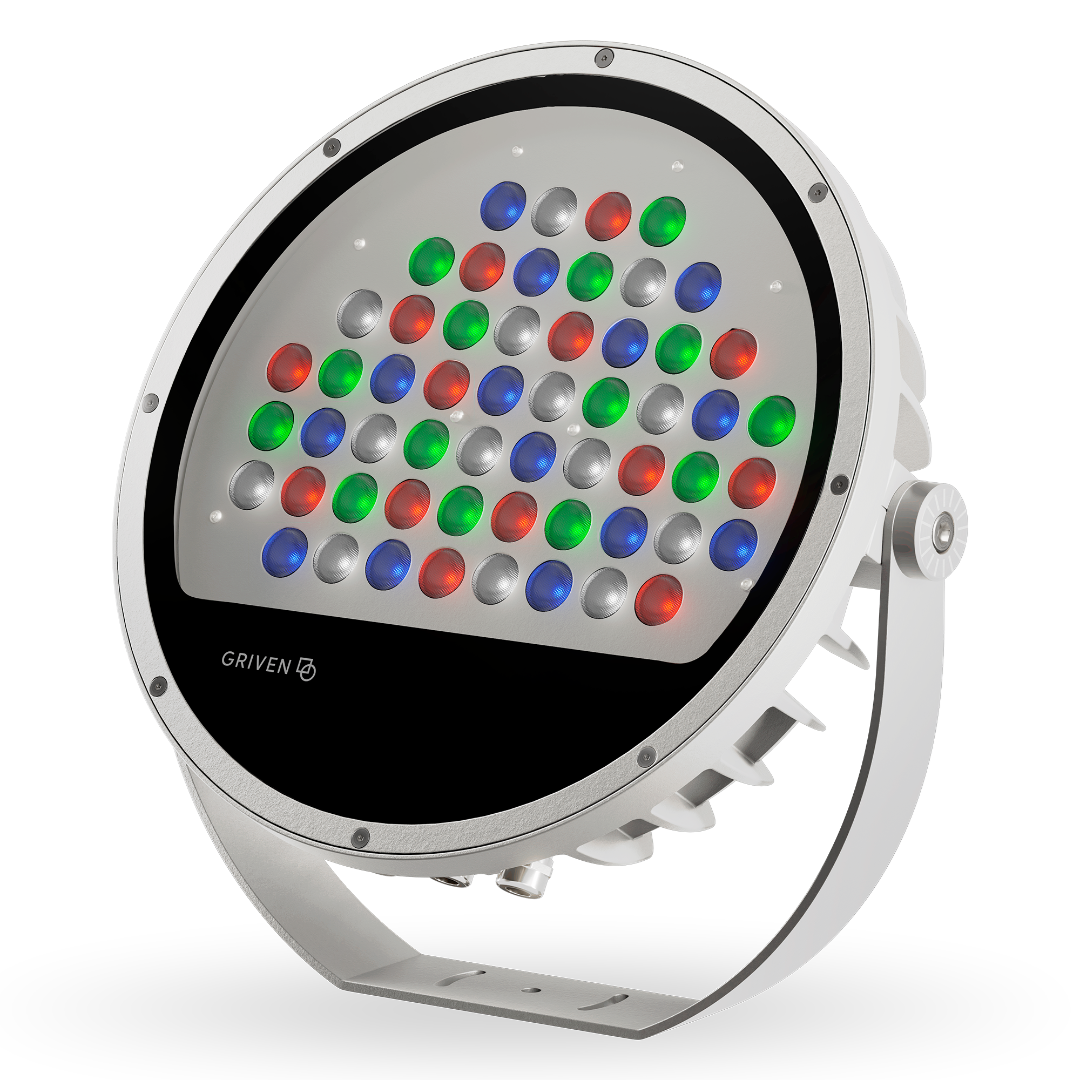

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product
COLOR CHANGING
print

General Features

MARS RGBW demonstrates seamless integration with various architectural environments, thanks to its captivating design and remarkably slim profile. It offers exceptional performance within a sophisticated and compact form factor. This versatile medium-throw floodlight is specifically designed to meet both aesthetic and functional requirements, making it the ideal solution for medium-sized architectural and landscape lighting installations. With a wide array of high-quality opticals, it ensures superb optical efficiency and balances projection and photometric flexibility. The extensive range of finishes enhances its adaptability to different settings. Top-tier RGBW LEDs in either 3000K or 4000K white enables the broadest range of warm white shades and pastel tones to be achieved.
Color configuration
High brightness RGB+W 3000K or 4000K LEDs
Optical configuration
7° SP (Spot)
12° NB (Narrow)
24° MB (Medium)
43° WB (Wide)
58° EW (Extra wide)
41°h x 10°v ELH (Elliptical)
39°h x 20°v ELWH (Elliptical Wide)
36°h x 15°v (5° incline) WW (Wall Wash)
Max. Delivered lumen output
Up to 6493 Lumens
Max. lumen/Watt
Up to 70 Lumens per Watt
Input voltage
120 - 277V
Amperage
0.77 A @ 120VAC, 0.33 A @ 277VAC
Power consumption
92.5 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility and to be ordered separately.

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical
  • Elliptical Wide
  • Wall Wash


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • ETL Certified for Wet Locations

Optional Features

  • Optional Polar
