Moon Marine Dynamic White

MOON-MR

  • Max. delivered lumen output: 413 lm / 46 lm/W
  • ø2.36" x 1.97" x 2.6" x 4.96"
  • Control system: DMX-RDM
  • Corrosion resistant coastal lights specific for the enhancement of landscape and architectural details in marine environments

View Housing Material: Stainless Steel
  • Stainless Steel
  • Brass
Contact us  Save product
DYNAMIC WHITE
print

General Features

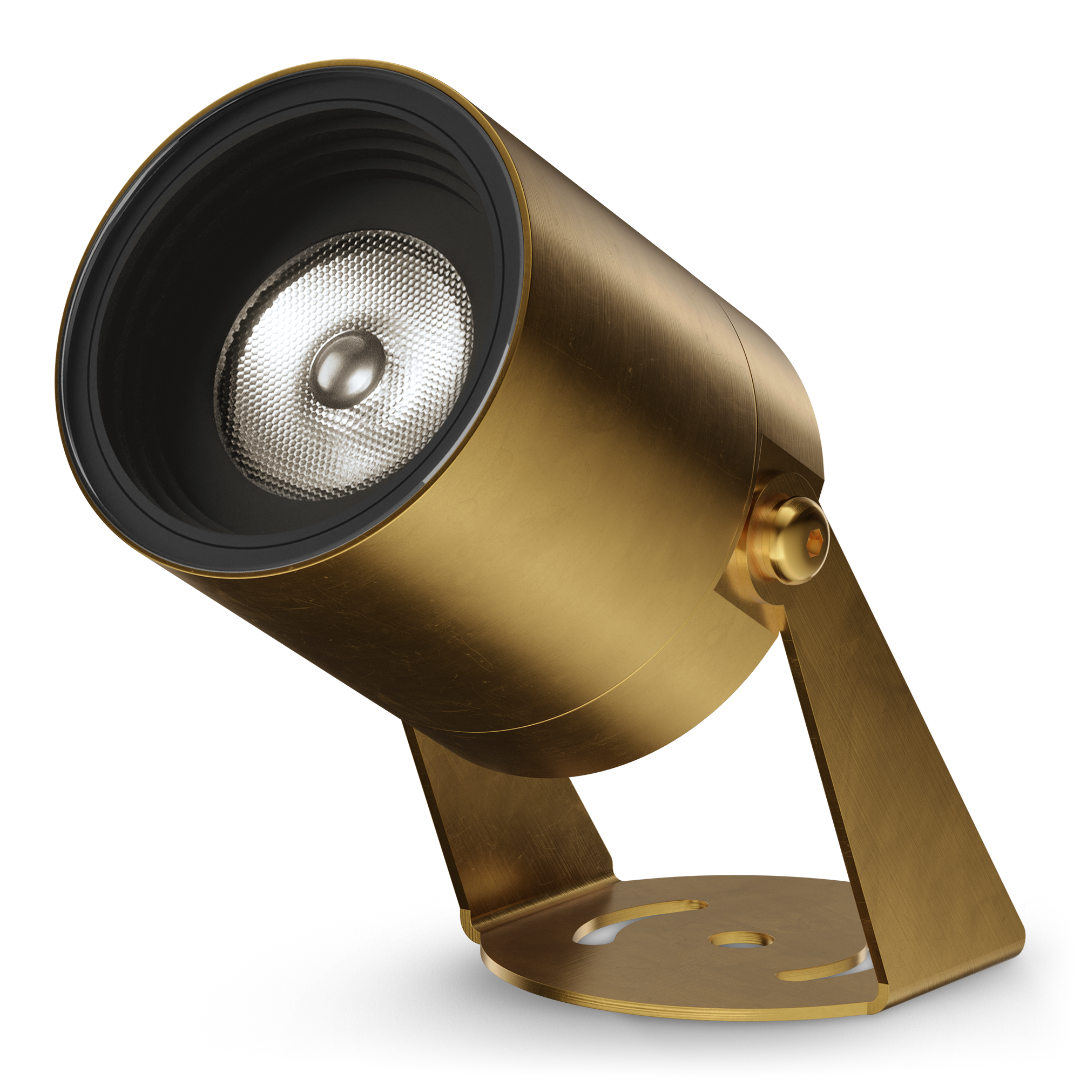

MOON MARINE is an advanced LED luminaire designed to enhance landscape and architectural features located near coastal regions. This adaptable luminaire provides decorative and functional lighting with smart color management. Corrosion resistant stainless steel or brass materials ensure the longevity of the luminaire even in harsh, salt water areas. Four optical options are available ranging from Narrow to Extra Wide beam spreads. Use of an external power supply enables easy management of multiple units. Electropolishing and clear coating are available on request.
Color configuration
High brightness Dynamic White multichip power LEDs with an adjustable colour temperature range between 3000K and 6500K
Optical configuration
14° NB (Narrow)
23° MB (Medium)
35° WB (Wide)
56° EW (Extrawide)
Max. Delivered lumen output
Up to 413 lumens
Max. lumen/Watt
Up to 46 lumens per watt
Input voltage
120-277VAC / 50-60Hz
Amperage
Constant Voltage @ 24VDC
Power consumption
4.6 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK08
External operating limits
-40°C to 40°C / (-40°F to 104°F)
Electropolishing
Electropolishing
Clear Coating
Clear Coating
Warranty
Five Year Limited Warranty

Light Beam Effects

  • Narrow
  • Medium
  • Wide
  • Extra Wide


Overview

  • IP67
  • IK08
  • DMX
  • RDM
  • ETL Certified for Wet Locations

Optional Features

  • Electropolishing
  • Internal Honeycomb Louver
  • Clear Coating
