Moon Recessed Dynamic White

MOON-R

  • Remote power supply is available separately.
  • Recess depth is less than 4" allowing for easy installation in any element

View Frame Type: Heavy Duty Trim 3.9inch

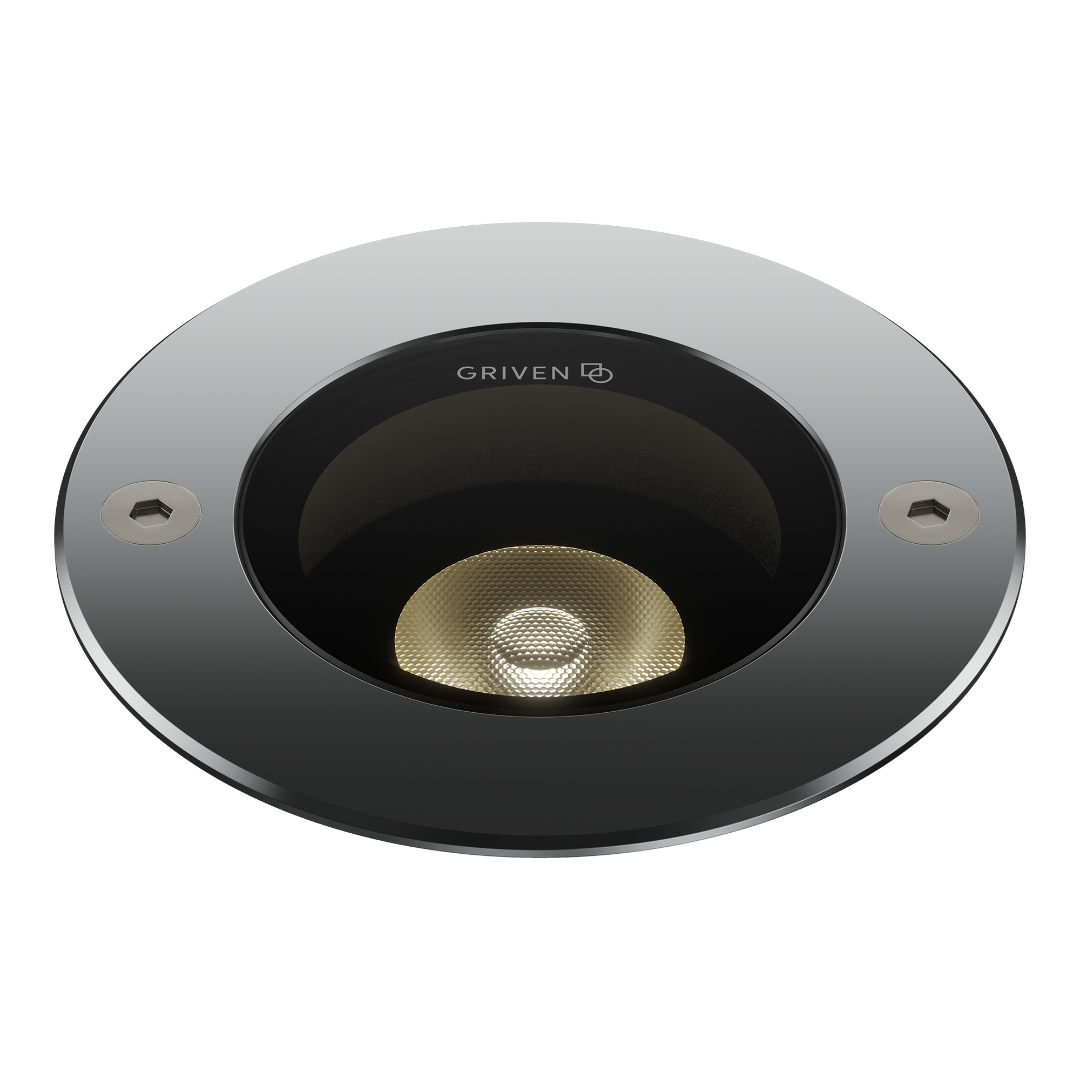

  • Heavy Duty Trim 3.9inch

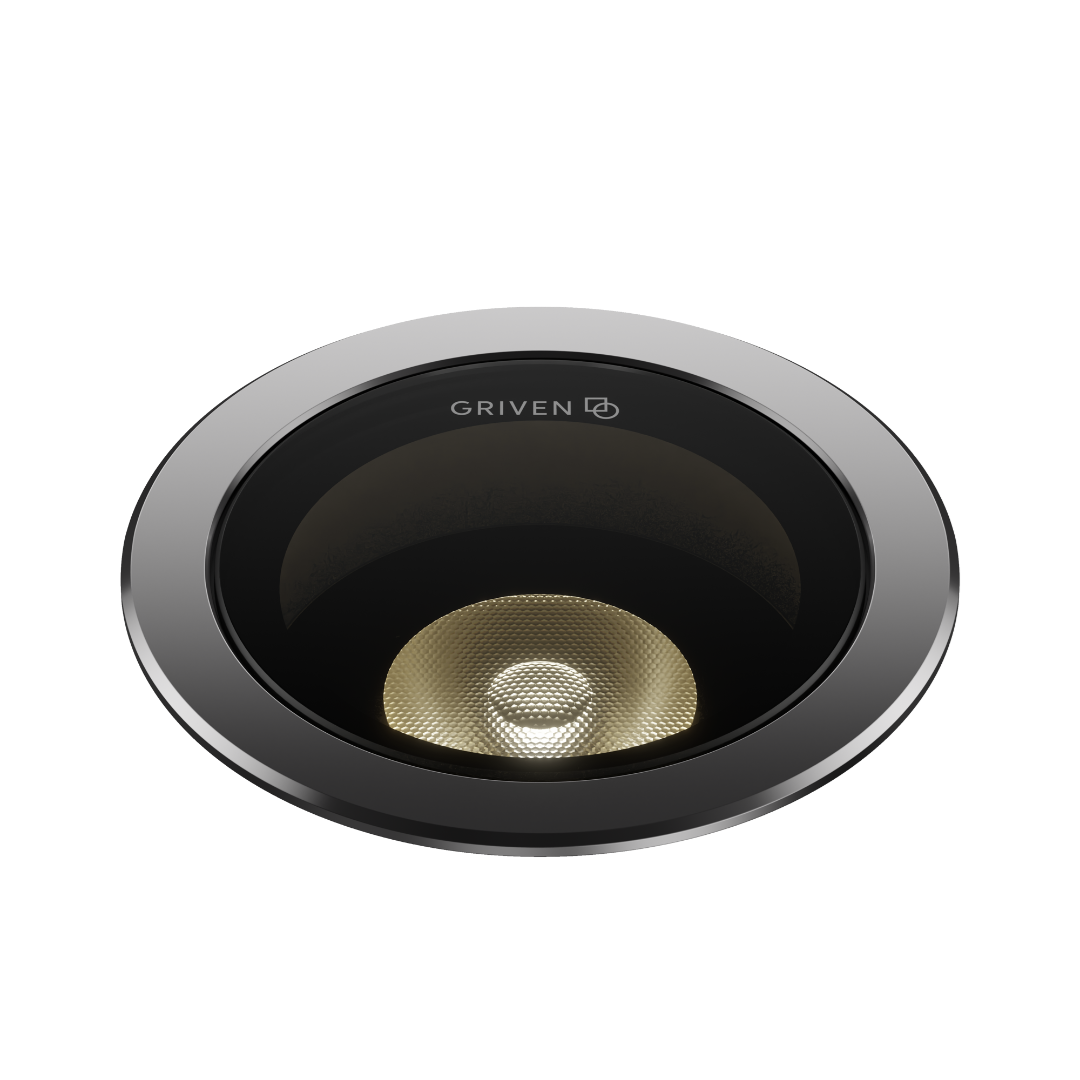

  • Standard Trim 3.1inch

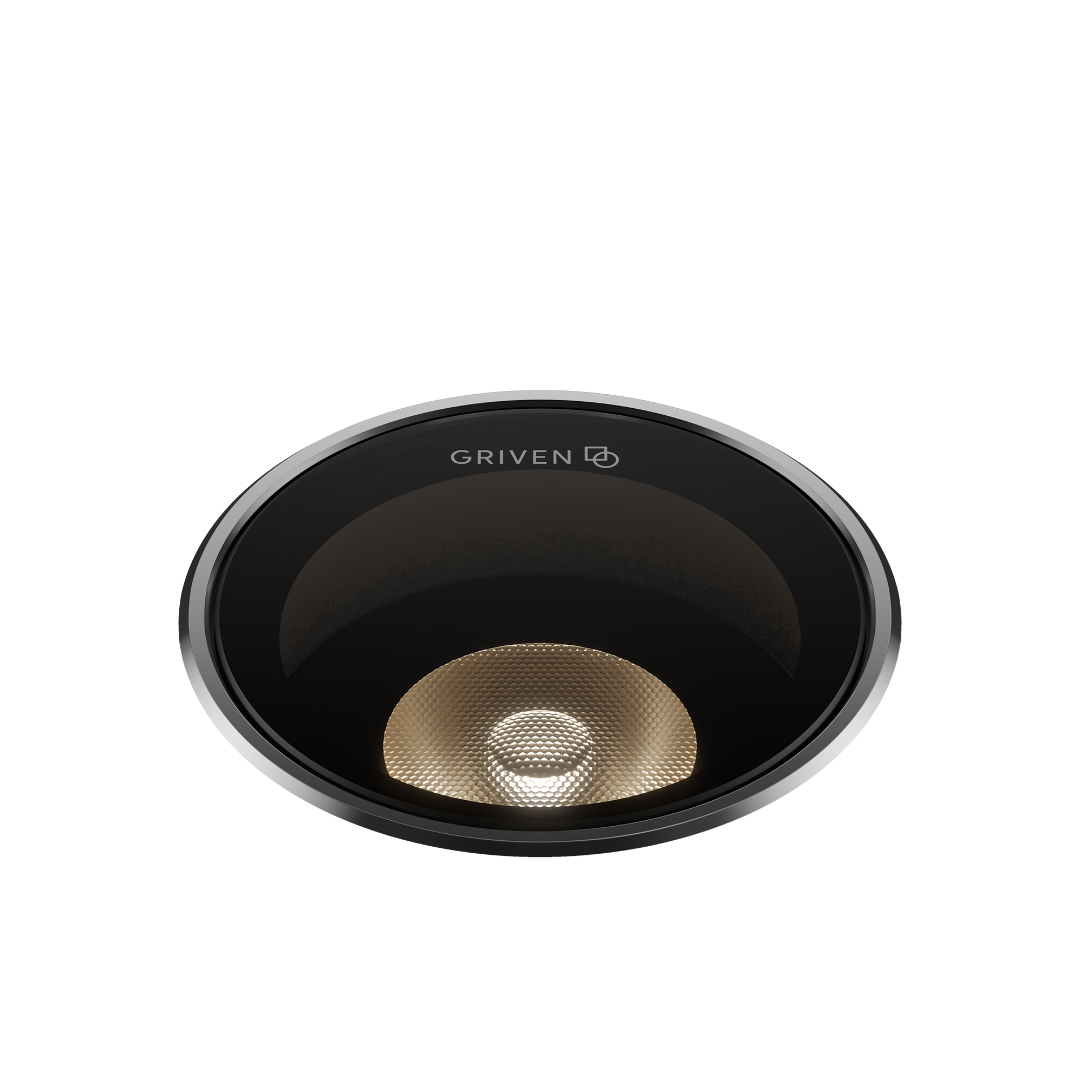

  • Trimless 2.7inch
Contact us  Save product
DYNAMIC WHITE
print

General Features

With extreme design flexibility and high aesthetic impact, the MOON RECESSED is a perfect in-grade solution for illuminating paths, walkways, entrances, or distinctive illumination of architectural or landscape elements. Recess depth is less than 4" allowing for easy installation in any element. The power to create intense emotions through different shades and colors of light is excentuated with a trimless full glass version, alongside two other trim variants, all with stainless steel frame. Luminaire is IP68 rated and is resistant to submersion to a maximum depth of 4.9' for up to 30 minutes. Remote power supply is available separately.
Color configuration
High brightness Dynamic White LEDs with an adjustable color temperature range between 3000K and 6500K
Optical configuration
14° NB (Narrow)
23° MB (Medium)
35° WB (Wide)
56° EW (Extra Wide)
Max. Delivered lumen output
up to 211 lumens
Max. lumen/Watt
up to 46 lumens per watt
Input voltage
120-277VAC / 50-60Hz
Amperage
Constant Voltage @ 24VDC
Power consumption
4.6 watts max.
Ingress protection rating
IP68
Impact resistance rating
IK10
External operating limits
-40°C to 40°C / (-40°F to 104°F)
Warranty
Five Year Limited Warranty

Light Beam Effects

  • Narrow
  • Medium
  • Wide
  • Extra Wide


Overview

  • IP68
  • IK10
  • DMX
  • RDM
  • Walk-over
  • Heavy Duty Trim
  • Standard Trim
  • Trimless
  • ETL Certified for Wet Locations

Optional Features

  • Internal Honeycomb Louver

Downloads
