Moon Recessed RGBW


  • Remote power supply is available separately.
  • Recess depth is less than 4" allowing for easy installation in any element

View Frame Type: Heavy Duty Trim 3.9inch

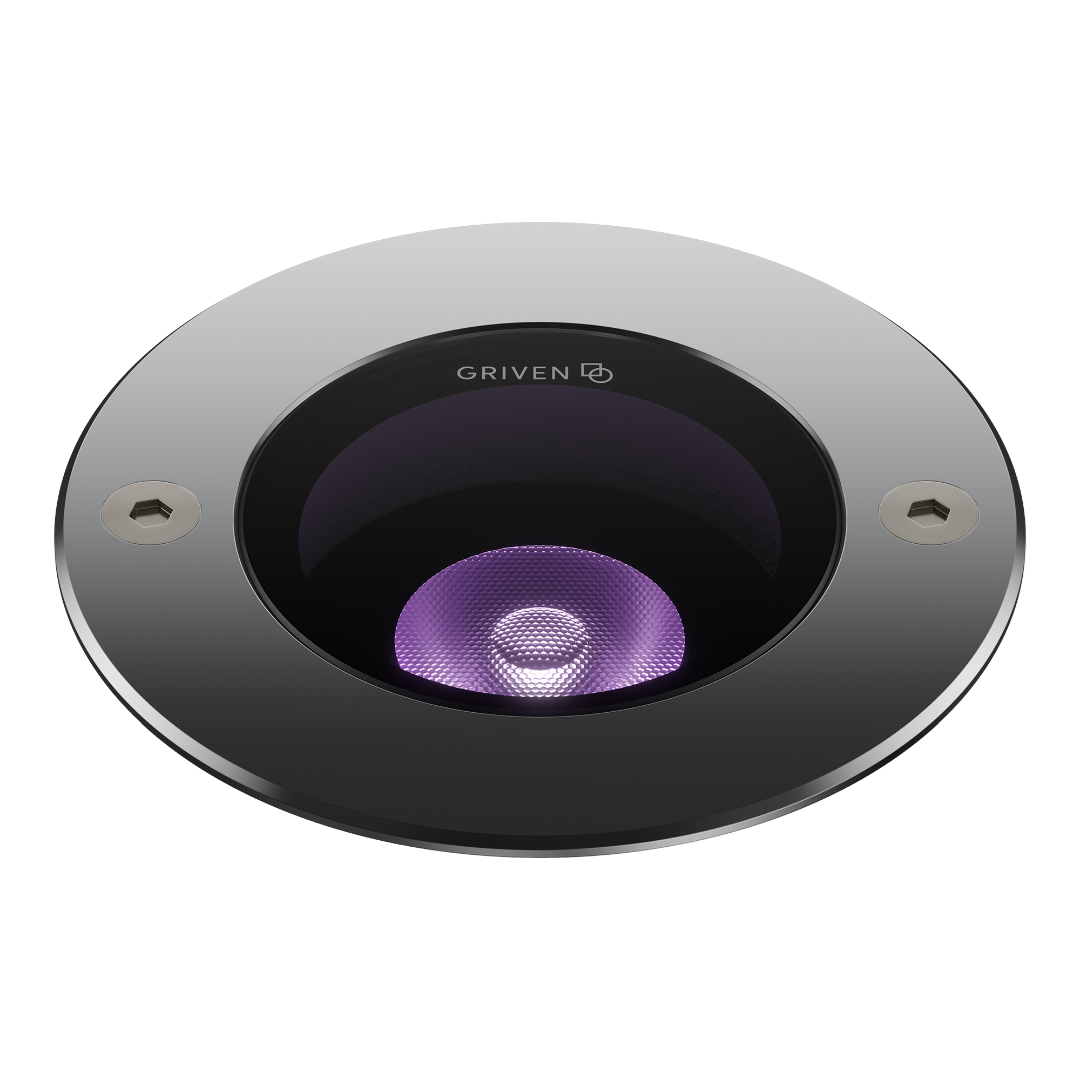

  • Heavy Duty Trim 3.9inch

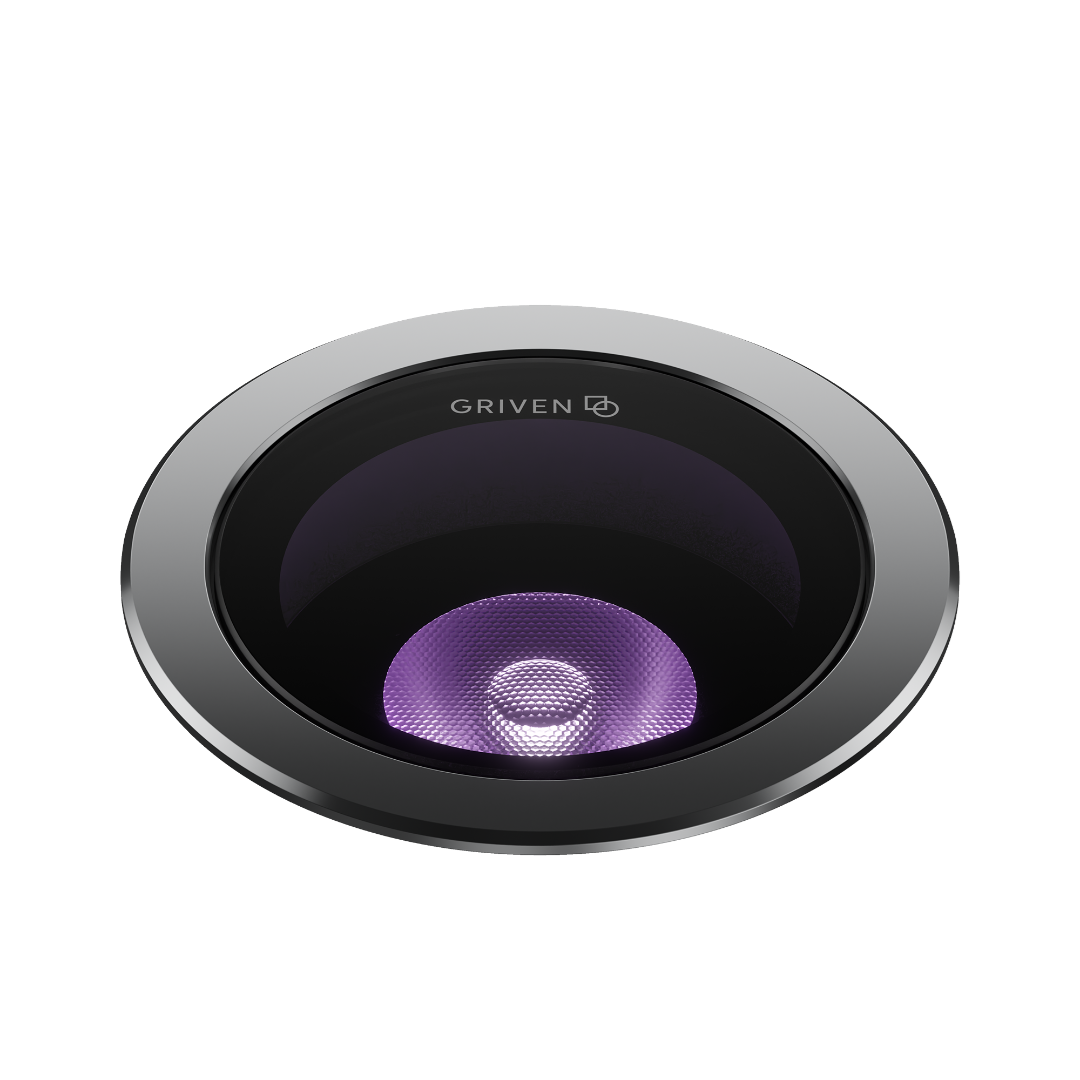

  • Standard Trim 3.1inch

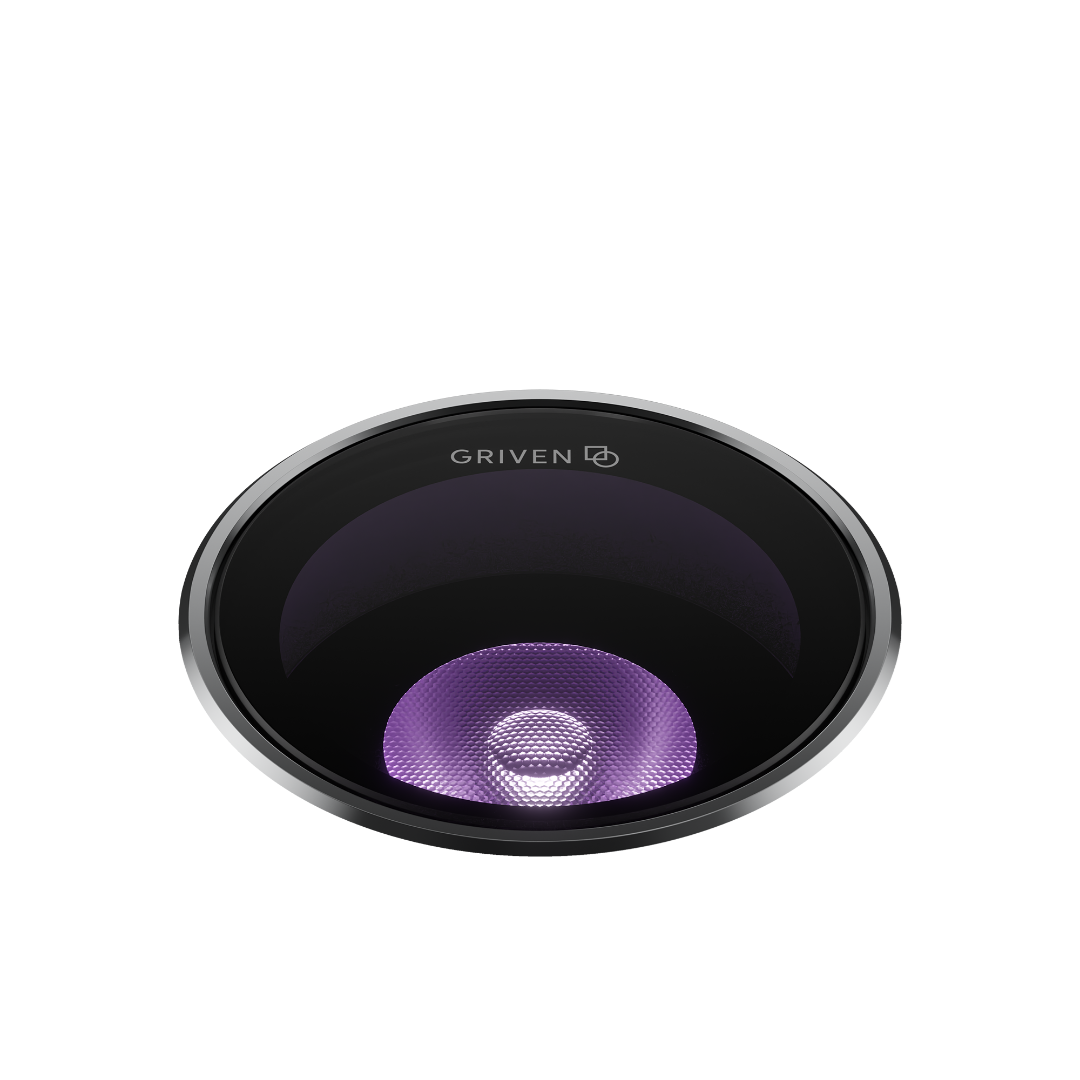

  • Trimless 2.7inch
View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product

General Features

With extreme design flexibility and high aesthetic impact, the MOON RECESSED is a perfect in-grade solution for illuminating paths, walkways, entrances, or distinctive illumination of architectural or landscape elements. Recess depth is less than 4" allowing for easy installation in any element. The power to create intense emotions through different shades and colors of light is excentuated with a trimless full glass version, alongside two other trim variants, all with stainless steel frame. Luminaire is IP68 rated and is resistant to submersion to a maximum depth of 4.9' for up to 30 minutes. Remote power supply is available separately.
Color configuration
High brightness RGB+W 4000K or 3000K power LEDs
Optical configuration
14° NB (Narrow)
23° MB (Medium)
35° WB (Wide)
56° EW (Extra Wide)
Max. Delivered lumen output
up to 132 lumens (4000K)
Max. lumen/Watt
up to 29 lumens per watt (4000K)
Input voltage
120-277VAC / 50-60Hz
0.04A @ 120V, 0.02A @ 277VAC
Power consumption
4.6 watts max.
Ingress protection rating
Impact resistance rating
External operating limits
-40°C to 40°C / (-40°F to 104°F)
5-year warranty

Light Beam Effects

  • Narrow
  • Medium
  • Wide
  • Extra Wide


  • IP68
  • IK10
  • DMX
  • RDM
  • Walk-over
  • Heavy Duty Trim
  • Standard Trim
  • Trimless
  • ETL Certified for Wet Locations

Optional Features

  • Internal Honeycomb Louver
