Half Moon Surface Static White

MOONHF-SF

  • Extremely compact LED luminaire for a bright illumination of essential landscape or architectural details
  • Max. delivered lm output: 275 lm / 92 lm/W
  • Control system: ON-OFF
  • 3.91" L x ø1.26"

View finishes: Anthracite Grey

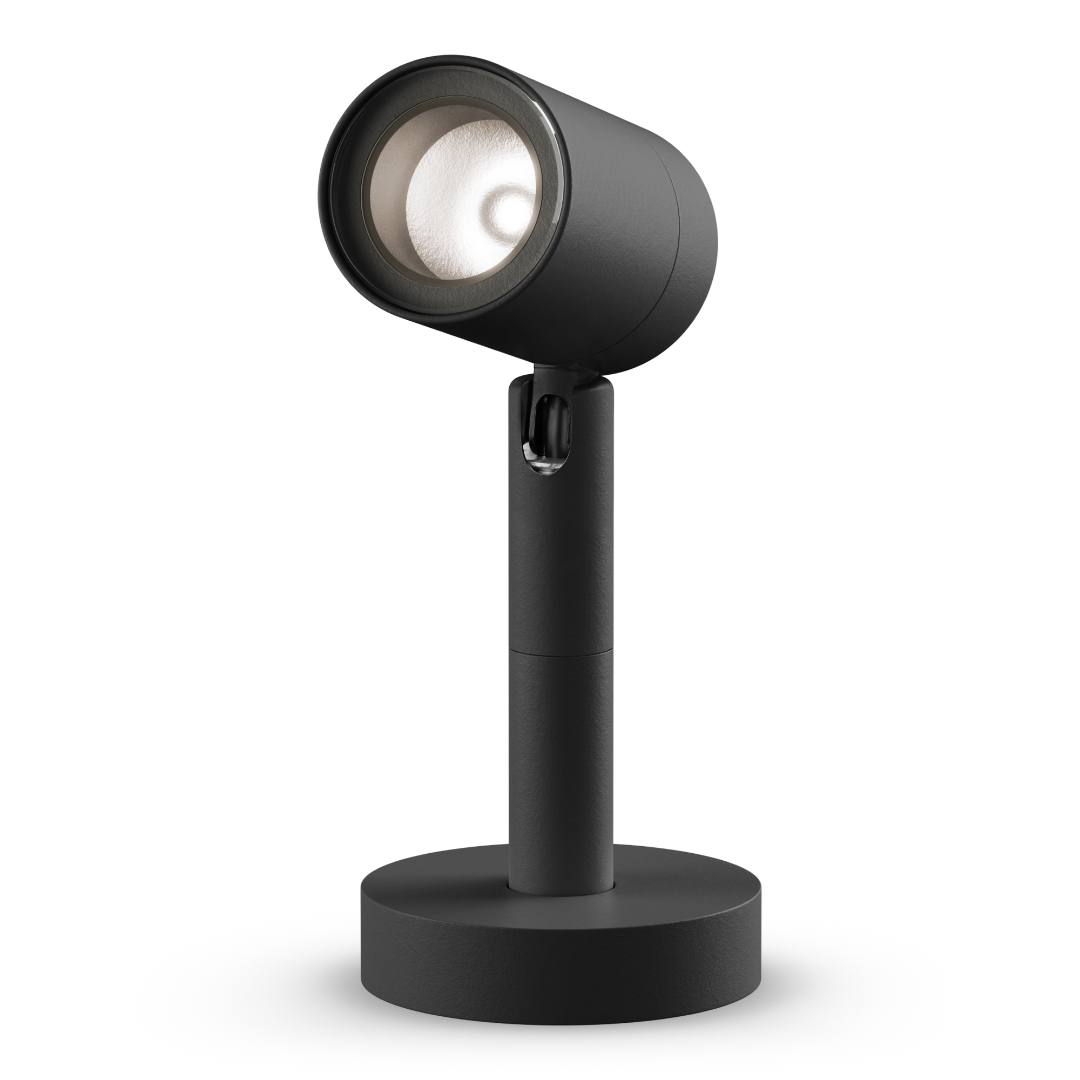

  • Anthracite Grey

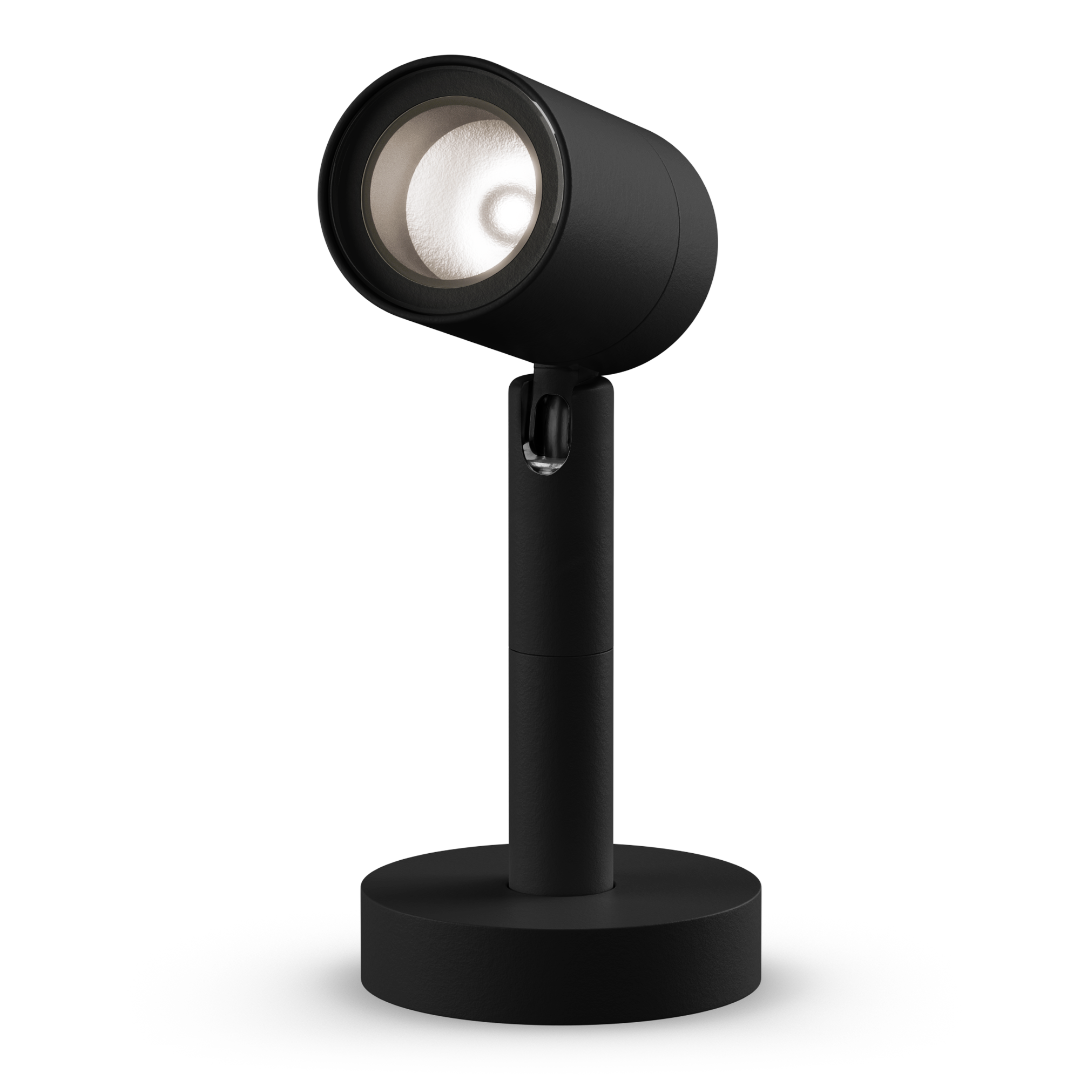

  • Black
  • Griven Silver Grey
  • White

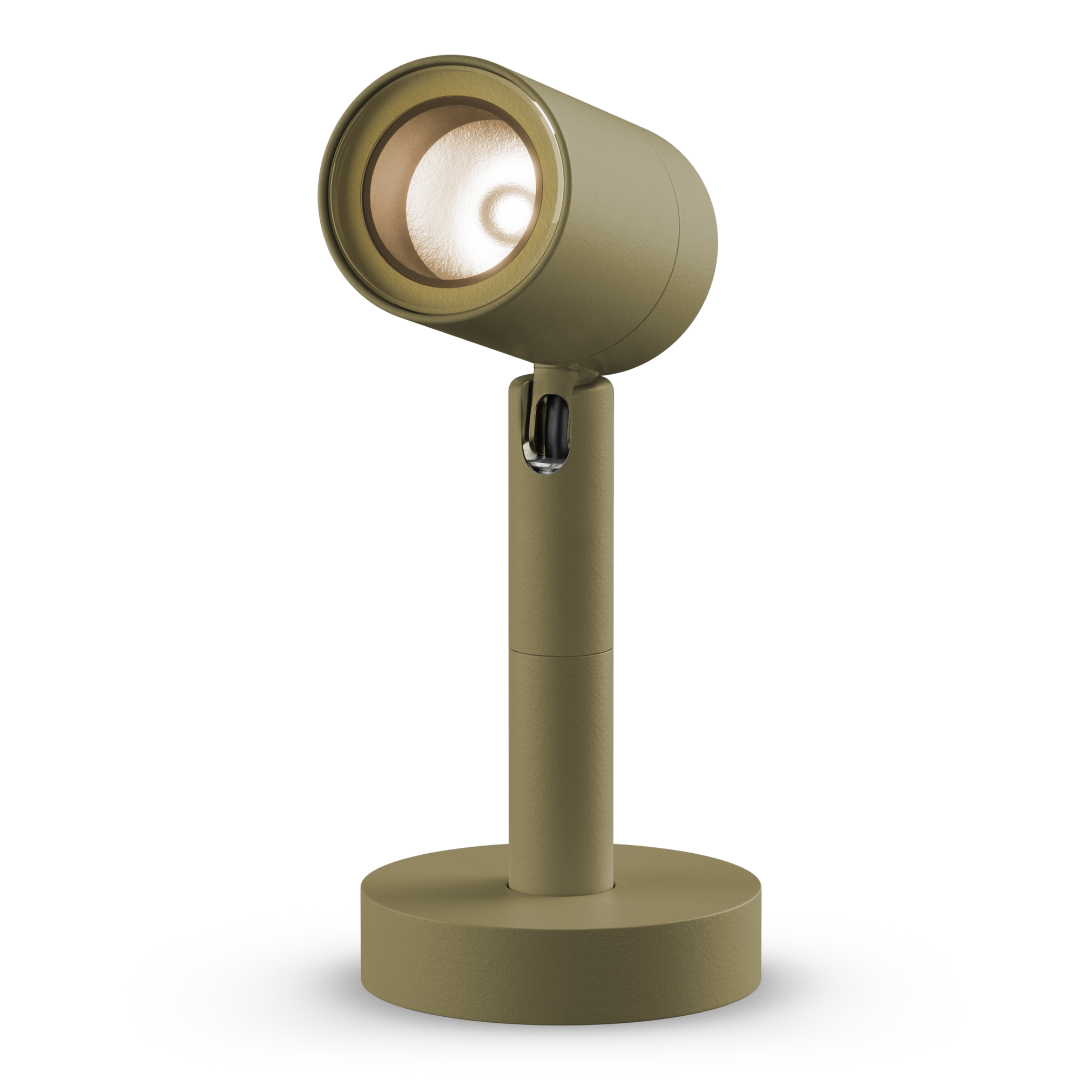

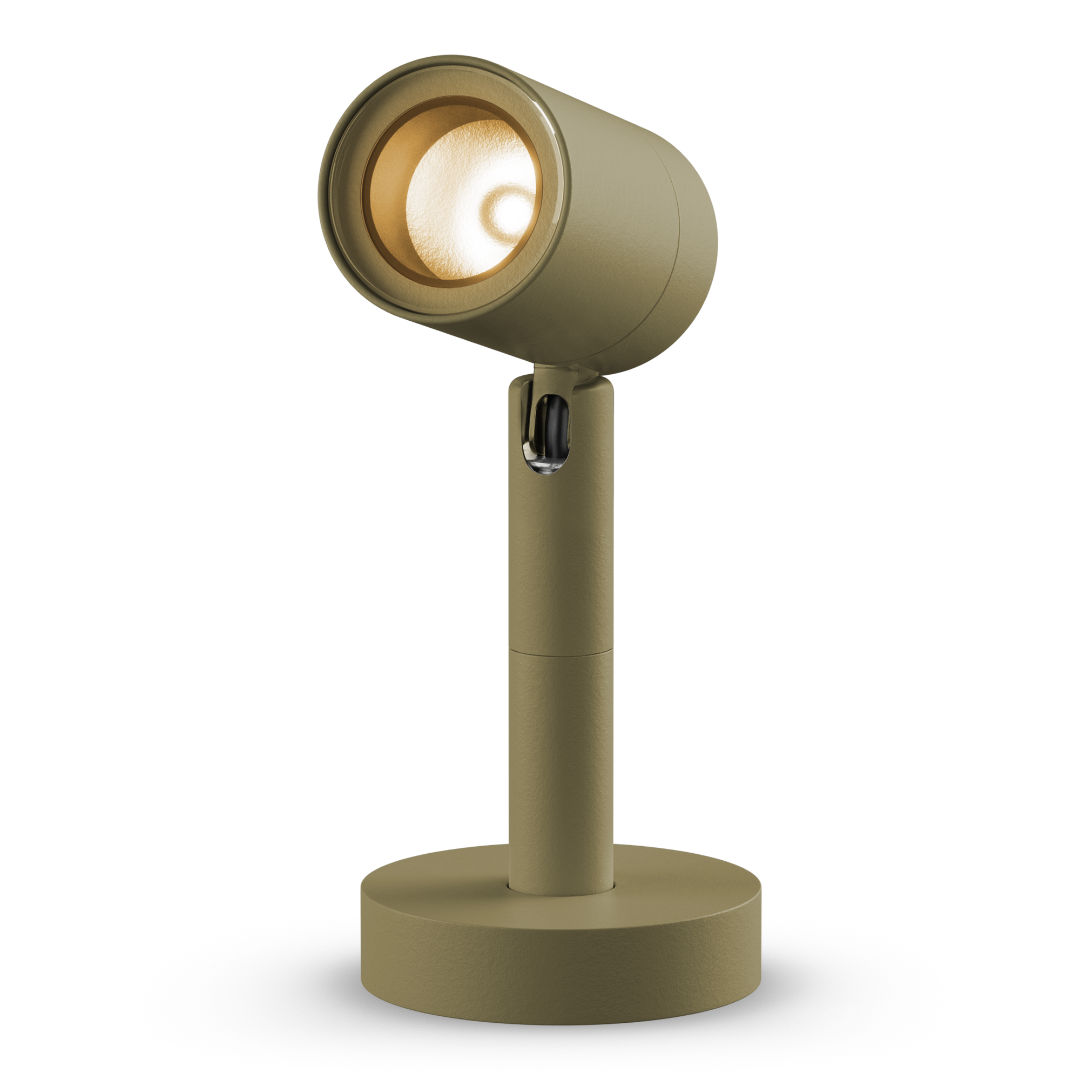

  • Olive Grey
  • Custom Color
  • Contact factory for Custom RAL or Marine Grade Finishes
View Swivel: Brass Swivel

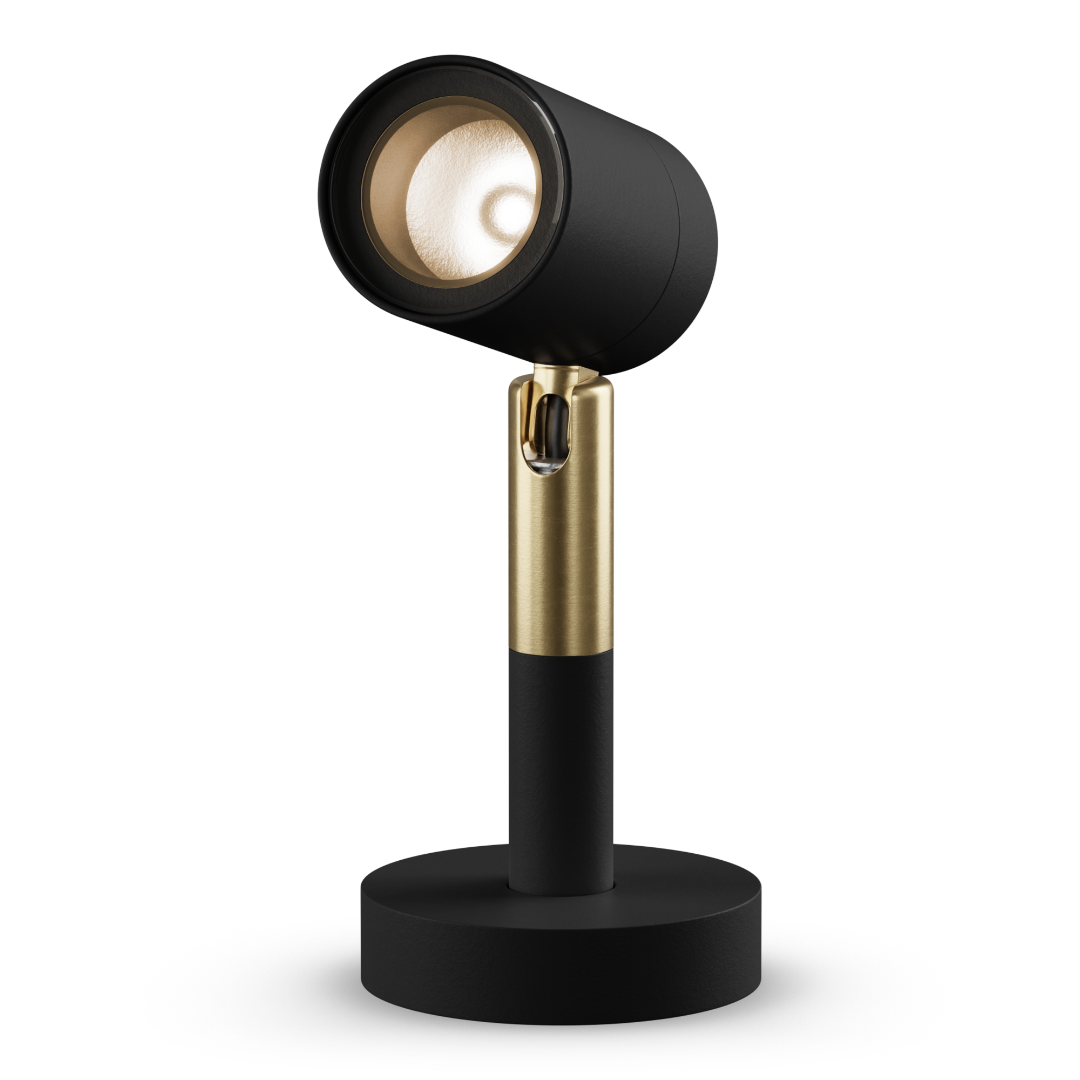

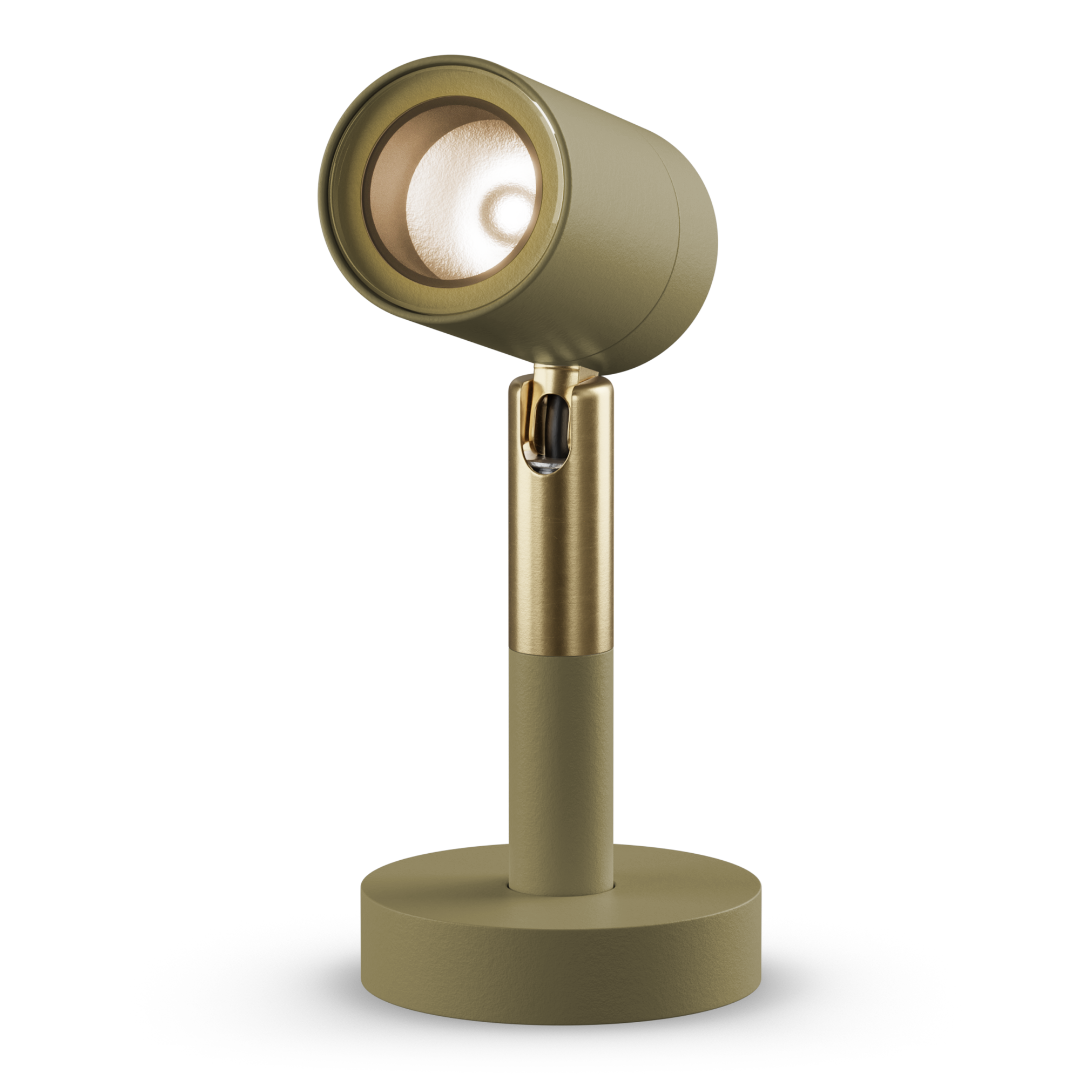

  • Brass Swivel

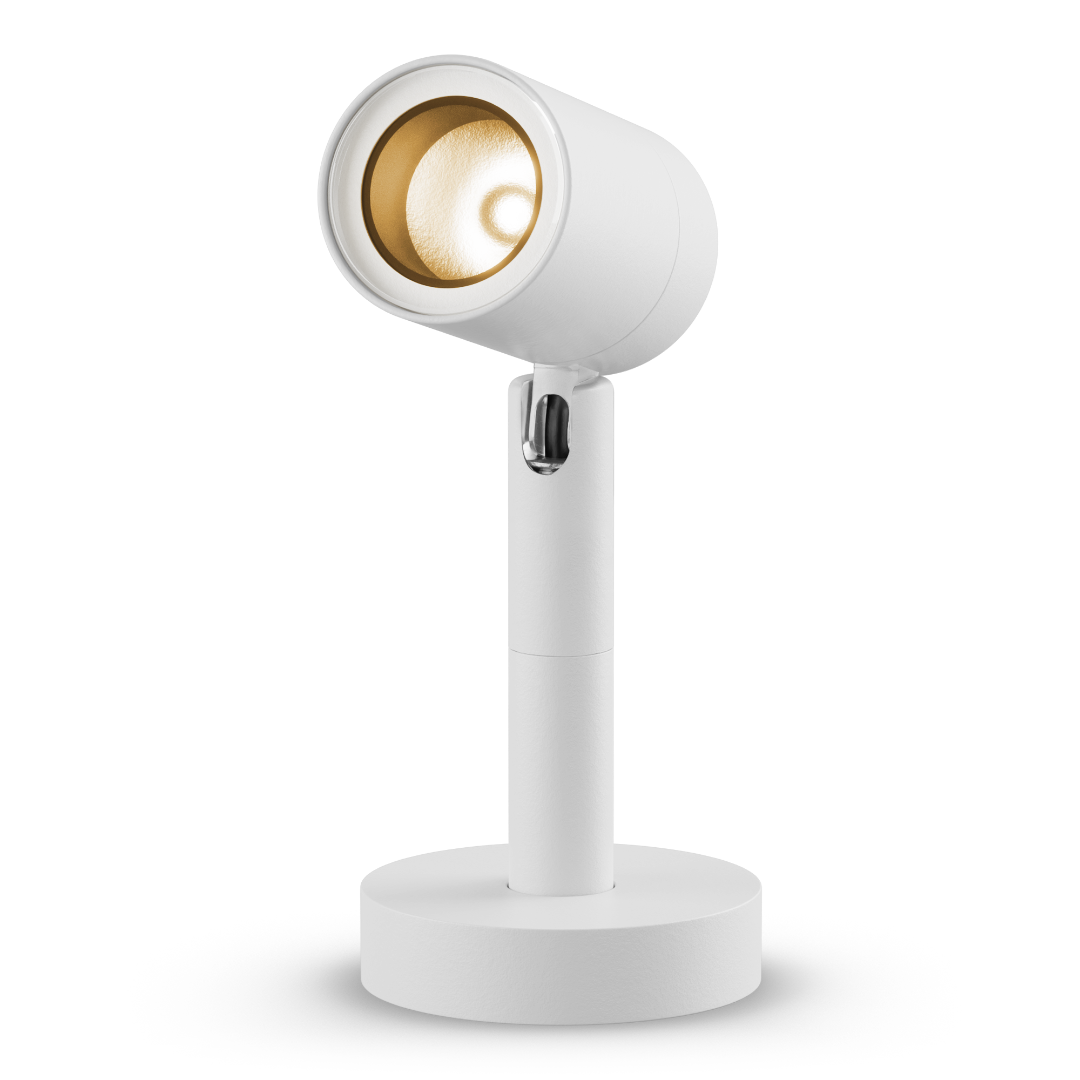

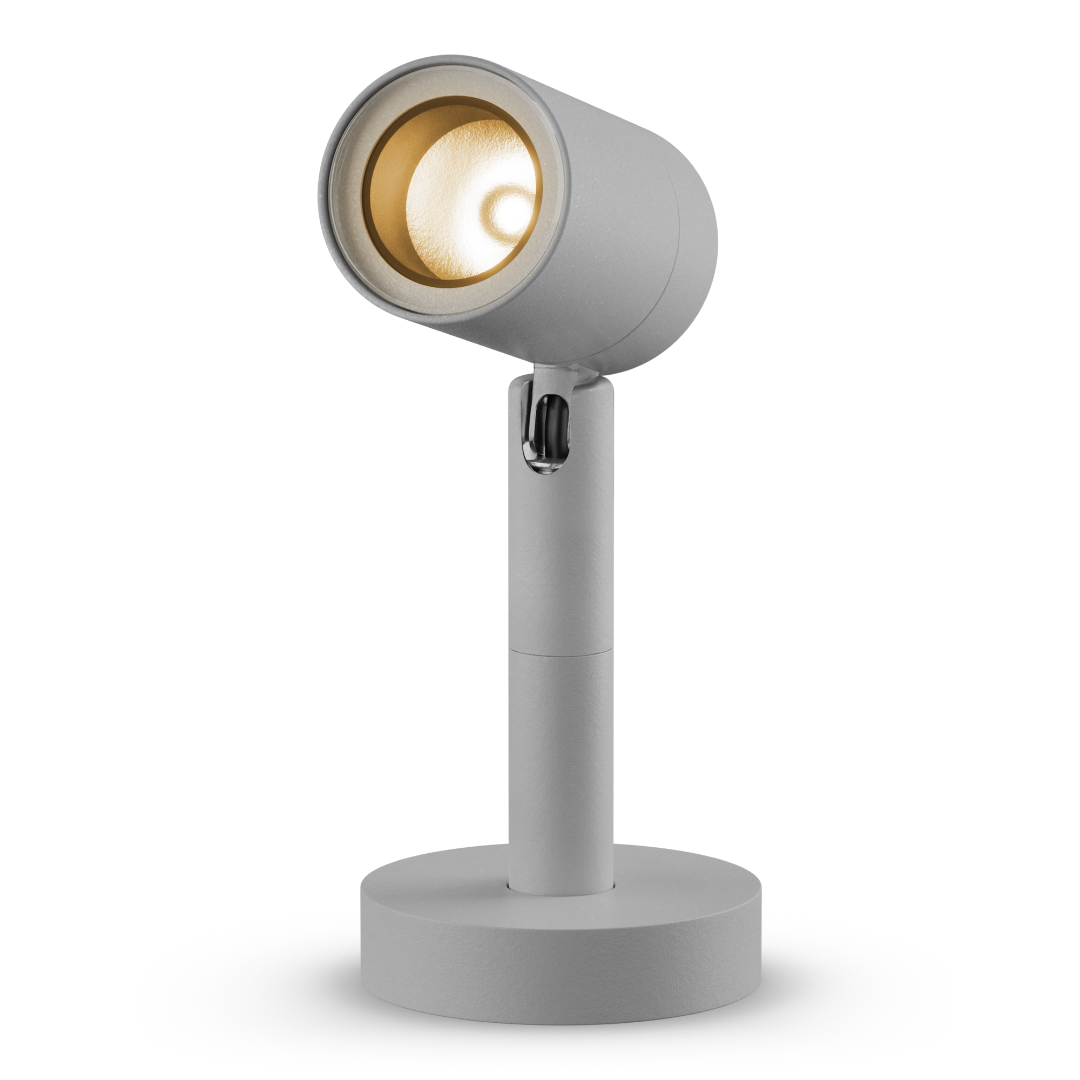

  • One Tone Finish
View LED colour configuration: Neutral White 4000K
  • Warm White 2700K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product
STATIC WHITE
print

General Features

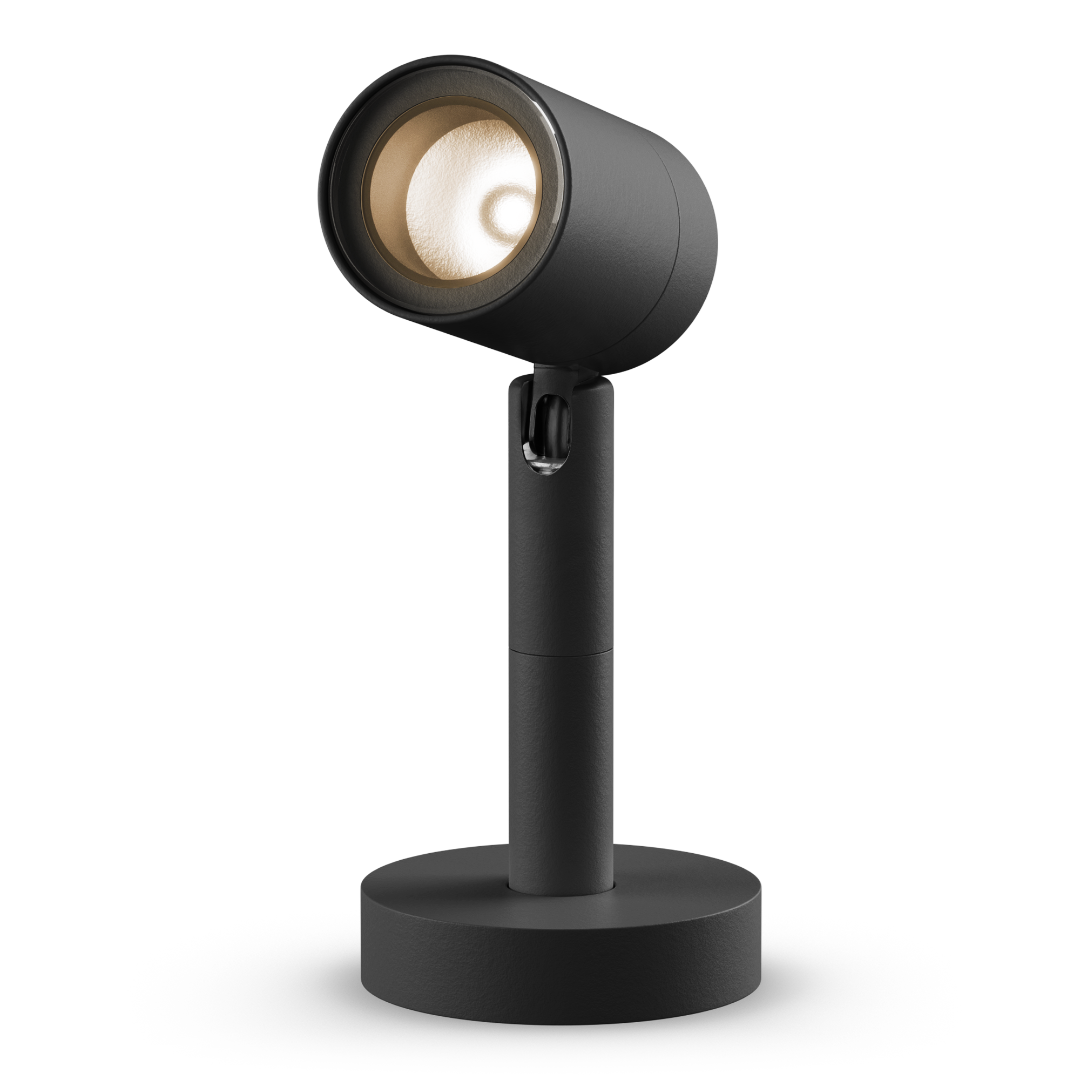

HALF MOON is a remarkably compact luminaire designed to elevate outdoor environments with subtlety and sophistication by creating exquisite accent lighting effects. Its external power supply unit allows for easy installation even in tight spaces while enabling the simultaneous control of multiple units. With an opaline diffuser to precisely highlight exterior elements, Half Moon enhances the beauty of landscape and architectural details. It is available in five trendy finishes with an elegant brass or monochrome swivel, available with a sleek cover for convenient wall or floor installation.
Color configuration
High brightness 2700K, 3000K and 4000K White or, on request, monochrome power LEDs
Optical configuration
15° NB (Narrow)
24° MB (Medium)
45° WB (Wide)
38°x14° ELH (Elliptical Wide)
Max. Delivered lumen output
up to 275 lumens
Max. lumen/Watt
up to 92 lumens per watt
Input voltage
120-277VAC / 50-60Hz
Amperage
0.03A @ 120V, 0.01A @ 277V
Power consumption
3 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK07
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty

Light Beam Effects

  • Narrow
  • Medium
  • Wide
  • Elliptical wide-ELH


Overview

  • IP67
  • IK07
  • ON-OFF
  • Brass swivel
  • One-tone finish
  • ETL Certified for Wet Locations

Optional Features

  • Anti-saline treatment

Downloads
