Moon Surface Dynamic White

MOON-SF

  • Compact surface-mount family for the enhancement of landscape and architectural details through refined accent lighting effects.
  • Max. Delivered Lumen Output: 413 Lumens / 46 Lumens per Watt
  • Dynamic White (3000K to 6500K)
  • Brass Swivel, Lockable Head, or One-Tone Finish Options

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black

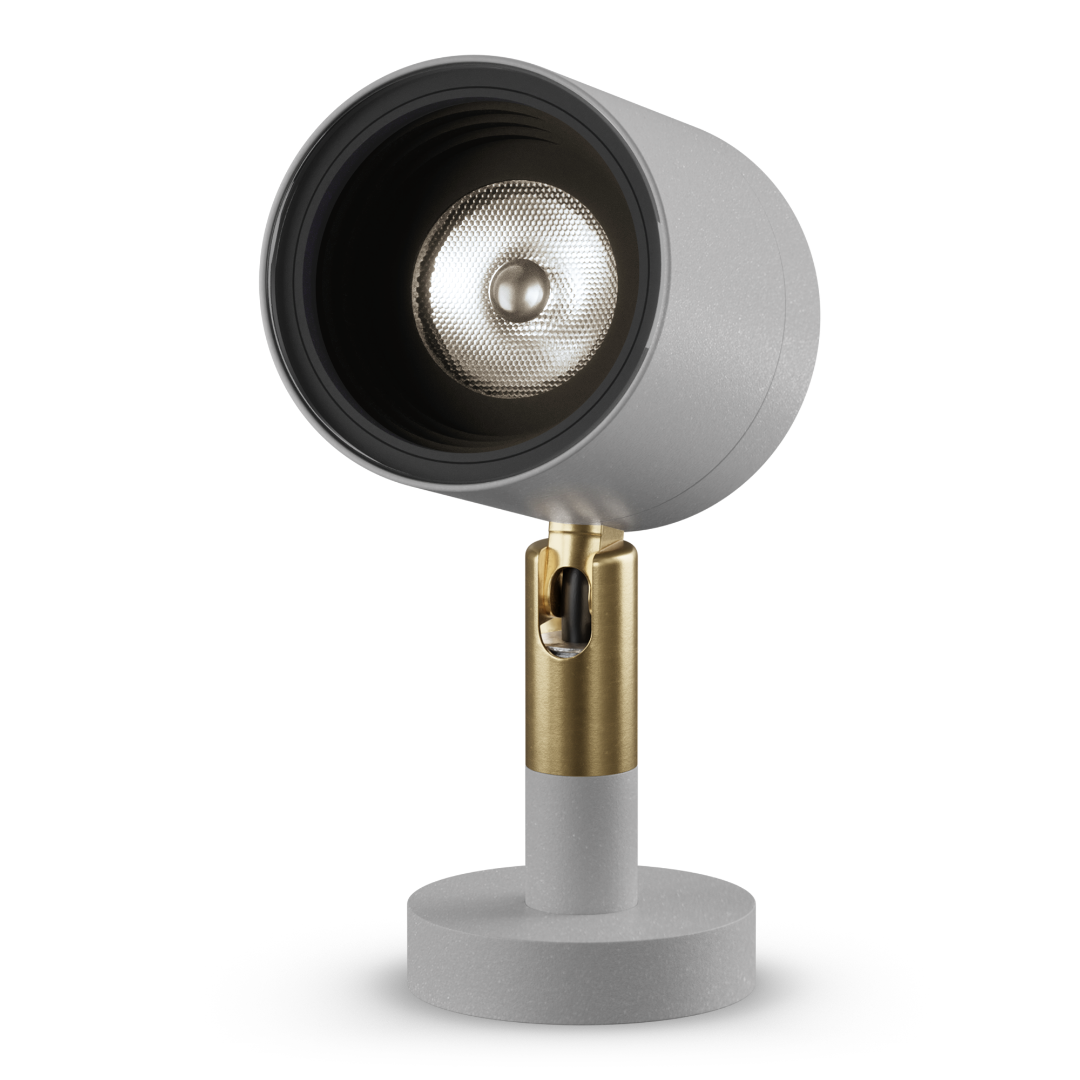

  • Griven Silver Grey
  • White

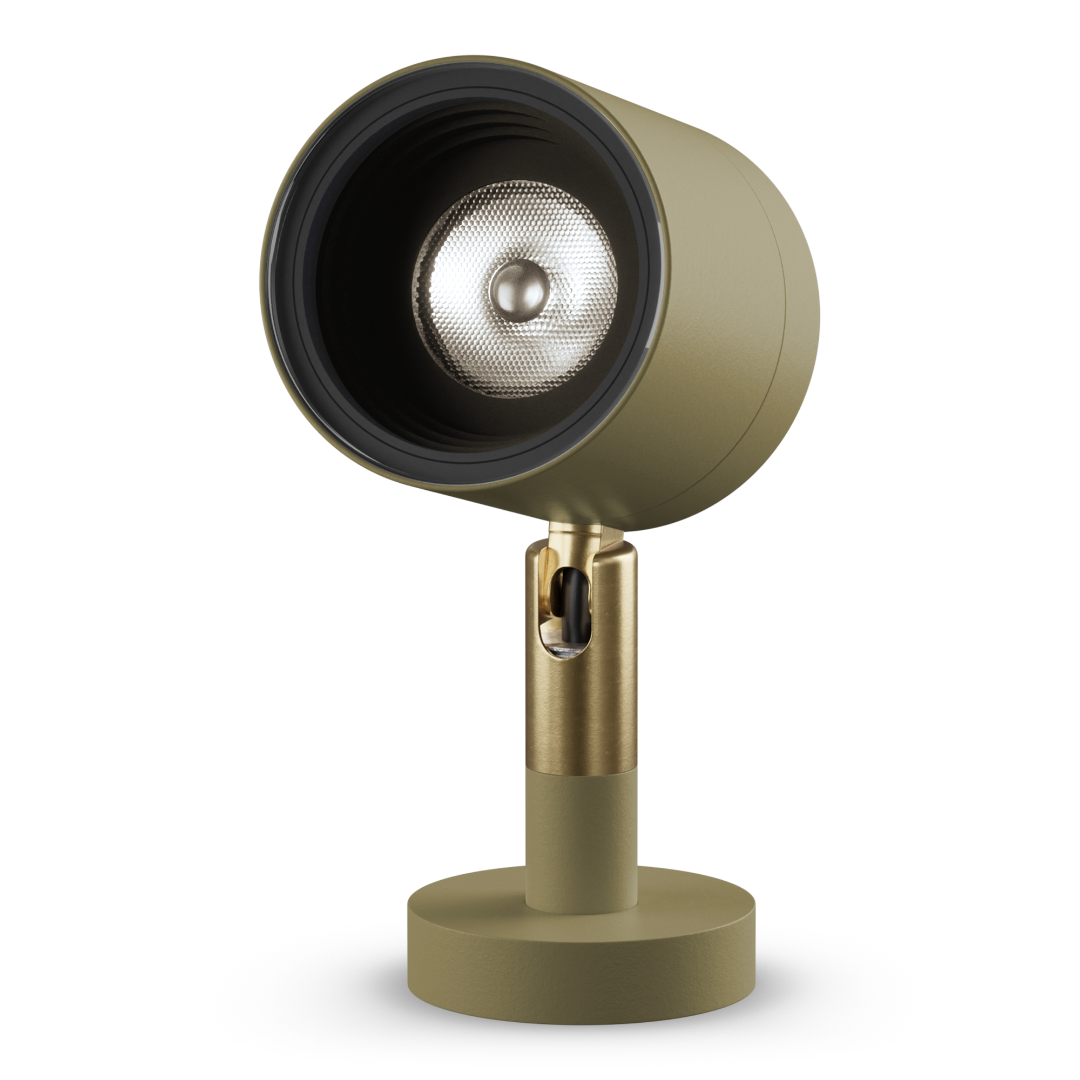

  • Olive Grey
  • Custom Color
  • Contact factory for Custom RAL or Marine Grade Finishes
View Swivel: Brass Swivel

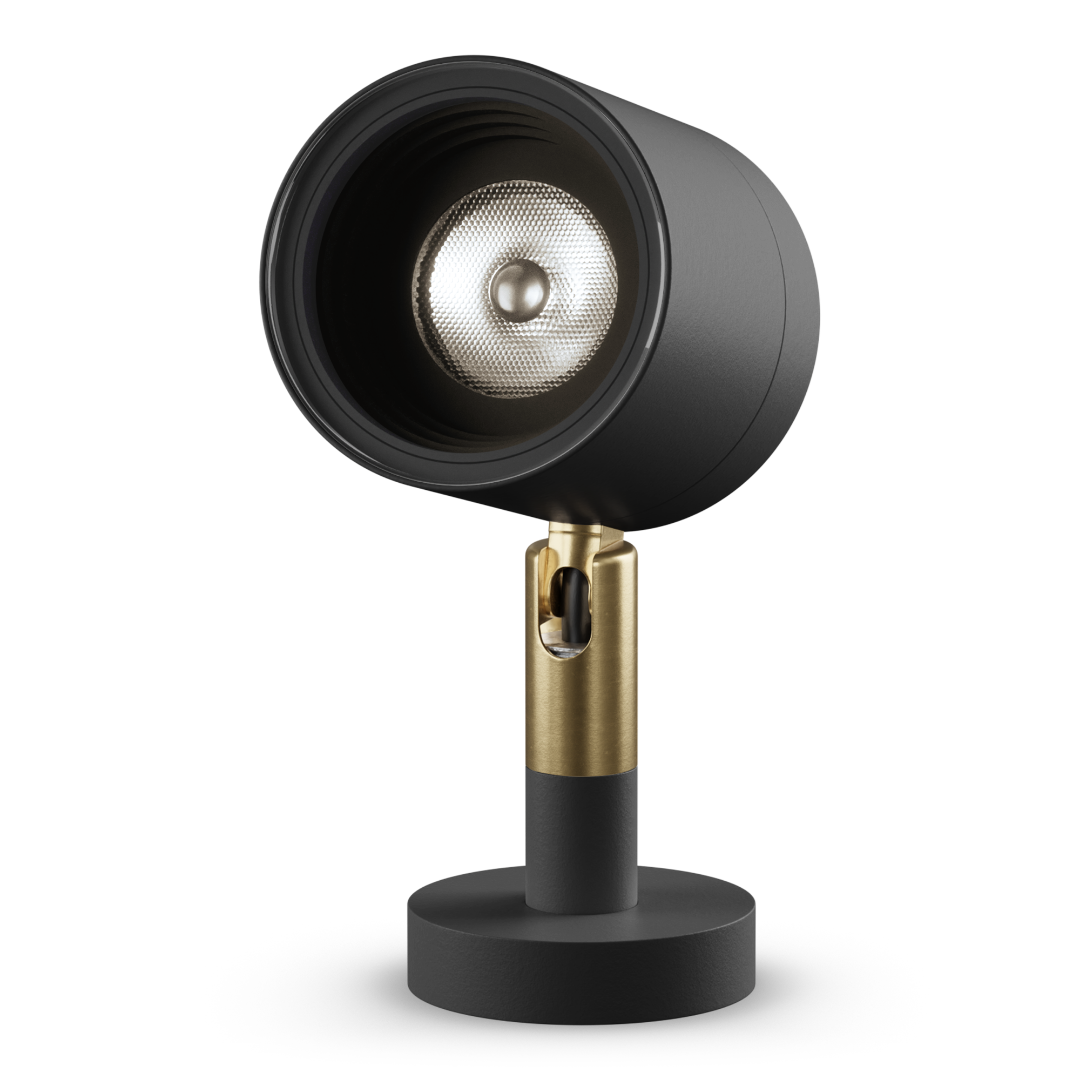

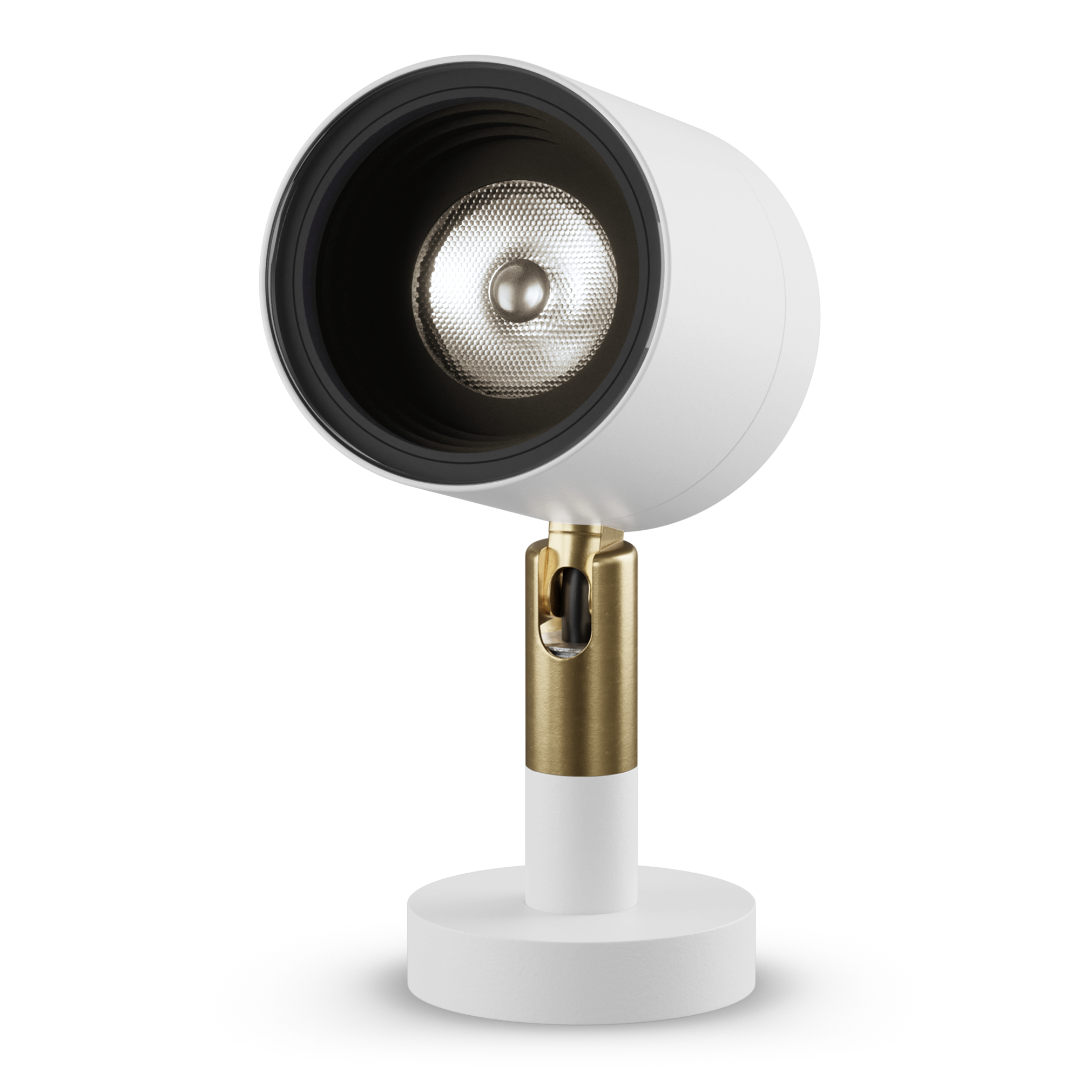

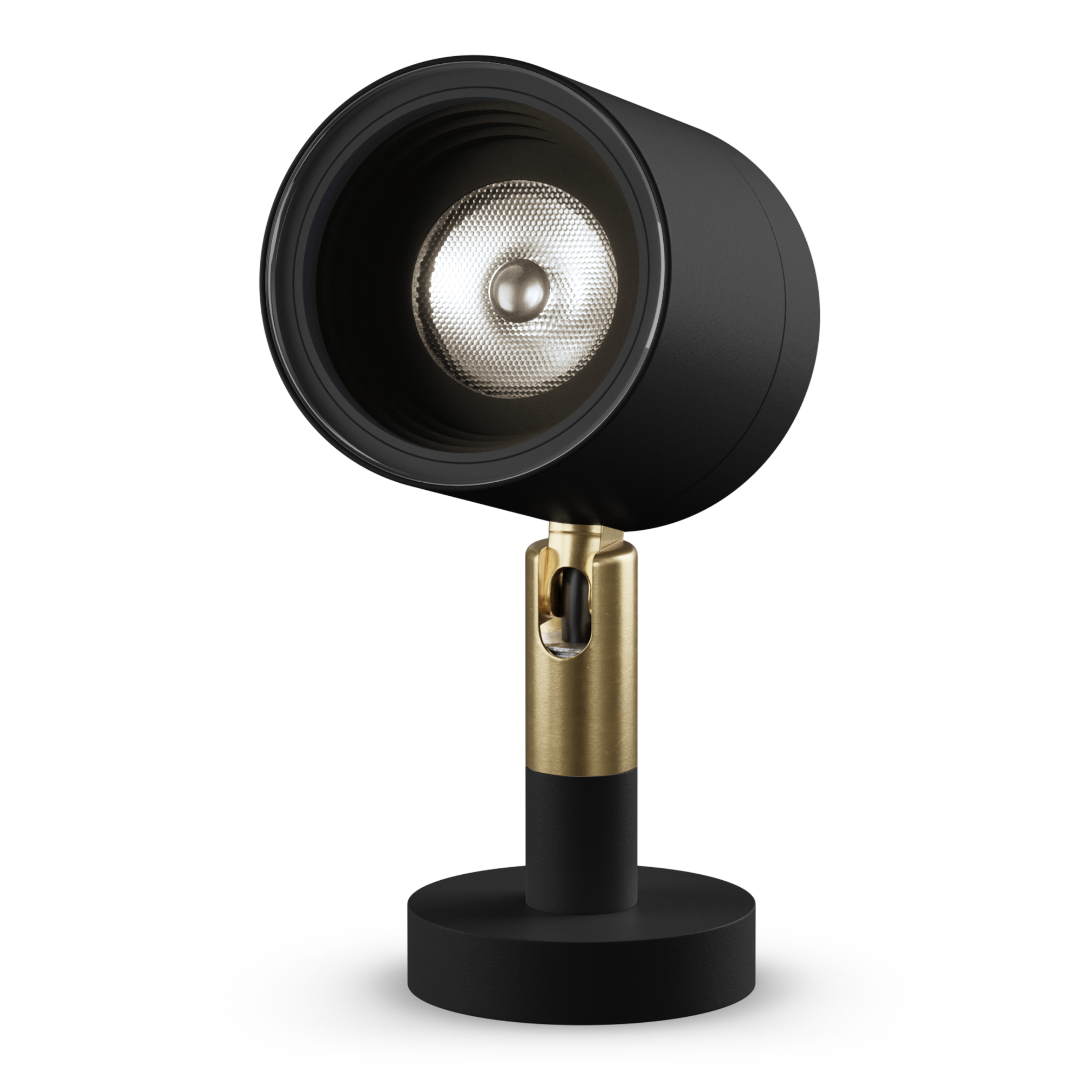

  • Brass Swivel

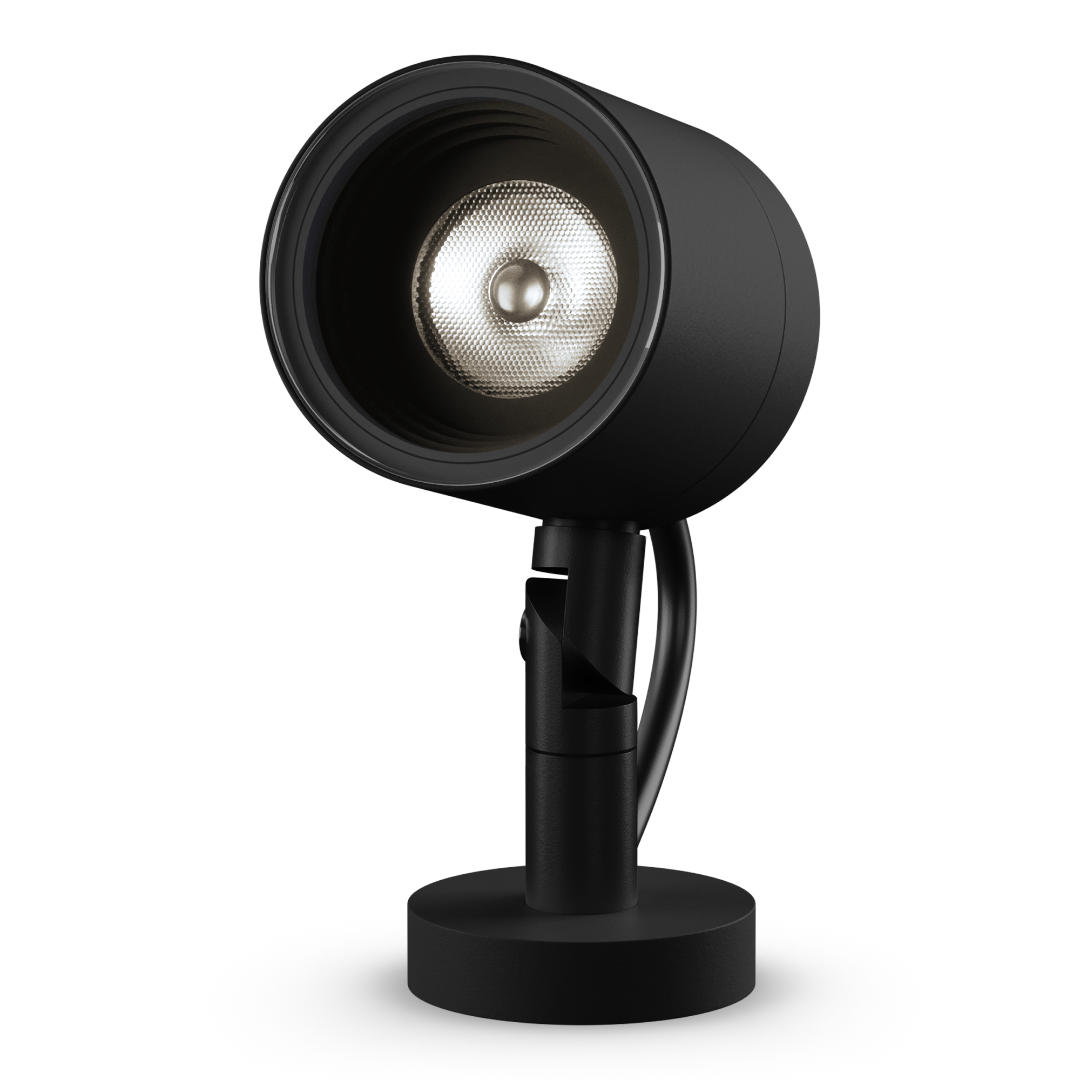

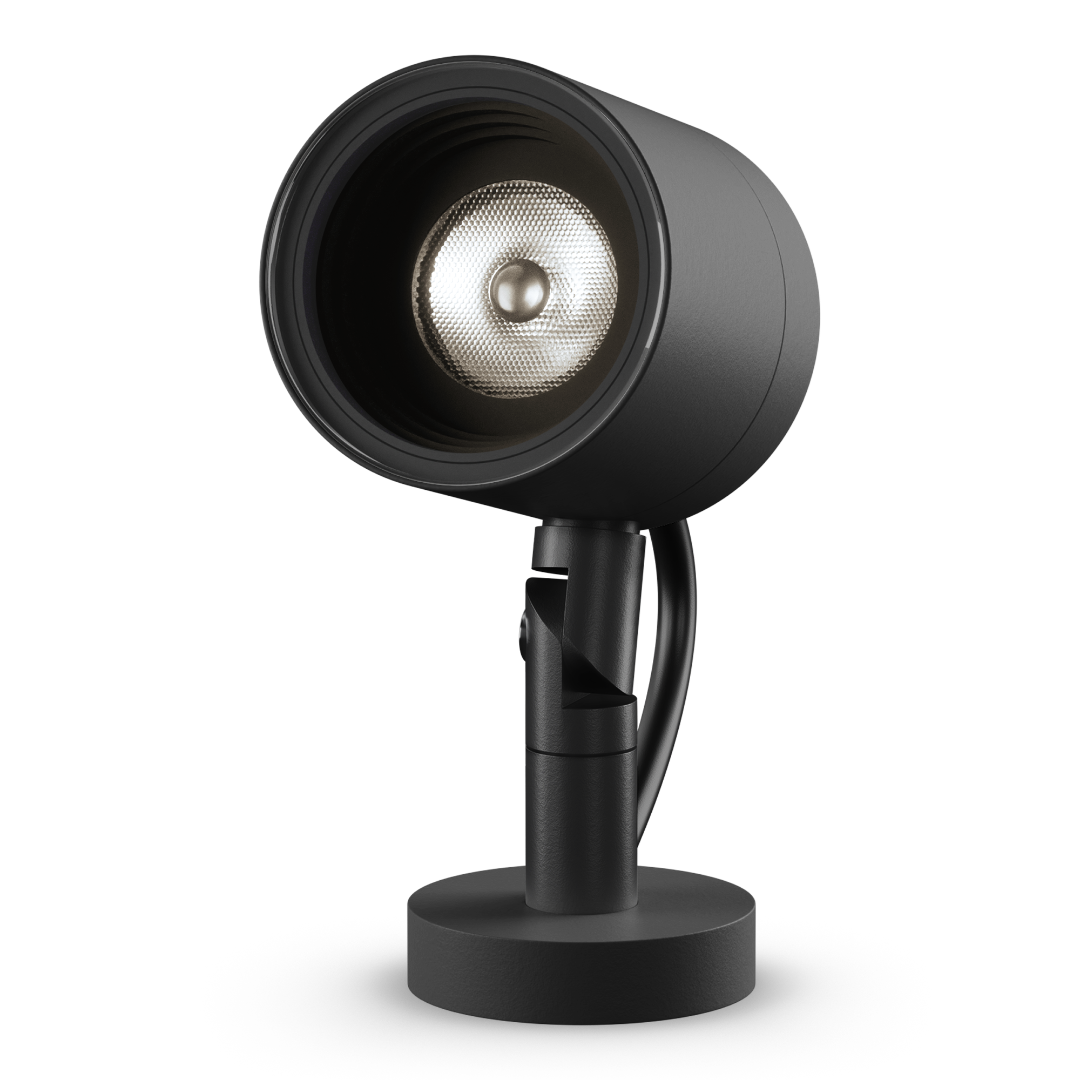

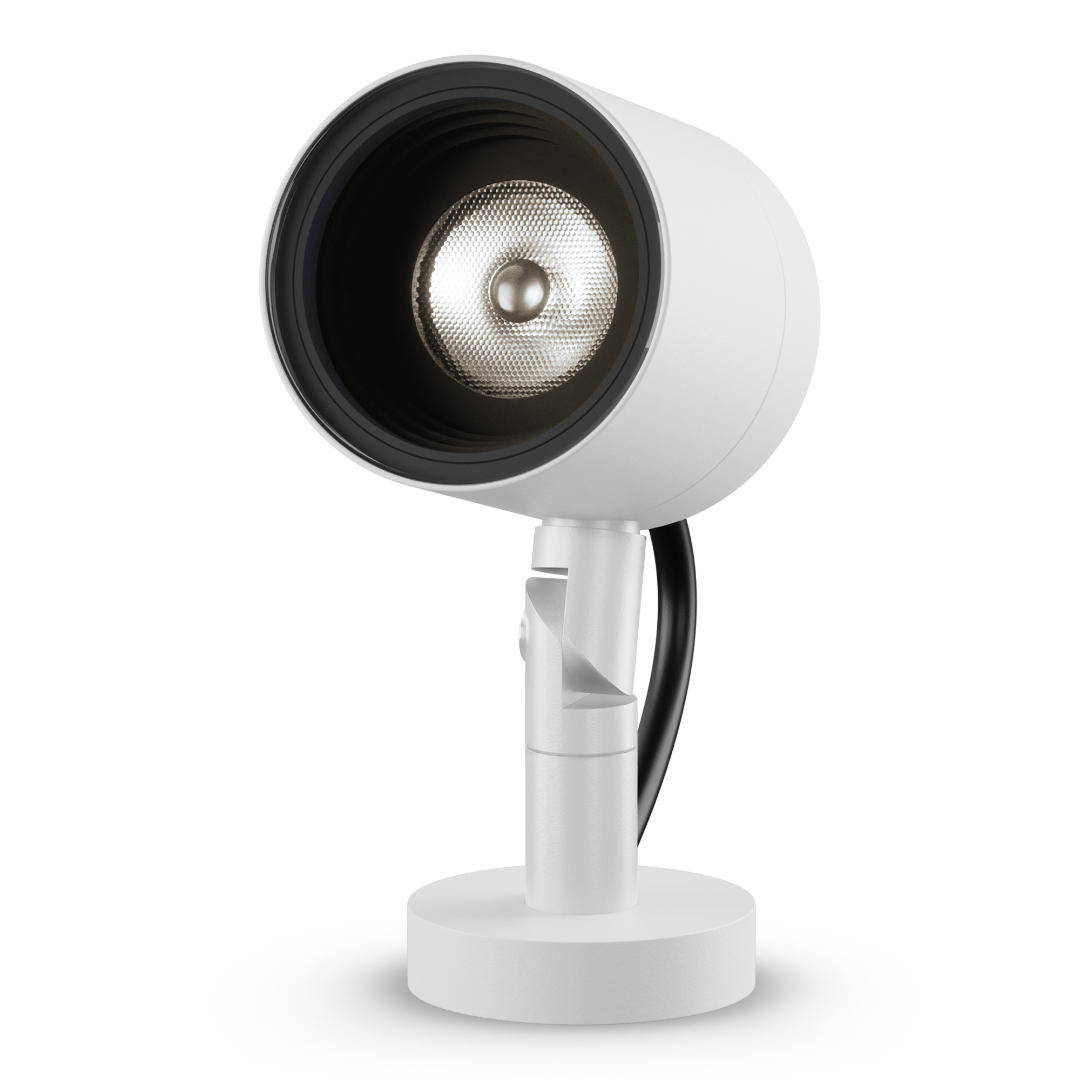

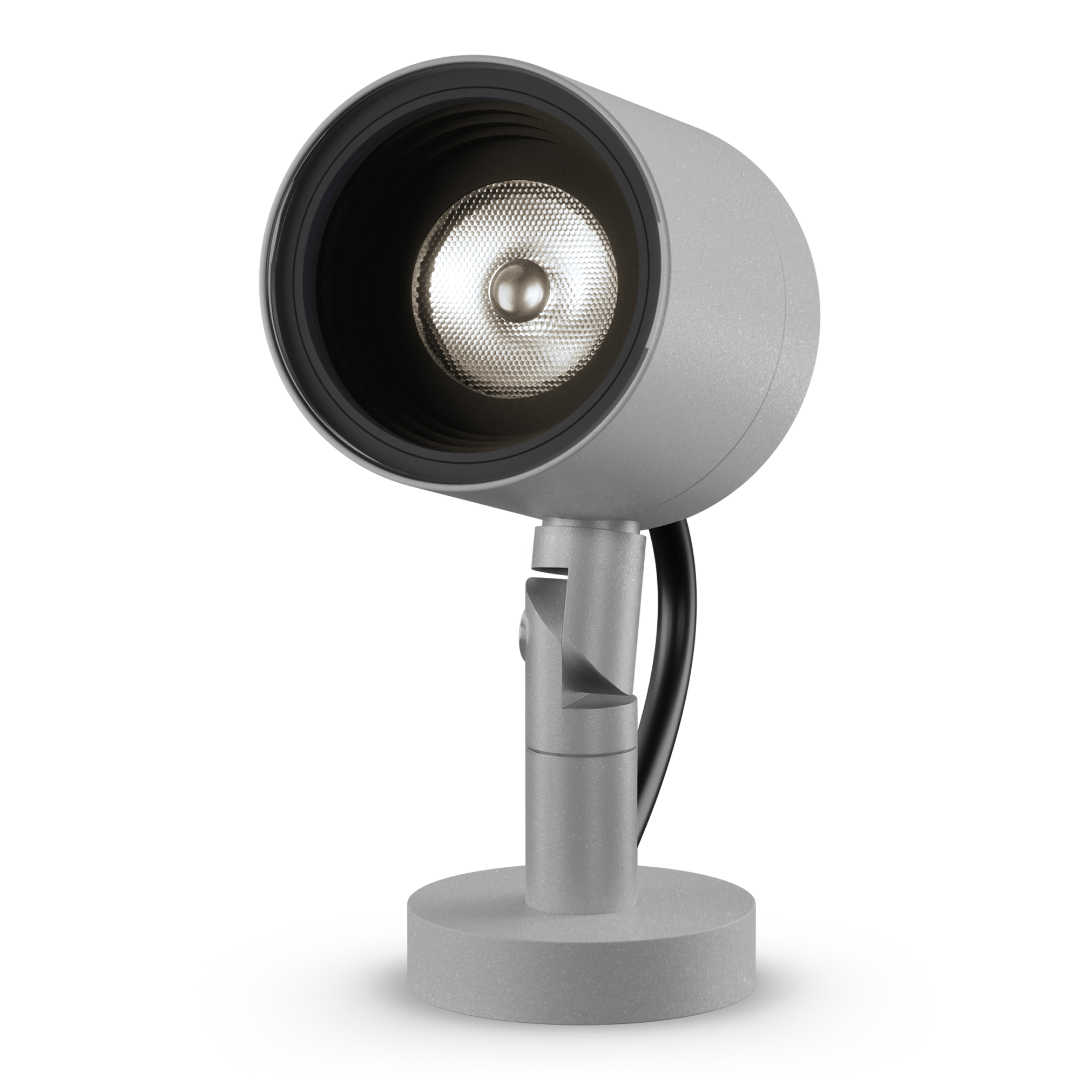

  • Lockable Head

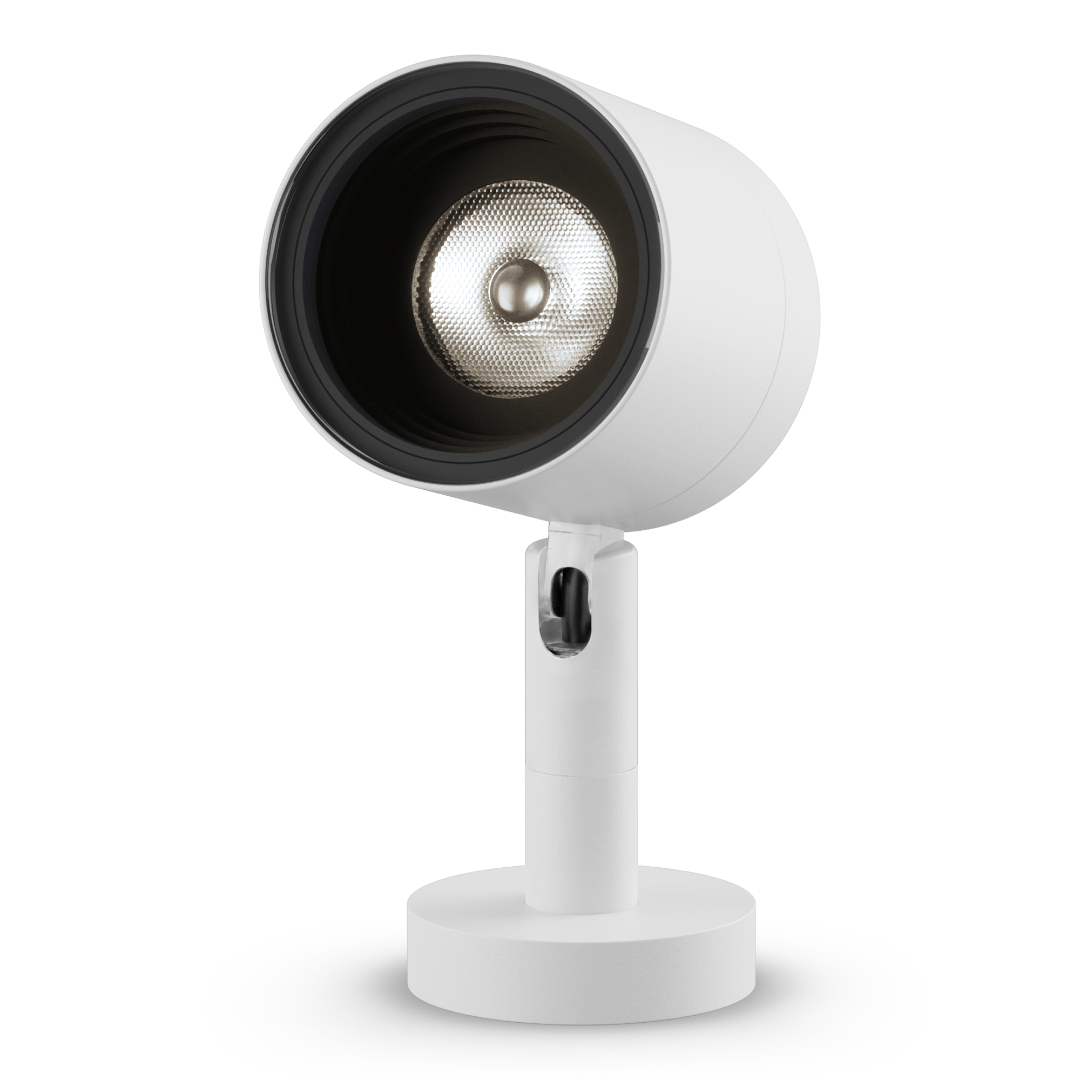

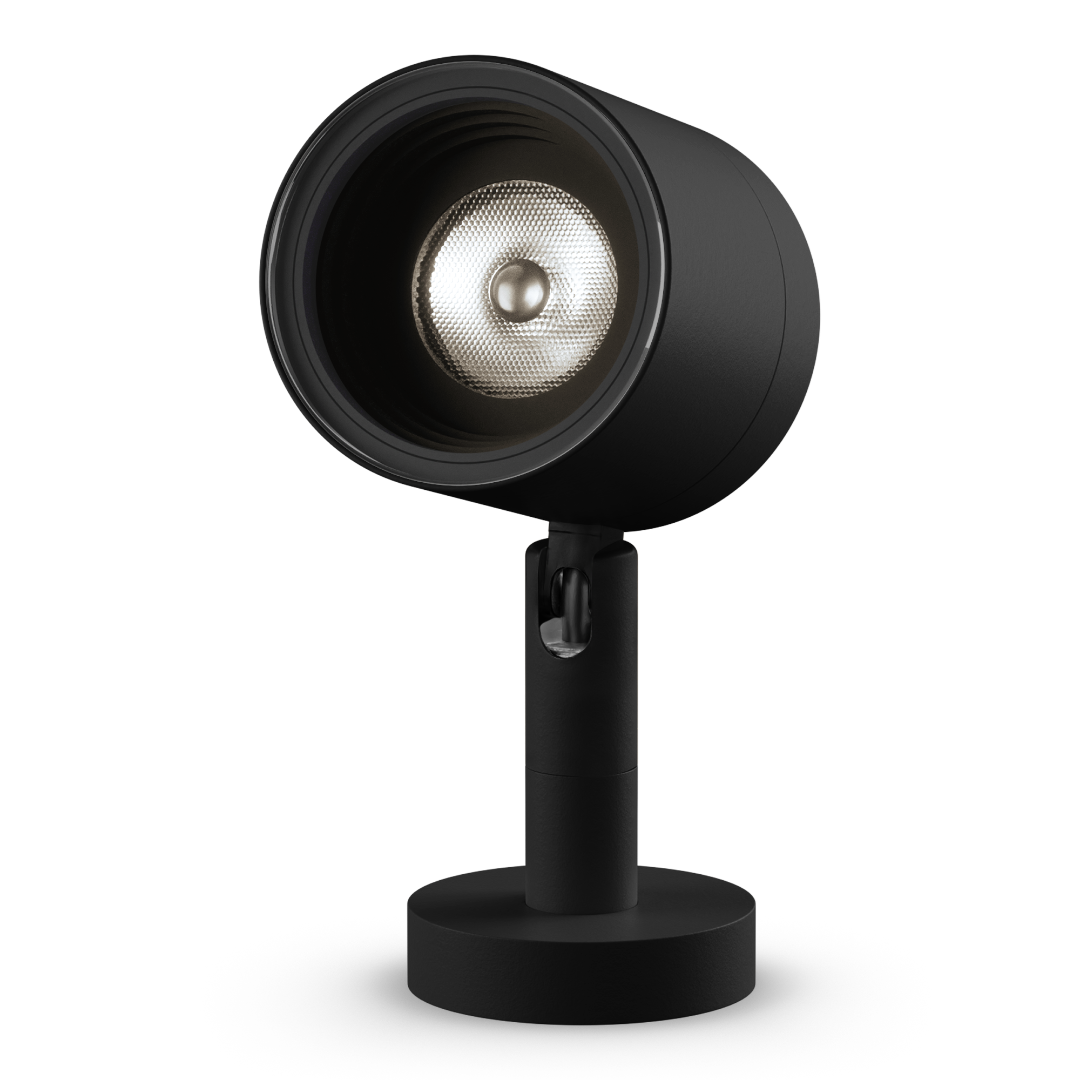

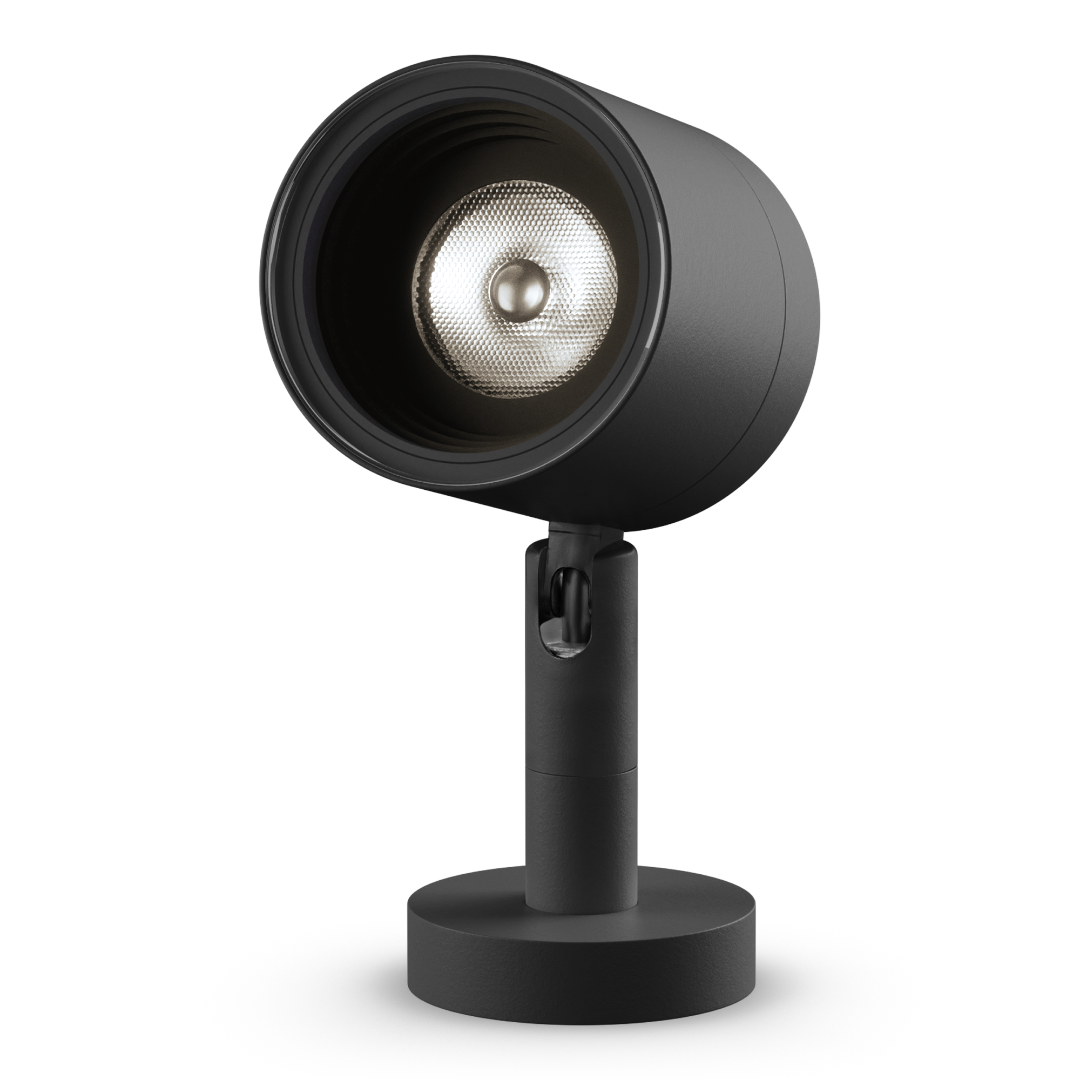

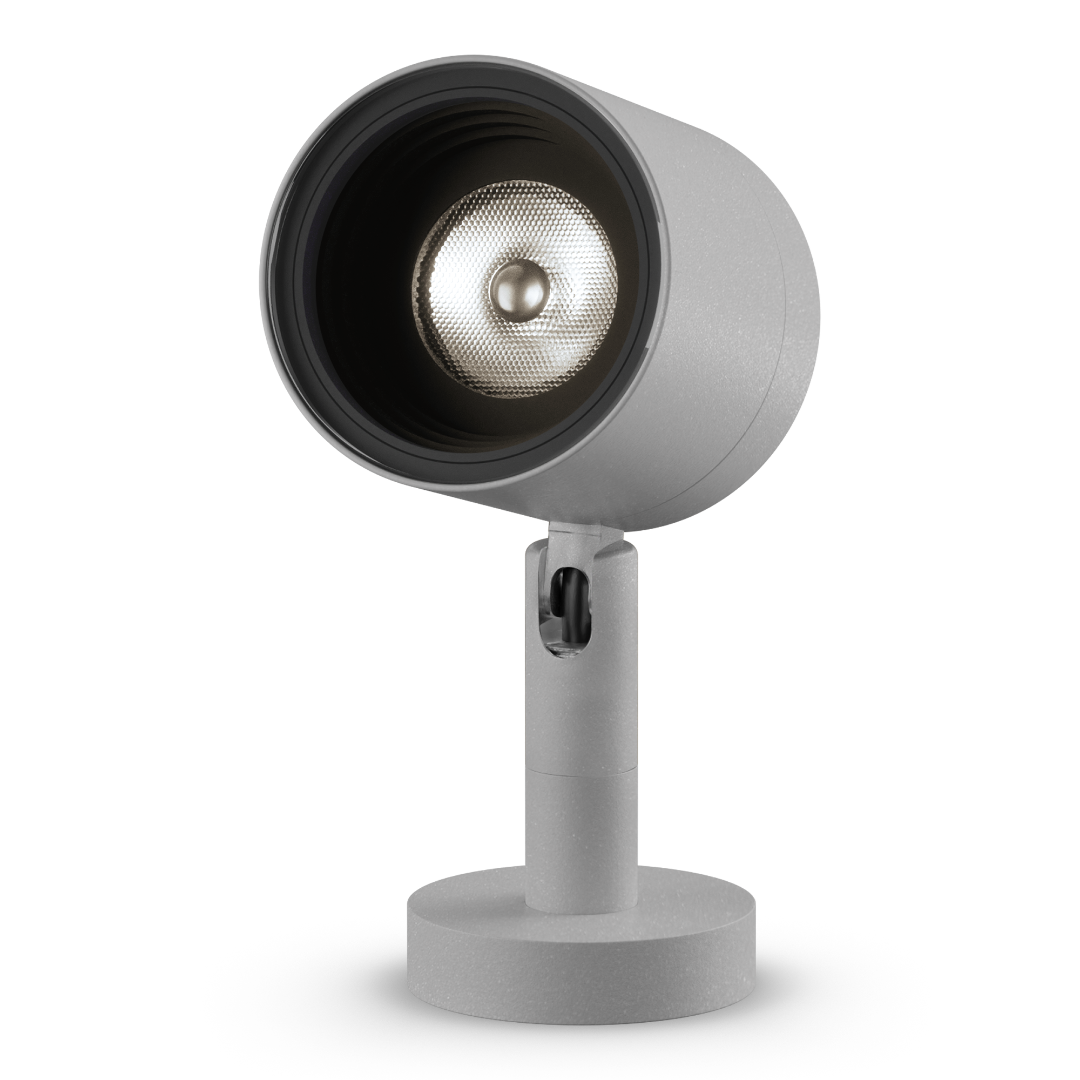

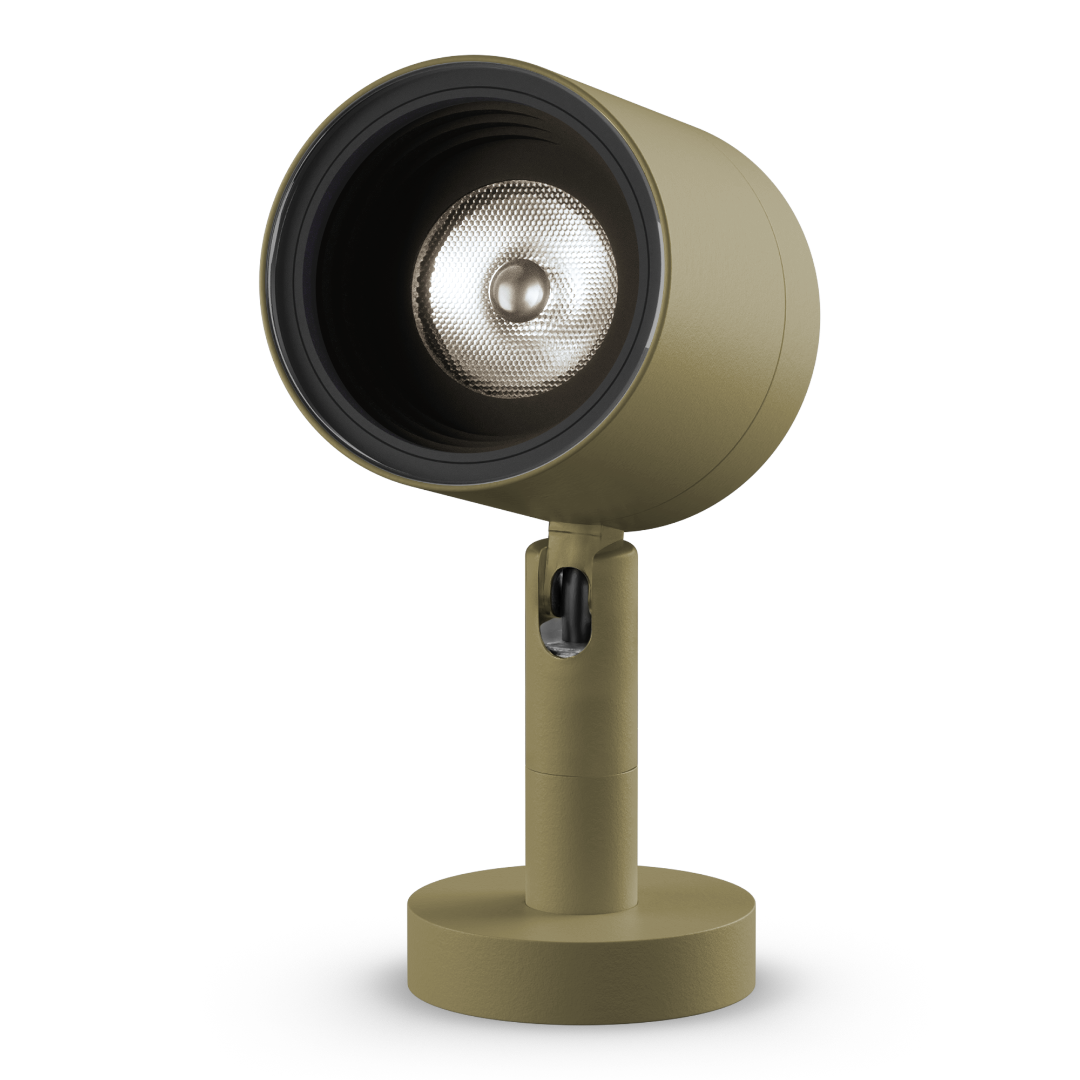

  • One Tone Finish
Contact us  Save product
DYNAMIC WHITE
print

General Features

Designed to elevate landscapes and architectural features in both residential and commercial spaces, MOON is an advanced LED luminaire offering nuanced accent lighting to evoke emotions through soft lighting effects. This adaptable luminaire provides decorative and functional lighting, ideal for paths, gardens, and architectural elements in various settings. With five finish options, a brass swivel, and sleek installation, it's a versatile choice. Additional versions provide design flexibility, while various optics create diverse visual effects. The external power supply enables easy management of multiple units.
Color configuration
High brightness Dynamic White multichip power LEDs with an adjustable color temperature range between 3000K and 6500K
Optical configuration
NB (Narrow) 14°
MB (Medium) 23°
WB (Wide) 35°
EW (Extra-Wide) 56°
Max. Delivered lumen output
up to 413 lumens
Max. lumen/Watt
up to 46 lumens per watt
Input voltage
120-277VAC / 50-60Hz
Amperage
Constant Voltage @ 24VDC
Power consumption
9 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK08
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optical Accessories Including Refractors, Diffuser Glass, Prismatic Glass, Snoot, Visor, External Honeycomb Louver, and Mounting Hardware

Light Beam Effects

  • Narrow
  • Medium
  • Wide
  • Extra Wide


Overview

  • IP67
  • IK08
  • DMX
  • RDM
  • Brass swivel
  • Lockable head
  • One-tone finish
  • ETL Certified for Wet Locations

Optional Features

  • Anti-saline treatment
  • Internal Honeycomb Louver
