Moon Surface RGBW

MOON-SF

  • Compact surface-mount family for the enhancement of landscape and architectural details through refined accent lighting effects.
  • Max. Delivered Lumen Output: 242 Lumens / 27 Lumens per Watt
  • RGBW 3000K or 4000K
  • Brass Swivel, Lockable Head, or One-Tone Finish Options

View finishes: Anthracite Grey

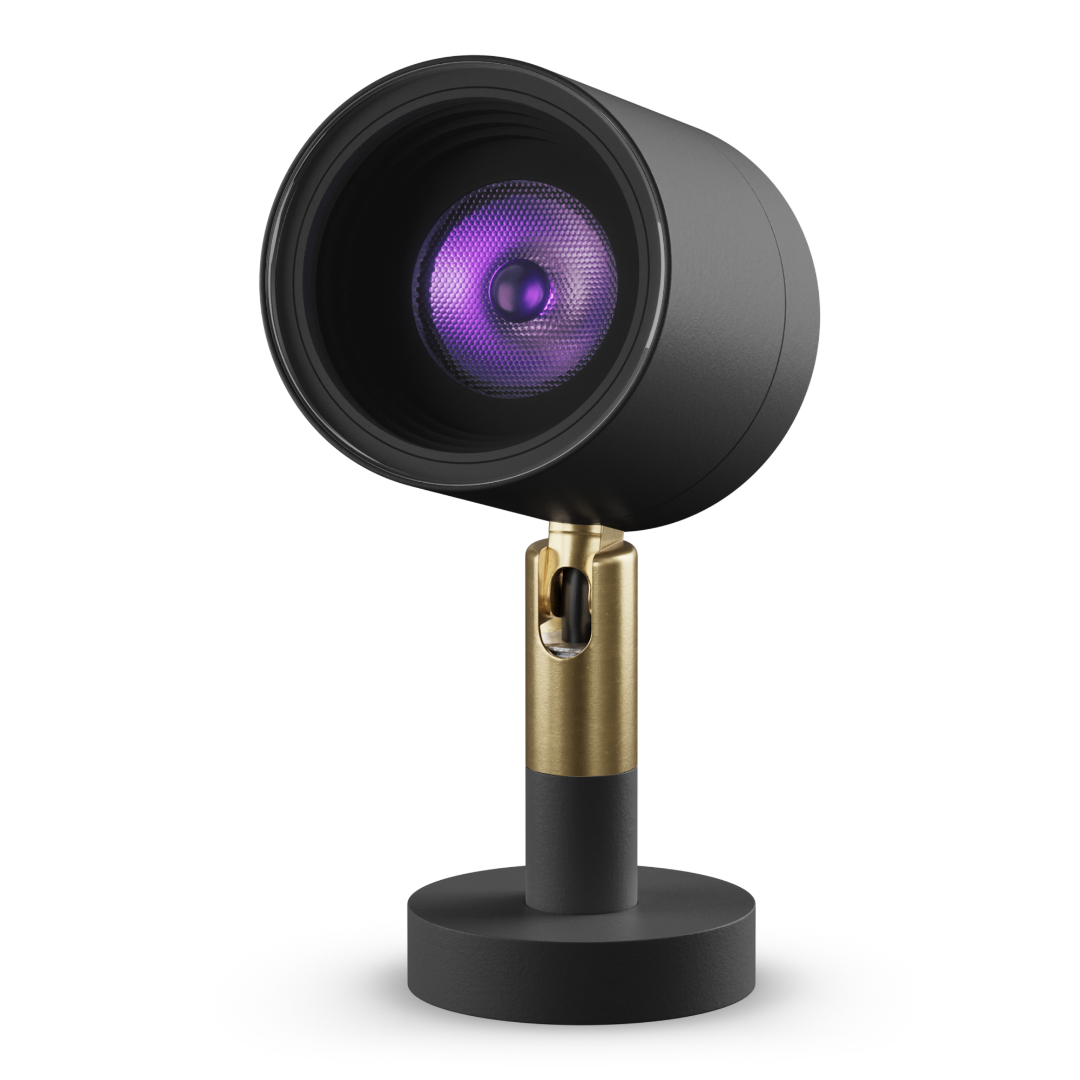

  • Anthracite Grey

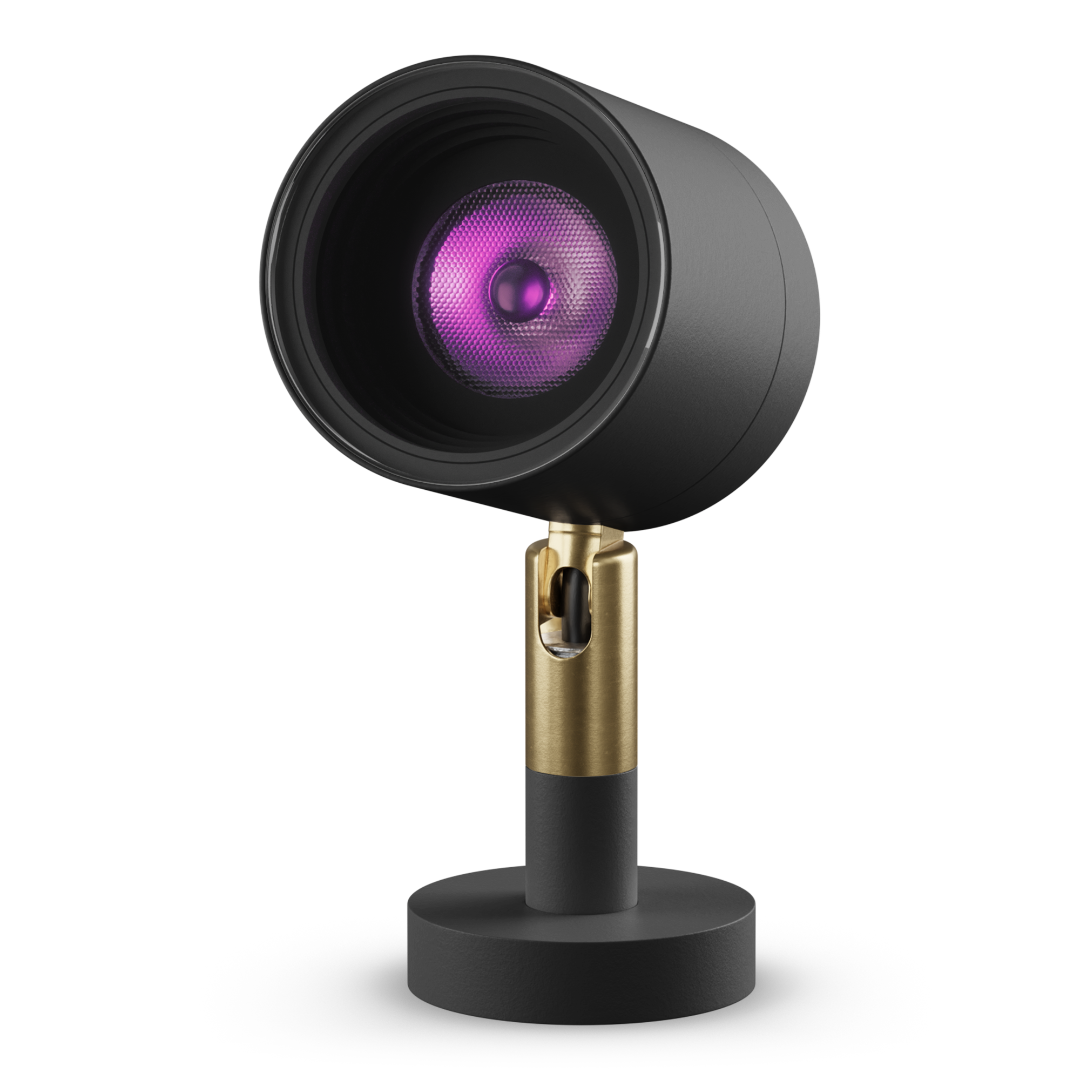

  • Black
  • Griven Silver Grey
  • White

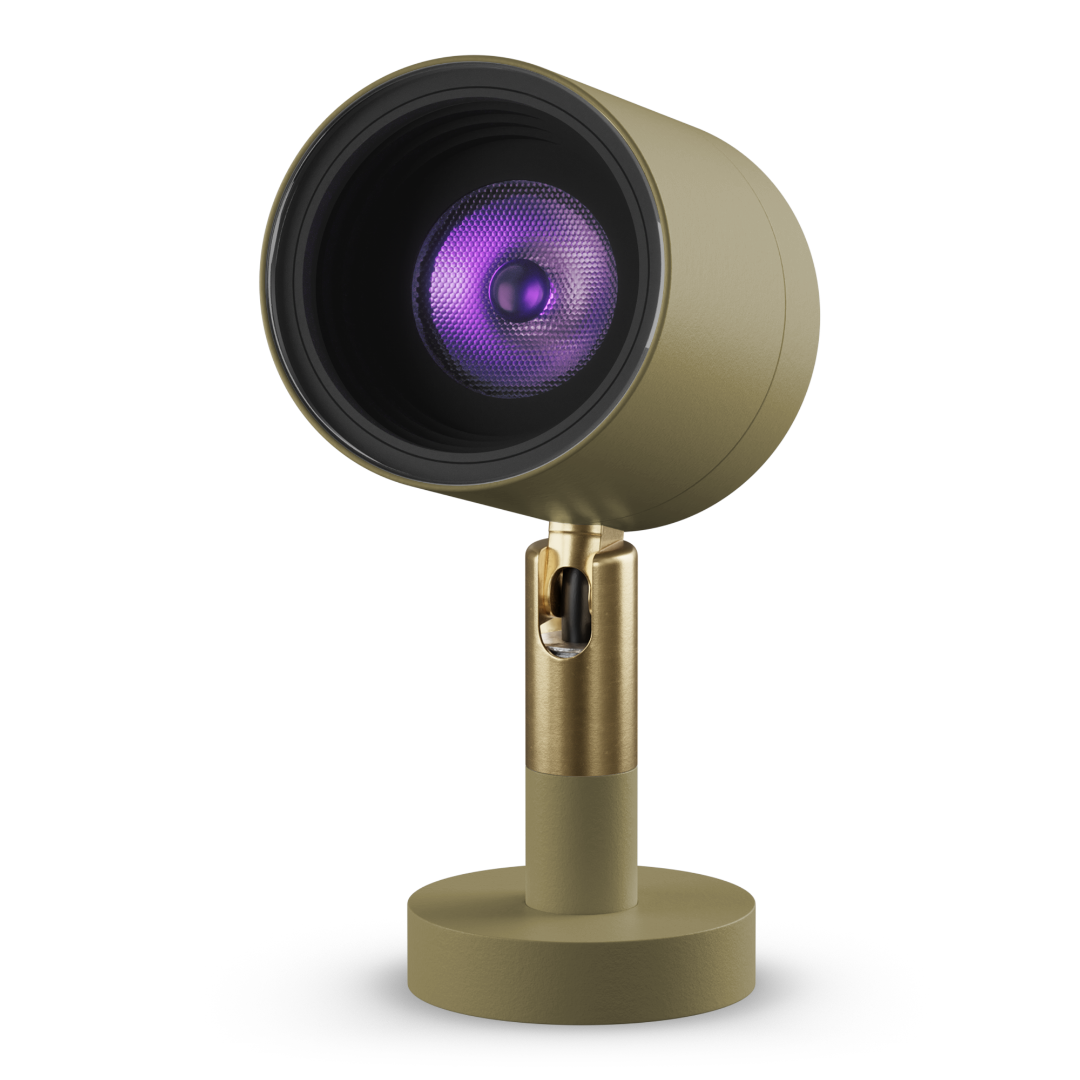

  • Olive Grey
  • Custom Color
  • Contact factory for Custom RAL or Marine Grade Finishes
View Swivel: Brass Swivel

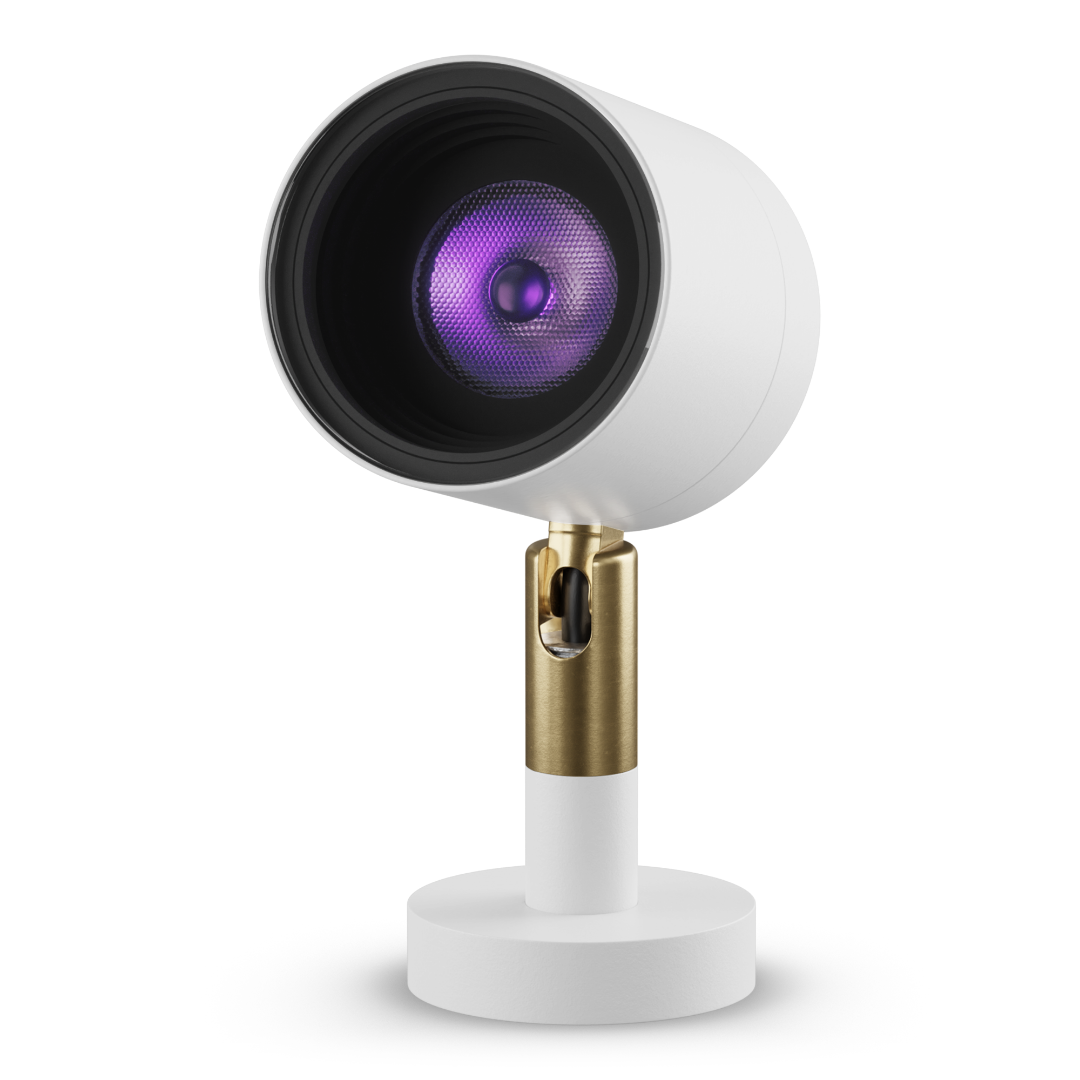

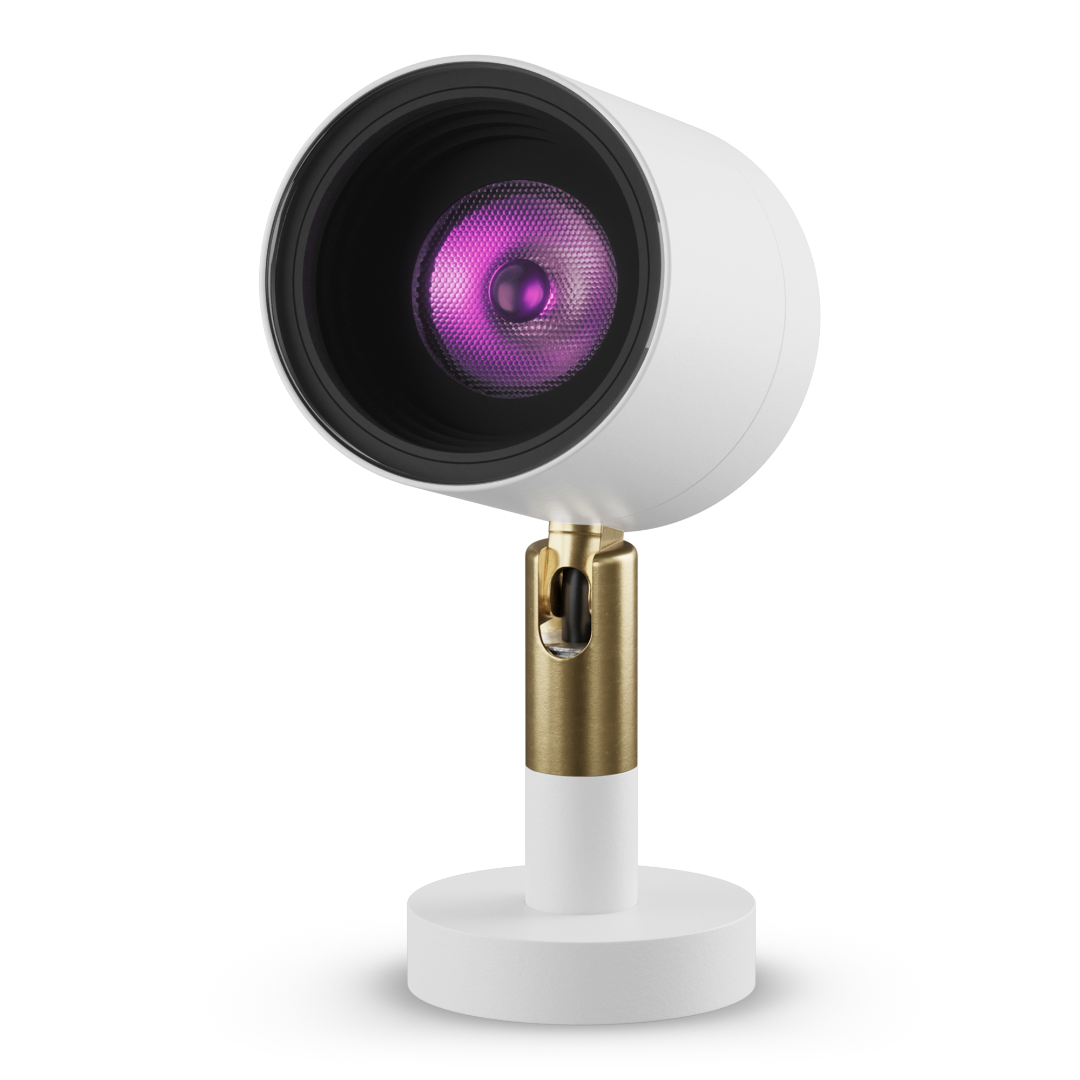

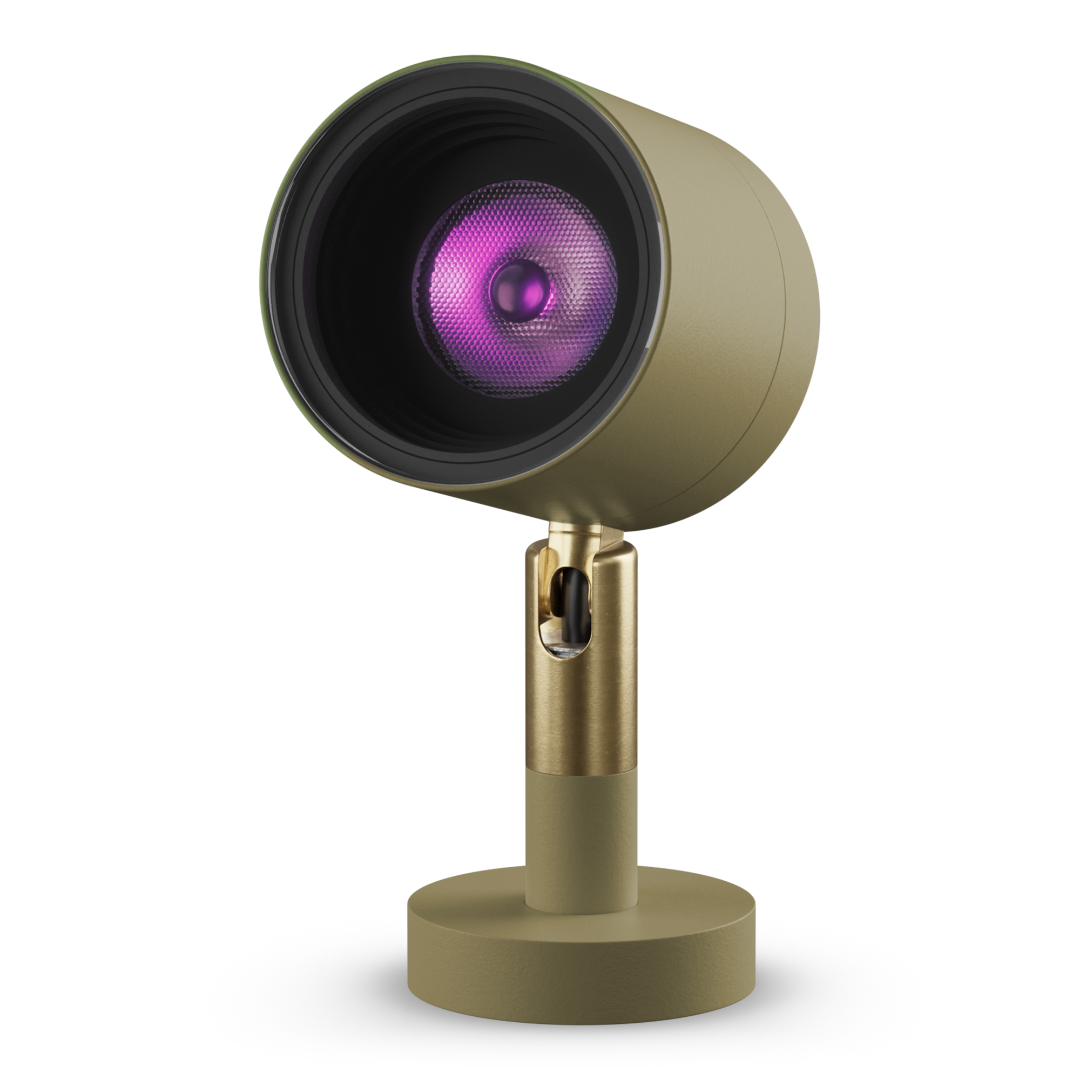

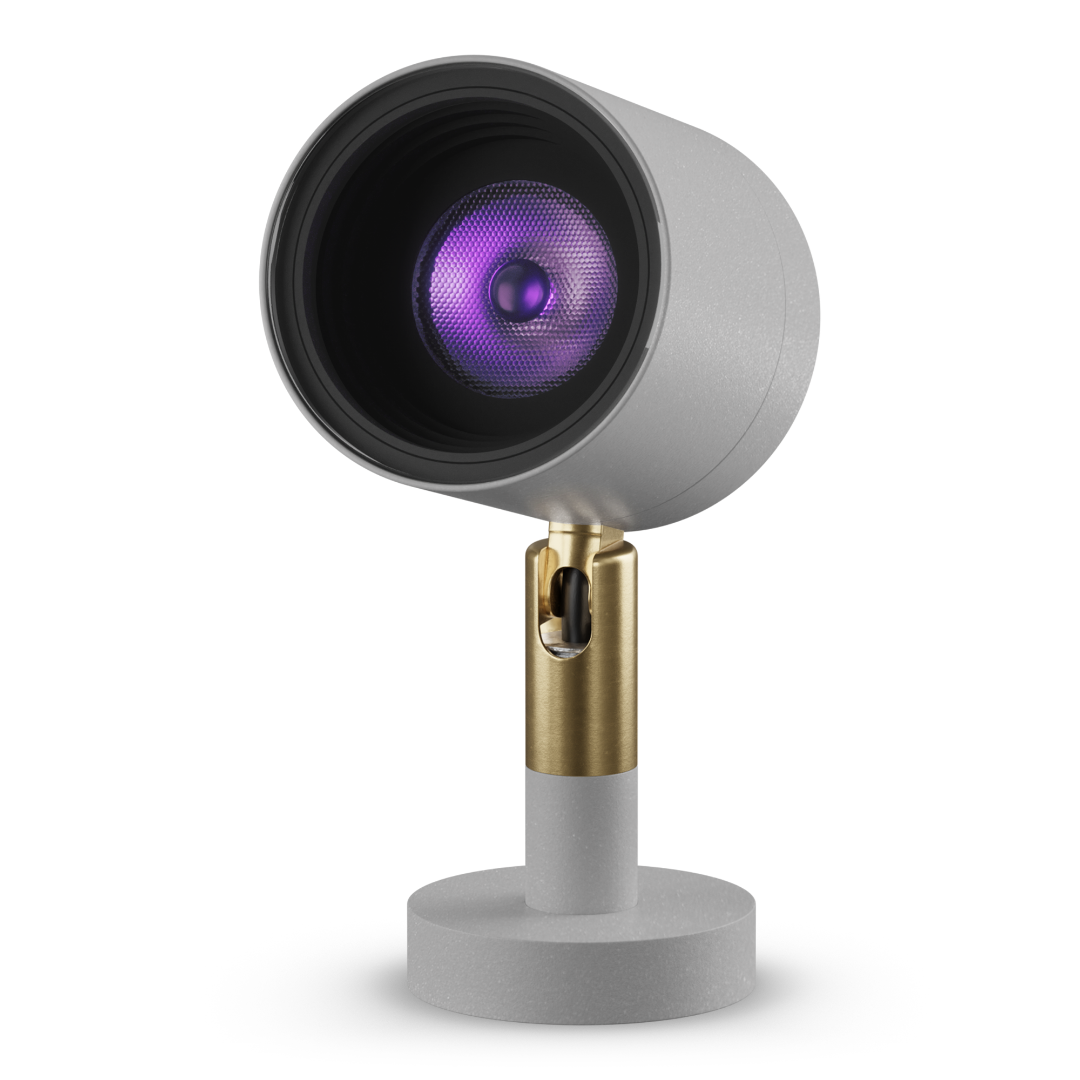

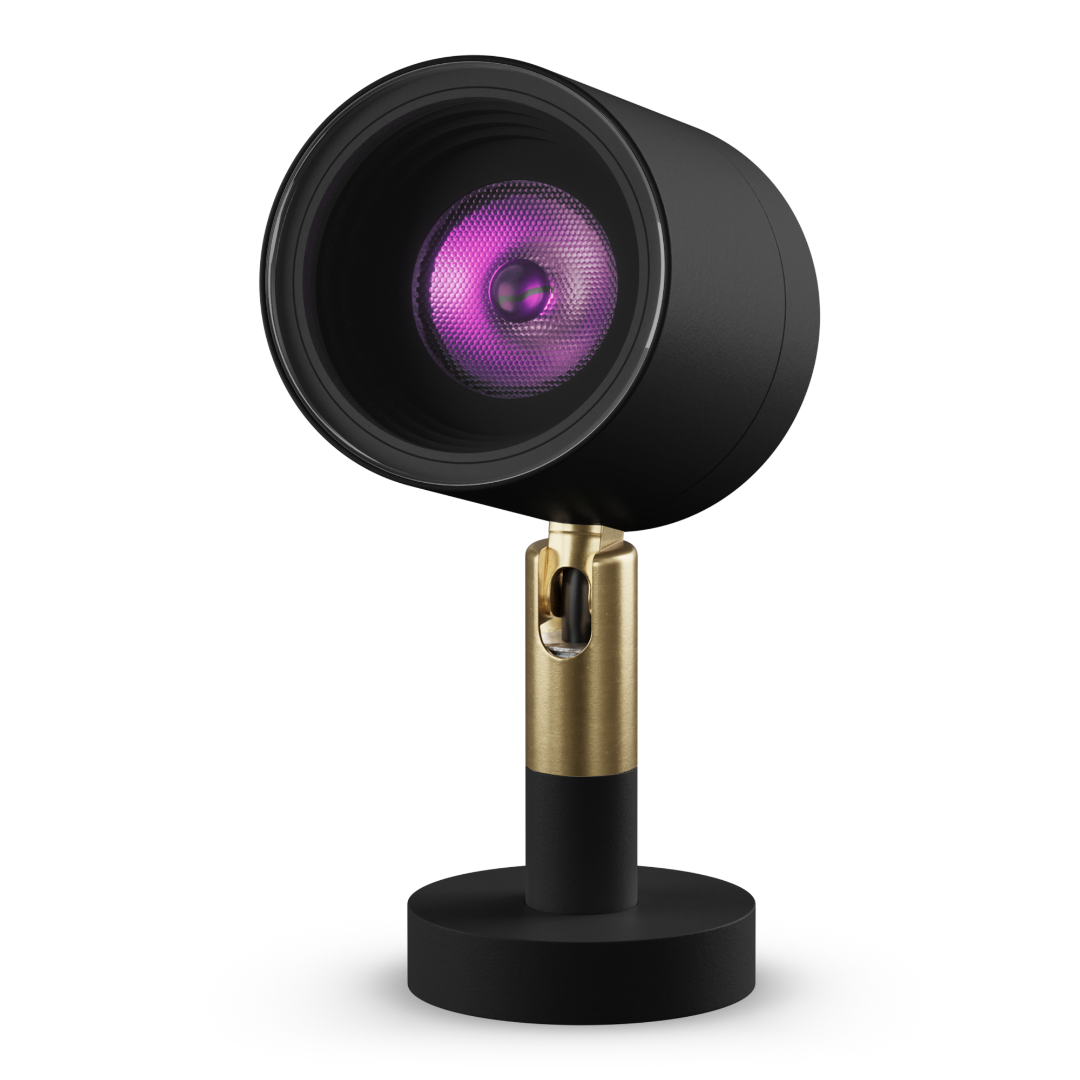

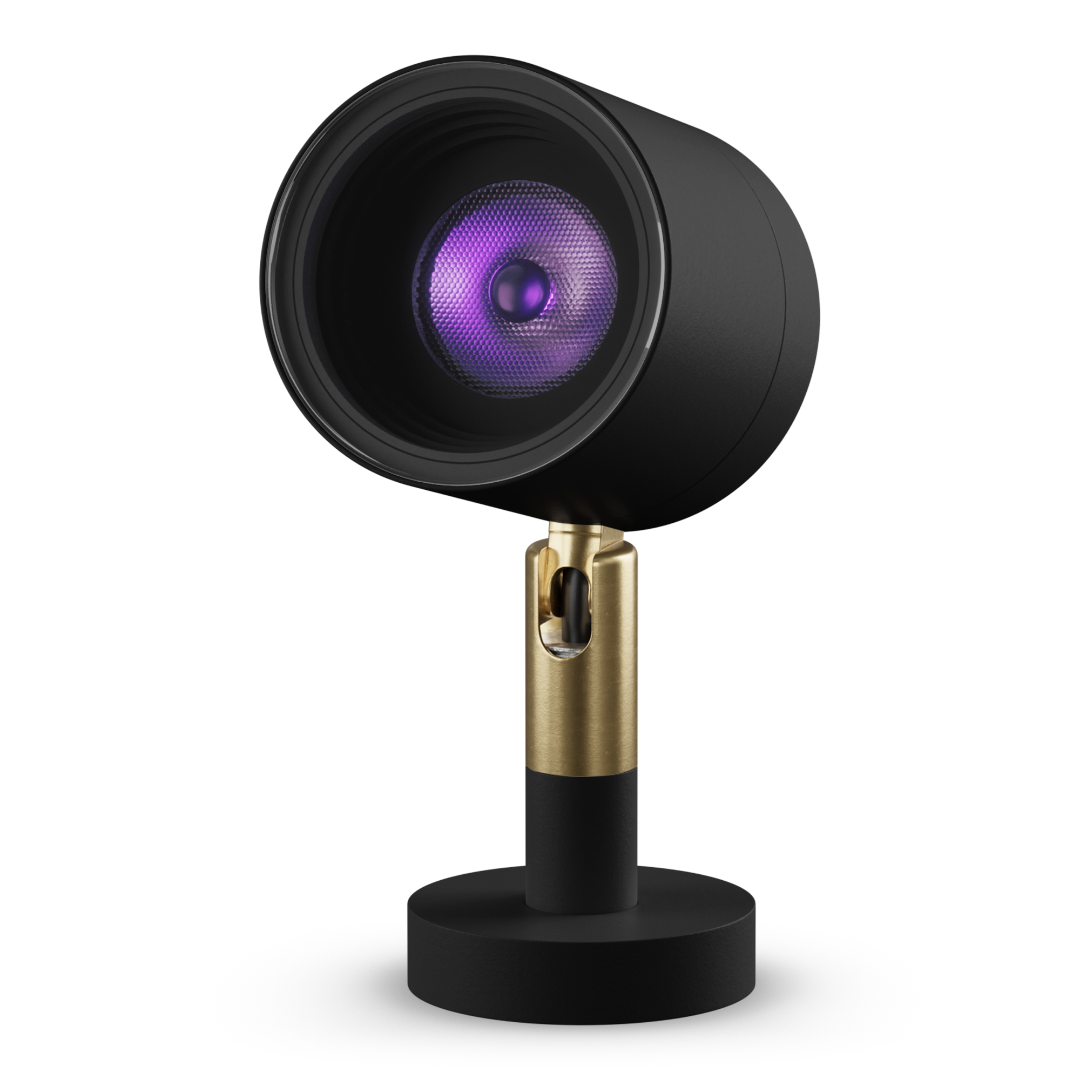

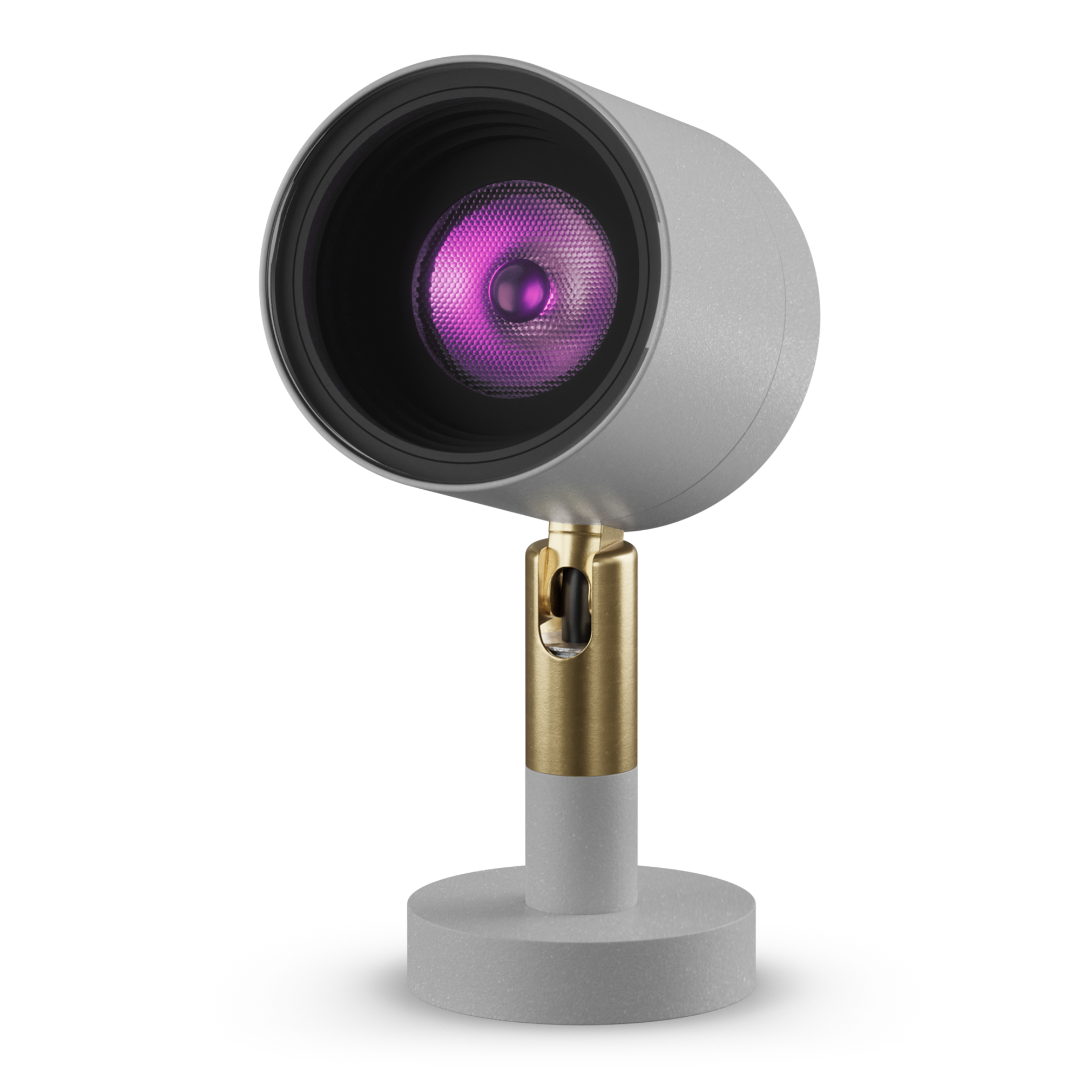

  • Brass Swivel

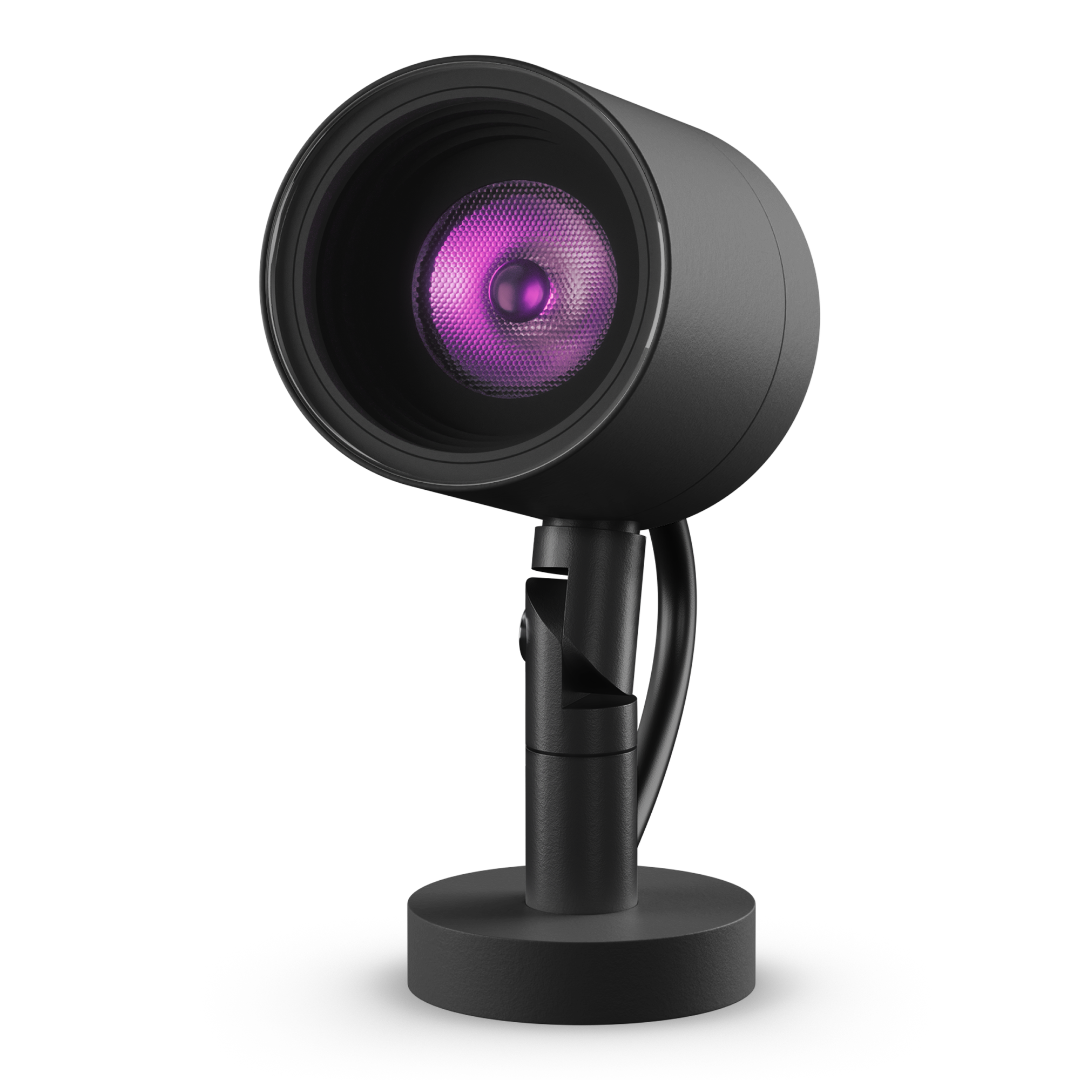

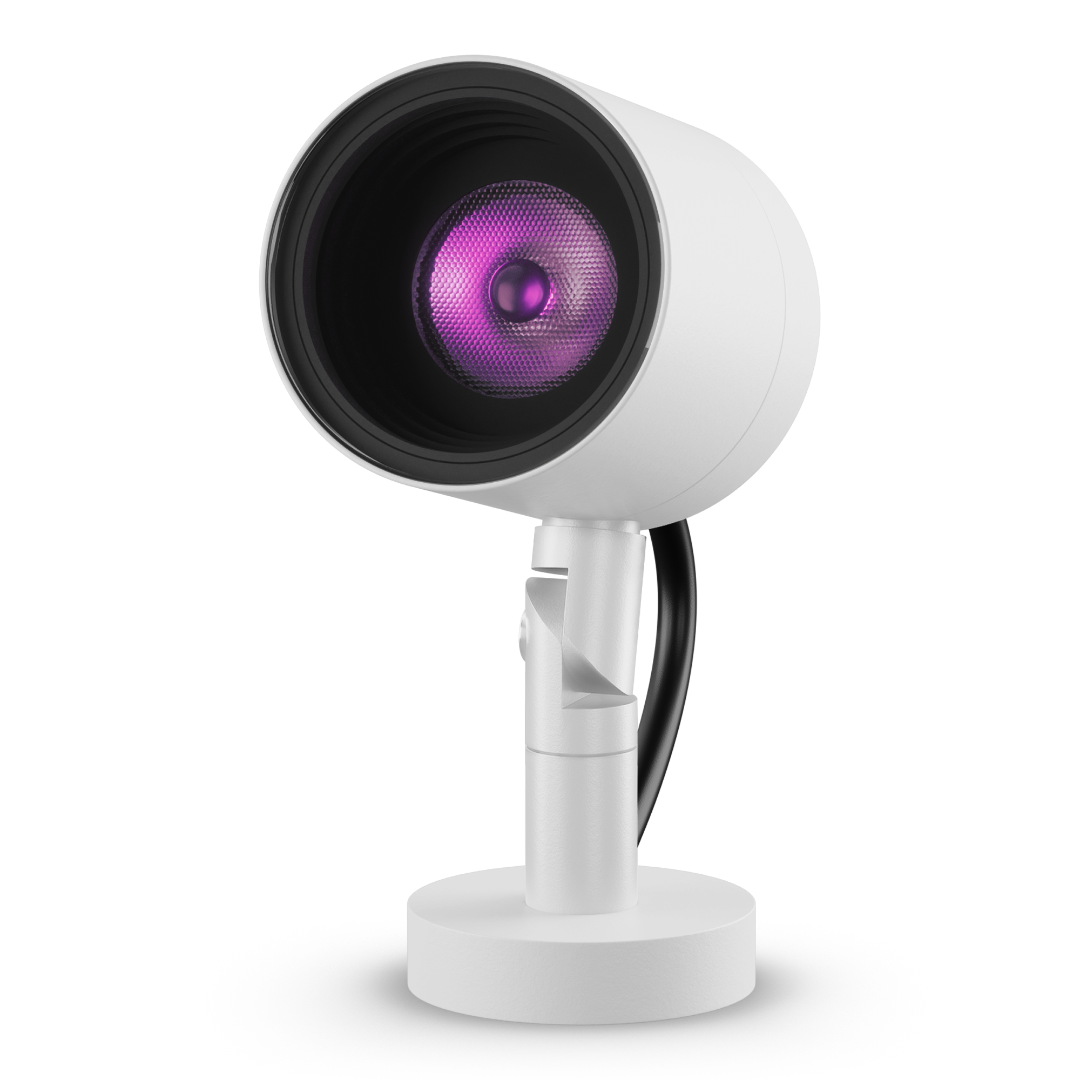

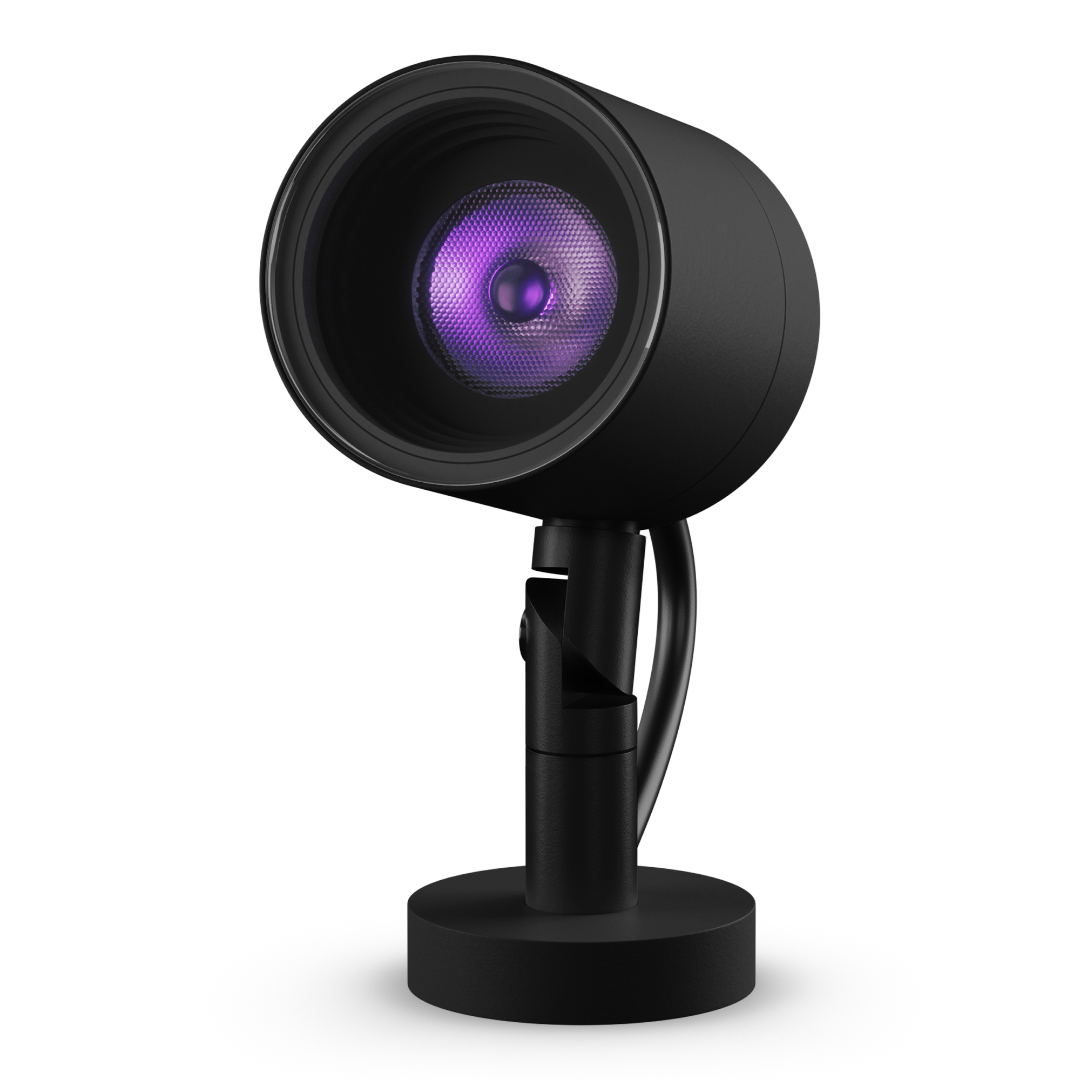

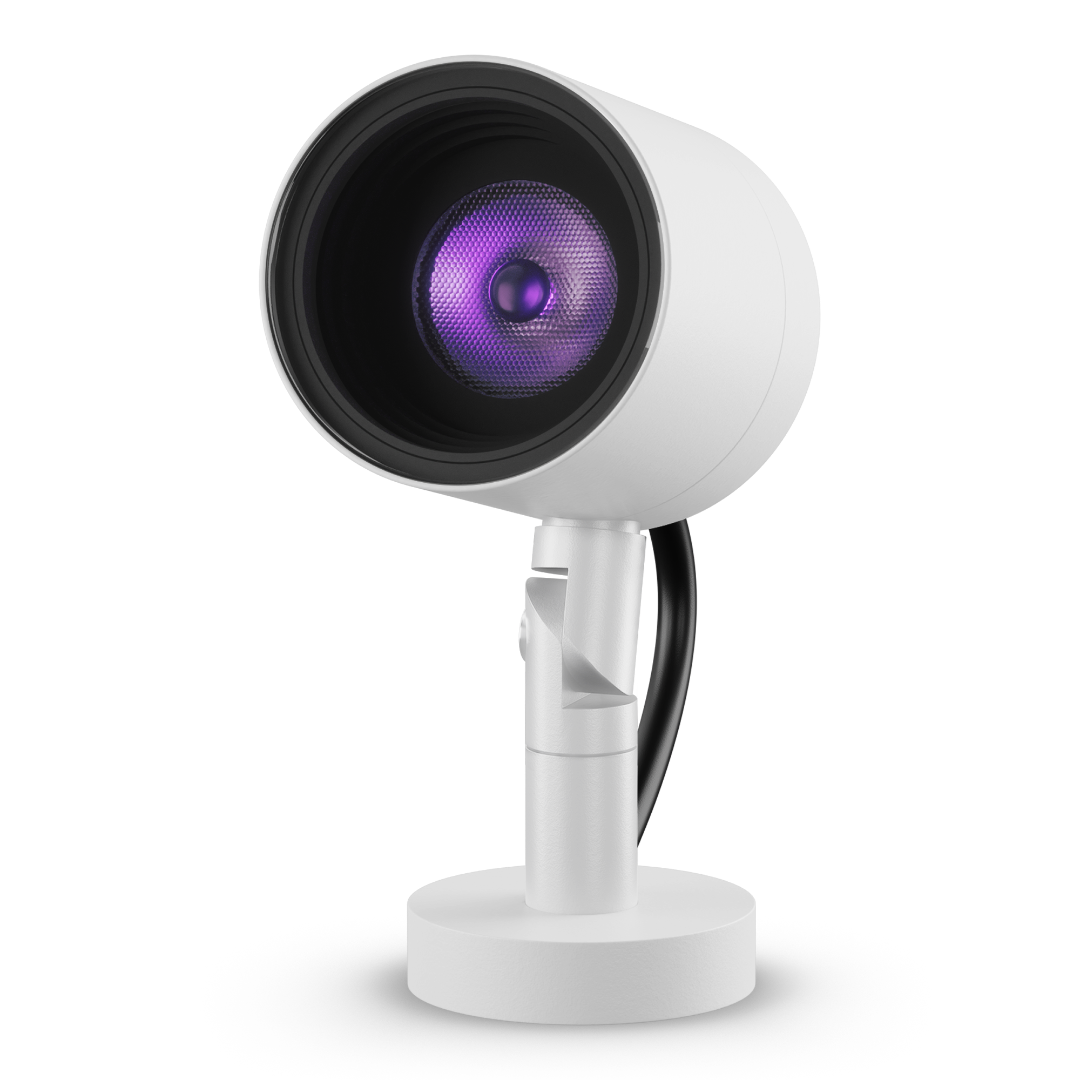

  • Lockable Head

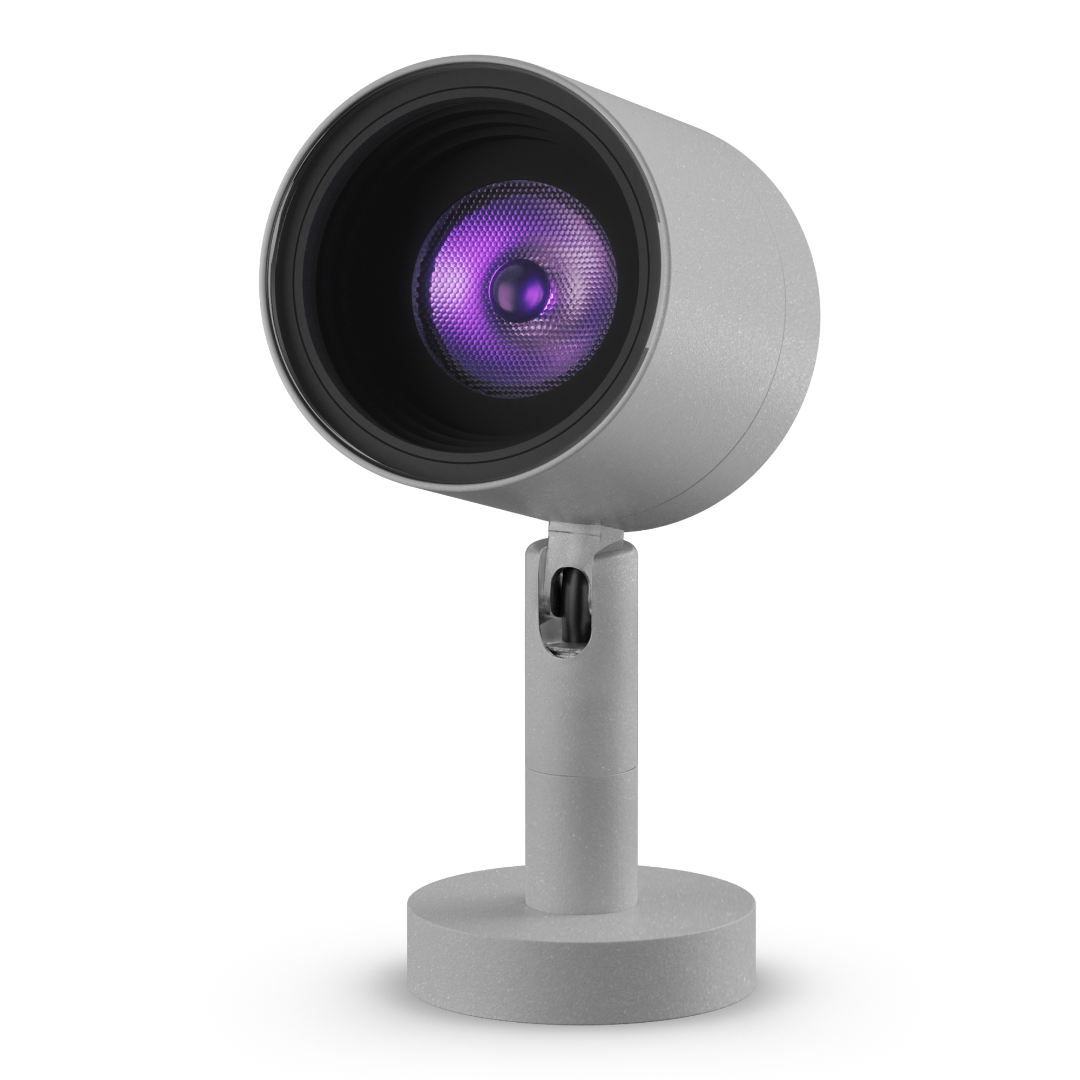

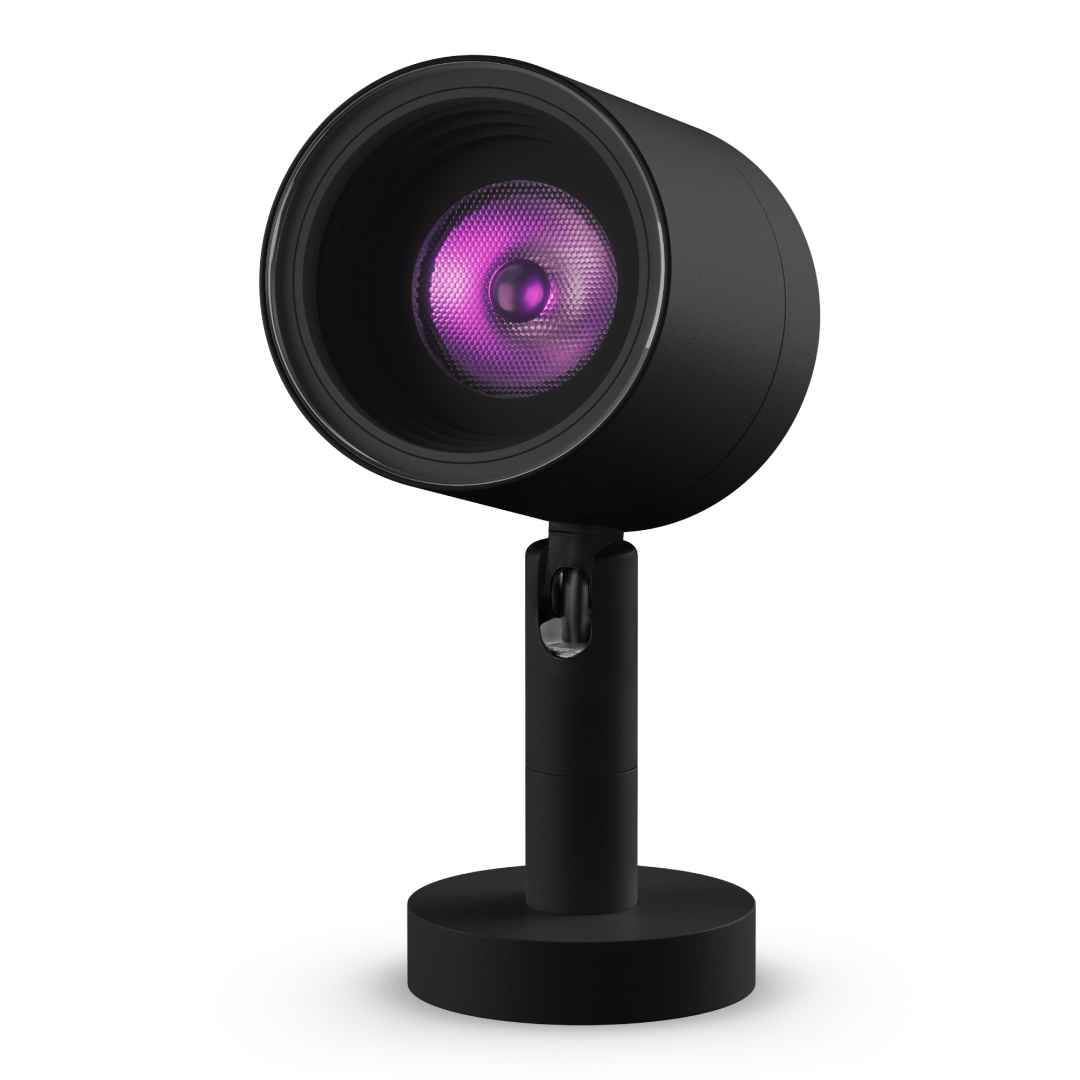

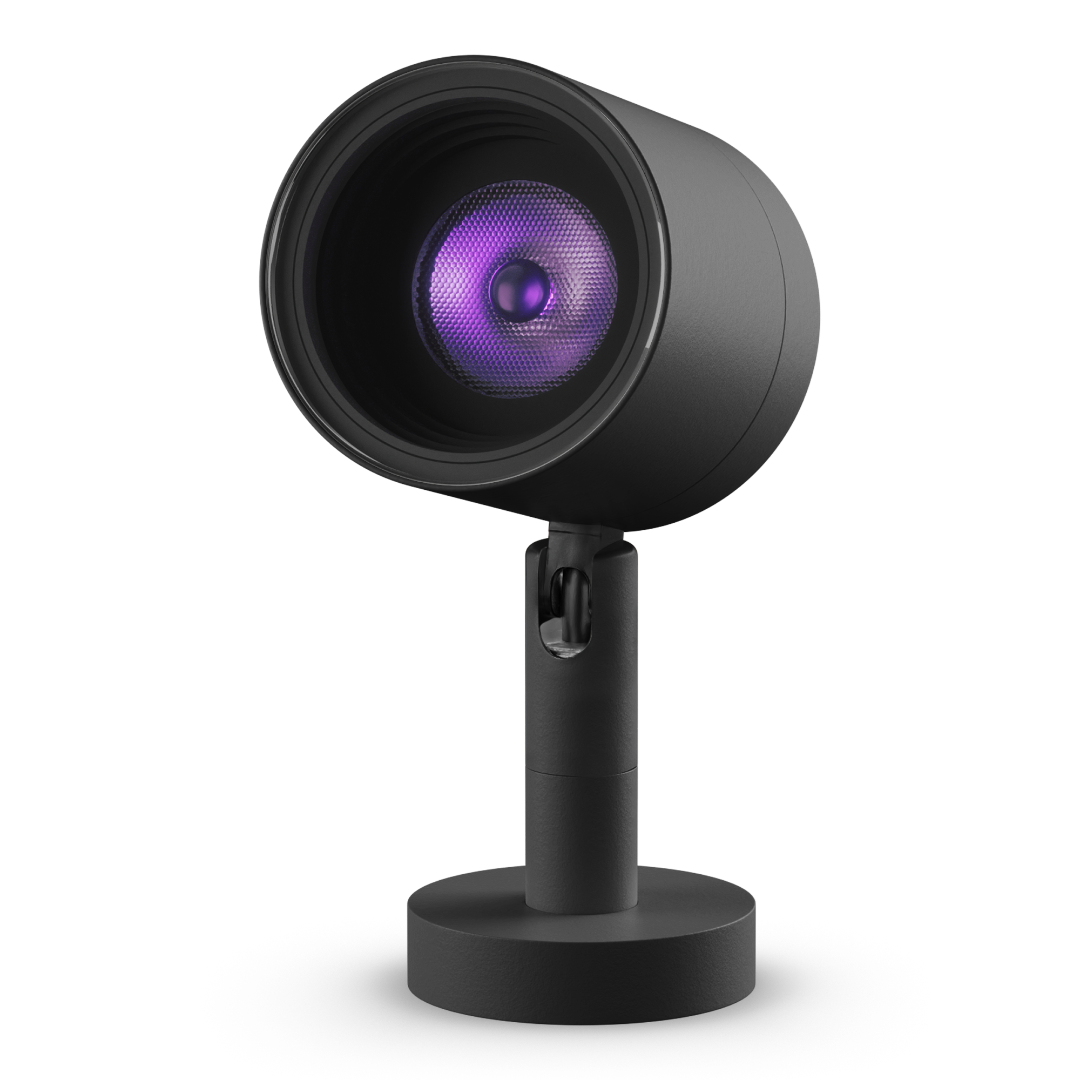

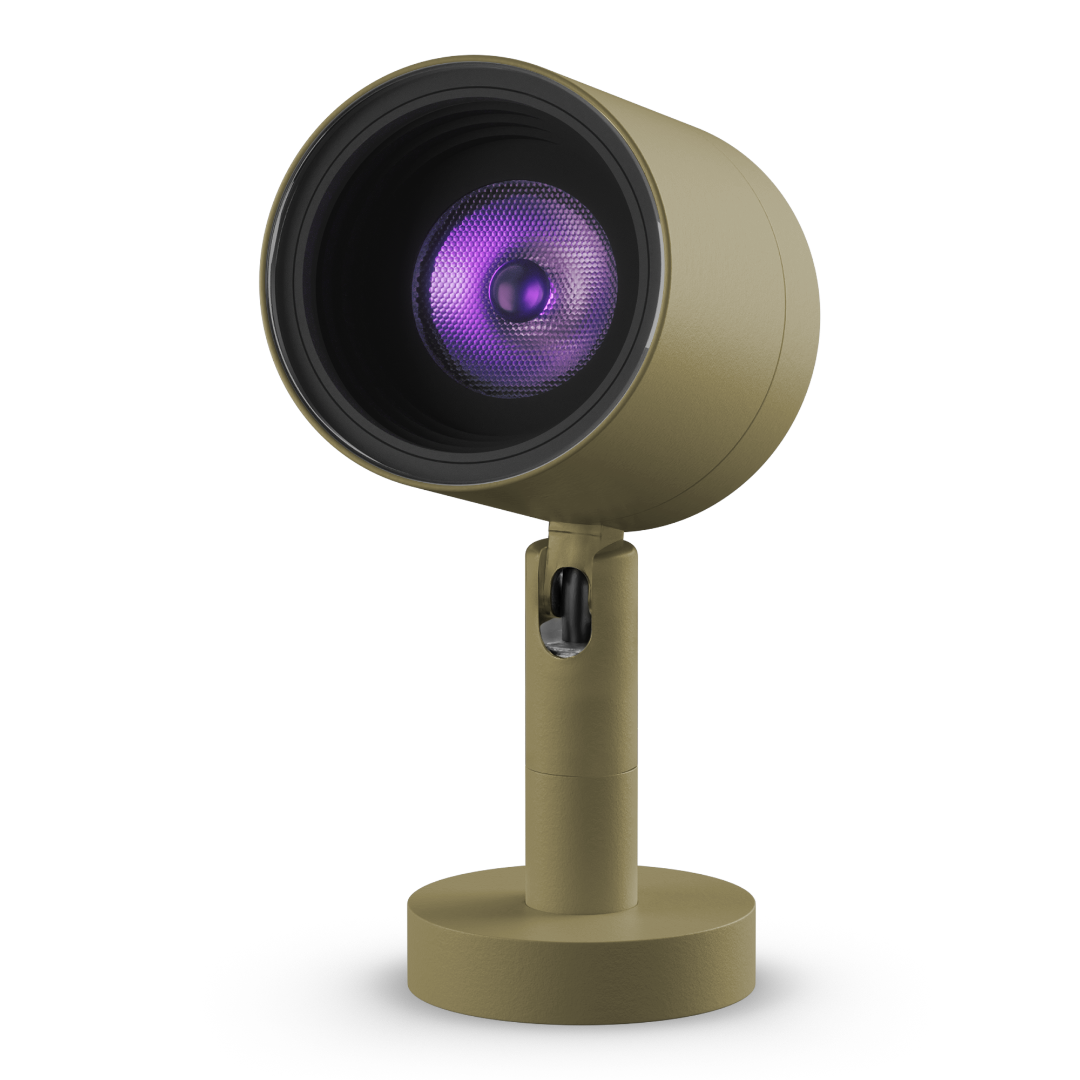

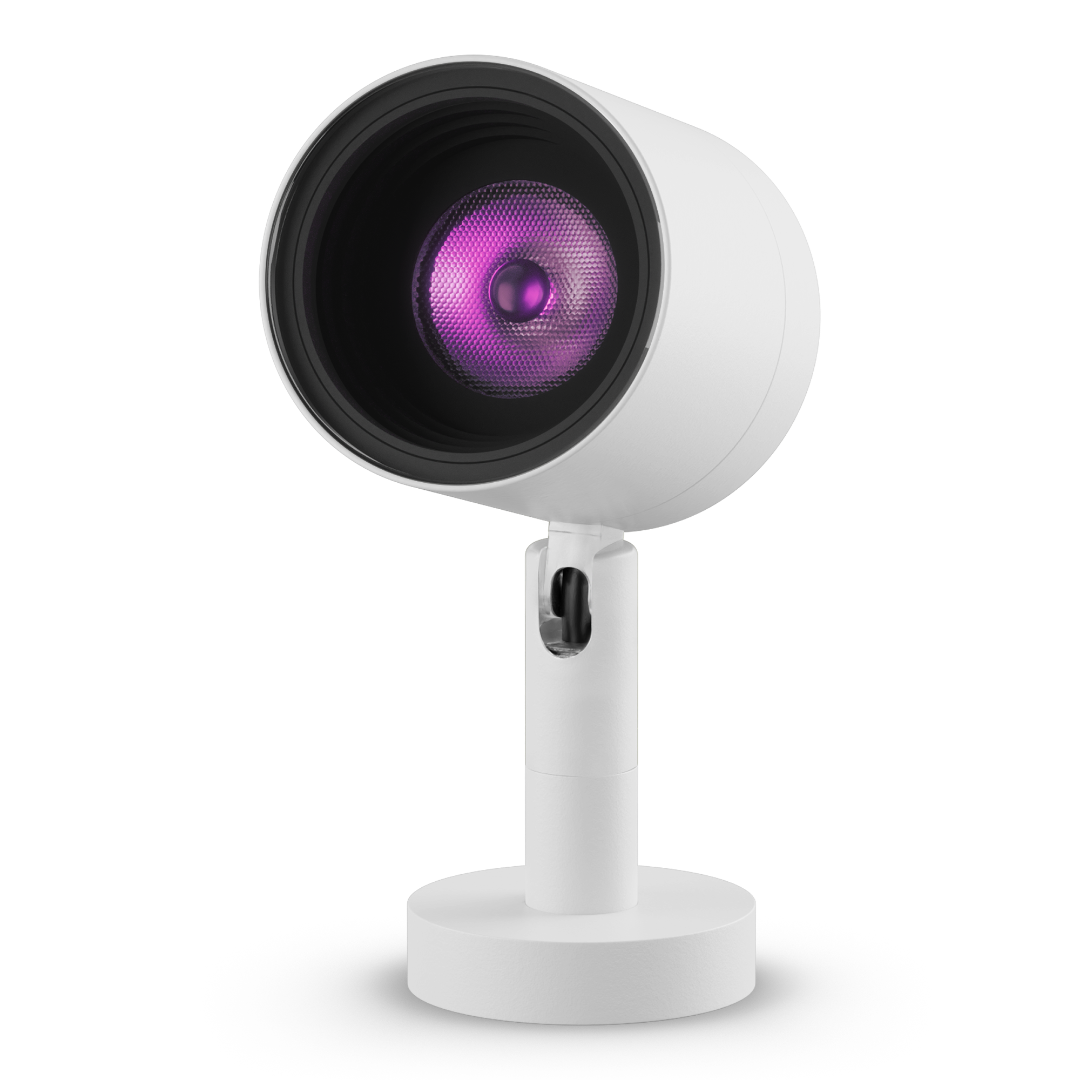

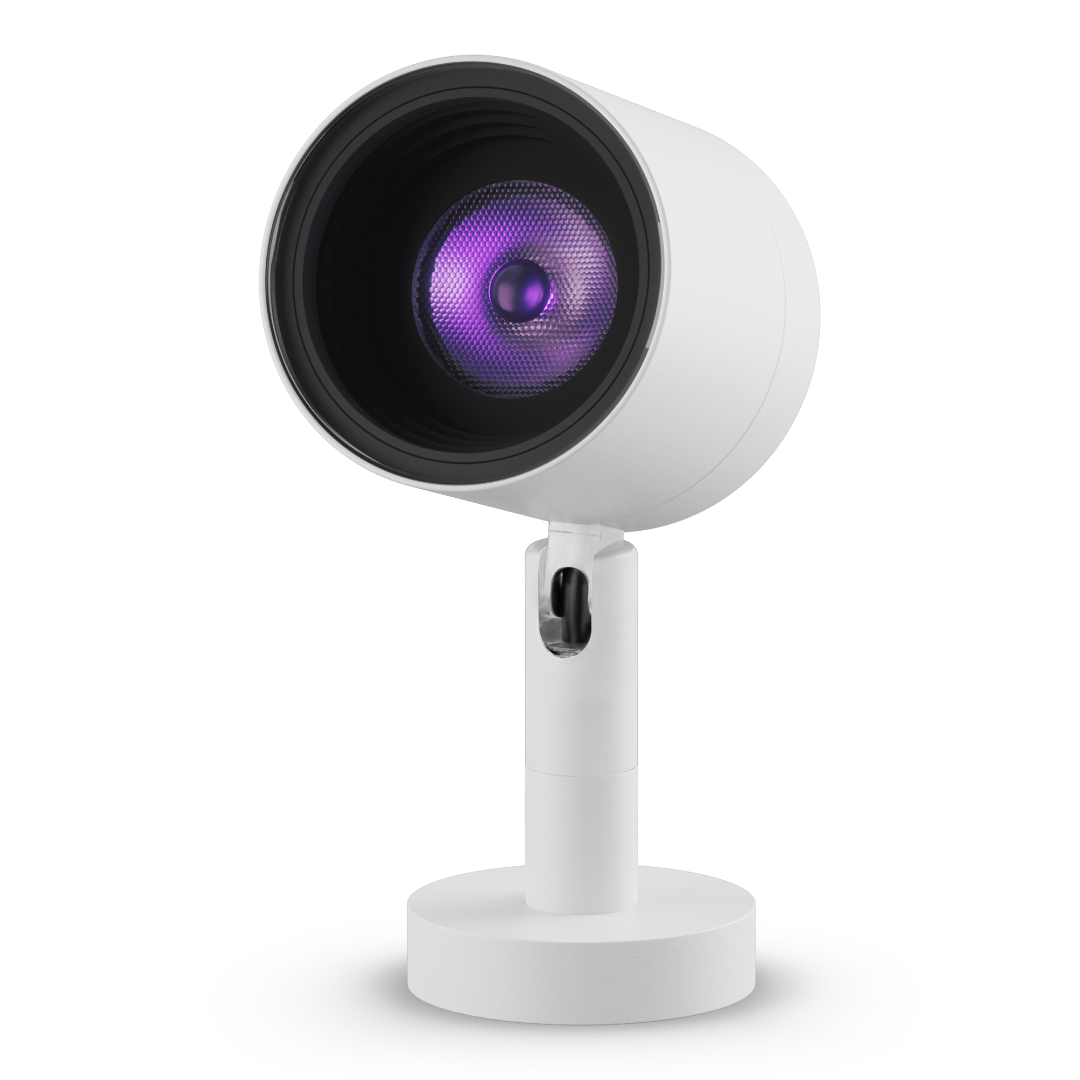

  • One Tone Finish
View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product
COLOR CHANGING
print

General Features

Designed to elevate landscapes and architectural features in both residential and commercial spaces, MOON is an advanced LED luminaire offering nuanced accent lighting to evoke emotions through soft lighting effects. This adaptable luminaire provides decorative and functional lighting, ideal for paths, gardens, and architectural elements in various settings. With five finish options, a brass swivel, and sleek installation, it's a versatile choice. Additional versions provide design flexibility, while various optics create diverse visual effects. The external power supply enables easy management of multiple units.
Color configuration
High brightness RGB+W 4000K or 3000K multichip power LEDs
Optical configuration
NB (Narrow) 14°
MB (Medium) 23°
WB (Wide) 35°
EW (Extra-Wide) 56°
Max. Delivered lumen output
up to 242 lumens (4000K)
Max. lumen/Watt
up to 27 lumens per watt (4000K)
Input voltage
120-277VAC / 50-60Hz
Amperage
Constant Voltage @ 24VDC
Power consumption
9 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK08
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optical Accessories Including Refractors, Diffuser Glass, Prismatic Glass, Snoot, Visor, External Honeycomb Louver, and Mounting Hardware

Light Beam Effects

  • Narrow
  • Medium
  • Wide
  • Extra Wide


Overview

  • IP67
  • IK08
  • DMX
  • RDM
  • Brass swivel
  • Lockable head
  • One-tone finish
  • ETL Certified for Wet Locations

Optional Features

  • Anti-saline treatment
  • Internal Honeycomb Louver
