Onyx XQ Ultra Spot Dynamic White

OXXQ

  • Powerful surface mount floodlight
  • Ultra-spot, sharp, long-shot beam
  • High brightness tunable white power LEDs
  • 22.09" L x 5.98" W x 15.08" H

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
Contact us  Save product
DYNAMIC WHITE
print

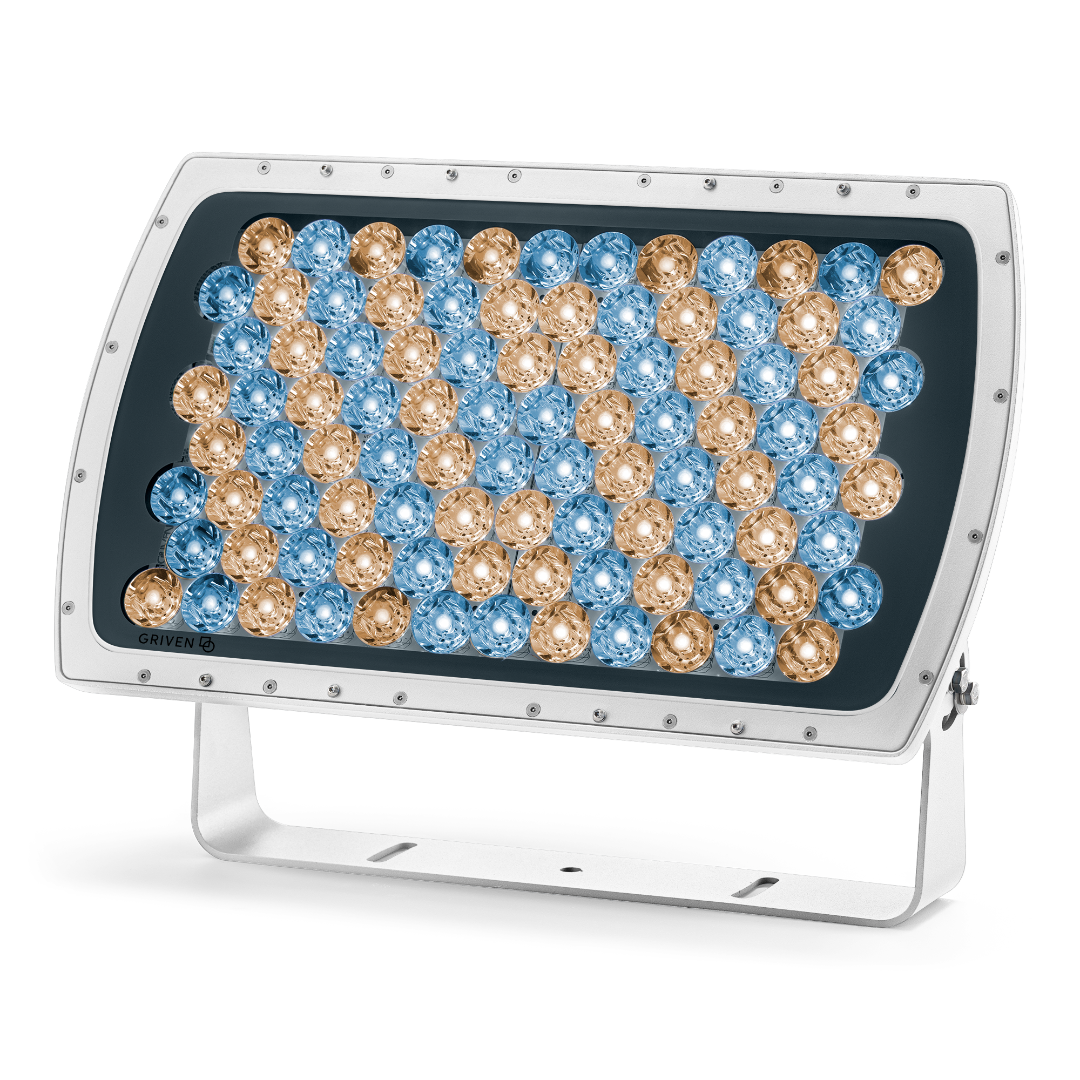

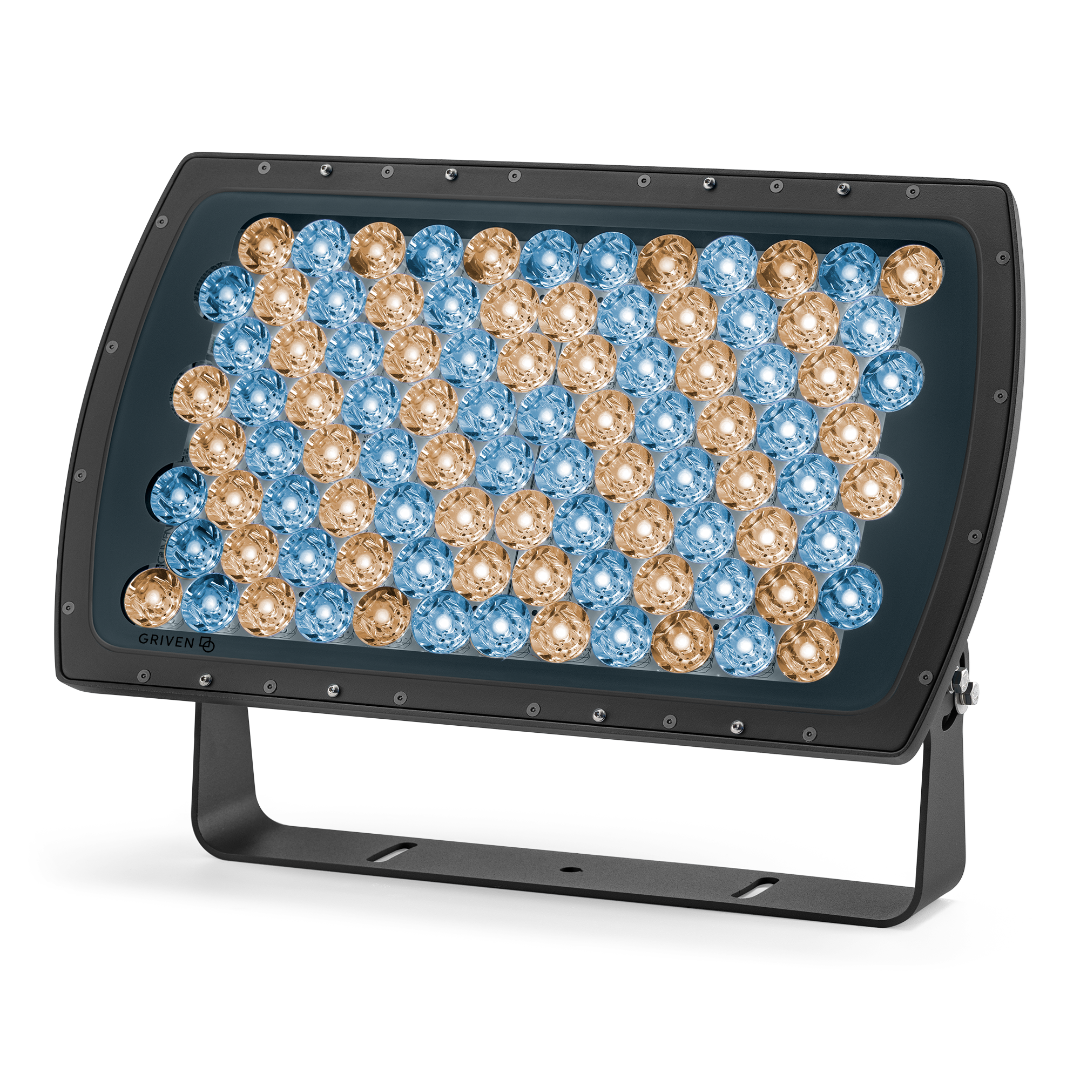

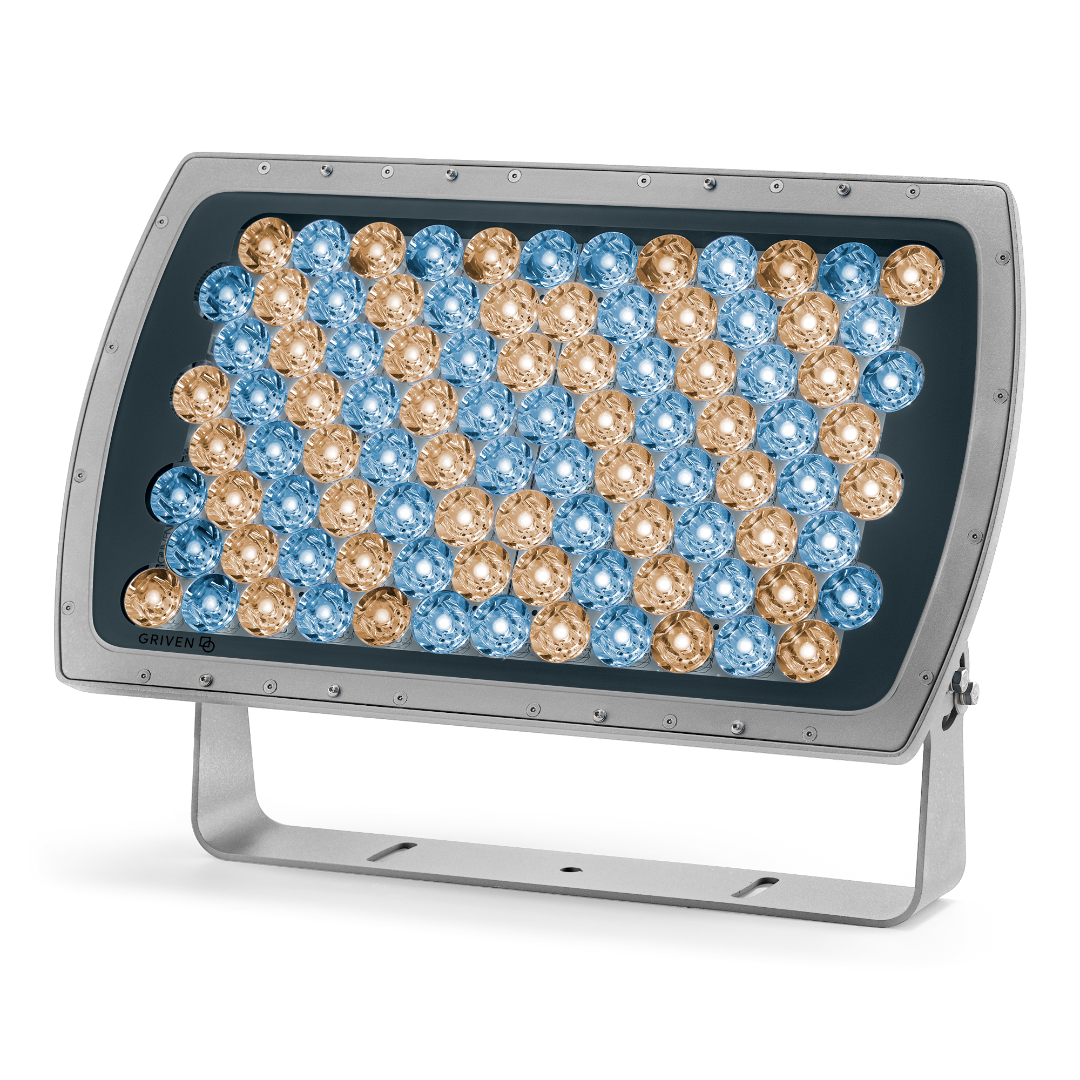

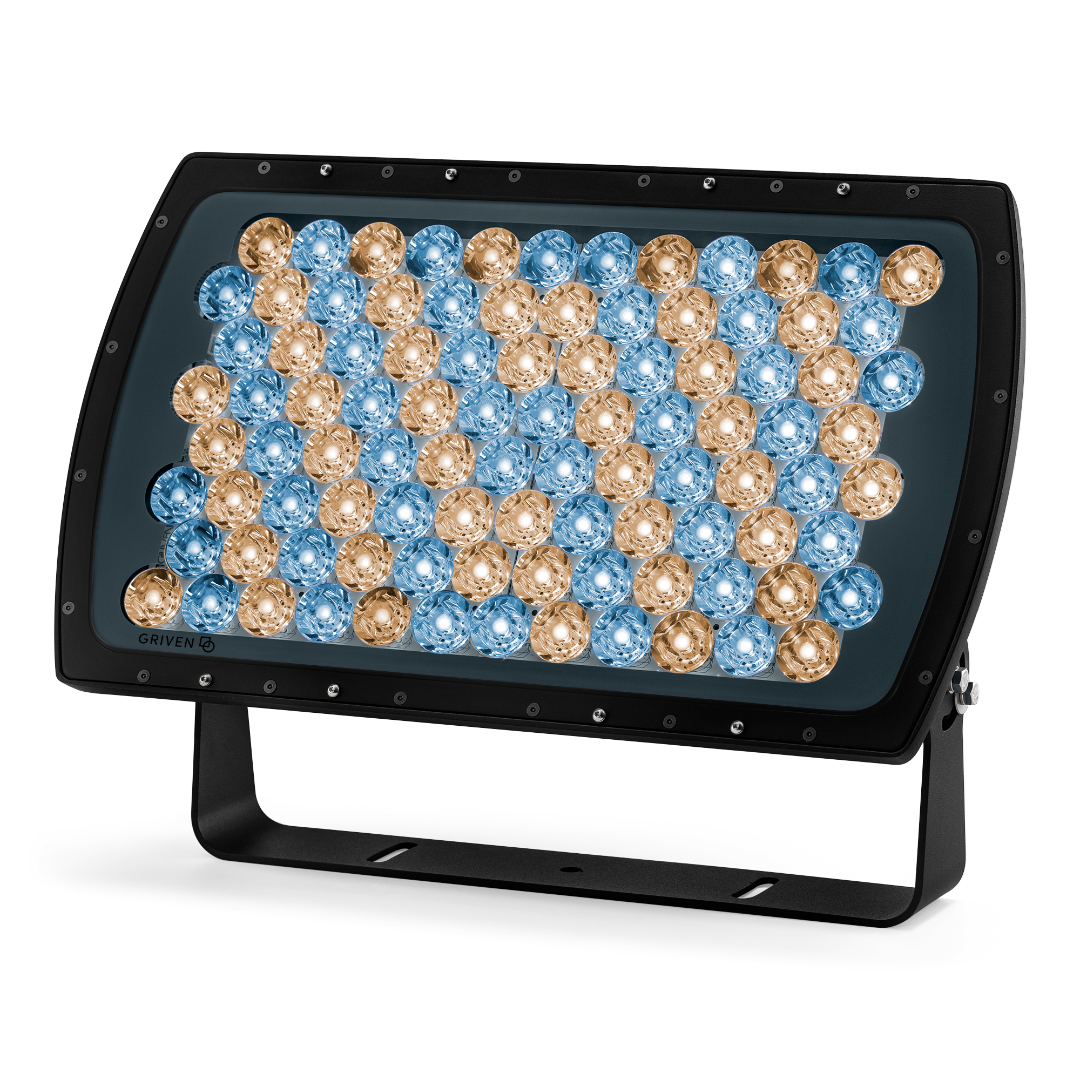

Onyx XQ Ultra Spot Dynamic White

General Features

ONYX XQ sets the standard for ultra-narrow beam floodlights where precise and uniform illumination at long distances is required. The award-winning luminaire combines 96 high power LEDs in Dynamic White with precision optics to produce a very narrow 3.2° beam. The LED driver is thermally isolated in a separate compartment for enhanced longevity. On-board control panel allows for stand-alone or master-satellite operation, as well as interface to external DMX controllers. Accessories for light control are available. All hardware is stainless steel.
Color configuration
High brightness Dynamic White LEDs  with an adjustable colour temperature range between 2700K and 6500K
Optical configuration
3.2° US (Ultra Spot)
Max. Delivered lumen output
Up to 19553 lumens
Max. lumen/Watt
Up to 68 lumens per watt
Input voltage
120 - 277V
Amperage
1.03A @ 277V, 2.38A @ 120V
Power consumption
286 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK10
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty

Light Beam Effects

  • Ultra Spot


Overview

  • IP67
  • IK10
  • DMX
  • RDM
  • Rohs
  • ETL Listed
