Onyx XQ Ultra Spot Static White

OXXQ

  • Powerful surface mount floodlight
  • Ultra-spot, sharp, long-shot beam
  • High brightness natural or warm white power LEDs
  • 22.09" L x 5.98" W x 15.08" H

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: Warm White 3000K
  • Warm White 2700K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product
STATIC WHITE
print

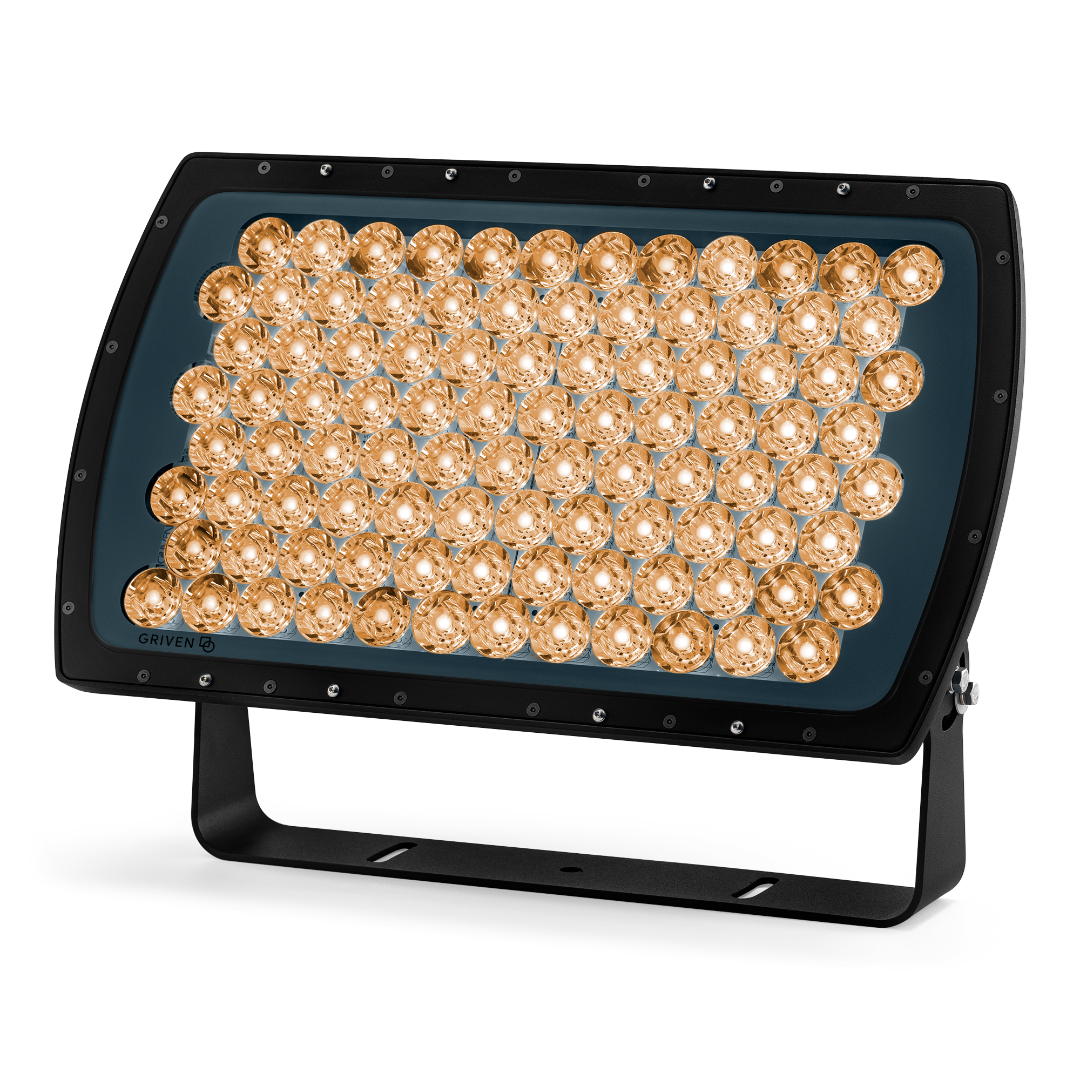

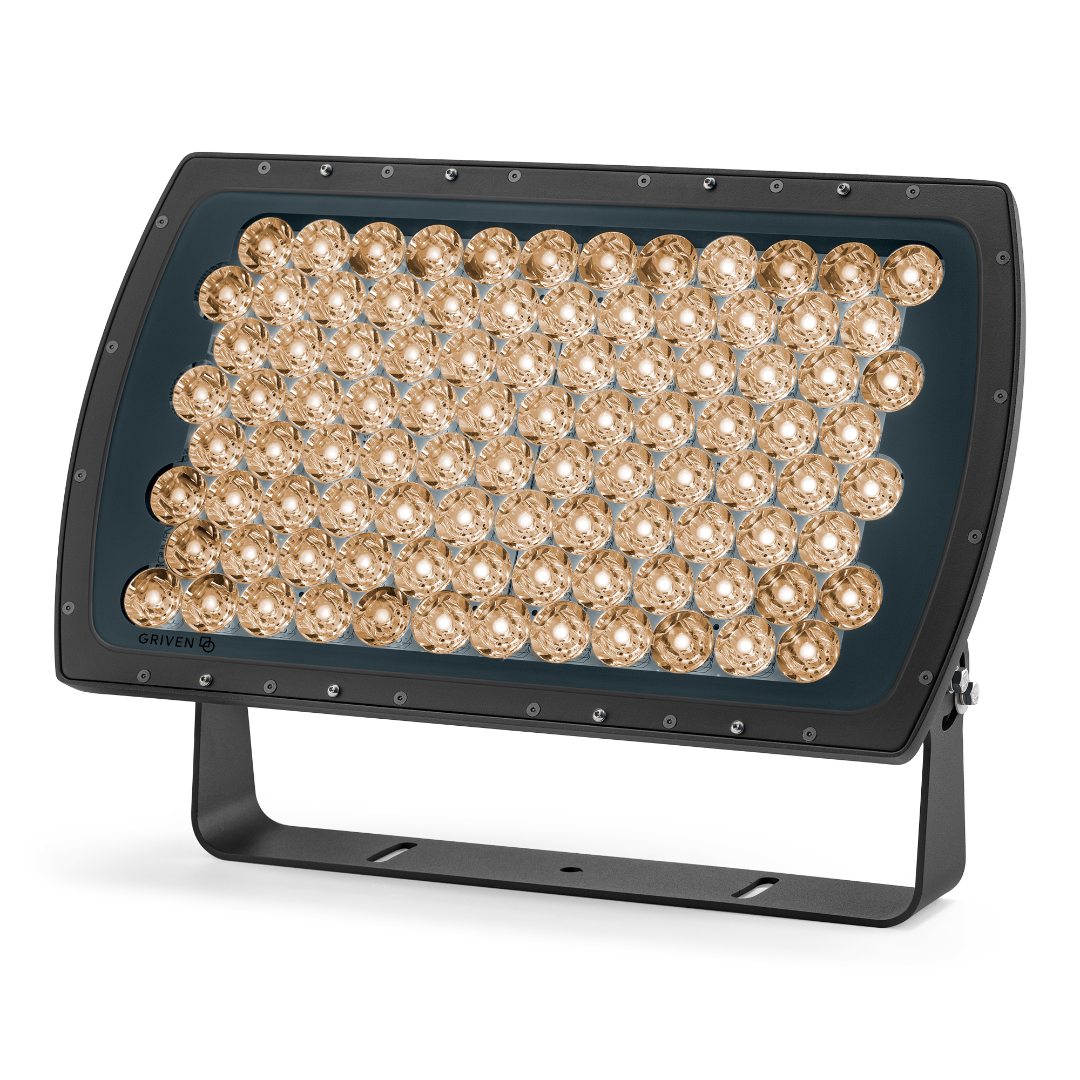

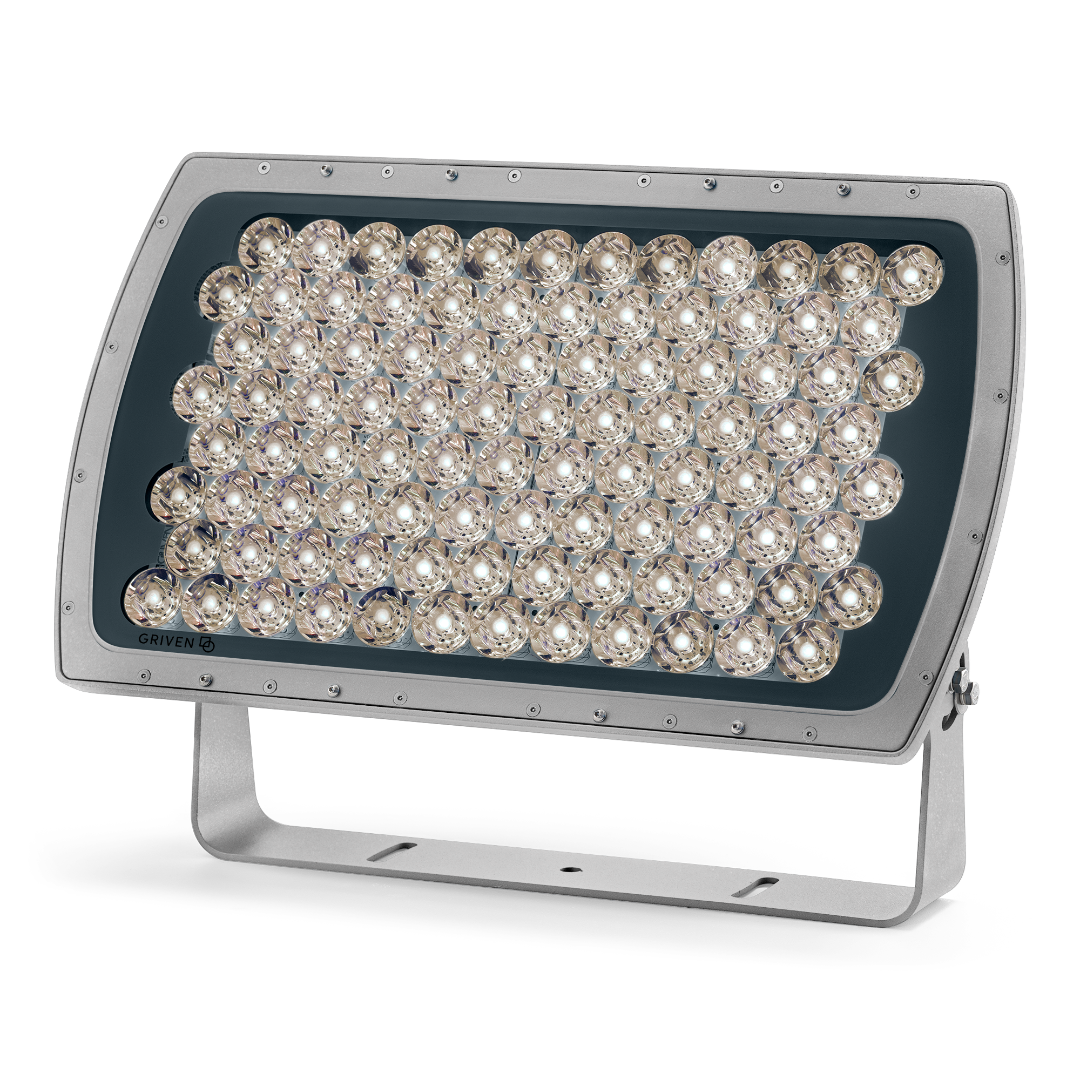

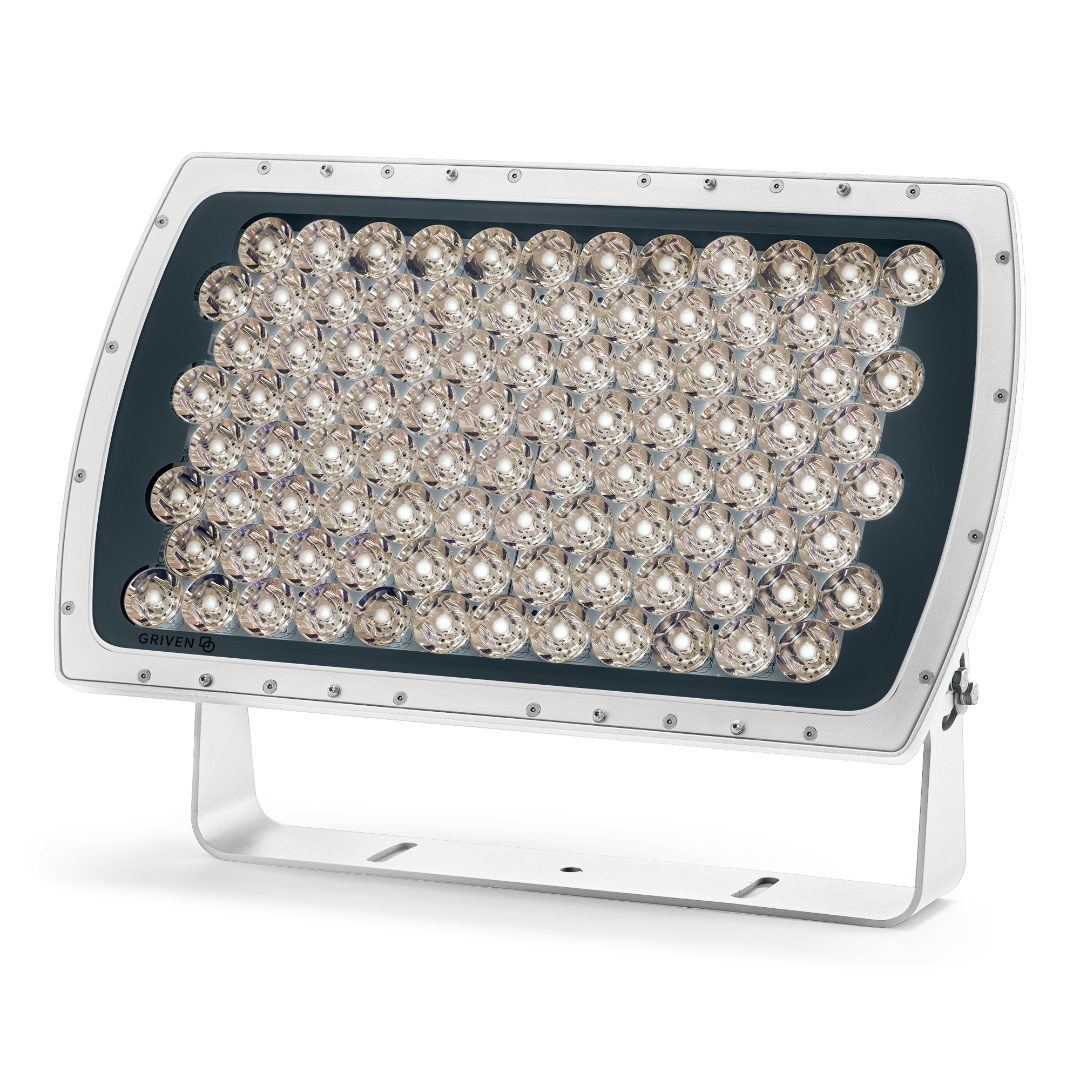

Onyx XQ Ultra Spot Static White

General Features

ONYX XQ sets the standard for ultra-narrow beam floodlights where precise and uniform illumination at long distances is required. The award-winning luminaire combines 96 high power LEDs in static white with precision optics to produce a very narrow 3.2° beam. The LED driver is thermally isolated in a separate compartment for enhanced longevity. On-board control panel allows for stand-alone or master-satellite operation, as well as interface to external DMX controllers. Accessories for light control are available. All hardware is stainless steel.
Color configuration
High brightness 4000K Natural White, 3000K or 2700K Warm White or, on request, monochrome power LEDs
Optical configuration
3.2° US (Ultra Spot)
Max. Delivered lumen output
Up to 20952 lumens
Max. lumen/Watt
Up to 73 lumens per watt
Input voltage
120 - 277V
Amperage
1.03A @ 277V, 2.38A @ 120V
Power consumption
286 watts max.
Ingress protection rating
IP66
Impact resistance rating
IK10
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty

Light Beam Effects

  • Ultra Spot


Overview

  • IP66
  • IK10
  • DMX
  • RDM
  • ETL Listed
