Orpheo S Dynamic White

OR150S

  • LED wall-mount diffuser
  • Single (downwards) or double (upwards and downwards) vertical light emission
  • Integrated electronic driver
  • Premium quality high brightness tunable white power LEDs
  • 57/8" Width x 101/4" Height; 85/8" Depth from Wall

View finishes: Anthracite Grey

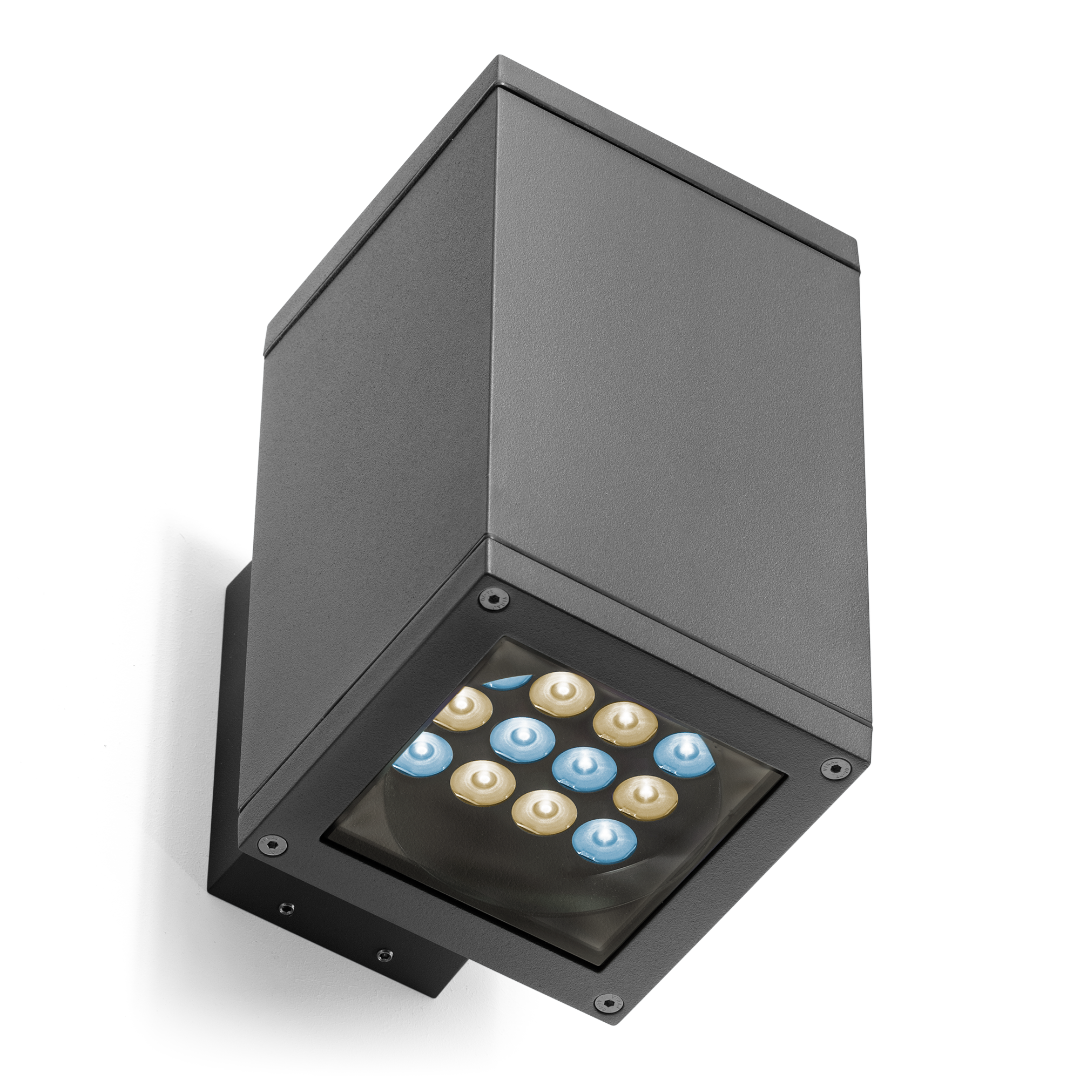

  • Anthracite Grey

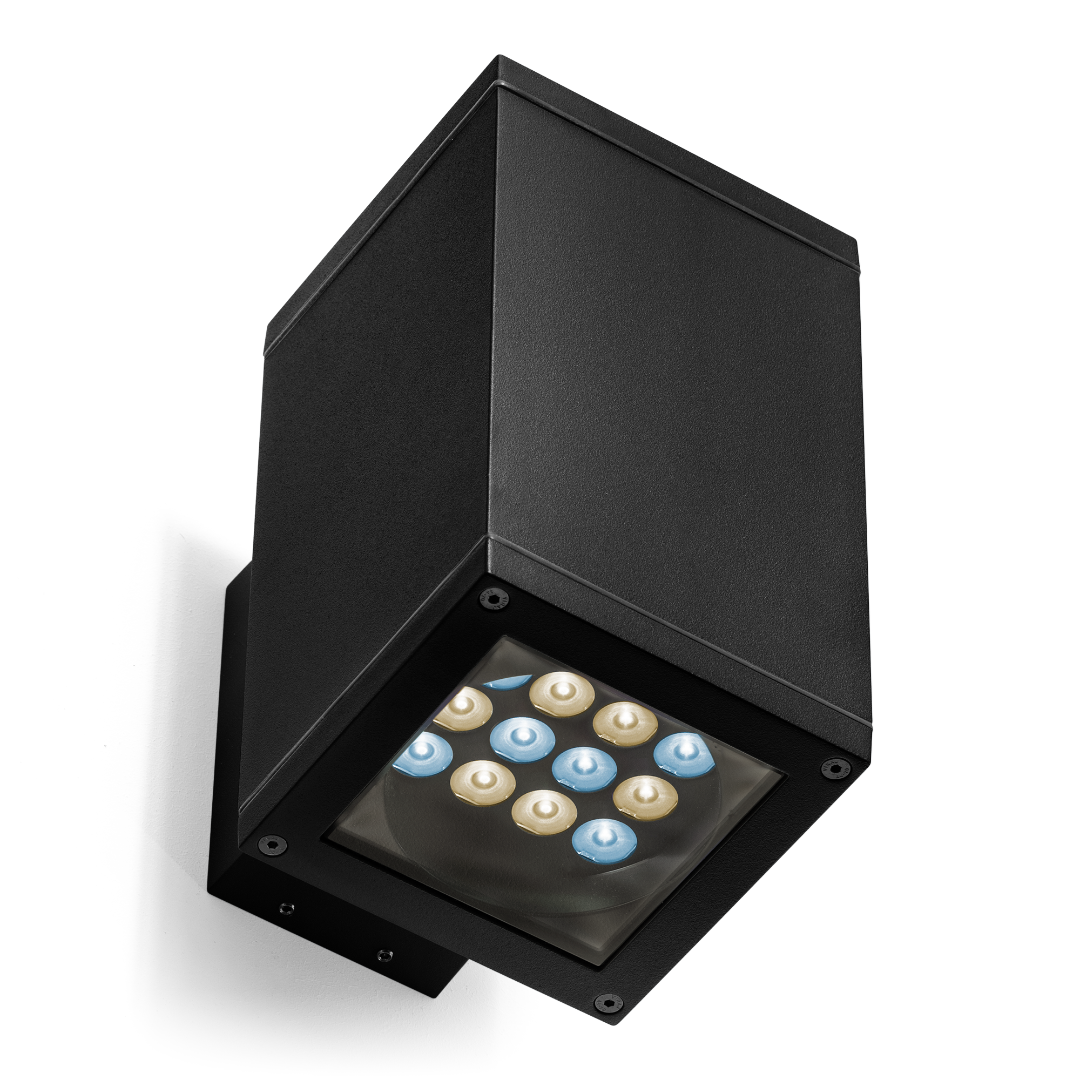

  • Black

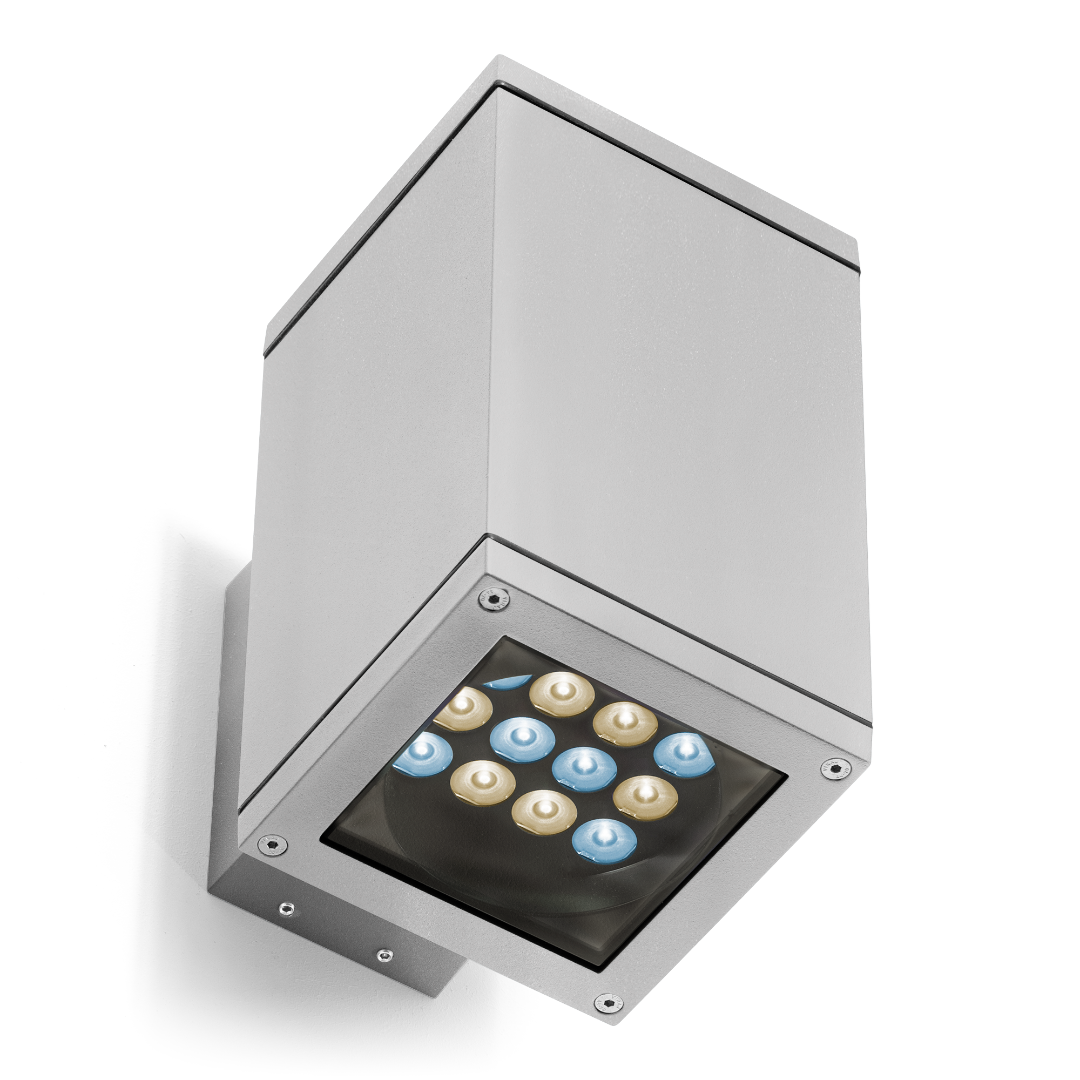

  • Griven Silver Grey

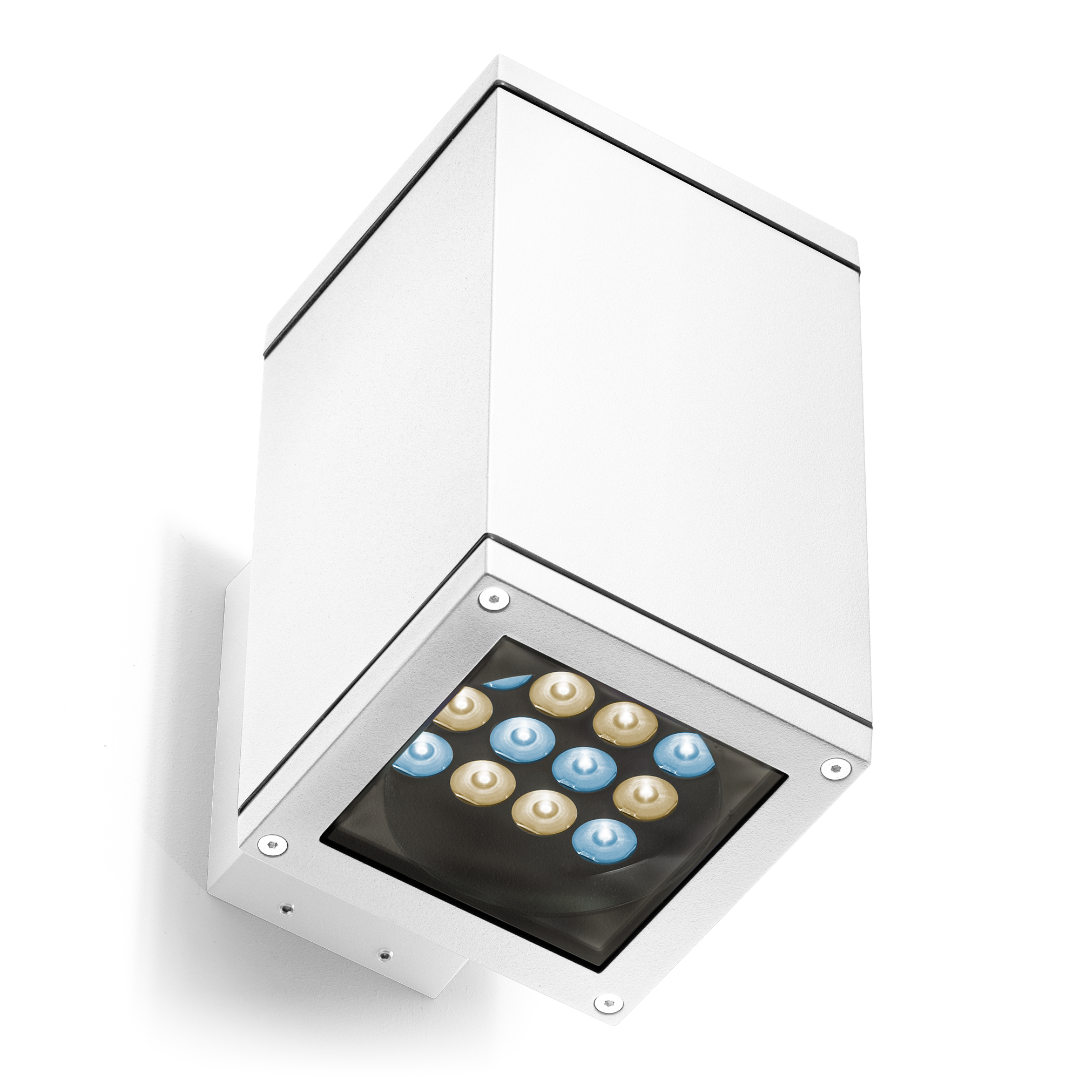

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
Contact us  Save product
DYNAMIC WHITE
print

General Features

The ORPHEO wall mounted luminaire features a square profile with upward and downward light distributions, or single downward or upward light emission to create functional illumination and effect lighting scenarios. Optics include a choice of spot, narrow, medium, or wide beam spreads. Light distributions on the bi-directional models may be specified independently to achieve the desired design intent. Premium class LEDs in RGBW with 4000K natural white deliver the widest range of warm white shades and pastel tones assortment. White light sources may be dynamic from 2700K to 6500K, or static warm, neutral, or cool white. Integral driver with universal 120v to 277v input combined with on-board controls programmed by an infra-red hand-held remote deliver simple cost-effective solutions for simple stand-alone or synchronized luminaire sequencing. The luminaire may also interface with external DMX control systems for sophisticated lighting scenes.
Notes
  • Contact factory for availability of spreading diffusers.
  • Select NA if ordering single emission luminaire only.
  • Luminaire may be installed in either direction for unidrectional positioning.
Color configuration
High brightness Dynamic White LEDs with an adjustable color temperature range between 2700K and 6500K
Optical configuration
6° SP (Spot)
18° NB (Narrow)
26° MB (Medium)
45° WB (Wide)
Max. Delivered lumen output
Up to 1219 Lumens
Max. lumen/Watt
Up to 59.5 lm/W
Input voltage
From 110 to 240 VAC @ 50/60Hz
Amperage
Single Light Engine Models 0.17 amps @ 230 VAC, Double Light Engine Models 0.33 amps @ 230 VAC
Power consumption
Single Light Engine Models 18 Watts, Double Light Engine Models 36 Watts
Ingress protection rating
IP66
Impact resistance rating
IK10
External operating limits
-30°C to 50°C / (-22°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
QUICK CONNECTION KIT: GRIVEN-CON-KIT-8284


Overview

  • IP66
  • IK10
  • DMX
  • RDM
  • Rohs
  • ETL Listed

Downloads
