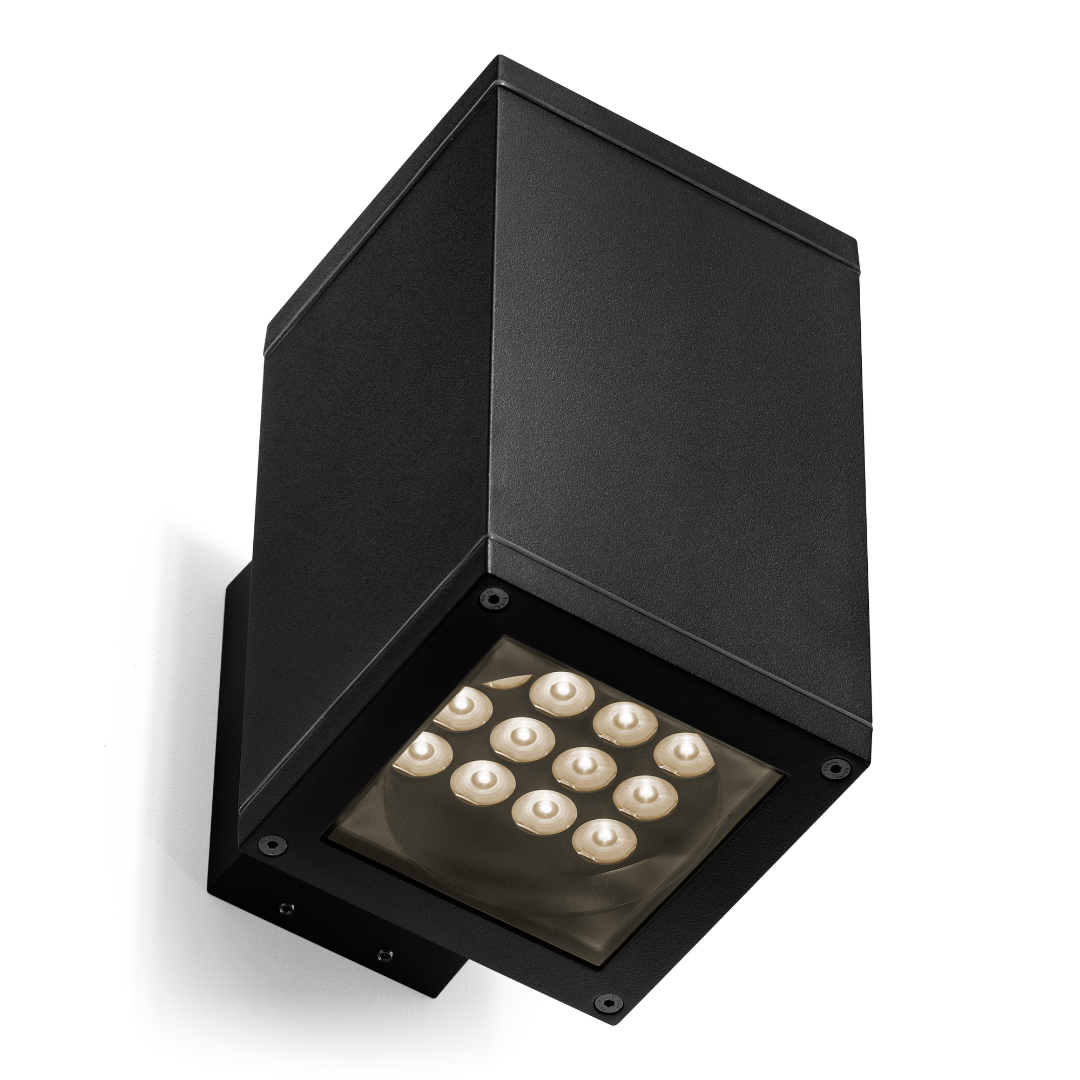

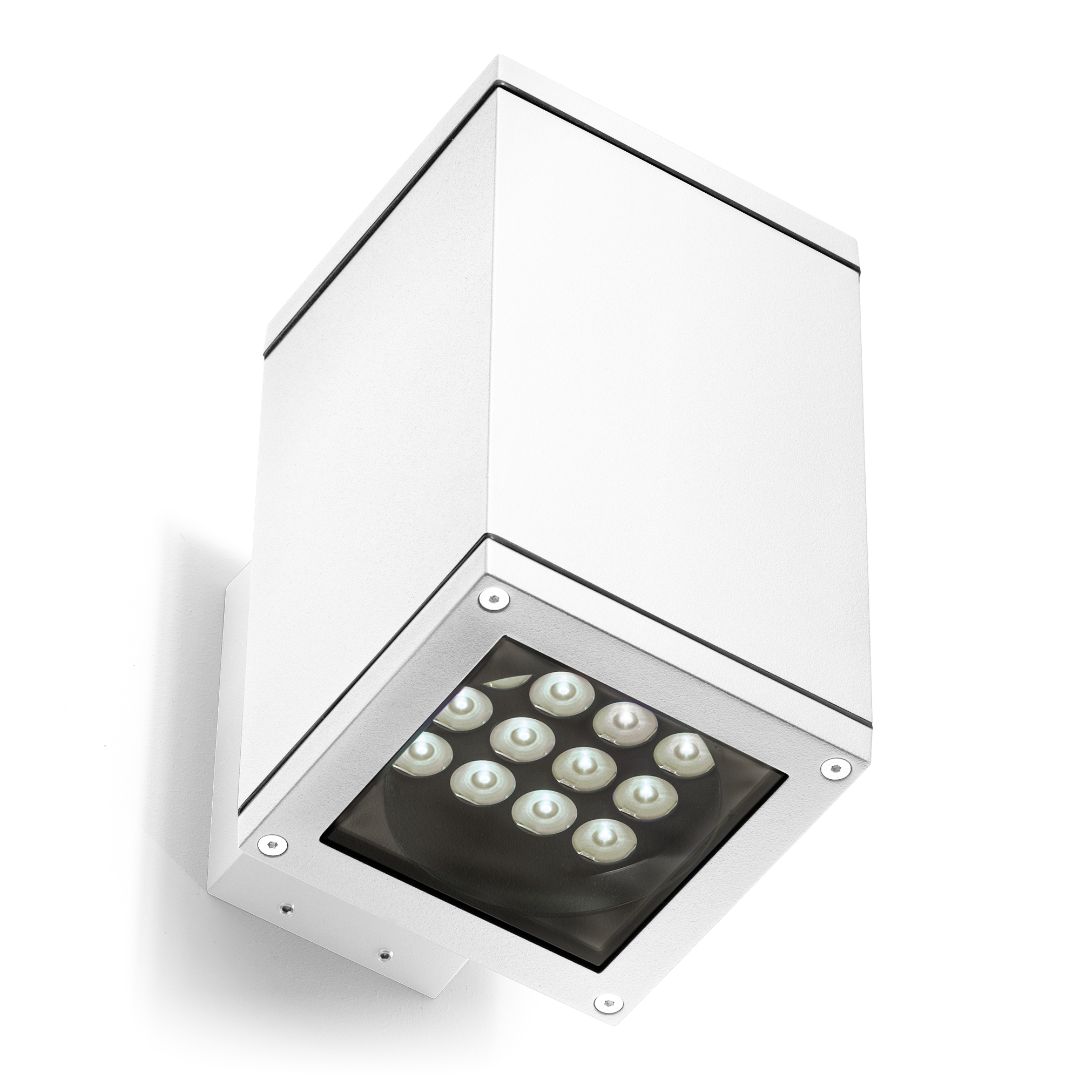

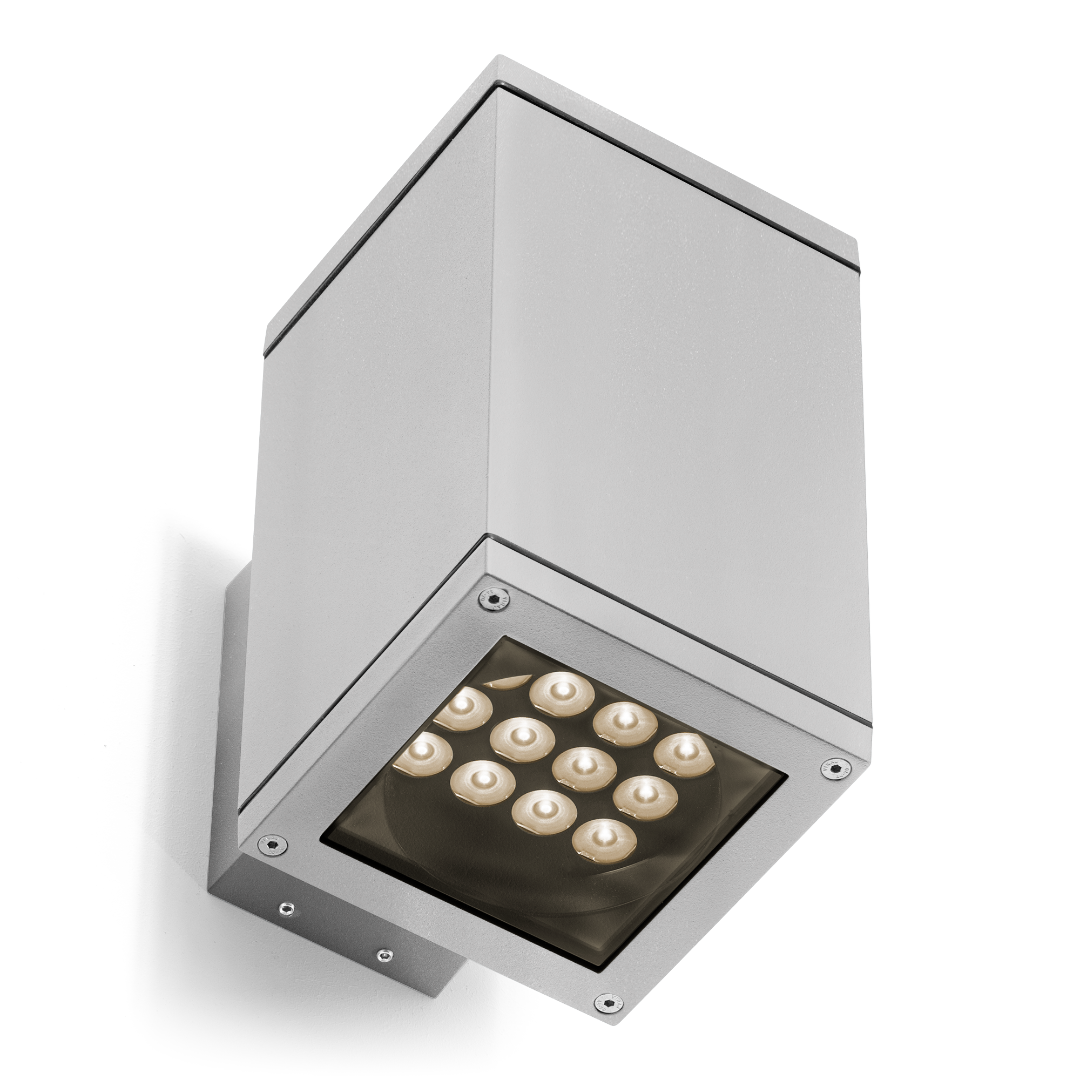

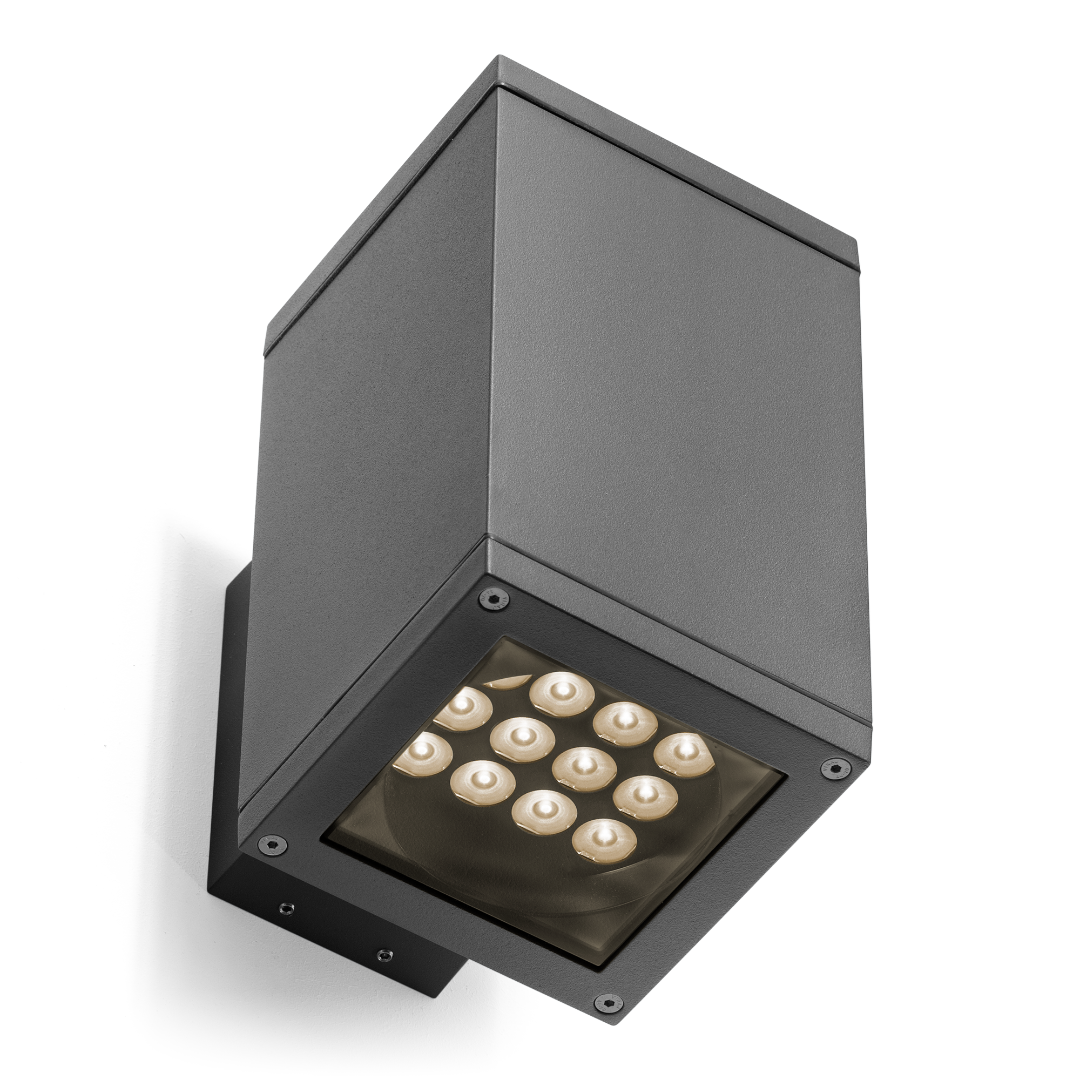

Orpheo S Static White


  • LED wall-mount diffuser
  • Single (downwards) or double (upwards and downwards) vertical light emission
  • Integrated electronic driver
  • Premium quality high brightness white LEDs
  • 5.9 x 10.3 x 9.2"

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: Warm White 3000K
  • Warm White 2700K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product

General Features

The ORPHEO wall mounted luminaire features a square profile with upward and downward light distributions, or single downward or upward light emission to create functional illumination and effect lighting scenarios. Optics include a choice of spot, narrow, medium, or wide beam spreads. Light distributions on the bi-directional models may be specified independently to achieve the desired design intent. Premium class LEDs in RGBW with 4000K natural white deliver the widest range of warm white shades and pastel tones assortment. White light sources may be dynamic from 2700K to 6500K, or static warm, neutral, or cool white. Integral driver with universal 120v to 277v input combined with on-board controls programmed by an infra-red hand-held remote deliver simple cost-effective solutions for simple stand-alone or synchronized luminaire sequencing. The luminaire may also interface with external DMX control systems for sophisticated lighting scenes.
• Available in RGBW, dynamic white, or static white
• Single or bi-directional optical configurations
• Four light distributions
• Standalone programming or interface with DMX
• Suitable for use indoors or outdoors
• Four standard finishes or custom RAL finish
  • Contact factory for availability of spreading diffusers.
  • Select NA if ordering single emission luminaire only.
  • Orient optics up or down as desired during installation.
Color configuration
High brightness Natural White, Warm White
Optical configuration
6° SP (Spot)
18° NB (Narrow)
26° MB (Medium)
45° WB (Wide)
Max. Delivered lumen output
4000K white: up to 1320 lms per source, 3000K white: up to 995 lms per source
Max. lumen/Watt
up to 64 lm/W
Input voltage
120 - 277V
Power consumption
Single source: 0.18A @ 120VAC / 0.09A @ 277VAC / 20.5 watts maximum, Dual source: 0.35A @ 120VAC / 0.17A @ 277VAC / 41 watts maximum
Ingress protection rating
Impact resistance rating
External operating limits
-30°C to 50°C / (-22°F to 122°F)
Unless an RDM control is used, ORPHEO S RGBW must always be purchased with one AL2660 WeeZerd 1 to set its DMX address


  • IP66
  • IK10
  • DMX
  • RDM
  • ETL Listed
