Ruby MC R Dynamic White

RUBYMCR

  • Shallow recessed depth
  • Premium class dynamic white LEDs
  • 4409 lbs deadweight load capacity
  • ø11" x 47/8" Depth

Contact us  Save product
DYNAMIC WHITE
print

General Features

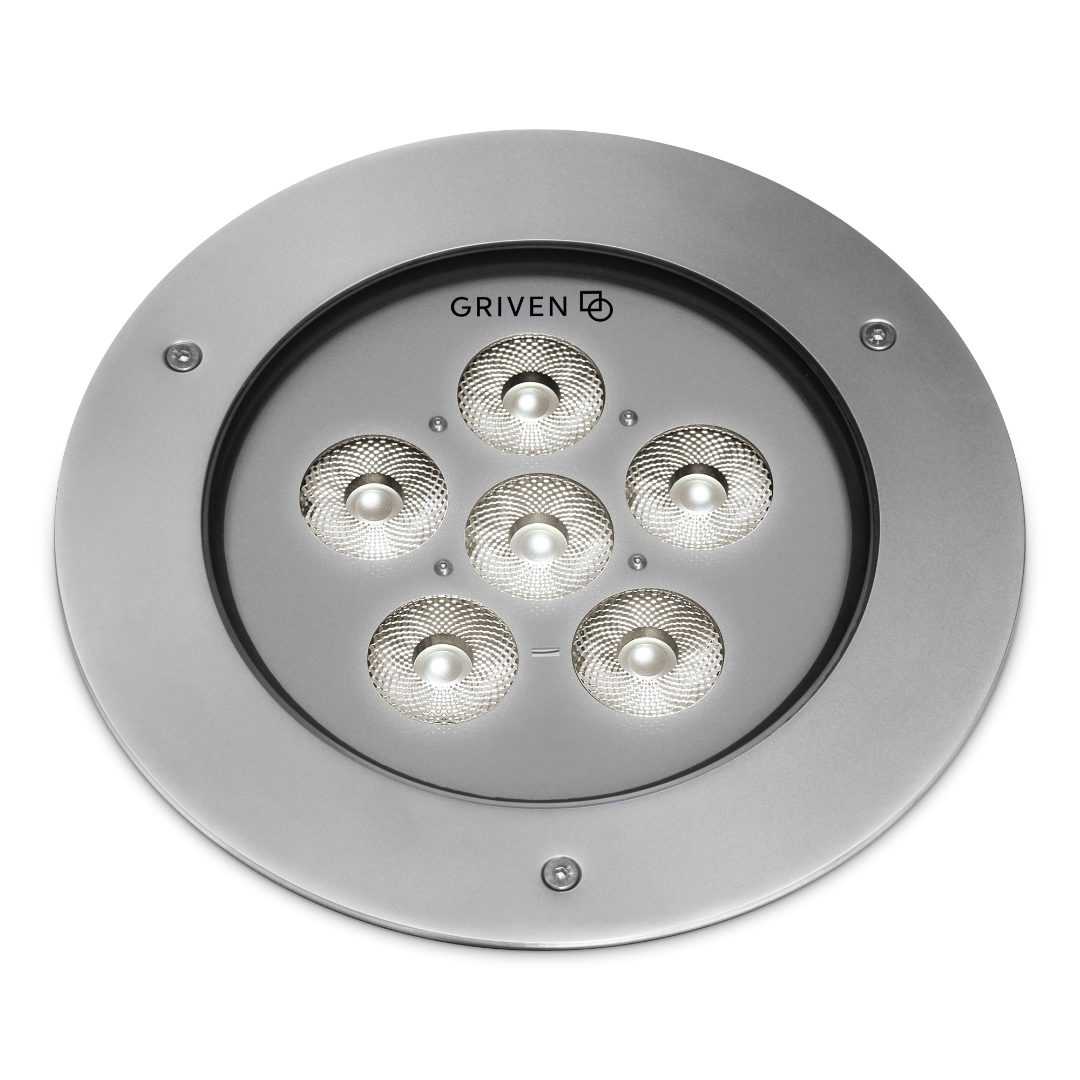

RUBY MC Recessed features six high power quad-chip LEDs in RGBW30K or 40K or dynamic white with a choice of four symmetric distributions ranging from spot to wide beams. The 11" diameter inground luminaire has an installation depth of just 6", making it suitable for a wide variety of installation conditions. The IP67 rated luminaire includes an integral power supply and on-board controls programmed by a remote infrared controller for stand-alone operation, master-satellite for multiple unit synchronization, or for interface with external DMX controllers. All hardware is stainless steel.
Color configuration
High brightness Dynamic White multichip LEDs with an adjustable color temperature range between 3000K and 6500K
Optical configuration
7° SP (Spot)
10° NA (Narrow)
23° ME (Medium)
35° WI (Wide)
Max. Delivered lumen output
up to 3896 lumens
Max. lumen/Watt
up to 74 lumens per watt
Input voltage
120-277VAC / 50-60Hz
Amperage
0.44A @ 120V, 0.19A @ 277V
Power consumption
53 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
5-year warranty
Accessories
Automatic overtemperature protection / IR Remote

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • Record products 2018 Winner
  • CSA certified version available on request
