Ruby MC R RGBW

RUBYMCR

  • Shallow recessed depth
  • Premium class RGB+W 3000K/4000K LEDs
  • 4409 lbs deadweight load capacity
  • Formwork Ordered Separately
  • ø11" x 4 7/8" Depth

View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product
COLOR CHANGING
print

General Features

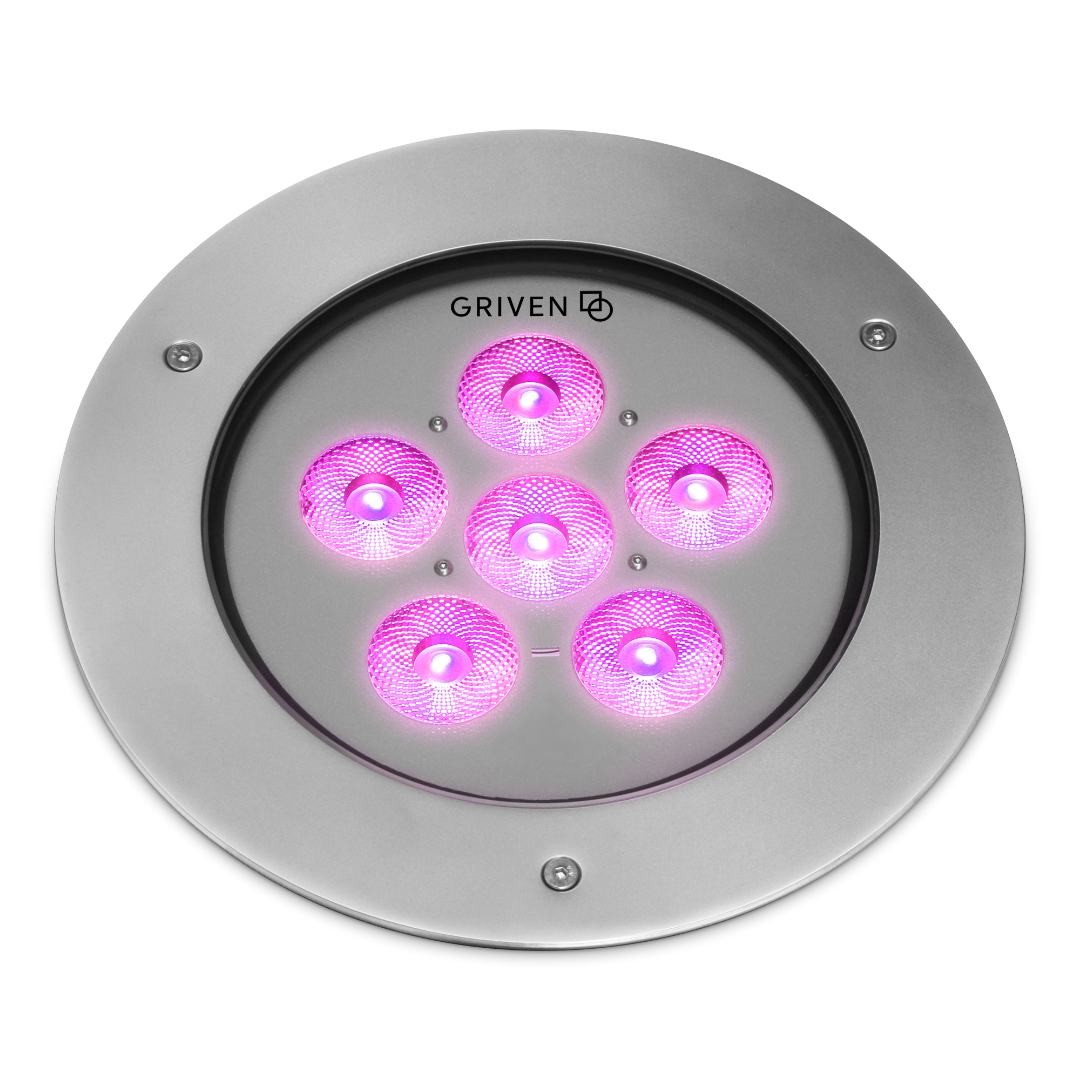

RUBY MC Recessed features six high power quad-chip LEDs in RGBW30K or 40K or dynamic white with a choice of four symmetric distributions ranging from spot to wide beams. The 11" diameter inground luminaire has an installation depth of just 6", making it suitable for a wide variety of installation conditions. The IP67 rated luminaire includes an integral power supply and on-board controls programmed by a remote infrared controller for stand-alone operation, master-satellite for multiple unit synchronization, or for interface with external DMX controllers. All hardware is stainless steel.
Color configuration
High brightness RGB+W 3000K/4000K multichip LEDs
Optical configuration
7° SP (Spot)
10° NA (Narrow)
23° ME (Medium)
35° WI (Wide)
Max. Delivered lumen output
up to 2017 lumens (3000K), up to 2292 lumens (4000K)
Max. lumen/Watt
up to 38 lumens per watt (3000K), up to 43 lumens per watt (4000K)
Input voltage
120-277VAC / 50-60Hz
Amperage
0.44A @ 120V, 0.19A @ 277V
Power consumption
53 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • Record products 2018 Winner

Downloads
