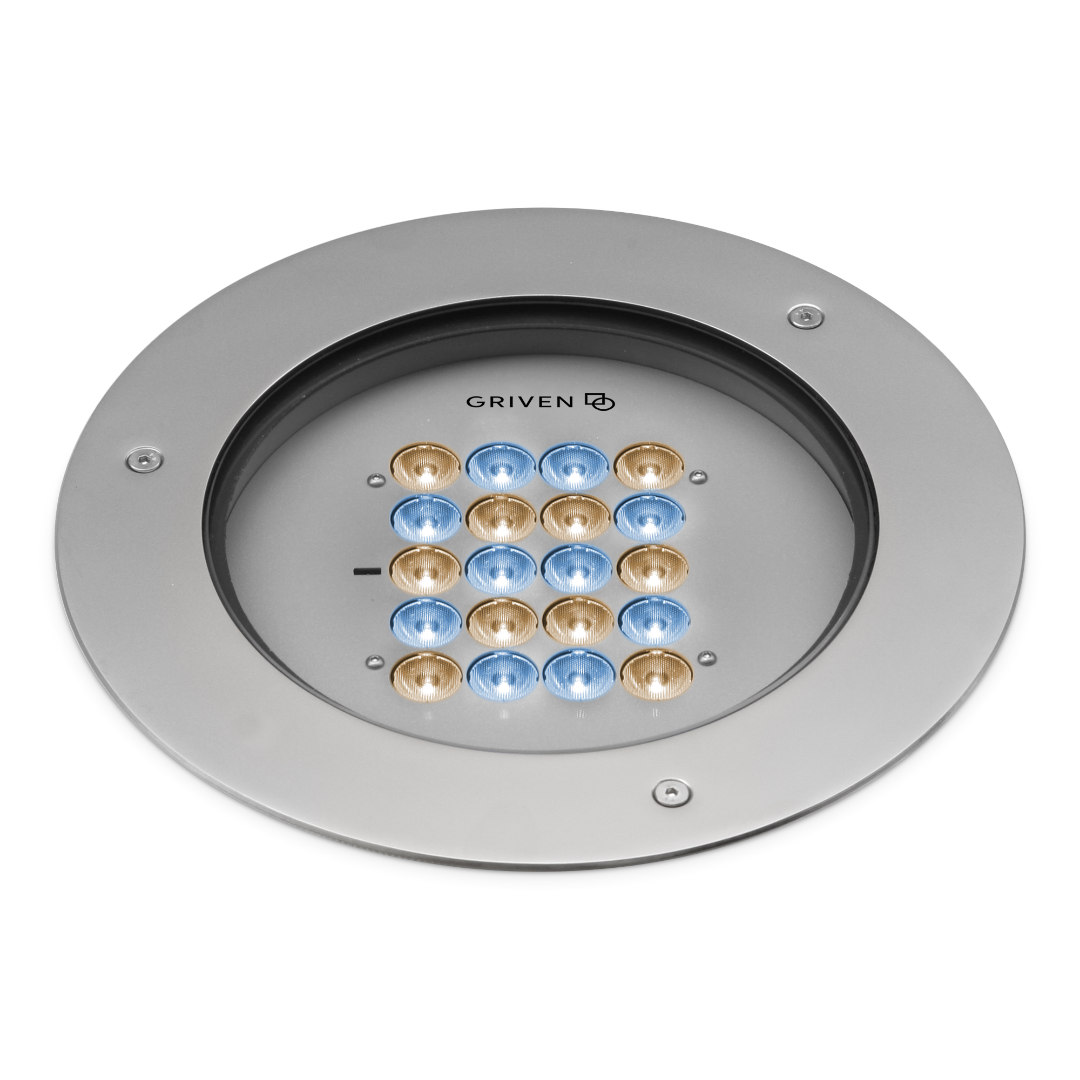

Ruby R Dynamic White


  • Shallow recessed depth
  • Premium class dynamic white LEDs
  • 4409 lbs deadweight load capacity
  • Formwork Ordered Separately
  • ø11" x 4 3/4" Depth

Contact us  Save product

General Features

RUBY R recessed in grade luminaire offers diverse options for spotlighting or wall grazing through an extensive collection of symmetric, elliptical, and wall washing optics. It is available in dynamic white or static white in 3000K or 4000K color temperatures. Programming is easily accomplished via a remote infrared controller and will operate in DMX, automatic, or master-satellite modes for expanded versatility. The 11" diameter luminaire has an overall depth of less than six inches, making it suitable for a wide variety of installation conditions for interior or exterior applications. All hardware is stainless steel.
Color configuration
High brightness Dynamic White LEDs  with an adjustable colour temperature range between 2700K and 6500K
Optical configuration
12° SP (Spot)
15° NB (Narrow)
24° MB (Medium)
47° WB (Wide)
58° EW (Extra wide)
40° x 14° ELH (Elliptical Horizontal)
38° x23° ELWH (Elliptical Wide Horizontal)
WW (Wall Wash/Asymmetric)
Max. Delivered lumen output
up to 3667 lumens
Max. lumen/Watt
up to 102 lumens per watt
Input voltage
120-277VAC / 50-60Hz
0.3A @ 120VAC, 0.13A @ 277V
Power consumption
36 watts max.
Ingress protection rating
Impact resistance rating
External operating limits
-40°C to 50°C / (-40°F to 122°F)
5-year warranty

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal
  • Wall Wash


  • IP67
  • IK09
  • DMX
  • RDM
  • CSA certified version available on request
