Ruby R Static White

RUBYR

  • Shallow recessed depth
  • Premium class static white LEDs
  • 4409 lbs deadweight load capacity

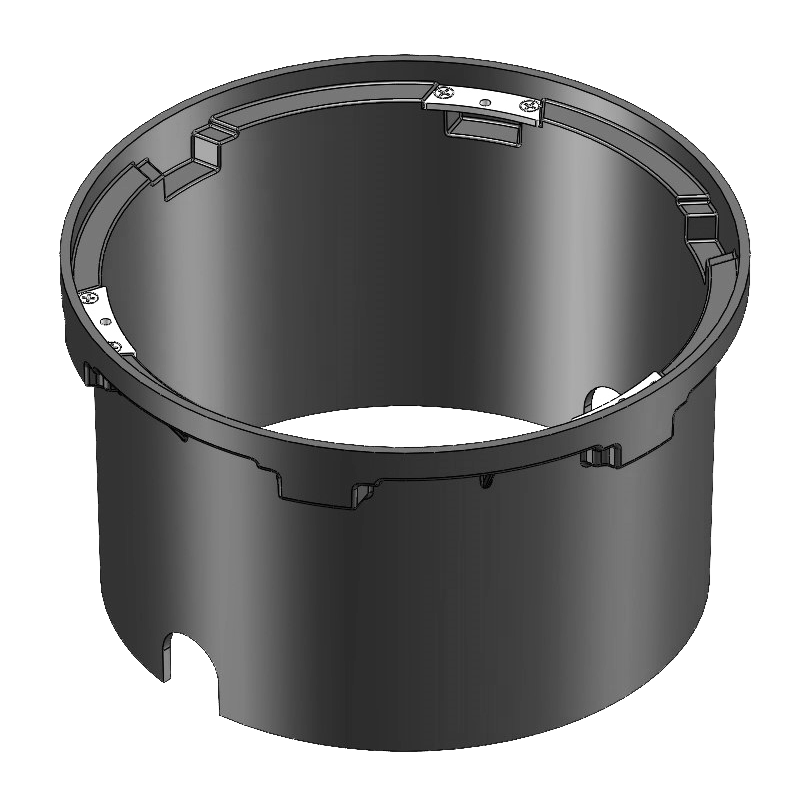

  • Formwork Ordered Separately
  • ø11" x 4 3/4" Depth

View LED colour configuration: Neutral White 4000K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product
STATIC WHITE
print

General Features

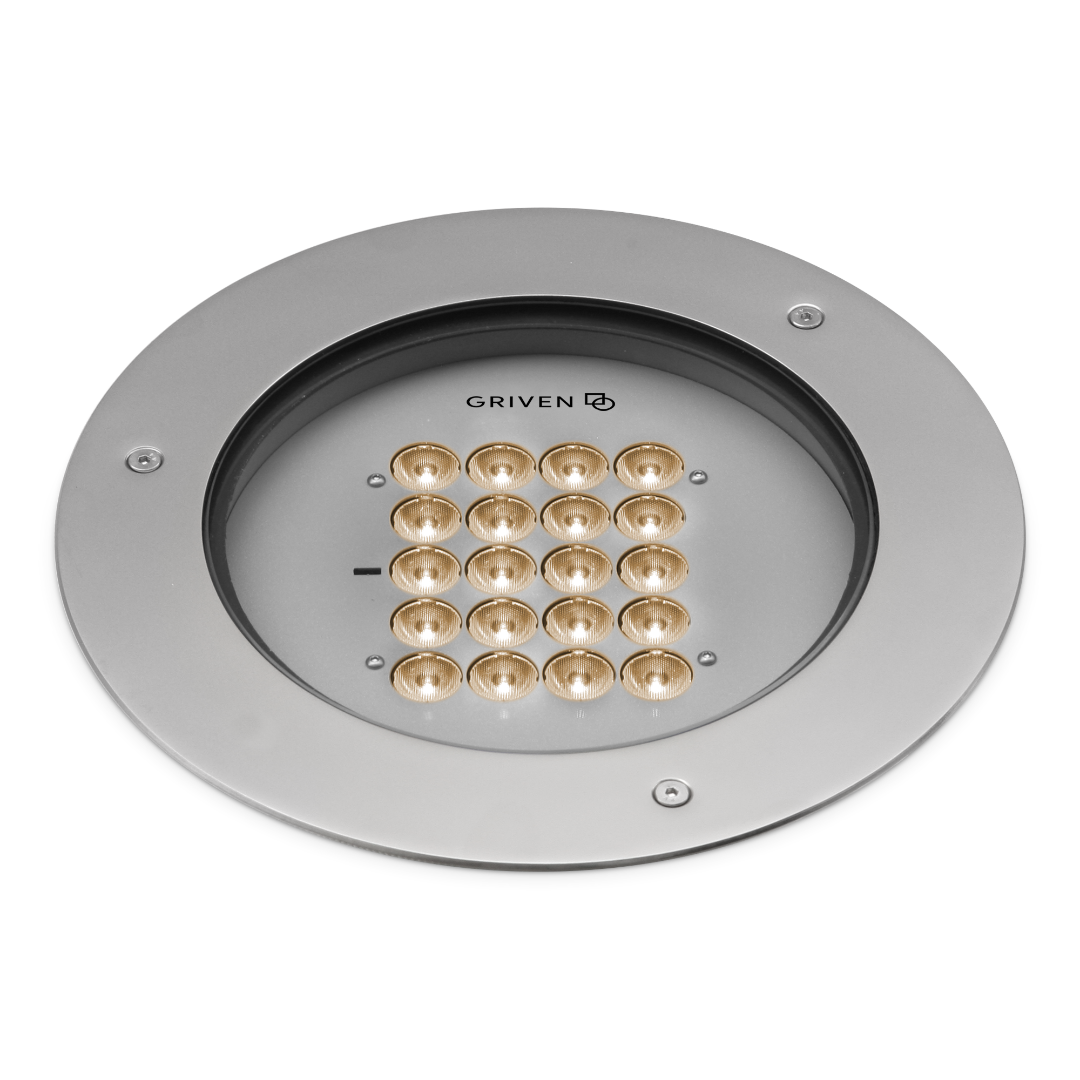

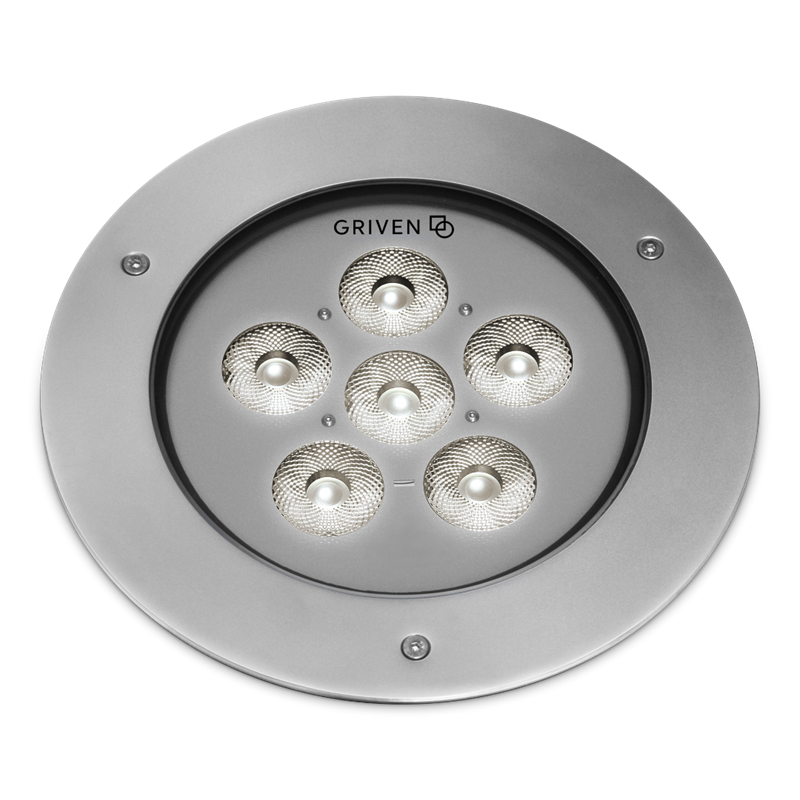

RUBY R recessed in grade luminaire offers diverse options for spotlighting or wall grazing through an extensive collection of symmetric, elliptical, and wall washing optics. It is available in dynamic white or static white in 3000K or 4000K color temperatures. Programming is easily accomplished via a remote infrared controller and will operate in DMX, automatic, or master-satellite modes for expanded versatility. The 11" diameter luminaire has an overall depth of less than six inches, making it suitable for a wide variety of installation conditions for interior or exterior applications. All hardware is stainless steel.
Color configuration
High brightness Natural White or Warm White
Optical configuration
12° SP (Spot)
15° NB (Narrow)
24° MB (Medium)
47° WB (Wide)
58° EW (Extra wide)
40° x 14° ELH (Elliptical Horizontal)
38° x23° ELWH (Elliptical Wide Horizontal)
WW (Wall Wash/Asymmetric)
Max. Delivered lumen output
up to 3446 lumens (3000K)
Max. lumen/Watt
up to 96 lumens per watt (3000K)
Input voltage
120-277VAC / 50-60Hz
Amperage
0.3A @ 120VAC, 0.13A @ 277V
Power consumption
36 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal
  • Wall Wash


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • CSA certified version available on request
  • ETL Certified for Wet Locations
