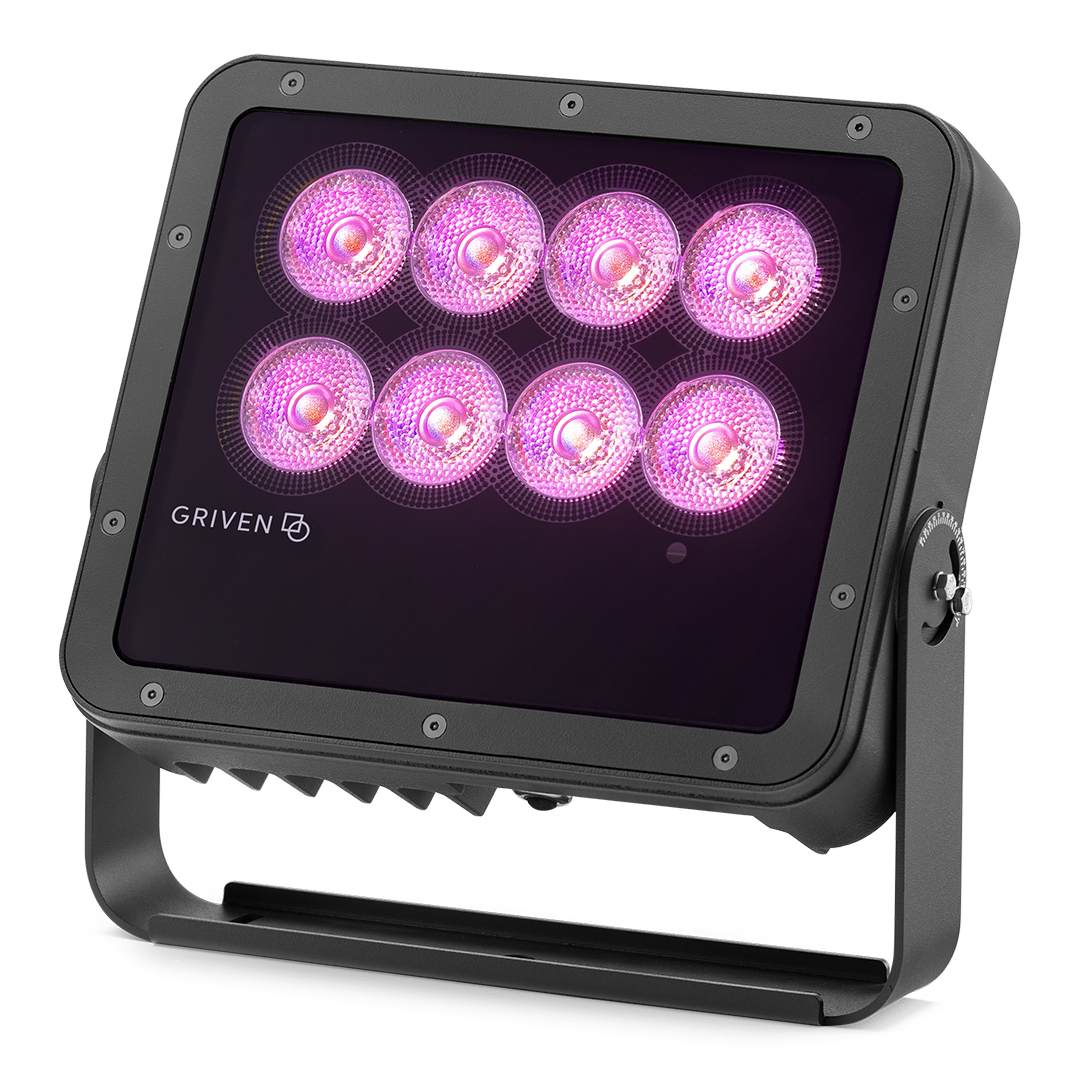

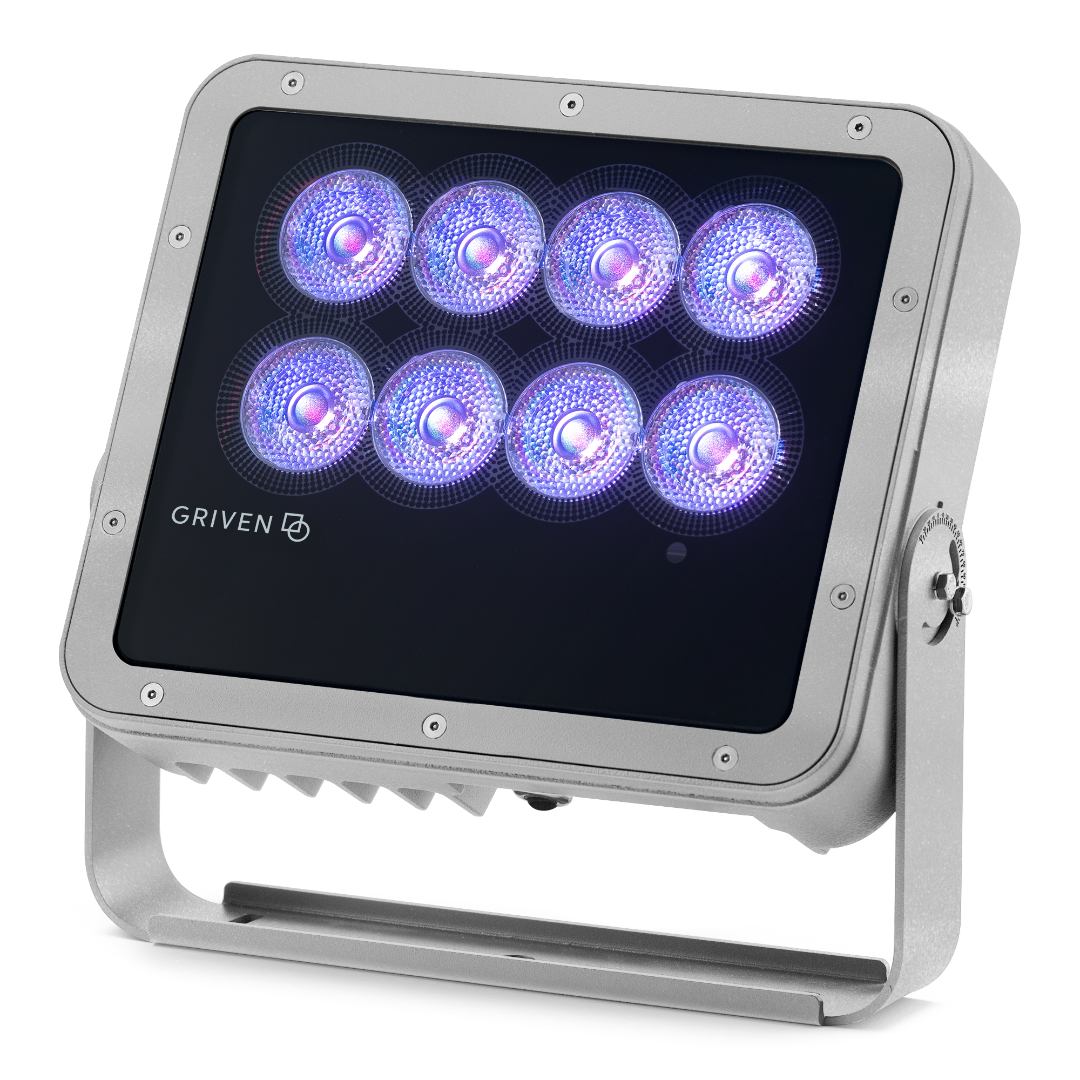

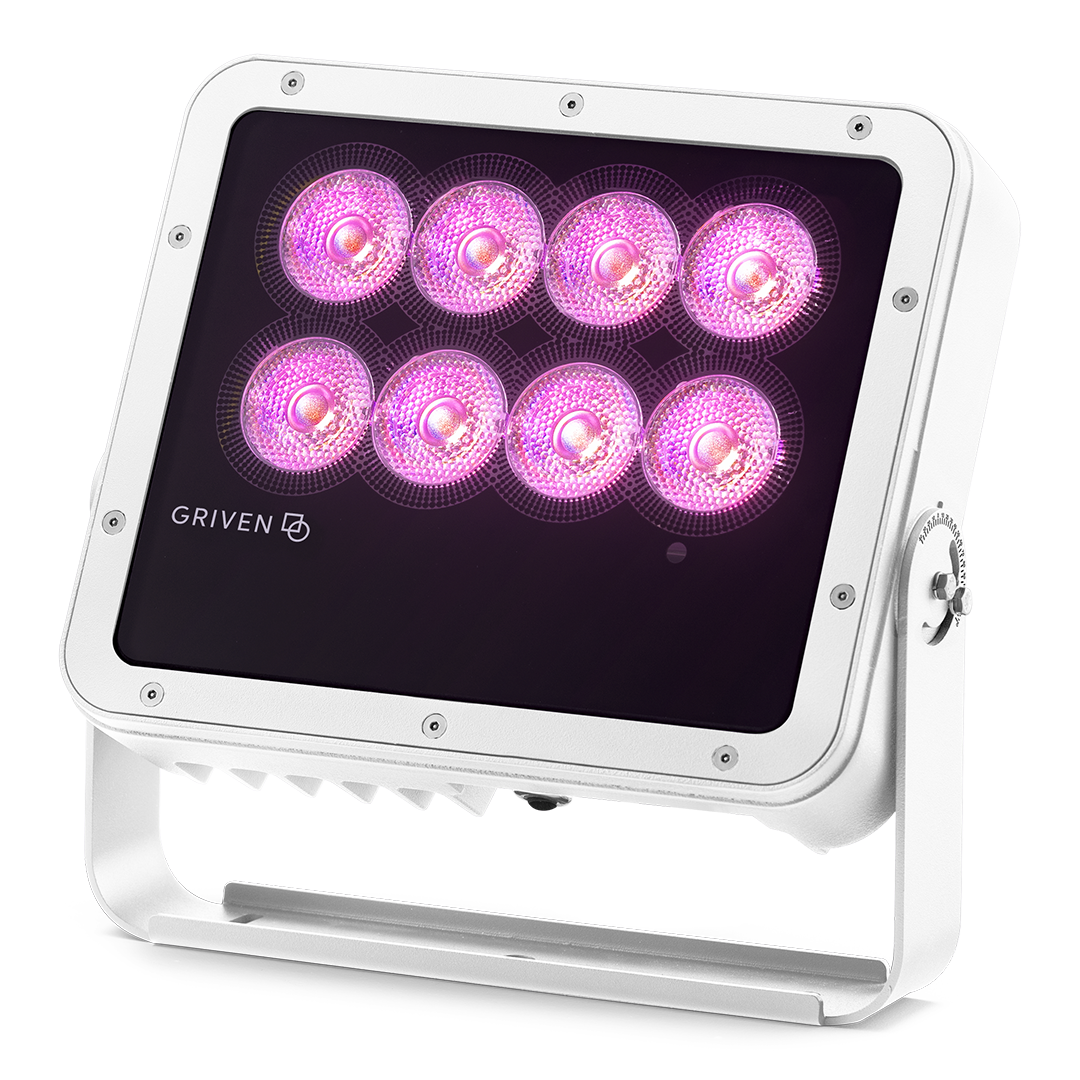

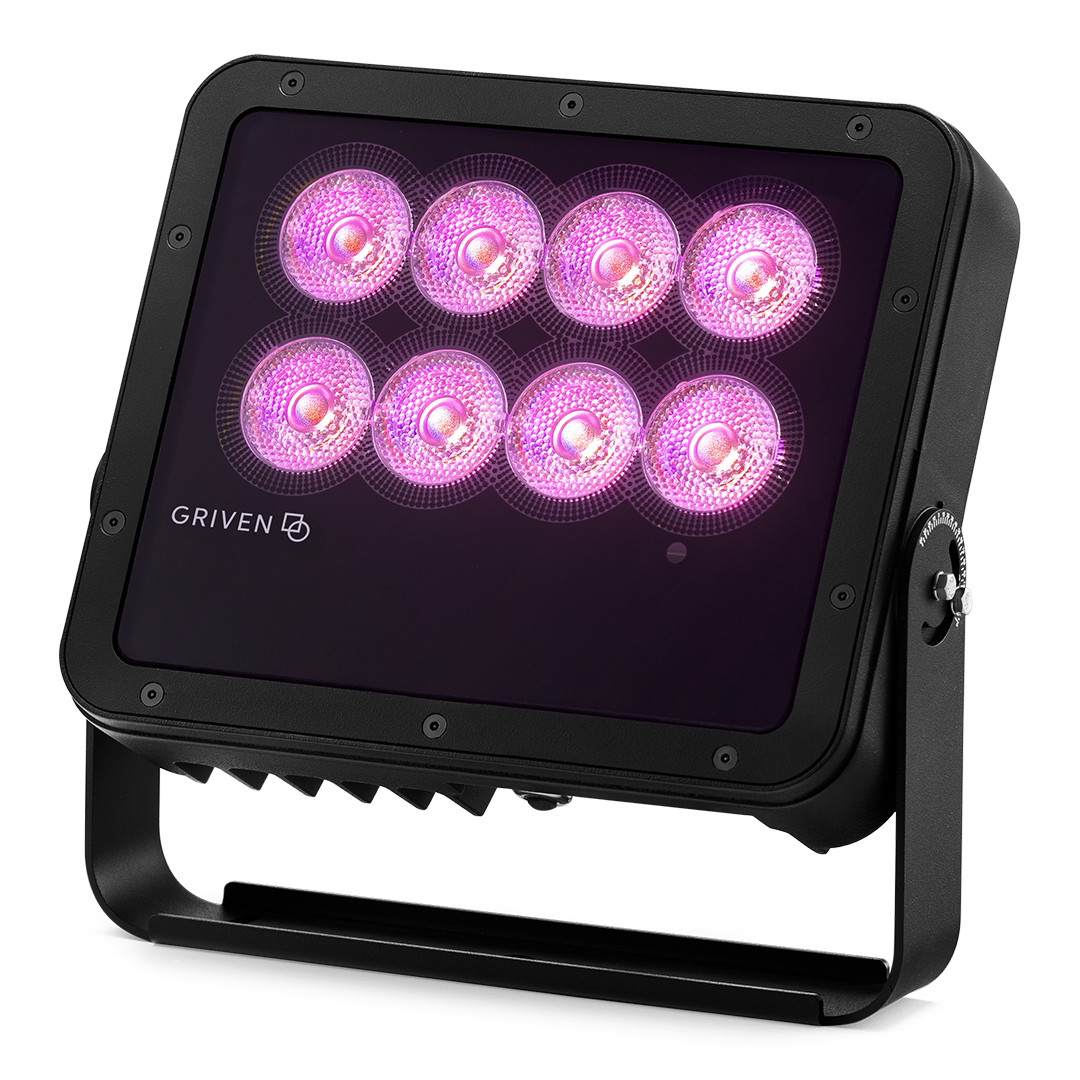

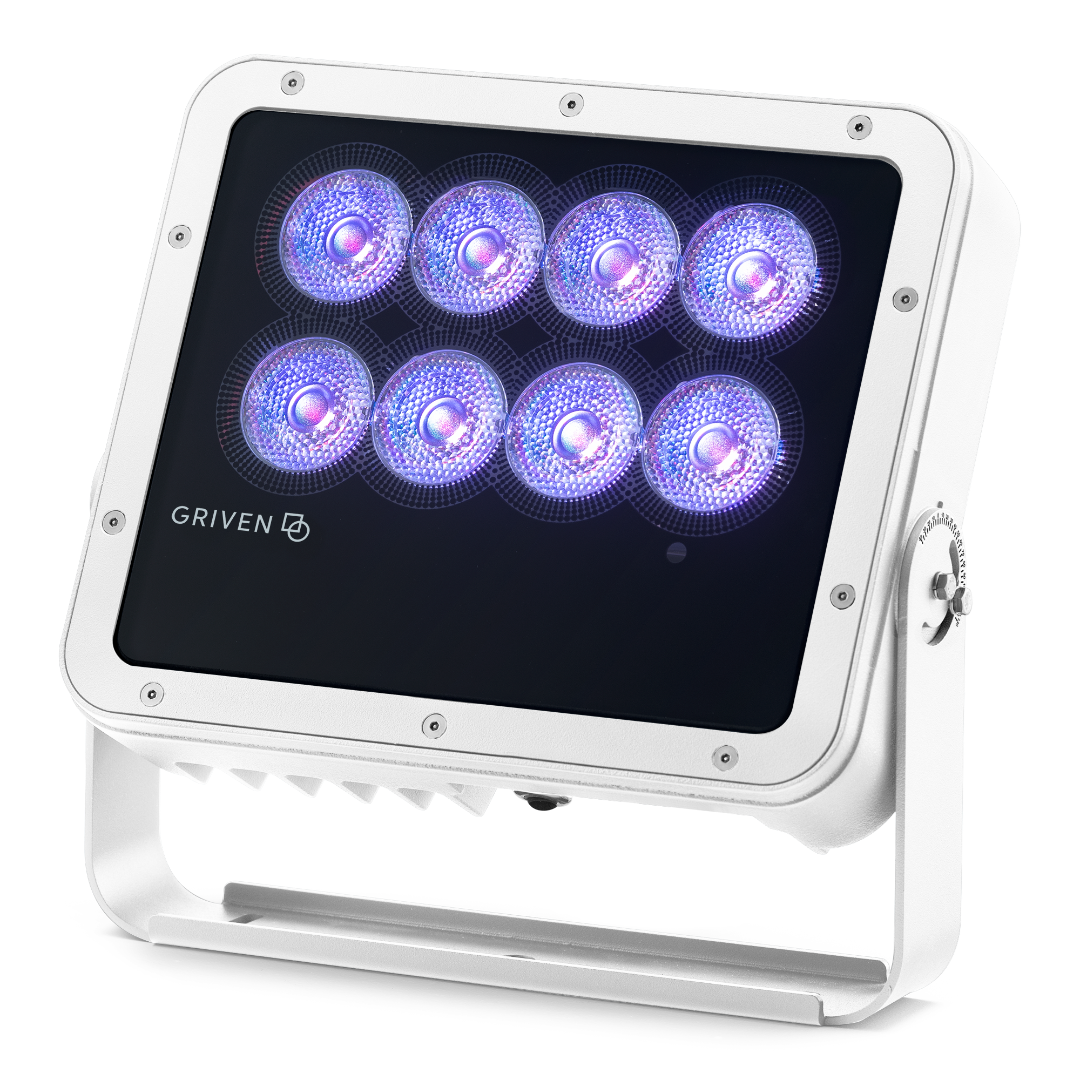

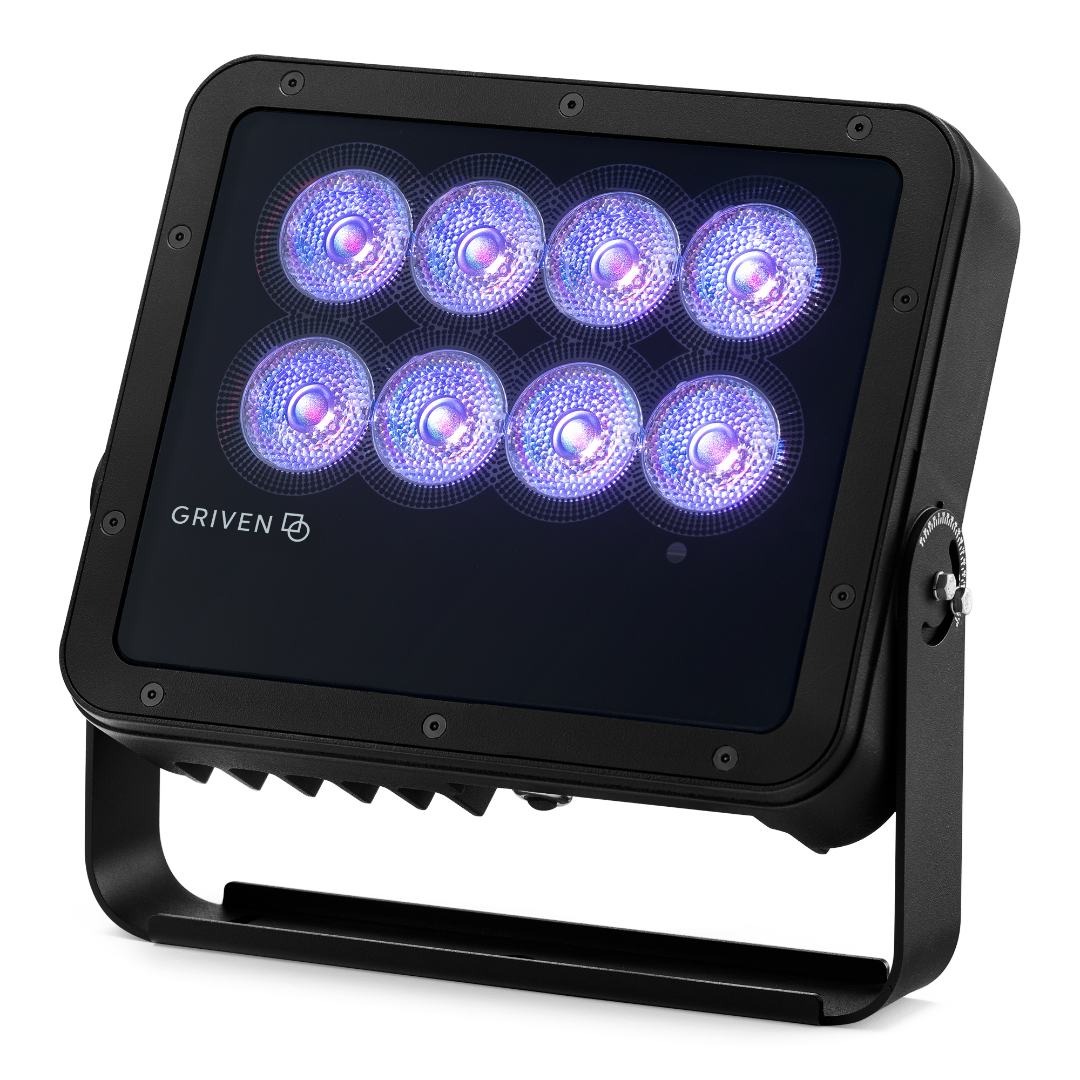

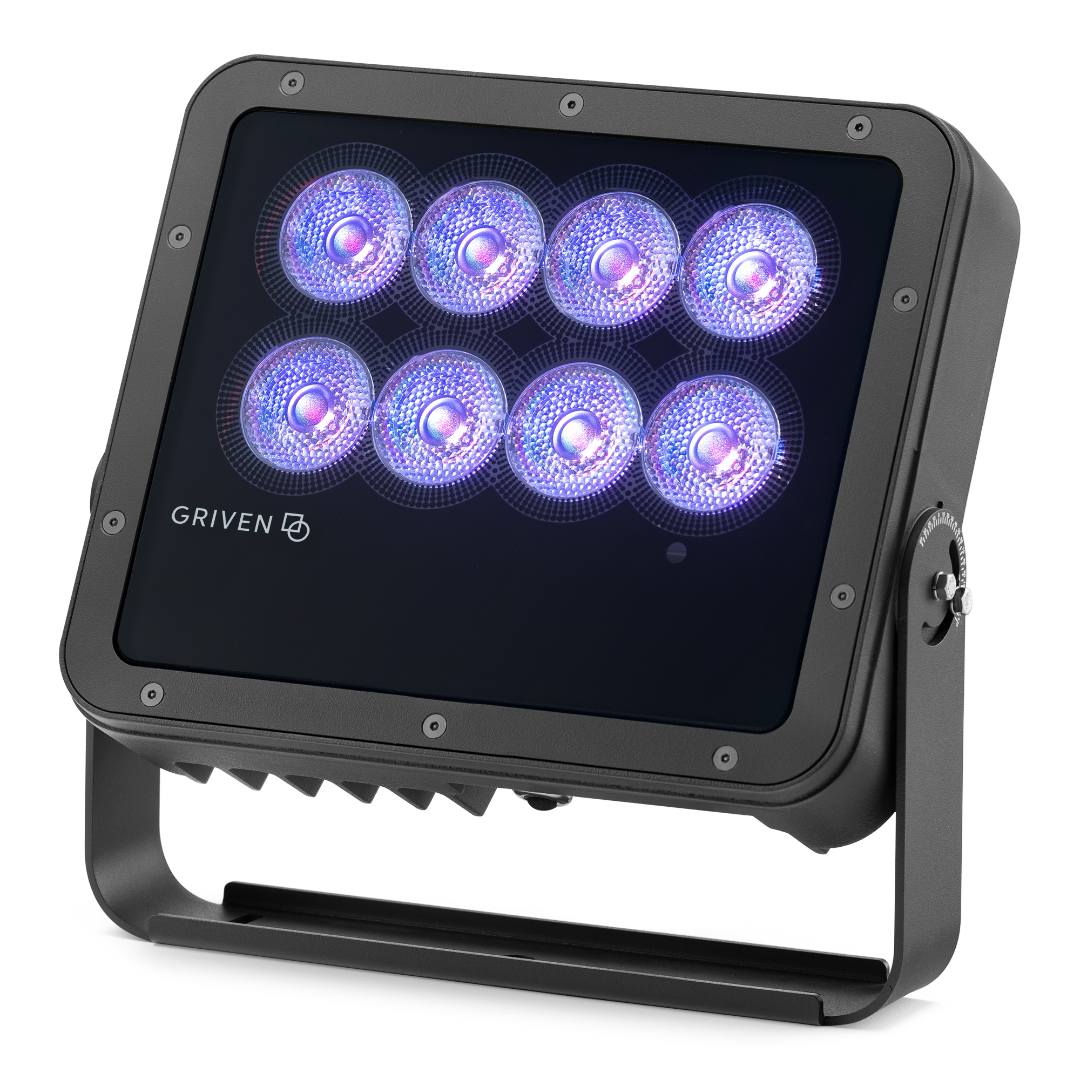

Capital 100 MC RGBW

CP100MC
CP100MCPE Polar Edition
  • Ideal for spot lighting and wall washing effects
  • Premium quality high brightness RGB+W 3000K/4000K multichip power LEDs
  • Seamless light distribution and smooth colour transition
  • 11.1" L x 3.2" W x 11.1" H
View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product
COLOR CHANGING
print

Capital 100 MC RGBW

General Features

CAPITAL 100MC delivers superior color-mixing through quad-chip LEDs and precision lens technology within a strikingly compact body. Tailored to meet the needs of demanding architectural lighting specifications, this flexible and highly versatile floodlight is suitable for a variety of installations where a reduced mounting footprint is desired.
Color configuration
High brightness RGBW (3000K or 4000K White) multichip LEDs
Optical configuration
7° SP (Spot)
10° NB (Narrow)
23° MB (Medium)
35° WB (Wide)

*Contact factory for internal spreading diffusers
Max. Delivered lumen output
2887 to 3200 lumens
Max. lumen/Watt
Up to 43 lumens per watt
Input voltage
120 - 277V
Amperage
0.58A @ 120V, 0.26A @ 277V
Power consumption
70 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • ETL Listed

Optional Features

  • Optional Polar

Downloads

Specification SheetSpecification Sheet
PDF
Overview PresentationOverview Presentation
PDF
ConfigurationConfiguration
PDF
User ManualUser Manual
PDF
PicturesPictures
ZIP
IESIES
ZIP
