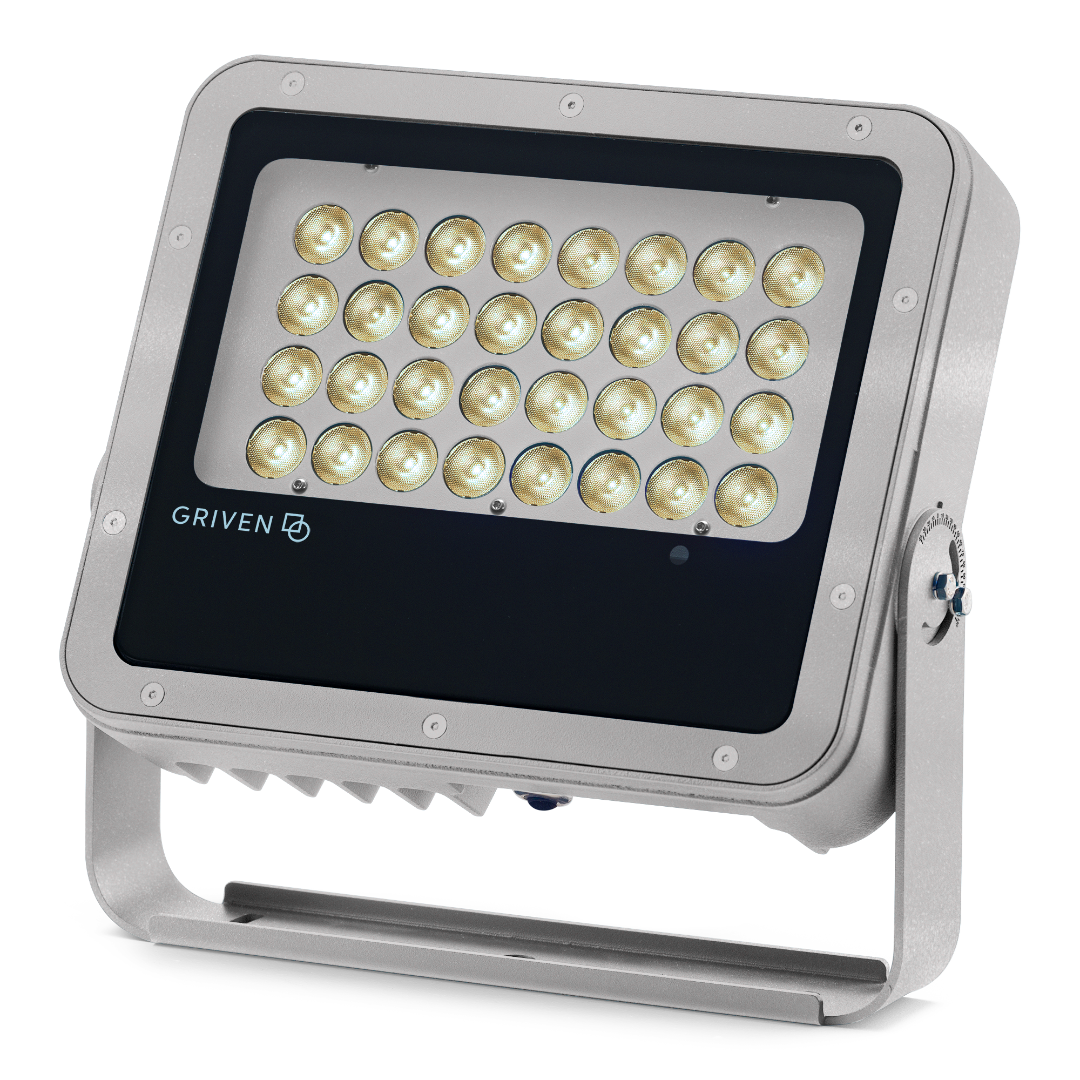

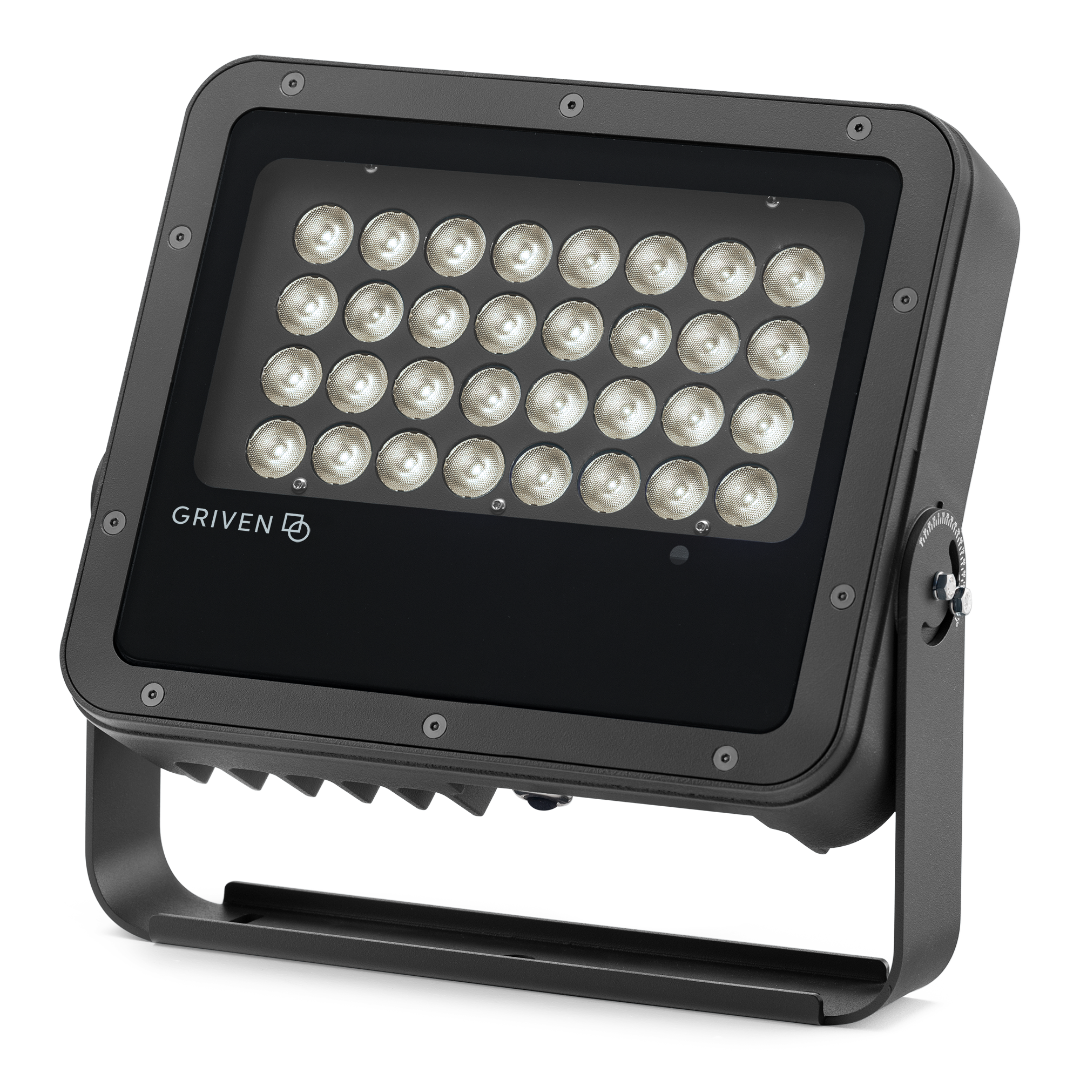

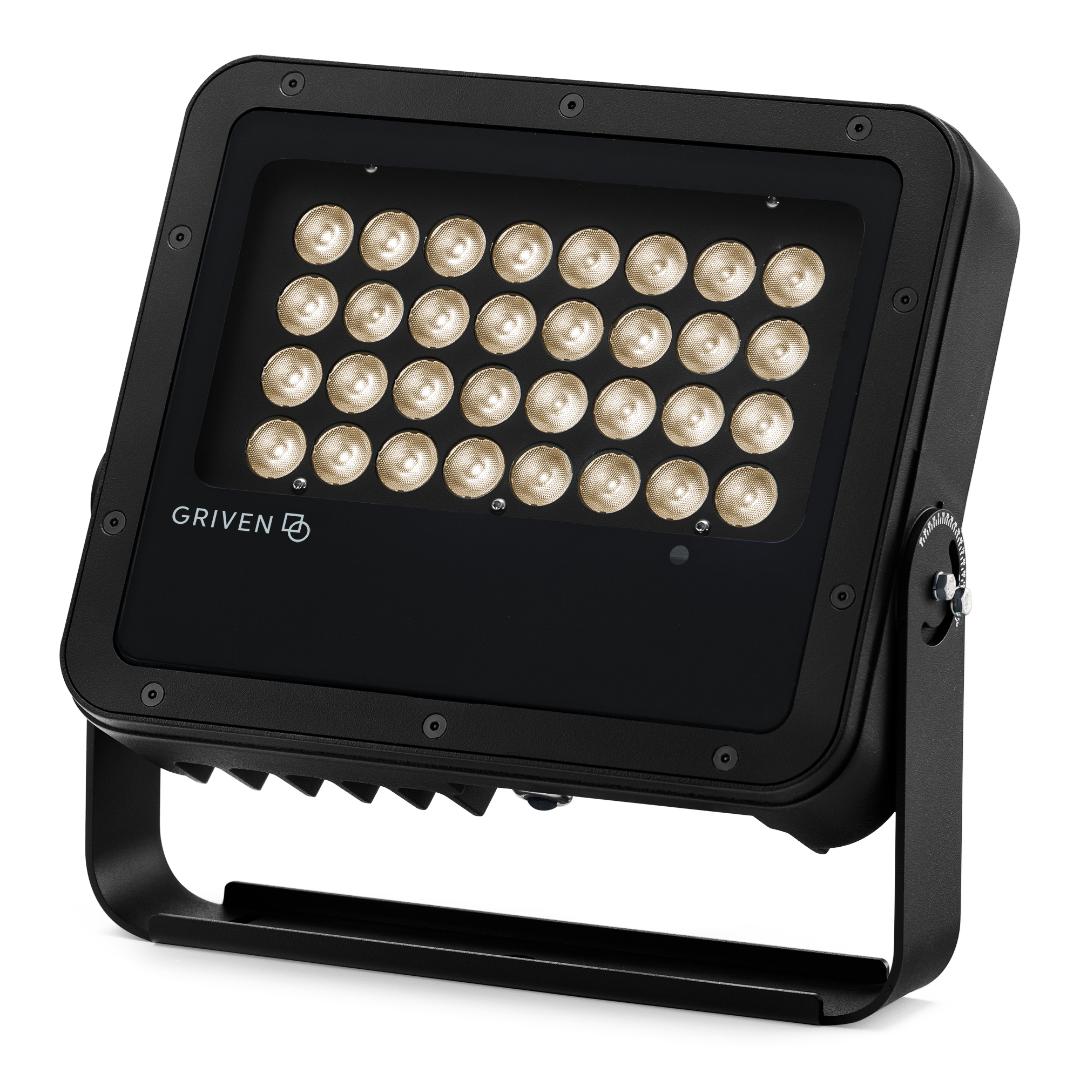

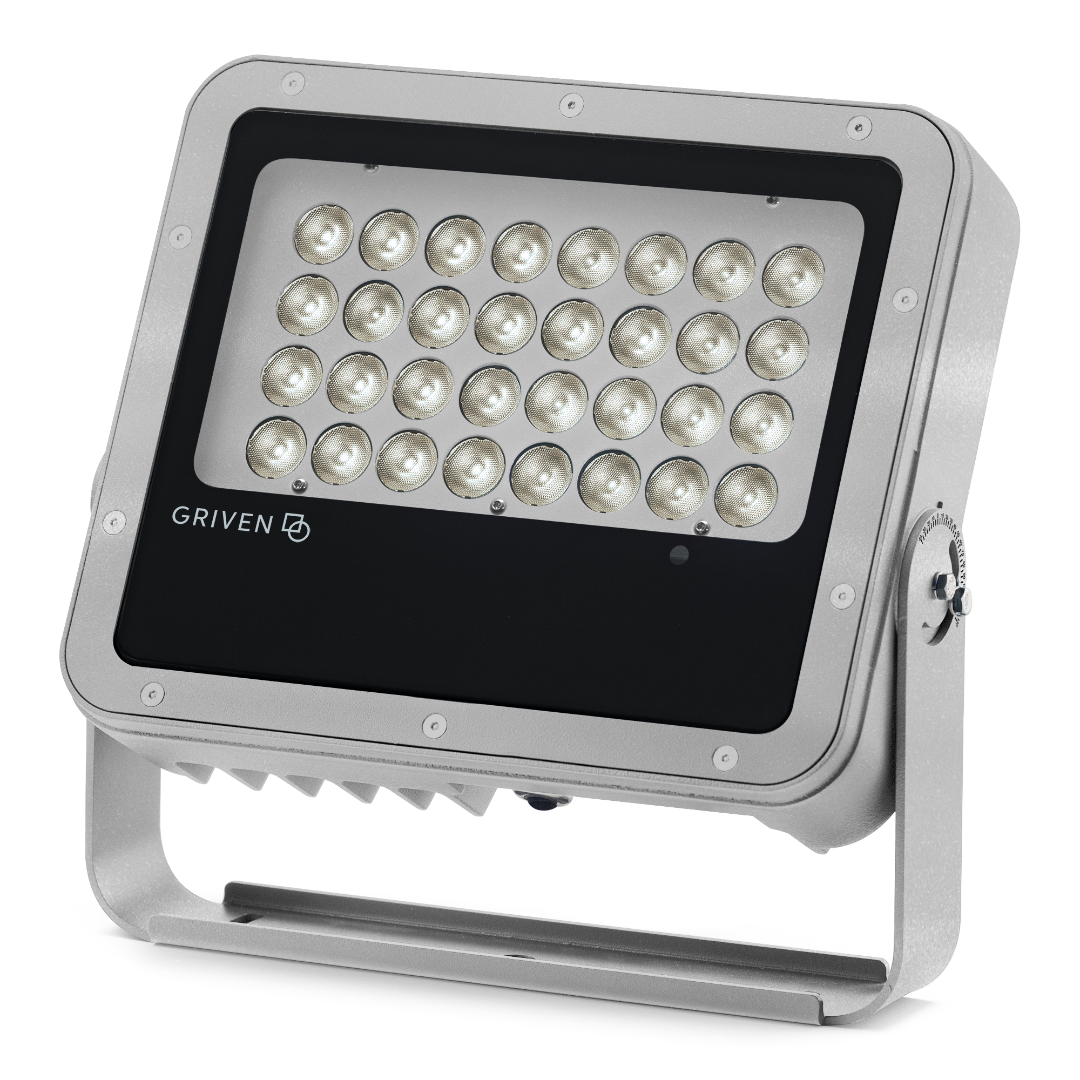

Capital 100 Static White

CP100
CP100PE Polar Edition

  • Compact surface-mount floodlight
  • Comprehensive selection of optical configurations
  • High brightness cold, natural or warm white power LEDs
  • 11.1" L x 3.2" W x 11.1" H

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: Warm White 3000K
  • Warm White 2700K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product
STATIC WHITE
print

General Features

CAPITAL 100 delivers remarkable performance from a strikingly compact body.
Tailored to the demanding needs of the most imaginative architectural lighting specifications, this flexible and highly versatile floodlight is suitable for a variety of installations where a reduced mounting footprint is desired.
Color configuration
High brightness cold, natural or warm white power LEDs
Optical configuration
13° SP (Spot)
16° NB (Narrow)
25° MB (Medium)
46° WB (Wide)
64° EW (Extra wide)
40°h x 14°v ELH (Elliptical Horizontal)
38°h x 23°v ELWH (Elliptical Wide Horizontal)
36°h x 19°v WW (Wall Wash)

*Contact factory for internal spreading diffusers
Max. Delivered lumen output
Up to 7319 lumens depending on distribution
Max. lumen/Watt
Up to 106 lumens per watt
Input voltage
120 - 277V
Amperage
0.58A @ 120V, 0.25A @ 277V
Power consumption
69 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal
  • Wall Wash


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • Rohs
  • ETL Listed

Optional Features

  • Optional Polar
