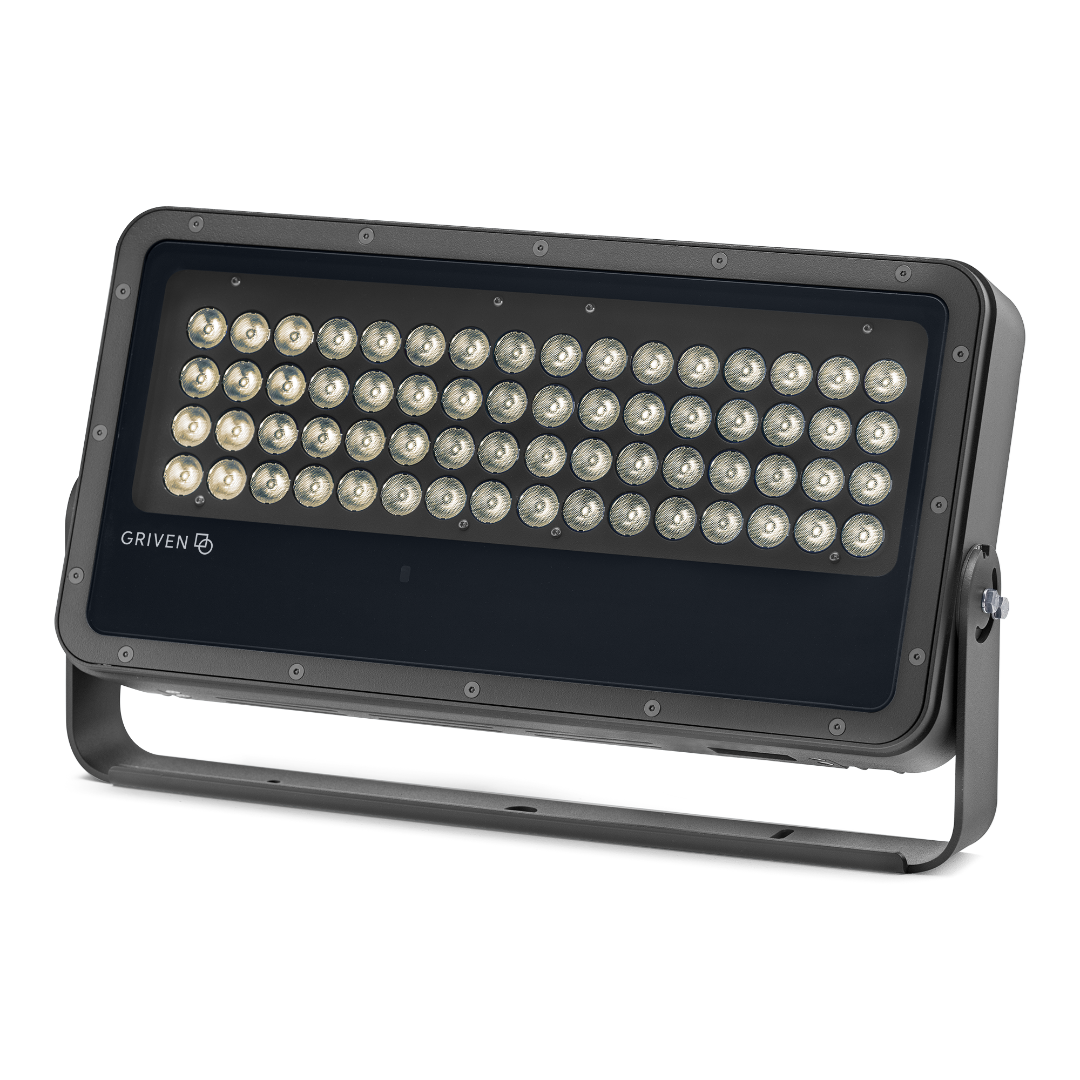

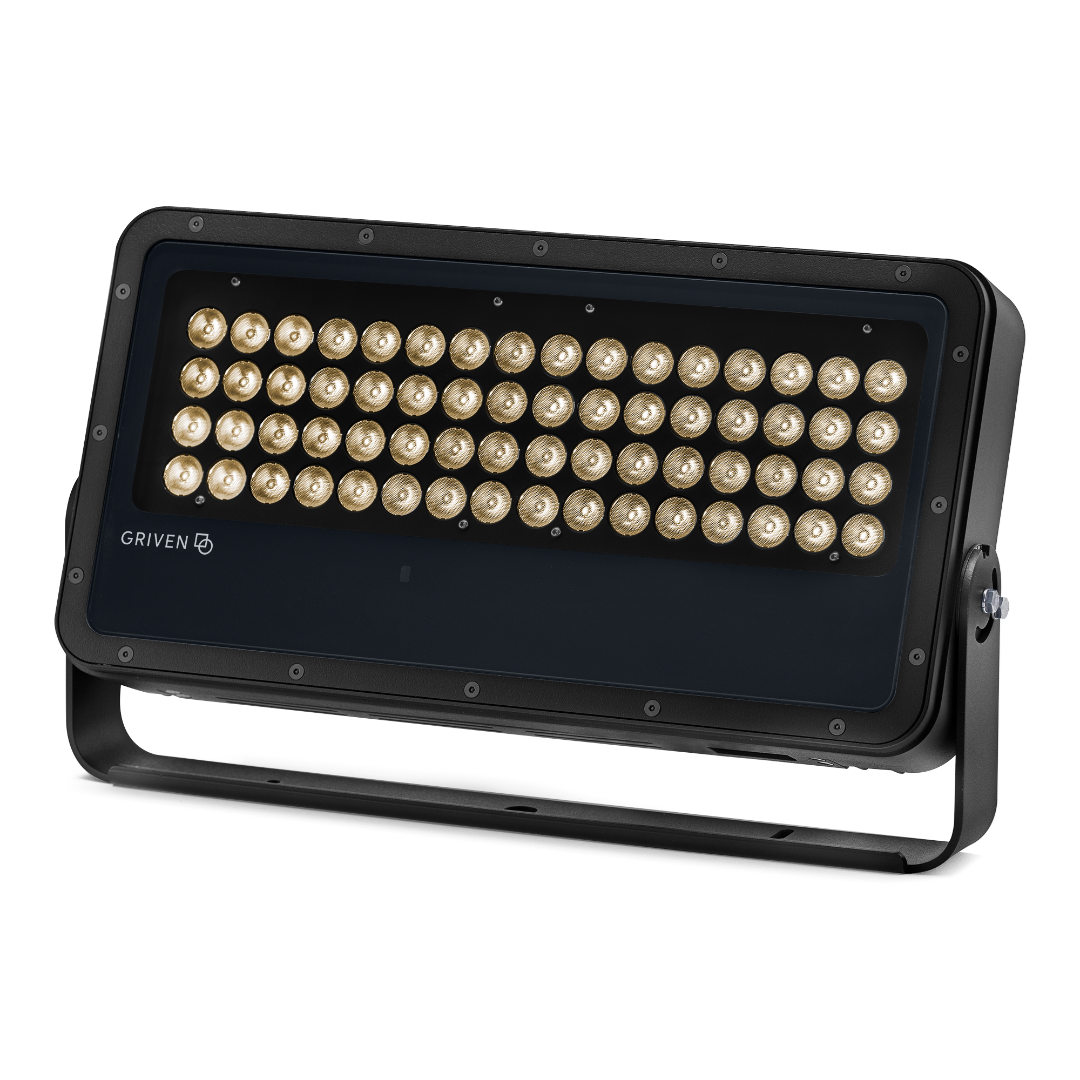

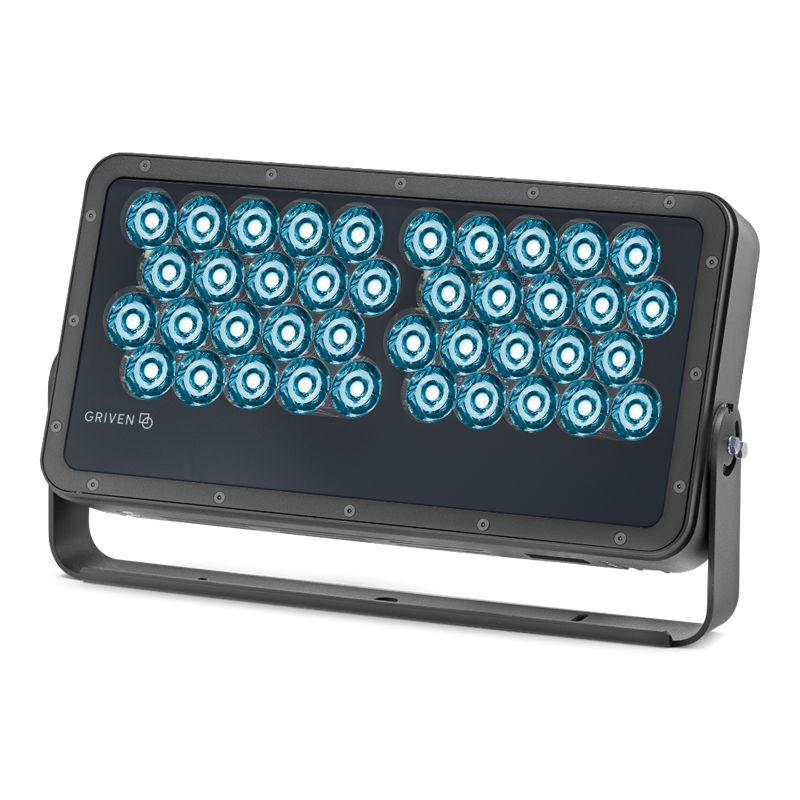

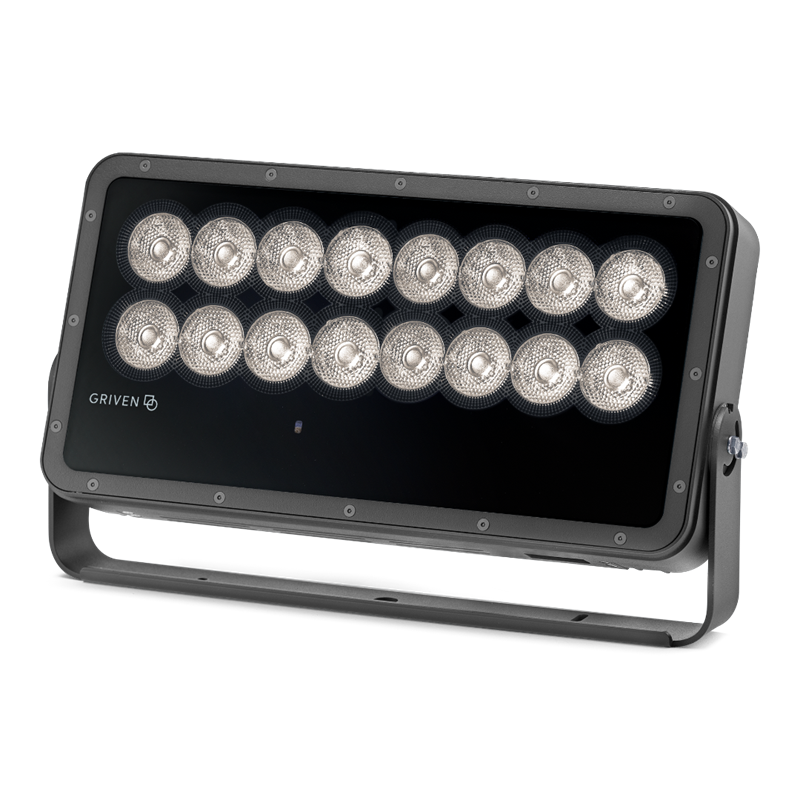

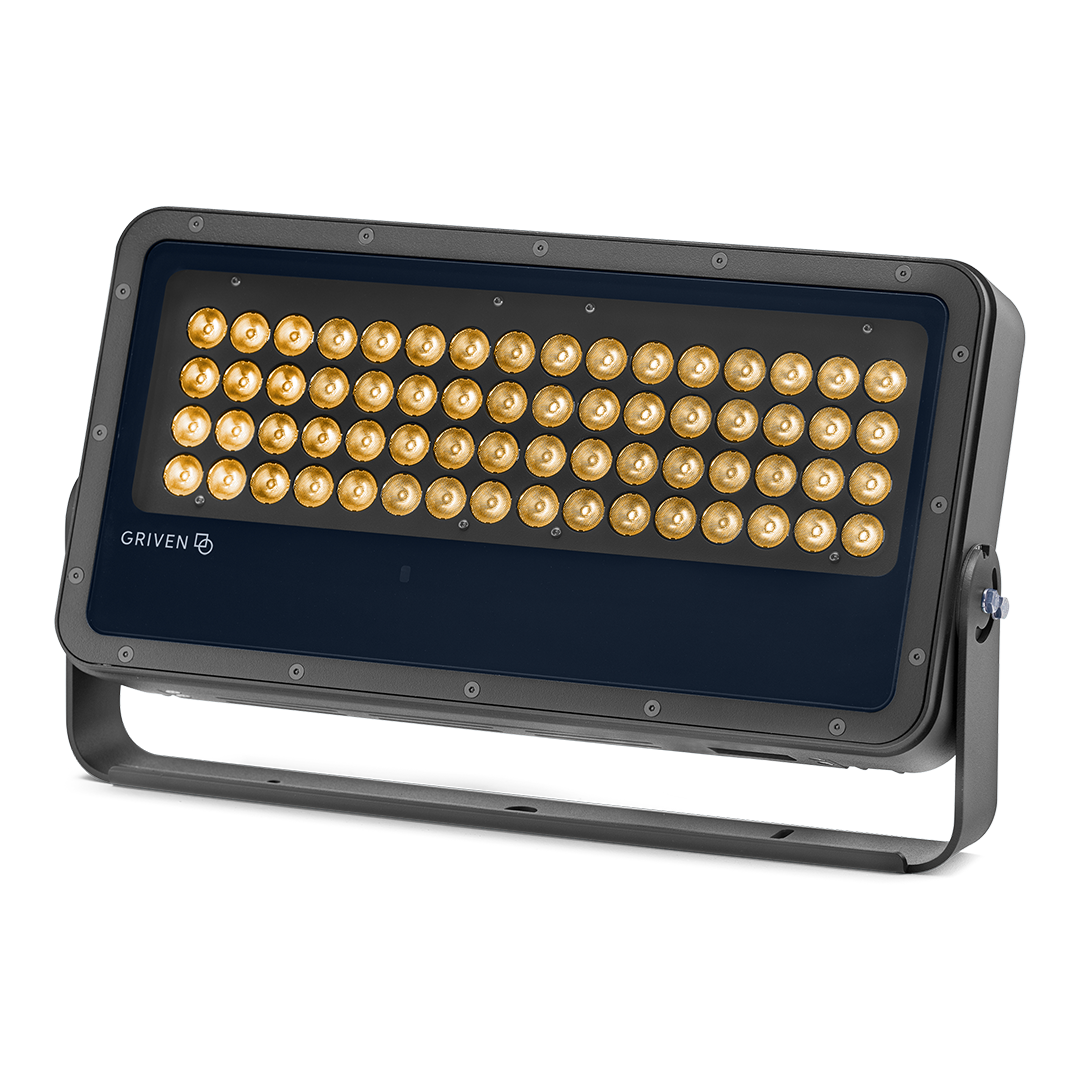

Capital 200 Static White

CP200
CP200PE Polar Edition

  • Surface-mount floodlight
  • Comprehensive selection of optical configurations
  • High brightness Cool White, Natural White, Warm White power LEDs
  • 18.7" L x 3.5" W x 10.9" H

View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey

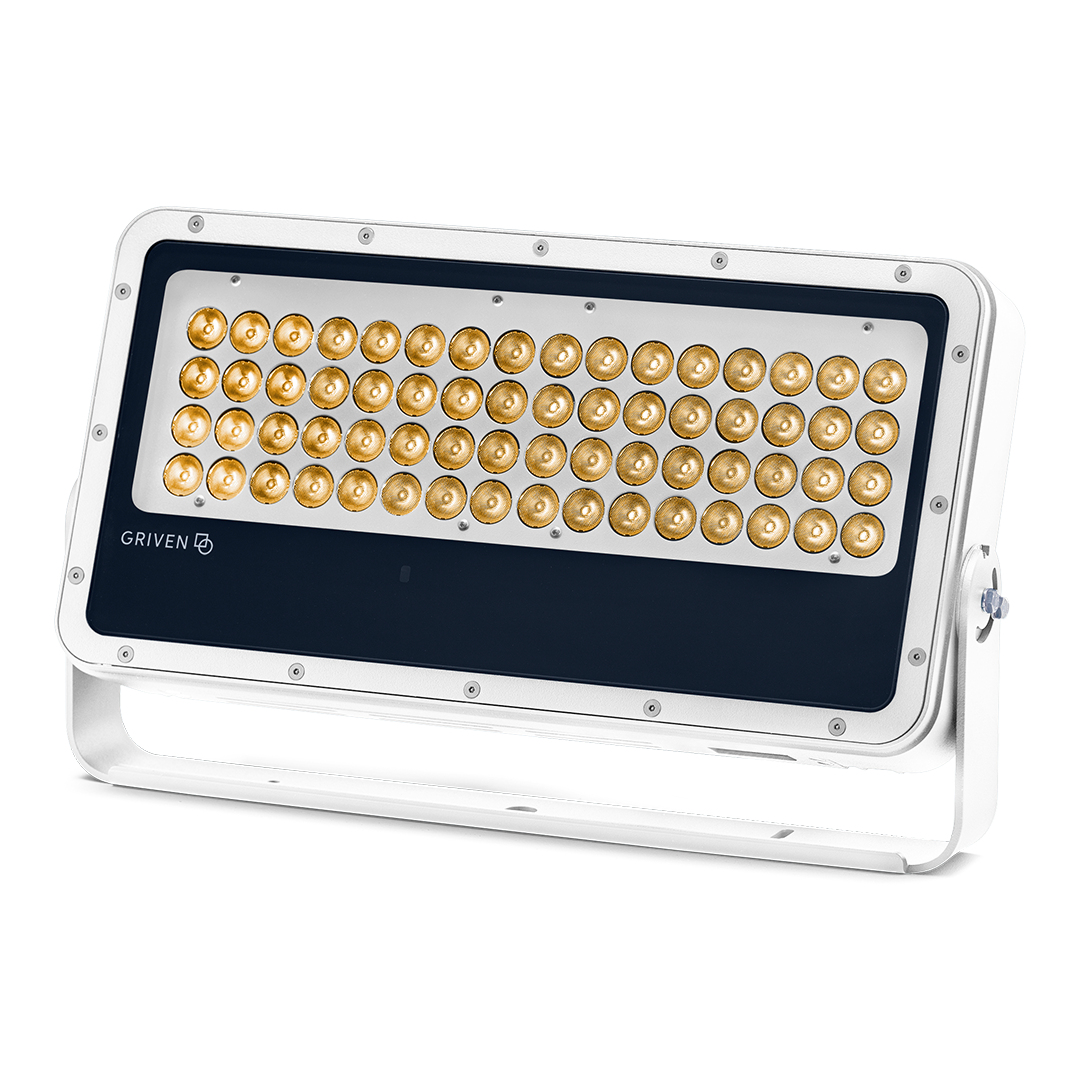

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes

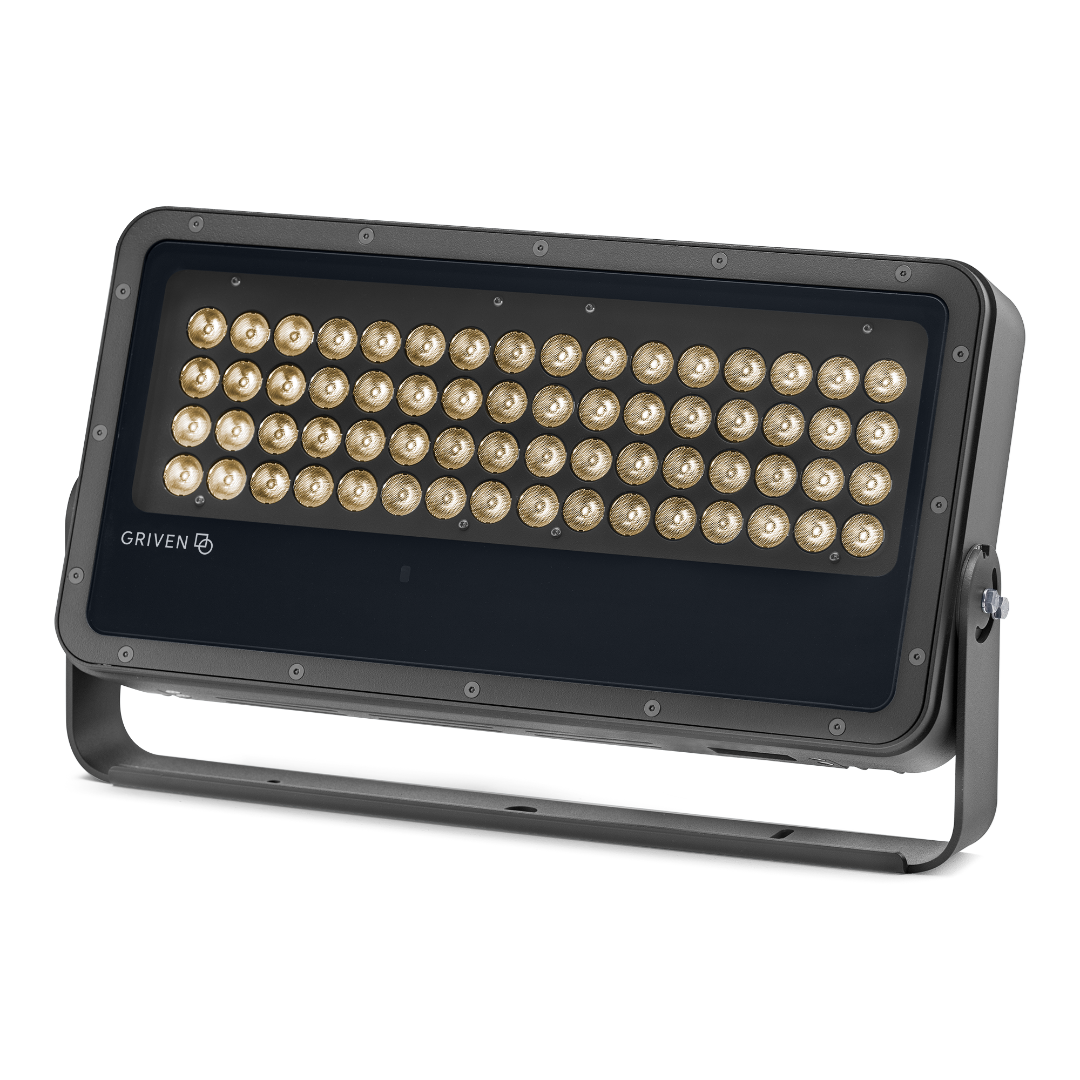

View LED colour configuration: Warm White 3000K
  • Warm White 2700K
  • Warm White 3000K
  • Neutral White 4000K
Contact us  Save product
STATIC WHITE
print

General Features

CAPITAL 200 blends unobtrusively into every architectural background through modern design and an extremely sleek profile. The floodlight delivers high output from a compact body with outstanding performance. Available in eight light distributions, this versatile luminaire delivers balanced projection and photometric flexibility tailored to the selective demands of the most sophisticated architectural needs.
Color configuration
High brightness Static White (2700K, 3000K, or 4000K)
Optical configuration
13° SP (Spot)
16° NB (Narrow)
25° MB (Medium)
46° WB (Wide)
64° EW (Extra wide)
40°h x 14°v ELH (Elliptical Horizontal)
38°h x 23°v ELWH (Elliptical Wide Horizontal)
36°h x 19°v WW (Wall Wash)

*Contact factory for internal spreading diffusers
Max. Delivered lumen output
From 10910 to 15201 lumens depending on distribution
Max. lumen/Watt
Up to 103 lumens per watt
Input voltage
120 - 277V
Amperage
1.23A @ 120V, 0.53A @ 277V
Power consumption
148 watts
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty

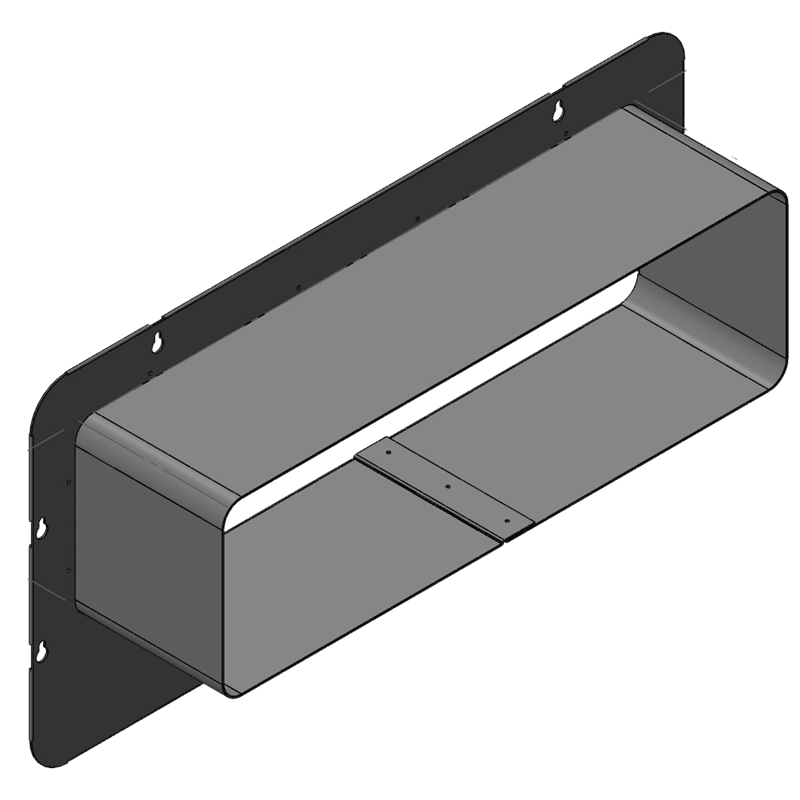

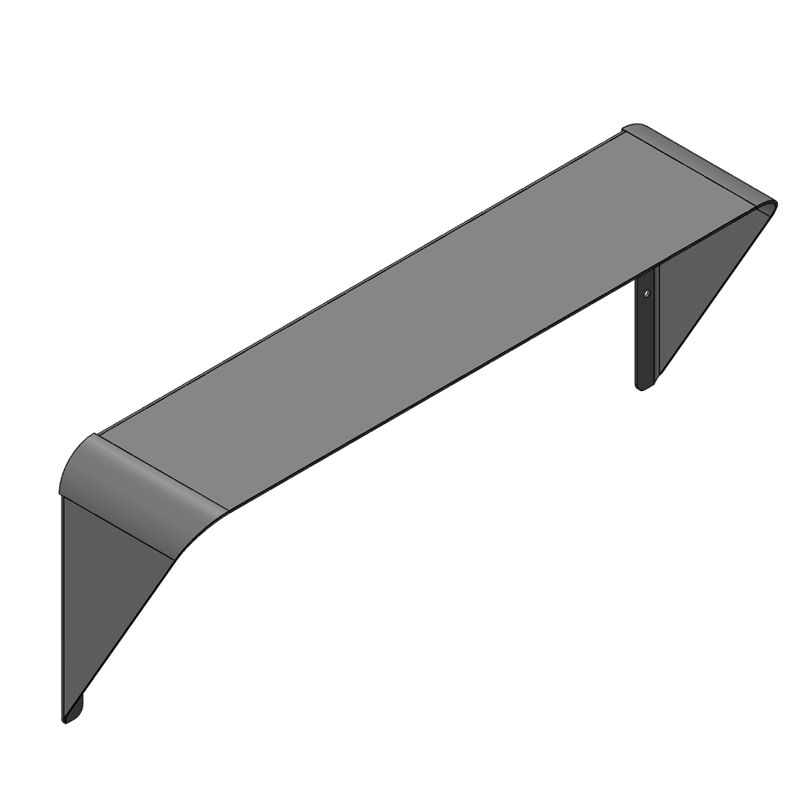

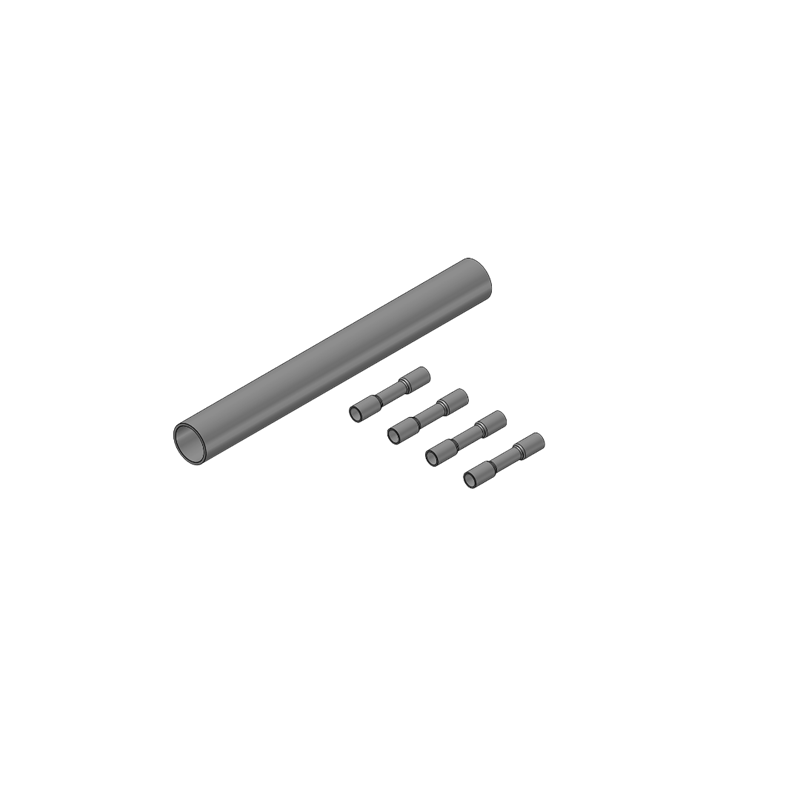

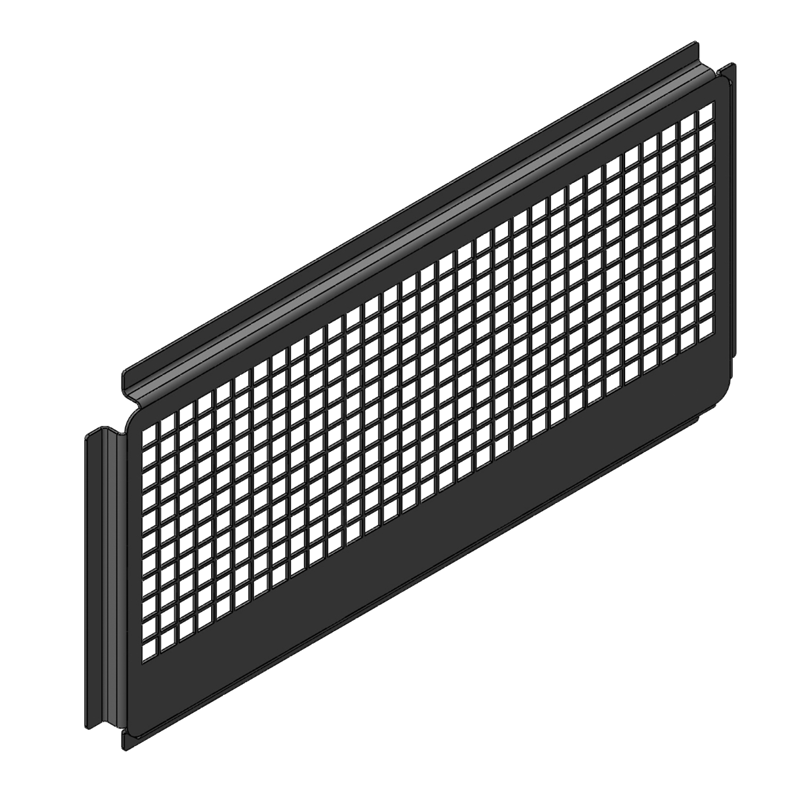

Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal
  • Wall Wash


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • Rohs
  • ETL Listed

Optional Features

  • Optional Polar
