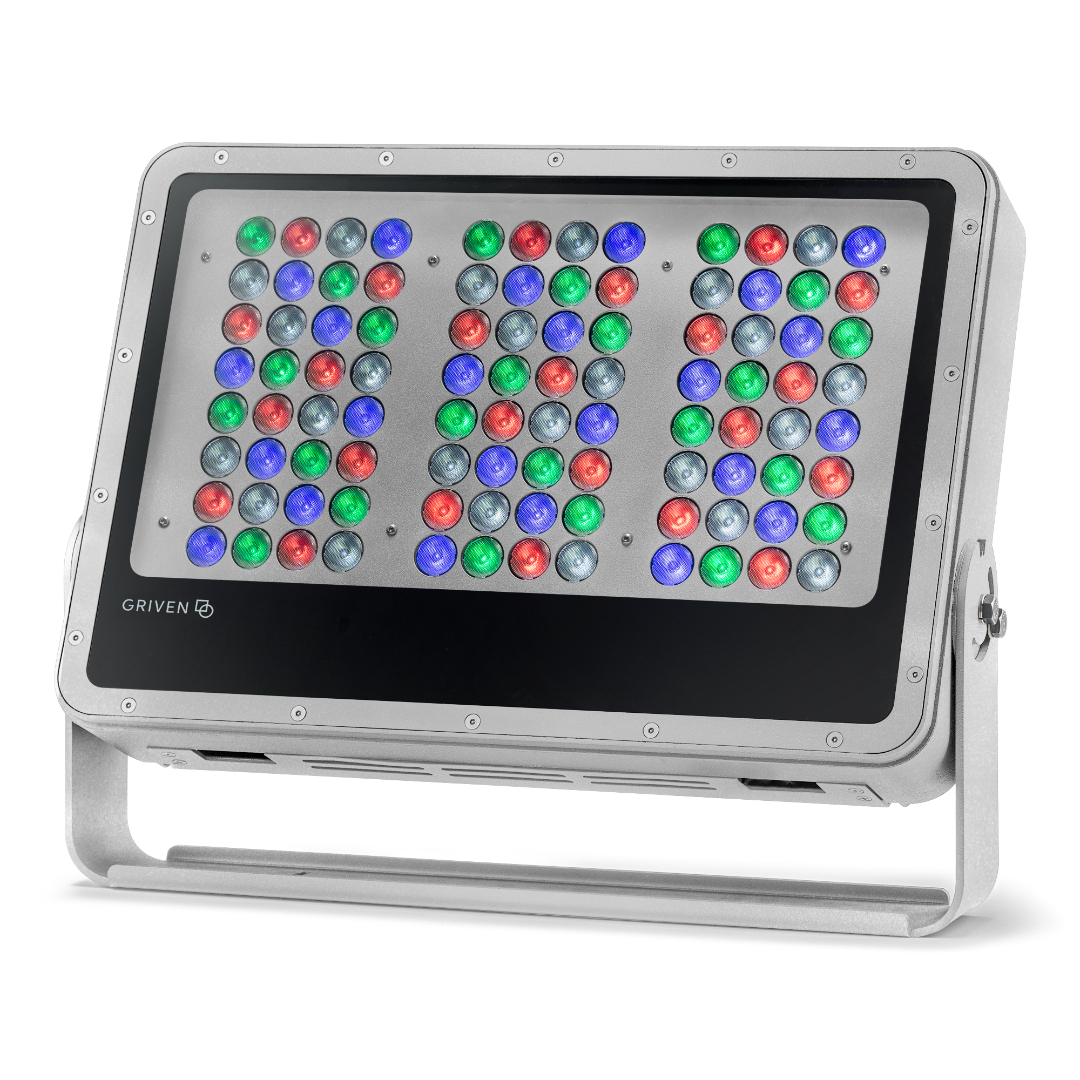

Capital 300 Discrete RGBW

CP300
CP300PE Polar Edition

  • Powerful surface mount floodlight
  • Comprehensive selection of optical configurations
  • High brightness RGB+W 3000K or 4000K power LEDs
  • 19.4" L x 4.1" W x 15.1" H

View finishes: Anthracite Grey

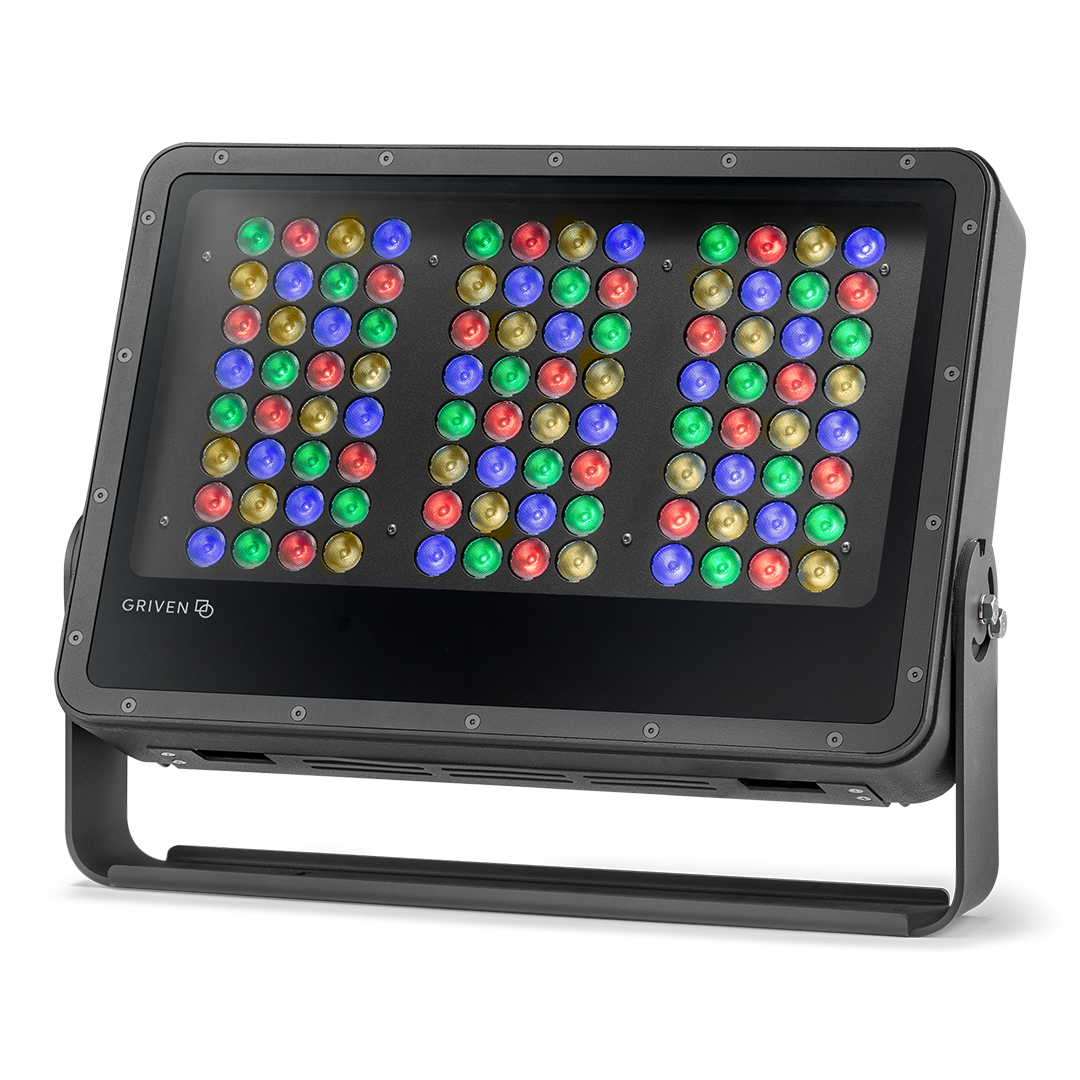

  • Anthracite Grey

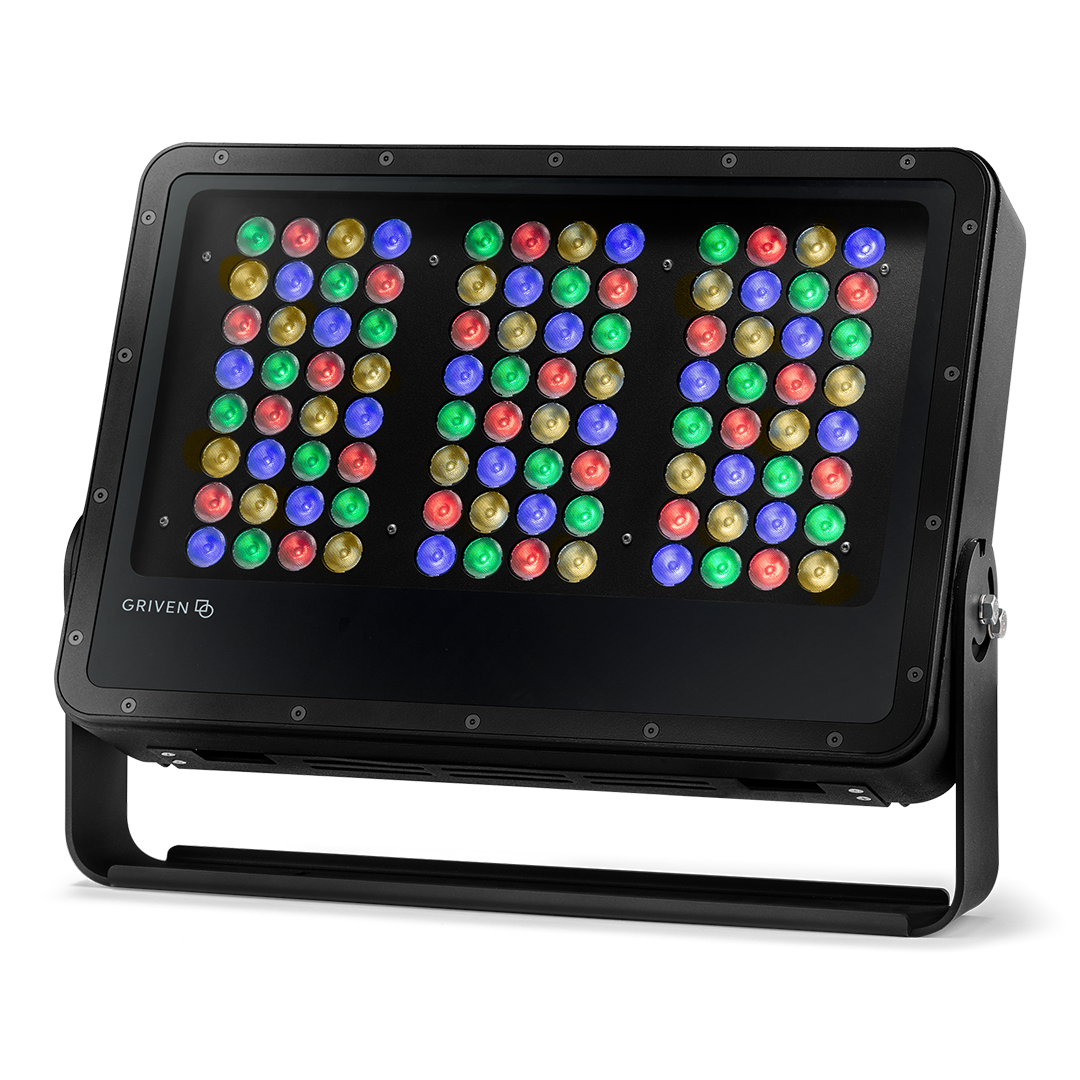

  • Black
  • Griven Silver Grey

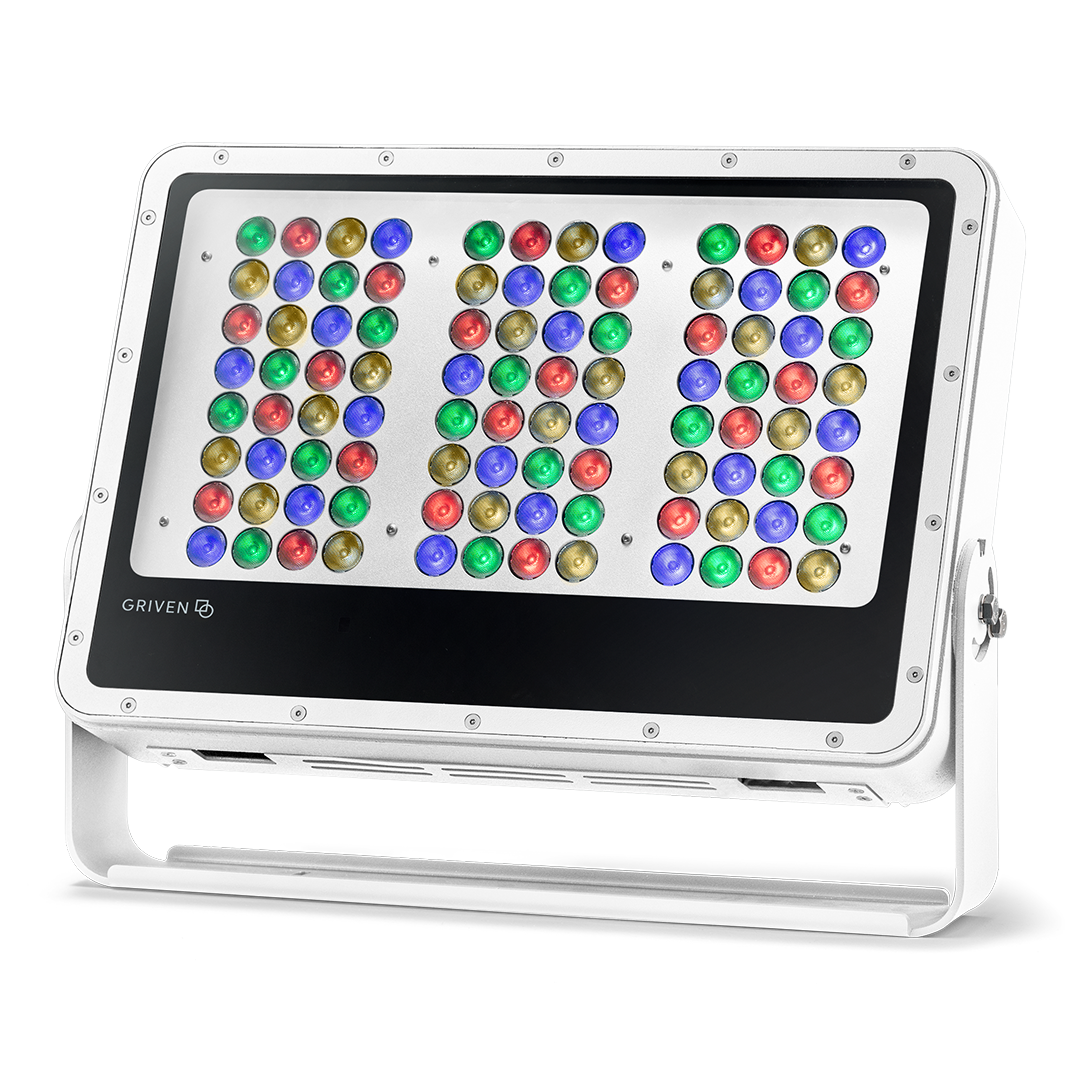

  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product
COLOR CHANGING
print

General Features

CAPITAL 300 is the ideal solution for the dramatic illumination of large-scale façades and high-rise buildings calling for high impact lighting. With an industry leading high lumen package, this luminaire effectively satisfies illumination requirements ranging from wall wash applications to enhancement of architectural elements.
Color configuration
High brightness RGB+W 3000K or 4000K LEDs
Optical configuration
8° SP (Spot)
12° NB (Narrow)
23° MB (Medium)
43° WB (Wide)
58° EW (Extra wide)
42°h x 10°v ELH (Elliptical Horizontal)
39°h x 20°v ELWH (Elliptical Wide Horizontal)
36°h x 15°v WW (Wall Wash)

*Contact factory for internal spreading diffusers
Max. Delivered lumen output
From 10658 lumens to 16842 lumens depending on distribution
Max. lumen/Watt
Up to 66 lumens per watt
Input voltage
120 - 277V
Amperage
2.13A @ 120V, 0.92A @ 277V
Power consumption
256 watts max.
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility.

Light Beam Effects

  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical Horizontal
  • Elliptical Wide Horizontal
  • Wall Wash


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • ETL Listed

Optional Features

  • Optional Polar
