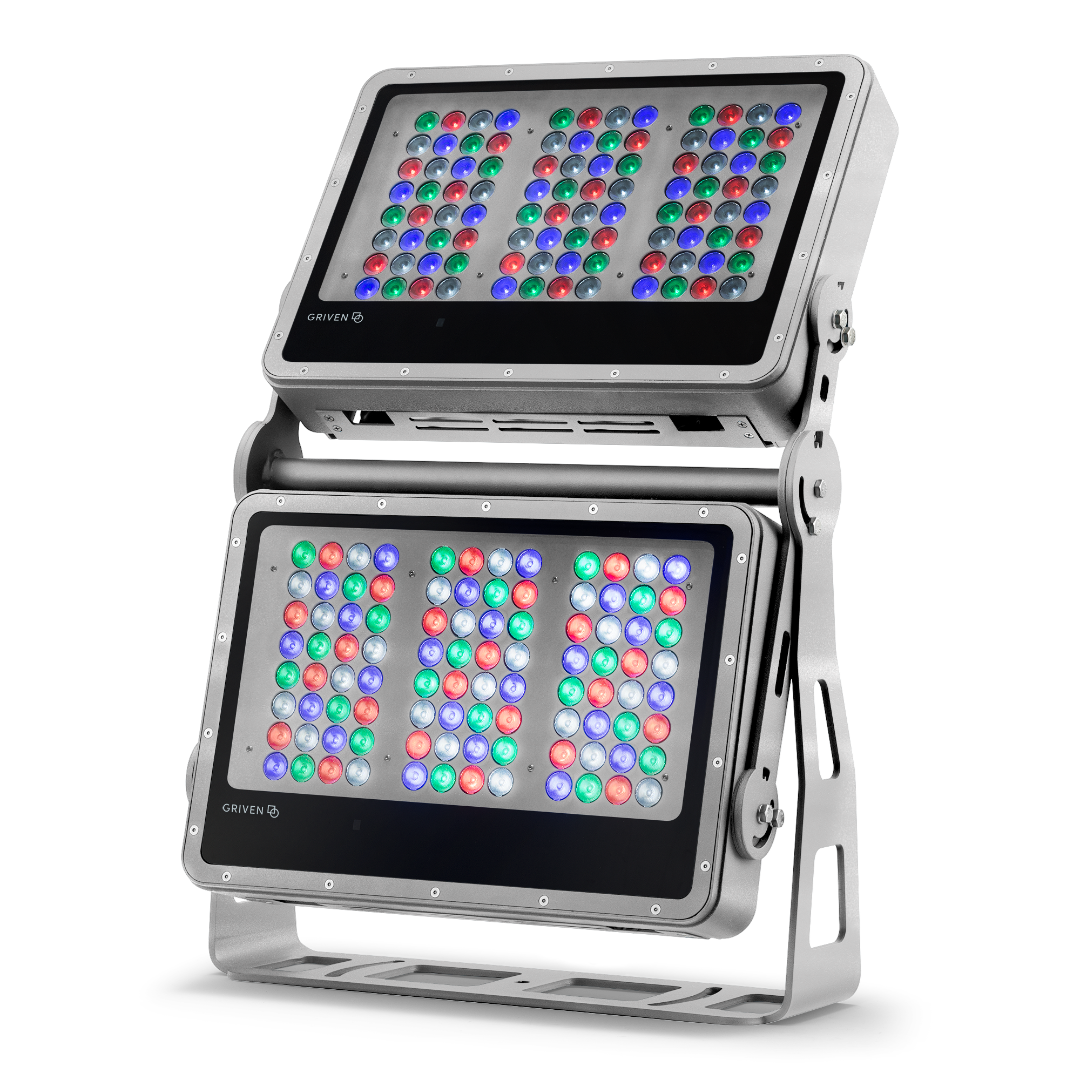

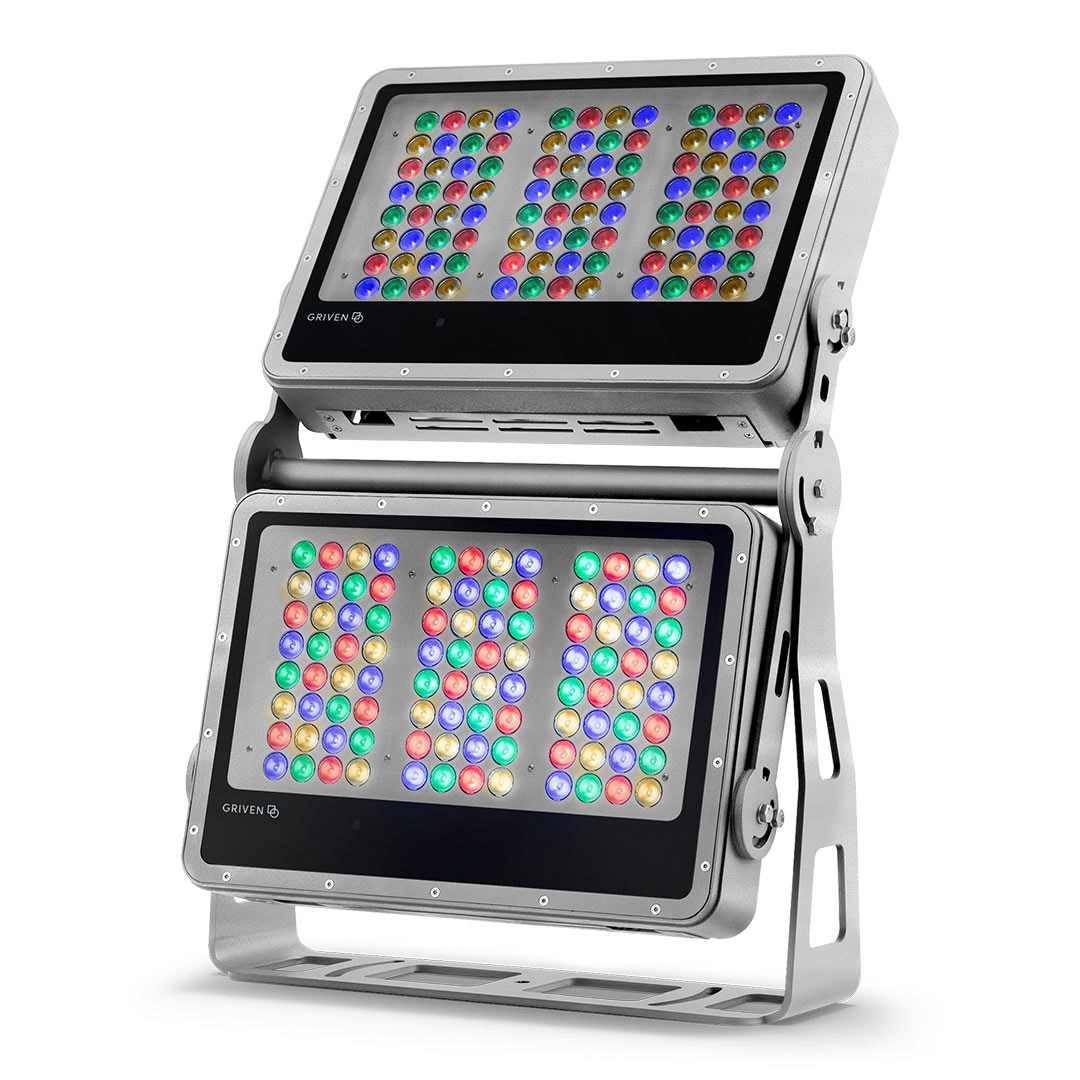

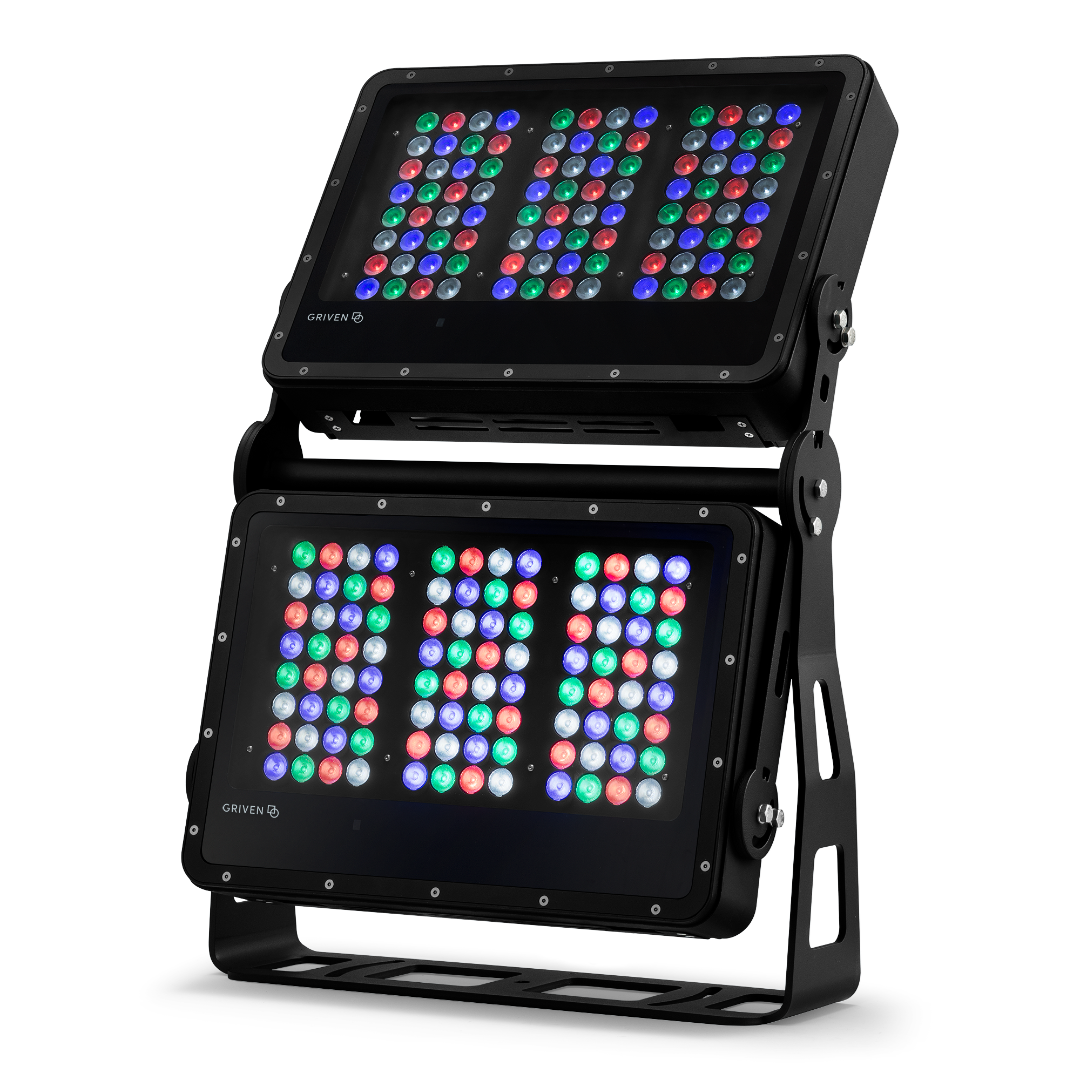

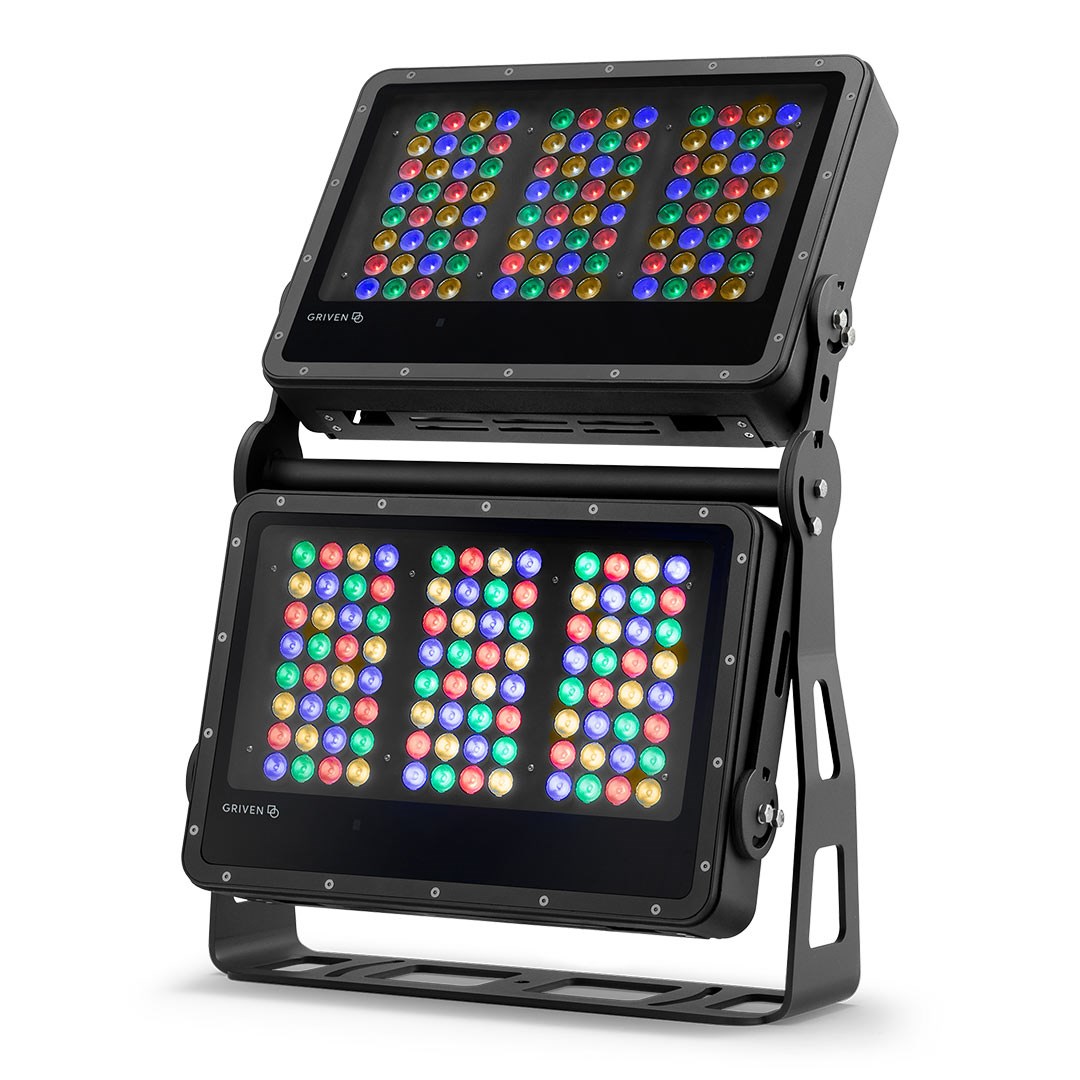

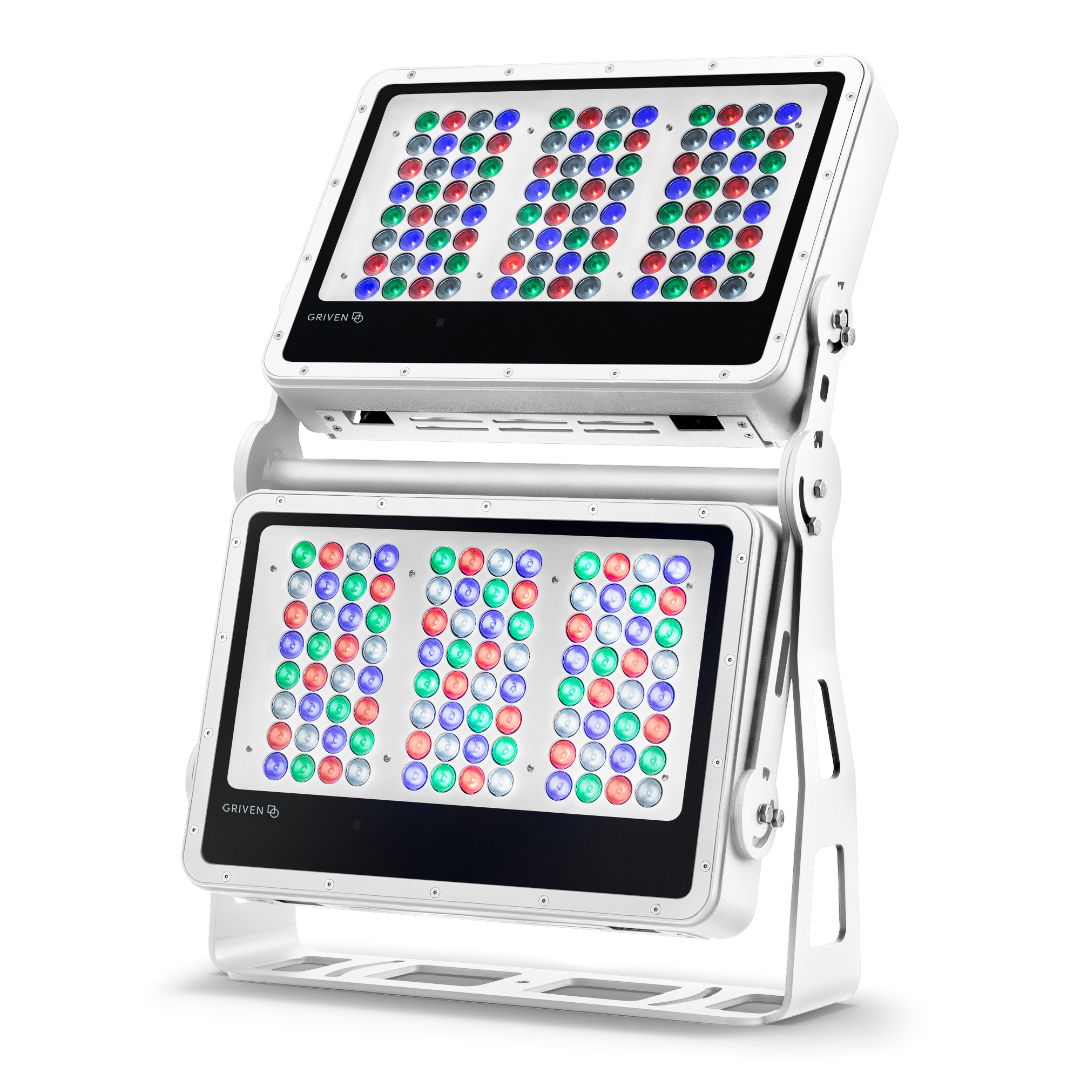

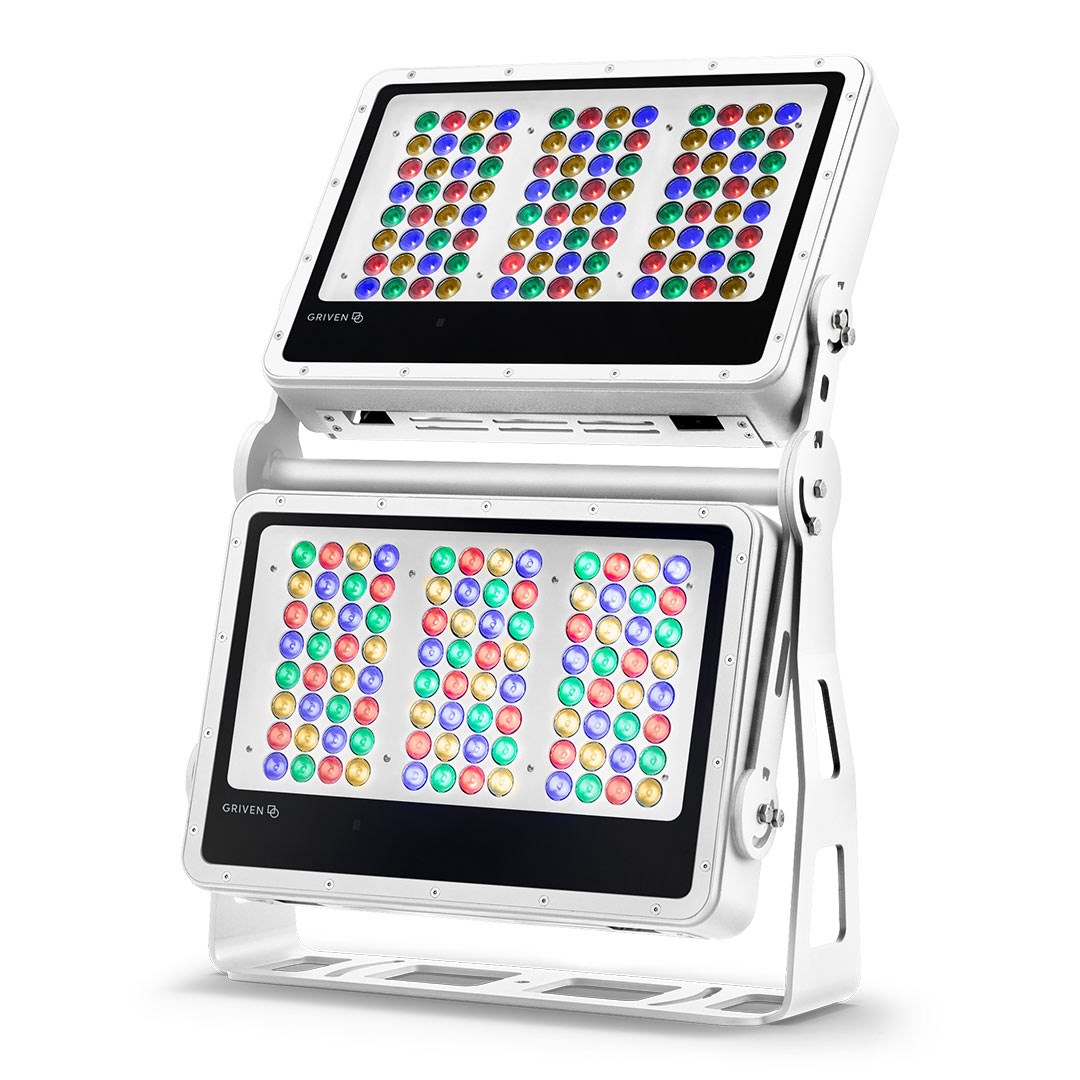

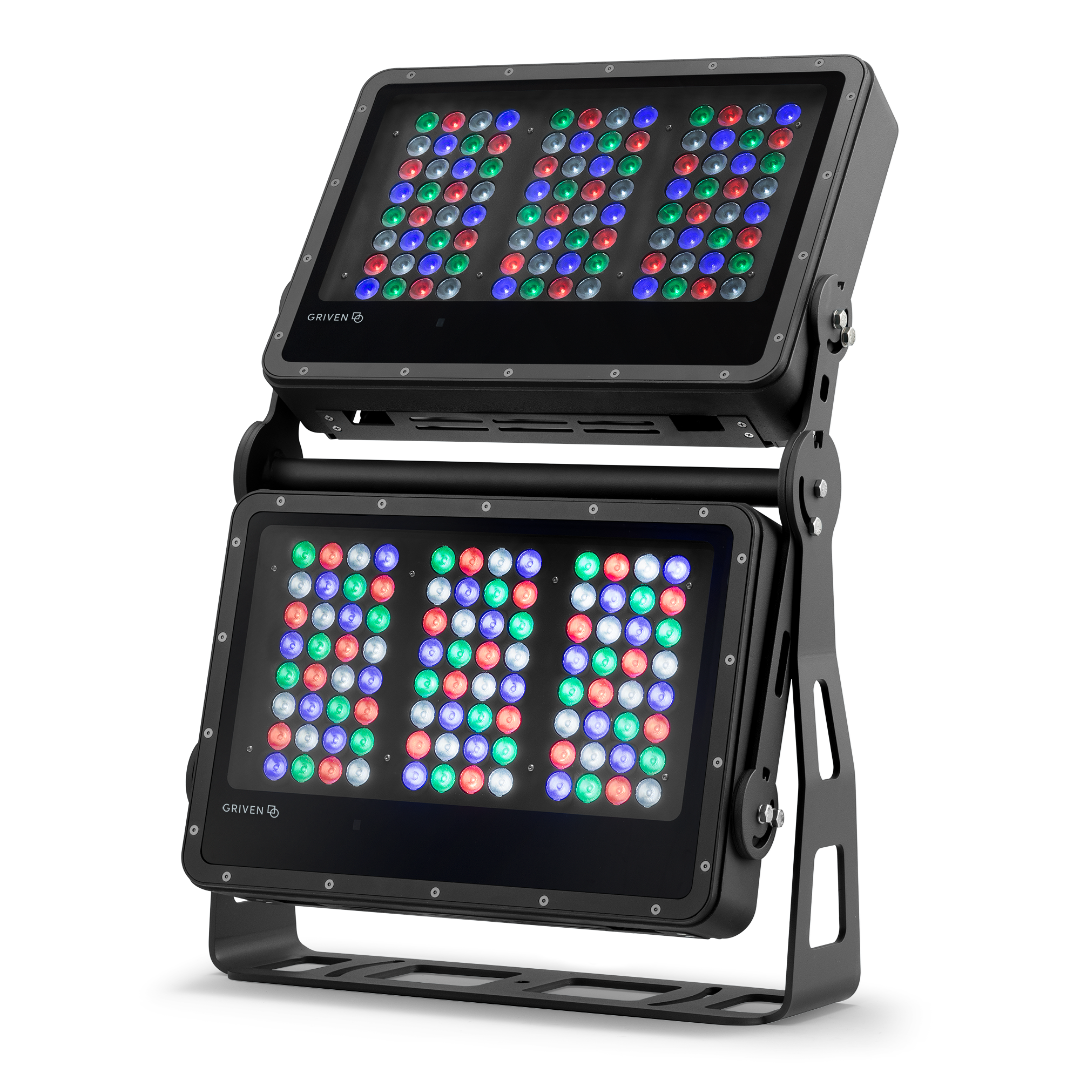

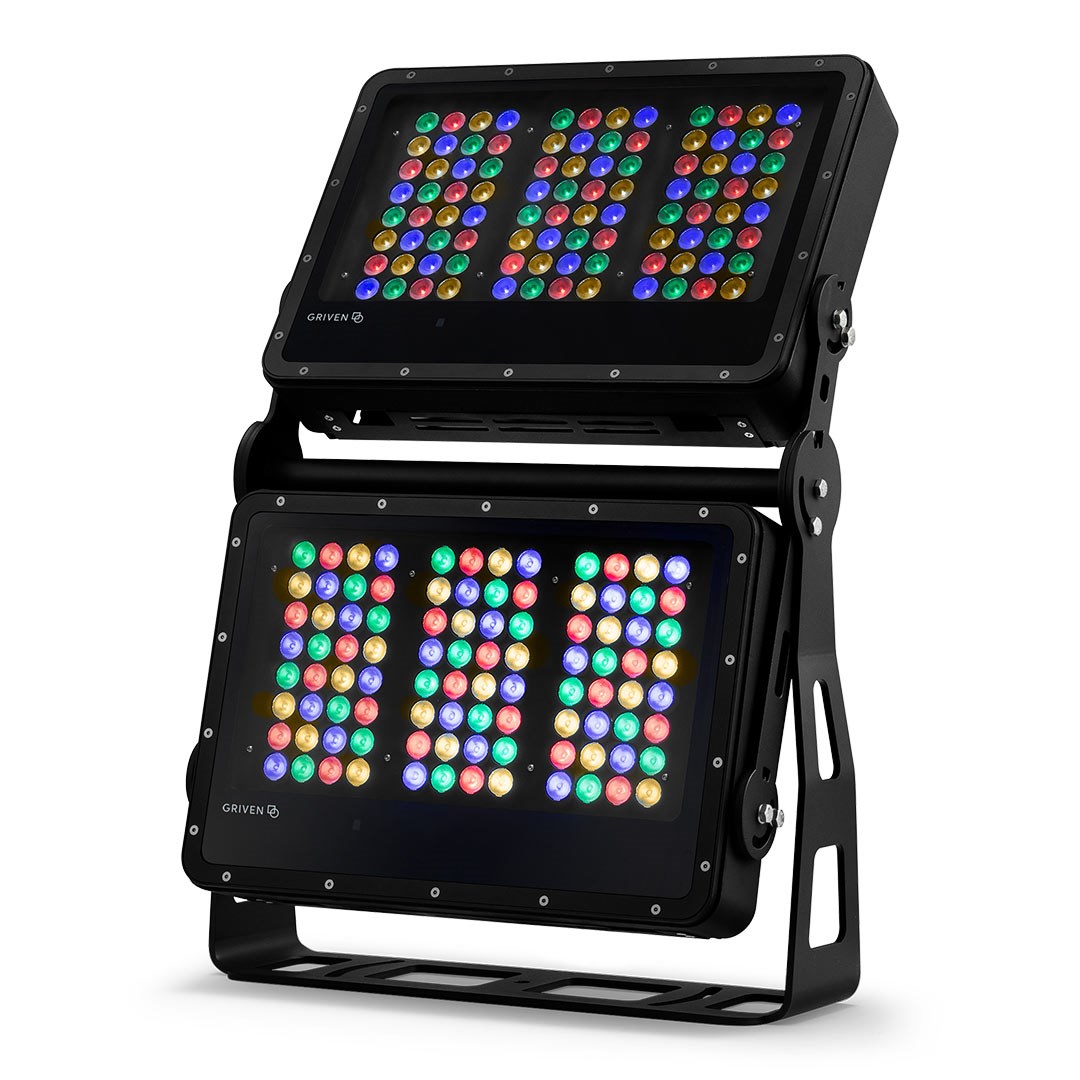

Capital 600 Discrete RGBW

CP600
CP600PE Polar Edition
  • Double cluster surface mount powerful floodlight
  • Full independent control of each LED bank
  • Creation of matching or divergent dynamic effects on large-scale façades
  • High brightness RGB+W 3000K or 4000K power LEDs
  • 20.4" L x 5.9" W x 29.8" H
View finishes: Anthracite Grey
  • Anthracite Grey
  • Black
  • Griven Silver Grey
  • White
  • Contact factory for Custom RAL or Marine Grade Finishes
View LED colour configuration: RGBW40K
  • RGBW30K
  • RGBW40K
Contact us  Save product
COLOR CHANGING
print

Capital 600 Discrete RGBW

General Features

CAPITAL 600 floodlight is available with a vast choice of combinable optics and color configurations for the maximum lighting design flexibility. Featuring full independent control of each LED luminaire, this twin cluster luminaire system allows absolute freedom in a minimal footprint to create impressive matching or divergent dynamic effects on large-scale façades and architectural elements from a long distance with surprising luminous output.
Color configuration
High brightness RGB+W 3000K or 4000K LEDs
Optical configuration
8° SP (Spot)
12° NB (Narrow)
23° MB (Medium)
43° WB (Wide)
58° EW (Extra wide)
42°h x 10°v ELH (Elliptical Horizontal)
39°h x 20°v ELWH (Elliptical Wide Horizontal)
36°h x 15°v WW (Wall Wash)
Max. Delivered lumen output
From 10658 lumens to 16842 lumens depending on distribution
Max. lumen/Watt
Up to 66 lumens per watt
Input voltage
120 - 277V
Amperage
4.27A @ 120V (512 Watts), 1.84A @ 277V (512 Watts)
Power consumption
512 Watts (256 Watts per Luminaire)
Ingress protection rating
IP67
Impact resistance rating
IK09
External operating limits
-40°C to 50°C / (-40°F to 122°F)
Warranty
Five Year Limited Warranty
Accessories
Optional optical distribution and mounting accessories available for the utmost design flexibility.


Overview

  • IP67
  • IK09
  • DMX
  • RDM
  • ETL Listed

Optional Features

  • Optional Polar

Downloads

Specification SheetSpecification Sheet
PDF
Overview PresentationOverview Presentation
PDF
ConfigurationConfiguration
PDF
User ManualUser Manual
PDF
PicturesPictures
ZIP
IESIES
ZIP
REVITREVIT
ZIP
